Abstract Open Inventor base class for sampler nodes based on a framebuffer object. More...

#include <SoFramebufferSampler.h>

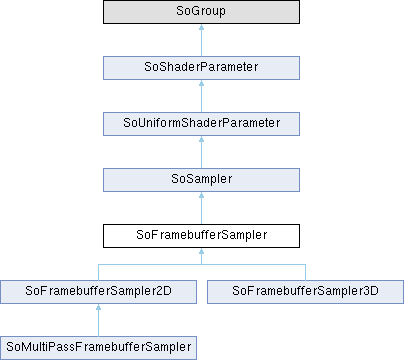

Inheritance diagram for SoFramebufferSampler:

Public Types
enum	ColorBufferFormat { RGB = GL_RGB , RGB8 = GL_RGB8 , RGB16 = GL_RGB16 , RGB16F = GL_RGB16F_ARB , RGB32F = GL_RGB32F_ARB , RGBA = GL_RGBA , RGBA8 = GL_RGBA8 , RGBA16 = GL_RGBA16 , RGBA16F = GL_RGBA16F_ARB , RGBA32F = GL_RGBA32F_ARB }
	Internal texture format for color buffer. More...

enum	DepthBufferTarget { NONE = 0 , RENDERBUFFER = 1 , TEXTURE = 2 }
	Depth buffer mode. More...

Public Types inherited from SoSampler
enum	TexGenMode { NORMAL_MAP = GL_NORMAL_MAP_EXT , REFLECTION_MAP = GL_REFLECTION_MAP_EXT }
	Texture gen mode. More...

enum	Wrap { REPEAT = GL_REPEAT , CLAMP = GL_CLAMP , CLAMP_TO_EDGE = GL_CLAMP_TO_EDGE , CLAMP_TO_BORDER = GL_CLAMP_TO_BORDER , MIRRORED_REPEAT = GL_MIRRORED_REPEAT }
	Texture wrap type. More...

enum	Filter { NEAREST = GL_NEAREST , LINEAR = GL_LINEAR , NEAREST_MIPMAP_NEAREST = GL_NEAREST_MIPMAP_NEAREST , NEAREST_MIPMAP_LINEAR = GL_NEAREST_MIPMAP_LINEAR , LINEAR_MIPMAP_NEAREST = GL_LINEAR_MIPMAP_NEAREST , LINEAR_MIPMAP_LINEAR = GL_LINEAR_MIPMAP_LINEAR }
	Filter methods for minification and magnification. More...

Public Member Functions
	SoFramebufferSampler ()
	Constructor. More...

void	GLRender (SoGLRenderAction *action) override
	Add node to parameter list element, and call 'updatePreparation'. More...

void	getBoundingBox (SoGetBoundingBoxAction *action) override
	Compute bounding-box of subgraph. More...

void	handleEvent (SoHandleEventAction *action) override

void	renderInSeparateRenderAction ()
	Renders in an extra render action and tries to reset the GL state as far as possible to avoid that the scene below is affected by above state. More...

void	updatePreparationInternal (SoGLRenderAction *action)
	Helper method to call updatePreparation. More...

Public Member Functions inherited from SoSampler
void	updateParameter (SoUniformParameterBase uniformBase, SoState state) override
	Assigns or updates the parameter's value. More...

Public Member Functions inherited from SoUniformShaderParameter
void	GLRender (SoGLRenderAction *action) override
	Add this node to element in state. More...

virtual void	updatePreparation (SoState *)
	Hook for internal preparation steps. More...

Public Member Functions inherited from SoShaderParameter
void	callback (SoCallbackAction *) override
	Shut down handling of these actions for children. More...

void	GLRender (SoGLRenderAction *) override

void	getBoundingBox (SoGetBoundingBoxAction *) override

void	getMatrix (SoGetMatrixAction *) override

void	handleEvent (SoHandleEventAction *) override

void	pick (SoPickAction *) override

Static Public Member Functions
static void	resetFixedFunctionGLState ()
	Resets the current GL state as far as possible (but leaves FBO intact, to allow push/pop later) More...

static void	initClass ()
	Initialize class with runtime type system. More...

Static Public Member Functions inherited from SoSampler
static void	initClass ()
	Initialize class with runtime type system. More...

Static Public Member Functions inherited from SoUniformShaderParameter
static void	initClass ()
	Initialize class with runtime type system. More...

Static Public Member Functions inherited from SoShaderParameter
static void	initClass ()
	Initialize class with runtime type system. More...

Public Attributes
SoSFEnum	colorBufferFormat
	Internal format of color buffer. Default is RGBA. More...

SoSFEnum	depthBufferTarget
	Enable/Disable depth buffer. Default is TRUE. More...

SoSFBool	stencilBuffer
	Enable/Disable stencil buffer. Default is FALSE. More...

SoSFColor	clearColor
	Color used to clear the color buffer. More...

SoSFFloat	clearAlpha
	Alpha value used to clear the color buffer. More...

SoSFEnum	wrapT
	Wrapping mode. More...

SoSFBool	useSizeStateHints
	Read state for size hints. More...

SoSFBool	useFormatStateHints
	Read state for format hints. More...

SoSFFloat	sizeMultiplier
	Size provided by size state hints is multiplied with this value. More...

SoSFFloat	pixelScale
	Scale factor for pixel size. More...

SoSFBool	automaticTraversal
	Automatically traverse child scene. More...

SoSFTrigger	takeSnapshot
	Take a snapshot of the scene. More...

SoSFBool	useSeparateRenderAction
	If enabled, a separate offscreen renderaction is used instead of the render action of the scene above the node itself. More...

Public Attributes inherited from SoSampler
SoSFEnum	wrapS
	Wrapping mode. Default is REPEAT. More...

SoSFBool	enableBorder
	Enable border to be part of the texture. Default is FALSE. More...

SoSFVec4f	borderColor
	Border color used to for border texture filtering. Only used if 'enableBorder' is FALSE. Default is (0, 0, 0, 0). More...

SoSFEnum	minFilter
	Minification filter mode. Default is LINEAR. More...

SoSFEnum	magFilter
	Magnification filter mode. Default is LINEAR. More...

SoSFBool	use16BitFloat
	Use 16 Bit floating point for the texture format. More...

SoSFBool	needsTextureCoordinates
	Enable this if the sampler needs the standard inventor texture coordinates. More...

Public Attributes inherited from SoUniformShaderParameter
std::set< SbString >	auxUniformParameters
	Auxiliary uniform shader parameters which are maintained by this node. More...

Public Attributes inherited from SoShaderParameter
SoSFString	name
	Name given to parameter in high level languages. More...

Protected Member Functions
	~SoFramebufferSampler () override
	Destructor. More...

virtual void	applyRenderAction (SoState *)
	Function applies render action to children. More...

void	nameChanged (SoField *field) override
	Called when sampler name has changed. More...

Protected Member Functions inherited from SoSampler
	~SoSampler () override

	SoSampler ()
	Constructor. More...

GLint	getInternalFormat (GLenum glDataType)
	Return specialized texture format for GL data type. More...

const char *	getTextureFormatName (GLenum internalFormat)
	Return texture format name. More...

SbSamplerInfo::TextureType	getTextureTypeFromGLFormat (GLenum internalFormat)

void	postTextureFormatInfo (GLenum target, GLint format)
	Prints channel depths for given target and format. More...

void	postTextureSizeInfo (GLenum target)
	Prints the size of the bound texture. More...

virtual void	texConfigChanged (SoField *)
	Called when texture configuration (e.g. filter mode) has changed. More...

Protected Member Functions inherited from SoUniformShaderParameter
	SoUniformShaderParameter ()
	Constructor. More...

Protected Member Functions inherited from SoShaderParameter
	SoShaderParameter ()
	Constructor. More...

Protected Attributes
SbBool	_fldValUseSizeHints

SbBool	_fldValUseFormatHints

ColorBufferFormat	_fldValColorBufferFormat

DepthBufferTarget	_fldValDepthBufferTarget

SbBool	_fldValStencilBuffer

SbBool	_rebuild

SbBool	_takeSnapshot

int32_t	_dataFormat

SbString	_depthTextureName
	name of the uniform ?_depth parameter More...

SoGLFramebufferObject *	_framebufferObject

SoGLTexture *	_colorBuffer

SoGLRenderbuffer *	_depthBufferRBU

SoGLTexture *	_depthBufferTEX

SoGLRenderbuffer *	_stencilBuffer

SoResolutionIndependentViewerProxy *	_proxy

SoFramebufferSamplerOffscreenSceneRenderer *	_offscreenSceneRenderer

Protected Attributes inherited from SoSampler
SbBool	_hasTextureFloat
	TRUE if GL_xxx_texture_float extension is present. More...

SbString	_sizeUniformName
	name of the uniform ?_size parameter More...

unsigned int	_textureComponents

GLenum	_textureDataType

Detailed Description

Abstract Open Inventor base class for sampler nodes based on a framebuffer object.

Definition at line 35 of file SoFramebufferSampler.h.

Member Enumeration Documentation

◆ ColorBufferFormat

enum SoFramebufferSampler::ColorBufferFormat

Internal texture format for color buffer.

Enumerator
RGB
RGB8
RGB16
RGB16F
RGB32F
RGBA
RGBA8
RGBA16
RGBA16F
RGBA32F

Definition at line 44 of file SoFramebufferSampler.h.

◆ DepthBufferTarget

enum SoFramebufferSampler::DepthBufferTarget

Depth buffer mode.

Enumerator
NONE
RENDERBUFFER
TEXTURE

Definition at line 58 of file SoFramebufferSampler.h.

Constructor & Destructor Documentation

◆ SoFramebufferSampler()

SoFramebufferSampler::SoFramebufferSampler ( )

Constructor.

◆ ~SoFramebufferSampler()

SoFramebufferSampler::~SoFramebufferSampler ( )

overrideprotected

Destructor.

Member Function Documentation

◆ applyRenderAction()

virtual void SoFramebufferSampler::applyRenderAction ( SoState * )

protectedvirtual

Function applies render action to children.

Reimplemented in SoMultiPassFramebufferSampler.

◆ getBoundingBox()

void SoFramebufferSampler::getBoundingBox ( SoGetBoundingBoxAction * action )

override

Compute bounding-box of subgraph.

◆ GLRender()

void SoFramebufferSampler::GLRender ( SoGLRenderAction * action )

override

Add node to parameter list element, and call 'updatePreparation'.

◆ handleEvent()

void SoFramebufferSampler::handleEvent ( SoHandleEventAction * action )

override

◆ initClass()

static void SoFramebufferSampler::initClass ( )

static

Initialize class with runtime type system.

◆ nameChanged()

void SoFramebufferSampler::nameChanged ( SoField * field )

overrideprotectedvirtual

Called when sampler name has changed.

Reimplemented from SoSampler.

◆ renderInSeparateRenderAction()

void SoFramebufferSampler::renderInSeparateRenderAction ( )

Renders in an extra render action and tries to reset the GL state as far as possible to avoid that the scene below is affected by above state.

◆ resetFixedFunctionGLState()

static void SoFramebufferSampler::resetFixedFunctionGLState ( )

static

Resets the current GL state as far as possible (but leaves FBO intact, to allow push/pop later)

◆ updatePreparationInternal()

void SoFramebufferSampler::updatePreparationInternal ( SoGLRenderAction * action )

Helper method to call updatePreparation.

Member Data Documentation

◆ _colorBuffer

SoGLTexture* SoFramebufferSampler::_colorBuffer

protected

Definition at line 124 of file SoFramebufferSampler.h.

◆ _dataFormat

int32_t SoFramebufferSampler::_dataFormat

protected

Definition at line 118 of file SoFramebufferSampler.h.

◆ _depthBufferRBU

SoGLRenderbuffer* SoFramebufferSampler::_depthBufferRBU

protected

Definition at line 125 of file SoFramebufferSampler.h.

◆ _depthBufferTEX

SoGLTexture* SoFramebufferSampler::_depthBufferTEX

protected

Definition at line 126 of file SoFramebufferSampler.h.

◆ _depthTextureName

SbString SoFramebufferSampler::_depthTextureName

protected

name of the uniform ?_depth parameter

Definition at line 121 of file SoFramebufferSampler.h.

◆ _fldValColorBufferFormat

ColorBufferFormat SoFramebufferSampler::_fldValColorBufferFormat

protected

Definition at line 112 of file SoFramebufferSampler.h.

◆ _fldValDepthBufferTarget

DepthBufferTarget SoFramebufferSampler::_fldValDepthBufferTarget

protected

Definition at line 113 of file SoFramebufferSampler.h.

◆ _fldValStencilBuffer

SbBool SoFramebufferSampler::_fldValStencilBuffer

protected

Definition at line 114 of file SoFramebufferSampler.h.

◆ _fldValUseFormatHints

SbBool SoFramebufferSampler::_fldValUseFormatHints

protected

Definition at line 111 of file SoFramebufferSampler.h.

◆ _fldValUseSizeHints

SbBool SoFramebufferSampler::_fldValUseSizeHints

protected

Definition at line 110 of file SoFramebufferSampler.h.

◆ _framebufferObject

SoGLFramebufferObject* SoFramebufferSampler::_framebufferObject

protected

Definition at line 123 of file SoFramebufferSampler.h.

◆ _offscreenSceneRenderer

SoFramebufferSamplerOffscreenSceneRenderer* SoFramebufferSampler::_offscreenSceneRenderer

protected

Definition at line 131 of file SoFramebufferSampler.h.

◆ _proxy

SoResolutionIndependentViewerProxy* SoFramebufferSampler::_proxy

protected

Definition at line 129 of file SoFramebufferSampler.h.

◆ _rebuild

SbBool SoFramebufferSampler::_rebuild

protected

Definition at line 116 of file SoFramebufferSampler.h.

◆ _stencilBuffer

SoGLRenderbuffer* SoFramebufferSampler::_stencilBuffer

protected

Definition at line 127 of file SoFramebufferSampler.h.

◆ _takeSnapshot

SbBool SoFramebufferSampler::_takeSnapshot

protected

Definition at line 117 of file SoFramebufferSampler.h.

◆ automaticTraversal

SoSFBool SoFramebufferSampler::automaticTraversal

Automatically traverse child scene.

Definition at line 96 of file SoFramebufferSampler.h.

◆ clearAlpha

SoSFFloat SoFramebufferSampler::clearAlpha

Alpha value used to clear the color buffer.

Definition at line 77 of file SoFramebufferSampler.h.

◆ clearColor

SoSFColor SoFramebufferSampler::clearColor

Color used to clear the color buffer.

Definition at line 74 of file SoFramebufferSampler.h.

◆ colorBufferFormat

SoSFEnum SoFramebufferSampler::colorBufferFormat

Internal format of color buffer. Default is RGBA.

Definition at line 65 of file SoFramebufferSampler.h.

◆ depthBufferTarget

SoSFEnum SoFramebufferSampler::depthBufferTarget

Enable/Disable depth buffer. Default is TRUE.

Definition at line 68 of file SoFramebufferSampler.h.

◆ sizeMultiplier

SoSFFloat SoFramebufferSampler::sizeMultiplier

Size provided by size state hints is multiplied with this value.

Definition at line 89 of file SoFramebufferSampler.h.

◆ stencilBuffer

SoSFBool SoFramebufferSampler::stencilBuffer

Enable/Disable stencil buffer. Default is FALSE.

Definition at line 71 of file SoFramebufferSampler.h.

◆ takeSnapshot

SoSFTrigger SoFramebufferSampler::takeSnapshot

Take a snapshot of the scene.

Definition at line 99 of file SoFramebufferSampler.h.

◆ useFormatStateHints

SoSFBool SoFramebufferSampler::useFormatStateHints

Read state for format hints.

Definition at line 86 of file SoFramebufferSampler.h.

◆ useSeparateRenderAction

SoSFBool SoFramebufferSampler::useSeparateRenderAction

If enabled, a separate offscreen renderaction is used instead of the render action of the scene above the node itself.

Definition at line 103 of file SoFramebufferSampler.h.

◆ useSizeStateHints

SoSFBool SoFramebufferSampler::useSizeStateHints

Read state for size hints.

Definition at line 83 of file SoFramebufferSampler.h.

◆ wrapT

SoSFEnum SoFramebufferSampler::wrapT

Wrapping mode.

Definition at line 80 of file SoFramebufferSampler.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoShader/Inventor/nodes/SoFramebufferSampler.h

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ ColorBufferFormat

◆ DepthBufferTarget

Constructor & Destructor Documentation

◆ SoFramebufferSampler()

◆ ~SoFramebufferSampler()

Member Function Documentation

◆ applyRenderAction()

◆ getBoundingBox()

◆ GLRender()

◆ handleEvent()

◆ initClass()

◆ nameChanged()

◆ renderInSeparateRenderAction()

◆ resetFixedFunctionGLState()

◆ updatePreparationInternal()

Member Data Documentation

◆ _colorBuffer

◆ _dataFormat

◆ _depthBufferRBU

◆ _depthBufferTEX

◆ _depthTextureName

◆ _fldValColorBufferFormat

◆ _fldValDepthBufferTarget

◆ _fldValStencilBuffer

◆ _fldValUseFormatHints

◆ _fldValUseSizeHints

◆ _framebufferObject

◆ _offscreenSceneRenderer

◆ _proxy

◆ _rebuild

◆ _stencilBuffer

◆ _takeSnapshot

◆ automaticTraversal

◆ clearAlpha

◆ clearColor

◆ colorBufferFormat

◆ depthBufferTarget

◆ sizeMultiplier

◆ stencilBuffer

◆ takeSnapshot

◆ useFormatStateHints

◆ useSeparateRenderAction

◆ useSizeStateHints

◆ wrapT
