SoExtendedAxis¶

MacroModule¶

genre	`Analysis`
author	`Wolf Spindler`
package	`FMEwork/ReleaseMeVis`
definition	SoExtendedAxis.def
see also	`SoAxis`, `SoBoundingBoxVis`, `SoGrid`, `SoCorner`
keywords	`axes`, `axis`, `ticks`, `subticks`, `coordinates`, `system`, `euclidean`, `origin`, `orthogonal`

Purpose¶

SoExtendedAxis is a convenience macro supporting application builders. It provides a configurable coordinate system built of multiple components:

Three coordinate axis which can be configured individually in most parts.
A corner built of three planes which can be configured with colors and textures.
A grid in the corner whose extents and stepping is adapted to the extents of the three axis.

The three axis can be flipped, their value ranges can be modified as well as the position in space where they are drawn.

Windows¶

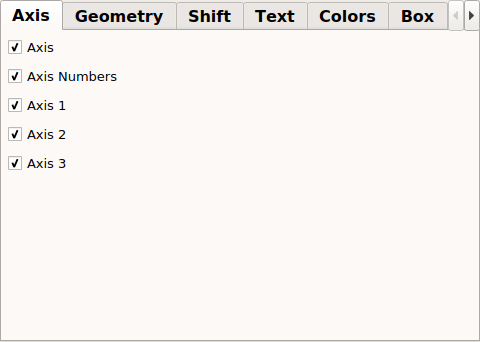

Default Panel¶

../../../Projects/SoExtendedAxis/Modules/mhelp/Images/Screenshots/SoExtendedAxis._default.png

Output Fields¶

self¶

name: self, type: SoNode¶: Output connector to insert the node into an OpenInventor scene graph.

AxisSeparatorSelf¶

name: AxisSeparatorSelf, type: SoNode¶: An output only providing the axis coordinate system without corner or grid.

CornerSeparatorSelf¶

name: CornerSeparatorSelf, type: SoNode¶: An output only providing the corner system without axis or grid.

GridSeparatorSelf¶

name: GridSeparatorSelf, type: SoNode¶: An output only providing the axis coordinate system without axis or corner.

Parameter Fields¶

Field Index¶

`Auto Adjust`: `Trigger`	`Corner Blend Color3`: `Color`	`Grid3`: `Bool`
`Axis`: `Bool`	`Corner Blend Model1`: `Enum`	`Shift X (axisShift1X)`: `Double`
`Axis 1 (axis1Visibility)`: `Bool`	`Corner Blend Model2`: `Enum`	`Shift X (axisShift2X)`: `Double`
`Axis 1 (axis1Text)`: `String`	`Corner Blend Model3`: `Enum`	`Shift X (axisShift2Z)`: `Double`
`Axis 1 (axis1Color)`: `Color`	`Corner Color1`: `Color`	`Shift X (axisShift3X)`: `Double`
`Axis 2 (axis2Visibility)`: `Bool`	`Corner Color2`: `Color`	`Shift Y (axisShift1Y)`: `Double`
`Axis 2 (axis2Text)`: `String`	`Corner Color3`: `Color`	`Shift Y (axisShift2Y)`: `Double`
`Axis 2 (axis2Color)`: `Color`	`Corner Plane1`: `Bool`	`Shift Y (axisShift3Y)`: `Double`
`Axis 3 (axis3Visibility)`: `Bool`	`Corner Plane2`: `Bool`	`Shift Z (axisShift1Z)`: `Double`
`Axis 3 (axis3Text)`: `String`	`Corner Plane3`: `Bool`	`Shift Z (axisShift3Z)`: `Double`
`Axis 3 (axis3Color)`: `Color`	`Corner Texture Wrap S1`: `Enum`	`X (axisExtentX)`: `Integer`
`Axis Box`: `Bool`	`Corner Texture Wrap S2`: `Enum`	`X (axisStepSizeX)`: `Double`
`Axis Numbers`: `Bool`	`Corner Texture Wrap S3`: `Enum`	`X (axisNumBiasX)`: `Double`
`Axis1 (numPrefix1Text)`: `String`	`Corner Texture Wrap T1`: `Enum`	`X (axisOverScaleX)`: `Double`
`Axis1 (numPostfix1Text)`: `String`	`Corner Texture Wrap T2`: `Enum`	`X (axisMarkerLengthX)`: `Double`
`Axis1 (axisText1AlignMode)`: `Enum`	`Corner Texture Wrap T3`: `Enum`	`X (axisWingLengthX)`: `Double`
`Axis1 (axisNum1AlignMode)`: `Enum`	`Corner Texture1`: `String`	`Y (axisExtentY)`: `Integer`
`Axis2 (numPrefix2Text)`: `String`	`Corner Texture2`: `String`	`Y (axisStepSizeY)`: `Double`
`Axis2 (numPostfix2Text)`: `String`	`Corner Texture3`: `String`	`Y (axisNumBiasY)`: `Double`
`Axis2 (axisText2AlignMode)`: `Enum`	`Corner Thickness`: `Double`	`Y (axisOverScaleY)`: `Double`
`Axis2 (axisNum2AlignMode)`: `Enum`	`Font Size`: `Integer`	`Y (axisMarkerLengthY)`: `Double`
`Axis3 (numPrefix3Text)`: `String`	`Grid Color1`: `Color`	`Y (axisWingLengthY)`: `Double`
`Axis3 (numPostfix3Text)`: `String`	`Grid Color2`: `Color`	`Z (axisExtentZ)`: `Integer`
`Axis3 (axisText3AlignMode)`: `Enum`	`Grid Color3`: `Color`	`Z (axisStepSizeZ)`: `Double`
`Axis3 (axisNum3AlignMode)`: `Enum`	`Grid Line Radius1`: `Double`	`Z (axisNumBiasZ)`: `Double`
`axisNumBias`: `Vector3`	`Grid Line Radius2`: `Double`	`Z (axisOverScaleZ)`: `Double`
`Box`: `Color`	`Grid Line Radius3`: `Double`	`Z (axisMarkerLengthZ)`: `Double`
`Corner`: `Bool`	`Grid On`: `Bool`	`Z (axisWingLengthZ)`: `Double`
`Corner Blend Color1`: `Color`	`Grid1`: `Bool`
`Corner Blend Color2`: `Color`	`Grid2`: `Bool`

Visible Fields¶

Axis¶

name: axisOn, type: Bool, default: TRUE¶: Controls the visibility of the three axis.

Axis Box¶

name: axisBoxOn, type: Bool, default: TRUE¶: Controls the visibility of the box.

Axis Numbers¶

name: axisNumberingOn, type: Bool, default: TRUE¶: Controls the visibility of the axis end texts.

Axis 1 (axis1Visibility)¶

name: axis1Visibility, type: Bool, default: TRUE¶: Controls the visibility of axis 1.

Axis 2 (axis2Visibility)¶

name: axis2Visibility, type: Bool, default: TRUE¶: Controls the visibility of axis 2.

Axis 3 (axis3Visibility)¶

name: axis3Visibility, type: Bool, default: TRUE¶: Controls the visibility of axis 3.

Axis 1 (axis1Text)¶

name: axis1Text, type: String, default: X¶: The text to be drawn at the end of axis 1.

Axis 2 (axis2Text)¶

name: axis2Text, type: String, default: Y¶: The text to be drawn at the end of axis 2.

Axis 3 (axis3Text)¶

name: axis3Text, type: String, default: Z¶: The text to be drawn at the end of axis 3.

Axis 1 (axis1Color)¶

name: axis1Color, type: Color, default: 1 1 1¶: The color to be used when axis 1 is drawn.

Axis 2 (axis2Color)¶

name: axis2Color, type: Color, default: 1 1 1¶: The color to be used when axis 2 is drawn.

Axis 3 (axis3Color)¶

name: axis3Color, type: Color, default: 1 1 1¶: The color to be used when axis 3 is drawn.

X (axisExtentX)¶

name: axisExtentX, type: Integer, default: 10, minimum: 1, maximum: 1.07374e+09¶: The extent to be used by axis 1.

Y (axisExtentY)¶

name: axisExtentY, type: Integer, default: 10, minimum: 1, maximum: 1.07374e+09¶: The extent to be used by axis 2.

Z (axisExtentZ)¶

name: axisExtentZ, type: Integer, default: 10, minimum: 1, maximum: 1.07374e+09¶: The extent to be used by axis 3.

Auto Adjust¶

name: autoAdjust, type: Trigger¶: Adjust a number of fields heuristically to the current extent of the axis to make the relations between their sizes more or less appropriate. This indirectly changes the thickness of the corner planes, the grid line radii, wing lengths, step sizes, marker and wing lengths.

X (axisStepSizeX)¶

name: axisStepSizeX, type: Double, default: 2, minimum: 1e-05¶: The steps between two ticks on axis 1.

Y (axisStepSizeY)¶

name: axisStepSizeY, type: Double, default: 2, minimum: 1e-05¶: The steps between two ticks on axis 2.

Z (axisStepSizeZ)¶

name: axisStepSizeZ, type: Double, default: 2, minimum: 1e-05¶: The steps between two ticks on axis 3.

X (axisNumBiasX)¶

name: axisNumBiasX, type: Double, default: 0¶: The values at which numbering of axis 1 starts.

Y (axisNumBiasY)¶

name: axisNumBiasY, type: Double, default: 0¶: The values at which numbering of axis 2 starts.

Z (axisNumBiasZ)¶

name: axisNumBiasZ, type: Double, default: 0¶: The values at which numbering of axis 3 starts.

Shift X (axisShift1X)¶

name: axisShift1X, type: Double, default: 0¶: The x-translation in space of axis 1.

Shift Y (axisShift1Y)¶

name: axisShift1Y, type: Double, default: 0¶: The y-translation in space of axis 1.

Shift Z (axisShift1Z)¶

name: axisShift1Z, type: Double, default: 0¶: The z-translation in space of axis 1.

Shift X (axisShift2X)¶

name: axisShift2X, type: Double, default: 0¶: The x-translation in space of axis 2.

Shift Y (axisShift2Y)¶

name: axisShift2Y, type: Double, default: 0¶: The y-translation in space of axis 2.

Shift X (axisShift2Z)¶

name: axisShift2Z, type: Double, default: 0¶: The z-translation in space of axis 2.

Shift X (axisShift3X)¶

name: axisShift3X, type: Double, default: 0¶: The x-translation in space of axis 3.

Shift Y (axisShift3Y)¶

name: axisShift3Y, type: Double, default: 0¶: The y-translation in space of axis 3.

Shift Z (axisShift3Z)¶

name: axisShift3Z, type: Double, default: 0¶: The z-translation in space of axis 3.

X (axisOverScaleX)¶

name: axisOverScaleX, type: Double, default: 1.1, minimum: 1¶: Scales axes 1, exceeding the extents, such that it is a bit longer then the specified extent. This usually improves the visual appearance and provides enough space for the axis tip and text at the end.

Y (axisOverScaleY)¶

name: axisOverScaleY, type: Double, default: 1.1, minimum: 1¶: Scales axes 1, exceeding the extents, such that it is a bit longer then the specified extent. This usually improves the visual appearance and provides enough space for the axis tip and text at the end.

Z (axisOverScaleZ)¶

name: axisOverScaleZ, type: Double, default: 1.1, minimum: 1¶: Scales axes 1, exceeding the extents, such that it is a bit longer then the specified extent. This usually improves the visual appearance and provides enough space for the axis tip and text at the end.

X (axisMarkerLengthX)¶

name: axisMarkerLengthX, type: Double, default: 0.5, minimum: 0¶: The length of the markers indicating the positions to which drawn numbers belong.

Y (axisMarkerLengthY)¶

name: axisMarkerLengthY, type: Double, default: 0.5, minimum: 0¶: The length of the markers indicating the positions to which drawn numbers belong.

Z (axisMarkerLengthZ)¶

name: axisMarkerLengthZ, type: Double, default: 0.5, minimum: 0¶: The length of the markers indicating the positions to which drawn numbers belong.

X (axisWingLengthX)¶

name: axisWingLengthX, type: Double, default: 0.5, minimum: 0¶: The length of the wings of the arrow tip.

Y (axisWingLengthY)¶

name: axisWingLengthY, type: Double, default: 0.5, minimum: 0¶: The length of the wings of the arrow tip.

Z (axisWingLengthZ)¶

name: axisWingLengthZ, type: Double, default: 0.5, minimum: 0¶: The length of the wings of the arrow tip.

Font Size¶

name: axisFontSize, type: Integer, default: 15, minimum: 6, maximum: 128¶: The font size to be used for all texts and numbers drawn next to the axis.

Box¶

name: axisBoxColor, type: Color, default: 1 1 1¶: The color to be used when the axis box is drawn.

Axis1 (numPrefix1Text)¶

name: numPrefix1Text, type: String, default: None¶: A text string added as prefix (or postfix) before (or after) numbers, which are drawn next to the ticks of the axis. This can be useful to add unit strings, or only spaces when numbers tend to be drawn too near to the axis lines.

Axis2 (numPrefix2Text)¶

name: numPrefix2Text, type: String, default: None¶: See Axis1.

Axis3 (numPrefix3Text)¶

name: numPrefix3Text, type: String, default: None¶: See Axis1.

Axis1 (numPostfix1Text)¶

name: numPostfix1Text, type: String, default: None¶: See Axis1.

Axis2 (numPostfix2Text)¶

name: numPostfix2Text, type: String, default: None¶: See Axis1.

Axis3 (numPostfix3Text)¶

name: numPostfix3Text, type: String, default: None¶: See Axis1.

Axis1 (axisText1AlignMode)¶

name: axisText1AlignMode, type: Enum, default: Axis::AXIS_TEXT_ALIGN_LEFT¶: Controls the alignment of the text drawn at tip ends of the axis.

Values:

Title	Name	Description
LEFT	Axis::AXIS_TEXT_ALIGN_LEFT	The text is drawn right from the calculated drawing position.
CENTER	Axis::AXIS_TEXT_ALIGN_CENTER	The text is drawn centered at the calculated drawing position.
RIGHT	Axis::AXIS_TEXT_ALIGN_RIGHT	The text is drawn left from the calculated drawing position.

Axis2 (axisText2AlignMode)¶

name: axisText2AlignMode, type: Enum, default: Axis::AXIS_TEXT_ALIGN_LEFT¶: See Axis1.

Axis3 (axisText3AlignMode)¶

name: axisText3AlignMode, type: Enum, default: Axis::AXIS_TEXT_ALIGN_RIGHT¶: See Axis1.

Axis1 (axisNum1AlignMode)¶

name: axisNum1AlignMode, type: Enum, default: Axis::AXIS_TEXT_ALIGN_RIGHT¶: Controls the alignment of the number strings drawn at ticks of the axis.

Values:

Title	Name	Description
LEFT	Axis::AXIS_TEXT_ALIGN_LEFT	See `Axis1`.
CENTER	Axis::AXIS_TEXT_ALIGN_CENTER	See `Axis1`.
RIGHT	Axis::AXIS_TEXT_ALIGN_RIGHT	See `Axis1`.

Axis2 (axisNum2AlignMode)¶

name: axisNum2AlignMode, type: Enum, default: Axis::AXIS_TEXT_ALIGN_LEFT¶: See Axis1.

Axis3 (axisNum3AlignMode)¶

name: axisNum3AlignMode, type: Enum, default: Axis::AXIS_TEXT_ALIGN_RIGHT¶: See Axis1.

Grid On¶

name: gridOn, type: Bool, default: TRUE¶: Controls the visibility of all three grids.

Grid1¶

name: grid1, type: Bool, default: TRUE¶: Controls the visibility of grid 1.

Grid2¶

name: grid2, type: Bool, default: TRUE¶: Controls the visibility of grid 2.

Grid3¶

name: grid3, type: Bool, default: TRUE¶: Controls the visibility of grid 3.

Grid Color1¶

name: gridColor1, type: Color, default: 1 1 1¶: The color of grid 1.

Grid Color2¶

name: gridColor2, type: Color, default: 1 1 1¶: The color of grid 2.

Grid Color3¶

name: gridColor3, type: Color, default: 1 1 1¶: The color of grid 3.

Grid Line Radius1¶

name: gridLineRadius1, type: Double, default: 0.045, minimum: 0.0001¶: The radius for grid lines in plane 1.

Grid Line Radius2¶

name: gridLineRadius2, type: Double, default: 0.045, minimum: 0.0001¶: The radius for grid lines in plane 2.

Grid Line Radius3¶

name: gridLineRadius3, type: Double, default: 0.045, minimum: 0.0001¶: The radius for grid lines in plane 3.

Corner¶

name: cornerOn, type: Bool, default: TRUE¶: Controls the visibility of the three corner planes.

Corner Plane1¶

name: cornerPlane1, type: Bool, default: TRUE¶: See SoCorner.plane1.

Corner Plane2¶

name: cornerPlane2, type: Bool, default: TRUE¶: See SoCorner.plane2.

Corner Plane3¶

name: cornerPlane3, type: Bool, default: TRUE¶: See SoCorner.plane3.

Corner Color1¶

name: cornerColor1, type: Color, default: 0.8 0.8 0.8¶: See SoCorner.color1.

Corner Color2¶

name: cornerColor2, type: Color, default: 0.8 0.8 0.8¶: See SoCorner.color2.

Corner Color3¶

name: cornerColor3, type: Color, default: 0.8 0.8 0.8¶: See SoCorner.color3.

Corner Thickness¶

name: cornerThickness, type: Double, default: 0.06, minimum: 0.0001¶: See SoCorner.thickness.

Corner Texture1¶

name: cornerTexture1, type: String¶: See SoCorner.t1filename.

Corner Texture Wrap S1¶

name: cornerTextureWrapS1, type: Enum, default: REPEAT¶: See SoCorner.t1WrapS.

Corner Texture Wrap T1¶

name: cornerTextureWrapT1, type: Enum, default: REPEAT¶: See SoCorner.t1WrapT.

Corner Blend Model1¶

name: cornerBlendModel1, type: Enum, default: MODULATE¶: See SoCorner.t1Model.

Corner Blend Color1¶

name: cornerBlendColor1, type: Color, default: 0.819607853889465 0.69803923368454 0.69803923368454¶: See SoCorner.t1BlendColor.

Corner Texture2¶

name: cornerTexture2, type: String¶: See SoCorner.t2filename.

Corner Texture Wrap S2¶

name: cornerTextureWrapS2, type: Enum, default: REPEAT¶: See SoCorner.t2WrapS.

Corner Texture Wrap T2¶

name: cornerTextureWrapT2, type: Enum, default: REPEAT¶: See SoCorner.t2WrapT.

Corner Blend Model2¶

name: cornerBlendModel2, type: Enum, default: MODULATE¶: See SoCorner.t2Model.

Corner Blend Color2¶

name: cornerBlendColor2, type: Color, default: 0.819607853889465 0.69803923368454 0.69803923368454¶: See SoCorner.t2BlendColor.

Corner Texture3¶

name: cornerTexture3, type: String¶: See SoCorner.t3filename.

Corner Texture Wrap S3¶

name: cornerTextureWrapS3, type: Enum, default: REPEAT¶: See SoCorner.t3WrapS.

Corner Texture Wrap T3¶

name: cornerTextureWrapT3, type: Enum, default: REPEAT¶: See SoCorner.t3WrapT.

Corner Blend Model3¶

name: cornerBlendModel3, type: Enum, default: MODULATE¶: See SoCorner.t3Model.

Corner Blend Color3¶

name: cornerBlendColor3, type: Color, default: 0.819607853889465 0.69803923368454 0.69803923368454¶: See SoCorner.t3BlendColor.

Hidden Fields¶

axisNumBias¶

name: axisNumBias, type: Vector3, default: 0 0 0¶
