SoCorner¶

MacroModule¶

author	`Wolf Spindler`
package	`FMEstable/ReleaseMeVis`
definition	SoCorner.def
see also	`SoAxis`, `SoBoundingBoxVis`, `SoCube`, `SoGrid`
keywords	`axes`, `axis`, `edges`, `orthogonal`, `walls`, `angle`, `nook`

Purpose¶

SoCorner is a convenience macro drawing a corner (half a box) built of three planes (built of three very flat cubes). It is useful in combination with data displays, coordinate systems or data grids which need a view from one side. The three planes can be enabled and configured separately to have different colors, textures and extents.

Windows¶

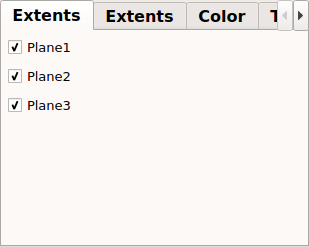

Default Panel¶

../../../Projects/SoCorner/Modules/mhelp/Images/Screenshots/SoCorner._default.png

Output Fields¶

self¶

name: self, type: SoNode¶: The output connector to an inventor scene.

Parameter Fields¶

Field Index¶

`Color1`: `Color`	`t1FileName`: `String`	`t3BlendColor`: `Color`
`Color2`: `Color`	`t1Model`: `Enum`	`t3FileName`: `String`
`Color3`: `Color`	`t1WrapS`: `Enum`	`t3Model`: `Enum`
`Depth`: `Double`	`t1WrapT`: `Enum`	`t3WrapS`: `Enum`
`Height`: `Double`	`t2BlendColor`: `Color`	`t3WrapT`: `Enum`
`Plane1`: `Bool`	`t2FileName`: `String`	`Thickness`: `Double`
`Plane2`: `Bool`	`t2Model`: `Enum`	`Width`: `Double`
`Plane3`: `Bool`	`t2WrapS`: `Enum`
`t1BlendColor`: `Color`	`t2WrapT`: `Enum`

Visible Fields¶

Plane1¶

name: plane1, type: Bool, default: TRUE¶: Enables or disables plane 1.

Plane2¶

name: plane2, type: Bool, default: TRUE¶: Enables or disables plane 2.

Plane3¶

name: plane3, type: Bool, default: TRUE¶: Enables or disables plane 3.

Width¶

name: width, type: Double, default: 64¶: The width of the corner.

Height¶

name: height, type: Double, default: 64¶: The height of the corner.

Depth¶

name: depth, type: Double, default: 64¶: The depth of the corner.

Color1¶

name: color1, type: Color, default: 1 1 1¶: The base color of plane 1.

Color2¶

name: color2, type: Color, default: 1 1 1¶: The base color of plane 2.

Color3¶

name: color3, type: Color, default: 1 1 1¶: The base color of plane 3.

Thickness¶

name: thickness, type: Double, default: 0.25¶: The thickness of the corner planes. Usually a percent of the extent of the corner is appropriate, however, sometimes much smaller or larger values can be better for optically or rendering purposes.

Hidden Fields¶

t1FileName¶

name: t1FileName, type: String¶: Parameter for of plane 1, see SoTexture2.filename for details.

t1WrapS¶

name: t1WrapS, type: Enum, default: REPEAT¶: Parameter for of plane 1, see SoTexture2.wrapS for details.

t1WrapT¶

name: t1WrapT, type: Enum, default: REPEAT¶: Parameter for of plane 1, see SoTexture2.wrapT for details.

t1Model¶

name: t1Model, type: Enum, default: MODULATE¶: Parameter for of plane 1, see SoTexture2.model for details.

t1BlendColor¶

name: t1BlendColor, type: Color, default: 0.819607853889465 0.69803923368454 0.69803923368454¶: Parameter for of plane 1, see SoTexture2.blendColor for details.

t2FileName¶

name: t2FileName, type: String¶: Parameter for of plane 2, see SoTexture2.filename for details.

t2WrapS¶

name: t2WrapS, type: Enum, default: REPEAT¶: Parameter for of plane 2, see SoTexture2.wrapS for details.

t2WrapT¶

name: t2WrapT, type: Enum, default: REPEAT¶: Parameter for of plane 2, see SoTexture2.wrapT for details.

t2Model¶

name: t2Model, type: Enum, default: MODULATE¶: Parameter for of plane 2, see SoTexture2.model for details.

t2BlendColor¶

name: t2BlendColor, type: Color, default: 0.819607853889465 0.69803923368454 0.69803923368454¶: Parameter for of plane 2, see SoTexture2.blendColor for details.

t3FileName¶

name: t3FileName, type: String¶: Parameter for of plane 3, see SoTexture2.filename for details.

t3WrapS¶

name: t3WrapS, type: Enum, default: REPEAT¶: Parameter for of plane 3, see SoTexture2.wrapS for details.

t3WrapT¶

name: t3WrapT, type: Enum, default: REPEAT¶: Parameter for of plane 3, see SoTexture2.wrapT for details.

t3Model¶

name: t3Model, type: Enum, default: MODULATE¶: Parameter for of plane 3, see SoTexture2.model for details.

t3BlendColor¶

name: t3BlendColor, type: Color, default: 0.819607853889465 0.69803923368454 0.69803923368454¶: Parameter for of plane 3, see SoTexture2.blendColor for details.
