SoGrid¶

MacroModule¶

author	`Wolf Spindler`
package	`FMEstable/ReleaseMeVis`
definition	SoGrid.def
see also	`SoAxis`, `SoCylinder`, `SoCorner`
keywords	`mesh`, `grid`, `grill`, `fence`, `lattice`, `graticule`

Purpose¶

SoGrid is a convenience macro drawing a simple grid built of crossing cylinders. It is useful in combination with data displays, coordinate systems or data grids which need a lattice background for axis.

Windows¶

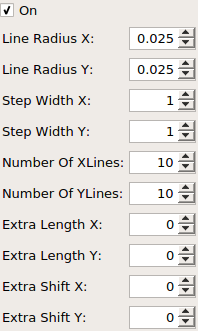

Default Panel¶

../../../Projects/SoGrid/Modules/mhelp/Images/Screenshots/SoGrid._default.png

Output Fields¶

self¶

name: self, type: SoNode¶: The output connector to an inventor scene.

Parameter Fields¶

Field Index¶

`Extra Length X`: `Double`	`On`: `Bool`
`Extra Length Y`: `Double`	`Step Width X`: `Double`
`Extra Shift X`: `Double`	`Step Width Y`: `Double`
`Extra Shift Y`: `Double`
`Line Radius X`: `Double`
`Line Radius Y`: `Double`
`Number Of XLines`: `Integer`
`Number Of YLines`: `Integer`

Visible Fields¶

On¶

name: on, type: Bool, default: TRUE¶: Enables or disables the entire grid.

Line Radius X¶

name: lineRadiusX, type: Double, default: 0.025, minimum: 0.0001¶: The cylinder diameter of lines parallel to the X axis.

Line Radius Y¶

name: lineRadiusY, type: Double, default: 0.025, minimum: 0.0001¶: The cylinder diameter of lines parallel to the Y axis.

Step Width X¶

name: stepWidthX, type: Double, default: 1, minimum: 0.0001¶: Distance between lines parallel to the X axis.

Step Width Y¶

name: stepWidthY, type: Double, default: 1, minimum: 0.0001¶: Distance between lines parallel to the Y axis.

Number Of XLines¶

name: numberOfXLines, type: Integer, default: 10, minimum: 0¶: Number of lines parallel to the X axis.

Number Of YLines¶

name: numberOfYLines, type: Integer, default: 10, minimum: 0¶: Number of lines parallel to the Y axis.

Extra Length X¶

name: extraLengthX, type: Double, default: 0, minimum: 0¶: The cylinders of the lines parallel to the X axis are enlarged in positive direction by this length.

Extra Length Y¶

name: extraLengthY, type: Double, default: 0, minimum: 0¶: The cylinders of the lines parallel to the Y axis are enlarged in positive direction by this length.

Extra Shift X¶

name: extraShiftX, type: Double, default: 0¶: The cylinders of the lines parallel to the X axis are shifted by this value.

Extra Shift Y¶

name: extraShiftY, type: Double, default: 0¶: The cylinders of the lines parallel to the Y axis are shifted by this value.
