SoDiagram2DCurveSection3¶

InventorModule¶

genre	`Diagram`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoDiagram2D`
definition	SoDiagram2D.def
see also	`SoDiagram2D`, `SoDiagram2DCurveSection2`
inherits from	`SoDiagram2DInteractionExtension`
keywords	`split`, `line`

Purpose¶

The module SoDiagram2DCurveSection3 renders a doubly split, colored background behind a diagram. The splits can be set interactively.

Usage¶

On initialization, the module splits at each third of the x-width of the curves.

Drag the splitters with the set mouse button and modifier to move it horizontally.

Windows¶

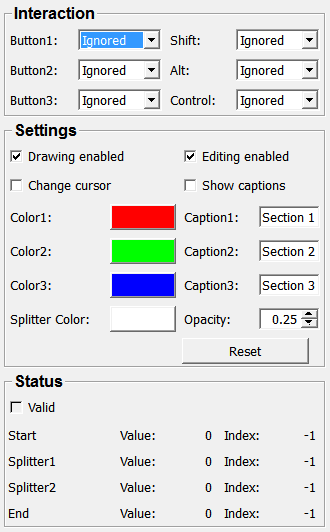

Default Panel¶

../../../Modules/Inventor/SoDiagram2D/mhelp/Images/Screenshots/SoDiagram2DCurveSection3._default.png

Input Fields¶

inCurve¶

name: inCurve, type: MLBase¶

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`Caption1`: `String`	`grabWidth`: `Float`	`split1ValY`: `Double`
`Caption2`: `String`	`Index (startPos)`: `Integer`	`split2ValY`: `Double`
`Caption3`: `String`	`Index (endPos)`: `Integer`	`Splitter Color`: `Color`
`Color1`: `Color`	`Index (split1Pos)`: `Integer`	`splitterChanged`: `Trigger`
`Color2`: `Color`	`Index (split2Pos)`: `Integer`	`startValY`: `Double`
`Color3`: `Color`	`interactionProviderID`: `String`	`Valid`: `Bool`
`Cursor Shape`: `Enum`	`keepLimits`: `Bool`	`Value (startVal)`: `Double`
`Drawing enabled`: `Bool`	`Opacity`: `Float`	`Value (endVal)`: `Double`
`Editing enabled`: `Bool`	`Reset`: `Trigger`	`Value (split1Val)`: `Double`
`endValY`: `Double`	`Show Captions`: `Bool`	`Value (split2Val)`: `Double`

Visible Fields¶

Drawing enabled¶

name: isEnabled, type: Bool, default: TRUE, deprecated name: \_isEnabled¶: If checked, the module renders the colored sections and the splitters behind the diagram.

Editing enabled¶

name: isEditingEnabled, type: Bool, default: TRUE, deprecated name: \_isEditingEnabled¶: If checked, the splitters can interactively be set.

Cursor Shape¶

name: cursorShape, type: Enum, default: MOVE_HORI_CURSOR¶

see SoDiagram2DInteractionExtension.cursorShape

Valid¶

name: inputValid, type: Bool, persistent: no, deprecated name: \_inputValid¶: Shows whether the input is valid.

Index (startPos)¶

name: startPos, type: Integer, default: -1, deprecated name: \_startPos¶: Shows the index of the diagram at the start of the first section.

Index (endPos)¶

name: endPos, type: Integer, default: -1, deprecated name: \_endPos¶: Shows the index of the diagram at the start of the third section.

Index (split1Pos)¶

name: split1Pos, type: Integer, default: -1, deprecated name: \_split1Pos¶: Shows the index of the diagram at the first splitter.

Index (split2Pos)¶

name: split2Pos, type: Integer, default: -1, deprecated name: \_split2Pos¶: Shows the index of the diagram at the second splitter.

Value (startVal)¶

name: startVal, type: Double, default: 0, deprecated name: \_startVal¶: Shows the x-value of the diagram at the start of the first section.

Value (endVal)¶

name: endVal, type: Double, default: 0, deprecated name: \_endVal¶: Shows the x-value of the diagram at the end of the third section.

Value (split1Val)¶

name: split1Val, type: Double, default: 0, deprecated name: \_split1Val¶: Shows the x-value of the diagram at the first splitter.

Value (split2Val)¶

name: split2Val, type: Double, default: 0, deprecated name: \_split2Val¶: Shows the x-value of the diagram at the second splitter.

Color1¶

name: color1, type: Color, default: 1 0 0, deprecated name: \_color1¶: Sets the color of the first section.

Color2¶

name: color2, type: Color, default: 0 1 0, deprecated name: \_color2¶: Sets the color of the second (middle) section.

Color3¶

name: color3, type: Color, default: 0 0 1, deprecated name: \_color3¶: Sets the color of the third section.

Splitter Color¶

name: splitterColor, type: Color, default: 1 1 1, deprecated name: \_splitterColor¶: Sets the color of the splitters.

Opacity¶

name: opacity, type: Float, default: 0.25, minimum: 0, maximum: 1, deprecated name: \_opacity¶: Sets the overall opacity (of the three sections and the two splitters).

Caption1¶

name: caption1, type: String, default: Section 1, deprecated name: \_caption1¶: Sets the caption of the first section.

Caption2¶

name: caption2, type: String, default: Section 2, deprecated name: \_caption2¶: Sets the caption of the second (middle) section.

Caption3¶

name: caption3, type: String, default: Section 3, deprecated name: \_caption3¶: Sets the caption of the third section.

Show Captions¶

name: showCaptions, type: Bool, default: FALSE, deprecated name: \_showCaptions¶: If checked, the caption strings are shown.

Reset¶

name: reset, type: Trigger¶: When pressed, the splitters are set back to split the diagrams into even thirds in x-direction.

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

see SoDiagram2DExtension.interactionProviderID

startValY¶

name: startValY, type: Double, default: 0, deprecated name: \_startValY¶

endValY¶

name: endValY, type: Double, default: 0, deprecated name: \_endValY¶

split1ValY¶

name: split1ValY, type: Double, default: 0, deprecated name: \_split1ValY¶

split2ValY¶

name: split2ValY, type: Double, default: 0, deprecated name: \_split2ValY¶

grabWidth¶

name: grabWidth, type: Float, default: 5¶: Width of the area on which a section delimiter can be grabbed in pixels.

keepLimits¶

name: keepLimits, type: Bool, default: FALSE, deprecated name: \_keepLimits¶

splitterChanged¶

name: splitterChanged, type: Trigger¶
