SoDiagram2DCurveSection2¶

InventorModule¶

genre	`Diagram`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoDiagram2D`
definition	SoDiagram2D.def
see also	`SoDiagram2D`, `SoDiagram2DCurveSection3`
inherits from	`SoDiagram2DInteractionExtension`
keywords	`split`, `line`

Purpose¶

The module SoDiagram2DCurveSection2 renders a split, colored background behind a diagram. The split can be set interactively.

Usage¶

On initialization, the module splits at the half of the x-width of the curves.

Drag the splitter with the set mouse button and modifier to move it horizontally.

Windows¶

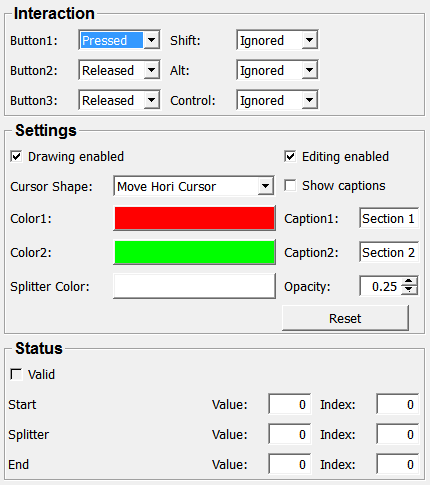

Default Panel¶

../../../Modules/Inventor/SoDiagram2D/mhelp/Images/Screenshots/SoDiagram2DCurveSection2._default.png

Input Fields¶

inCurve¶

name: inCurve, type: MLBase¶

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`Caption1`: `String`	`grabWidth`: `Float`	`Splitter Color`: `Color`
`Caption2`: `String`	`Index (startPos)`: `Integer`	`splitterChanged`: `Trigger`
`Color1`: `Color`	`Index (endPos)`: `Integer`	`splitValY`: `Double`
`Color2`: `Color`	`Index (splitPos)`: `Integer`	`startValY`: `Double`
`Cursor Shape`: `Enum`	`interactionProviderID`: `String`	`Valid`: `Bool`
`Drawing enabled`: `Bool`	`Opacity`: `Float`	`Value (startVal)`: `Double`
`Editing enabled`: `Bool`	`Reset`: `Trigger`	`Value (endVal)`: `Double`
`endValY`: `Double`	`Show Captions`: `Bool`	`Value (splitVal)`: `Double`

Visible Fields¶

Drawing enabled¶

name: isEnabled, type: Bool, default: TRUE, deprecated name: \_isEnabled¶: If checked, the module renders the colored sections and the splitter behind the diagram.

Editing enabled¶

name: isEditingEnabled, type: Bool, default: TRUE, deprecated name: \_isEditingEnabled¶: If checked, the splitter can interactively be set.

Cursor Shape¶

name: cursorShape, type: Enum, default: MOVE_HORI_CURSOR¶

see SoDiagram2DInteractionExtension.cursorShape

Valid¶

name: inputValid, type: Bool, persistent: no, deprecated name: \_inputValid¶: Shows whether the input is valid.

Index (startPos)¶

name: startPos, type: Integer, default: 0, deprecated name: \_startPos¶: Shows the index of the diagram at the start of the first section.

Index (endPos)¶

name: endPos, type: Integer, default: 0, deprecated name: \_endPos¶: Shows the index of the diagram at the end of the second section.

Index (splitPos)¶

name: splitPos, type: Integer, default: 0, deprecated name: \_splitPos¶: Shows the index of the diagram at the position of the splitter.

Value (startVal)¶

name: startVal, type: Double, default: 0, deprecated name: \_startVal¶: Shows the x-value of the diagram at the start of the first section.

Value (endVal)¶

name: endVal, type: Double, default: 0, deprecated name: \_endVal¶: Shows the x-value of the diagram at the end of the second section.

Value (splitVal)¶

name: splitVal, type: Double, default: 0, deprecated name: \_splitVal¶: Shows the x-value of the diagram at the position of the splitter.

Color1¶

name: color1, type: Color, default: 1 0 0, deprecated name: \_color1¶: Sets the color of the first section.

Color2¶

name: color2, type: Color, default: 0 1 0, deprecated name: \_color2¶: Sets the color of the second section.

Splitter Color¶

name: splitterColor, type: Color, default: 1 1 1, deprecated name: \_splitterColor¶: Sets the color of the splitter.

Opacity¶

name: opacity, type: Float, default: 0.25, minimum: 0, maximum: 1, deprecated name: \_opacity¶: Sets the overall opacity (of the two sections and the splitter).

Caption1¶

name: caption1, type: String, default: Section 1, deprecated name: \_caption1¶: Sets the caption string for the first section.

Caption2¶

name: caption2, type: String, default: Section 2, deprecated name: \_caption2¶: Sets the caption string of the second section.

Show Captions¶

name: showCaptions, type: Bool, default: FALSE, deprecated name: \_showCaptions¶: If checked, the caption strings are shown.

Reset¶

name: reset, type: Trigger¶: When pressed, the splitter is moved to the middle of the diagram in x-direction.

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

see SoDiagram2DExtension.interactionProviderID

startValY¶

name: startValY, type: Double, default: 0, deprecated name: \_startValY¶

endValY¶

name: endValY, type: Double, default: 0, deprecated name: \_endValY¶

splitValY¶

name: splitValY, type: Double, default: 0, deprecated name: \_splitValY¶

grabWidth¶

name: grabWidth, type: Float, default: 5¶: Width of the area on which a section delimiter can be grabbed in pixels.

splitterChanged¶

name: splitterChanged, type: Trigger¶
