OrthoTriplePlaneViewer¶

MacroModule¶

genre	`View2D`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
definition	TriplePlaneViewer.def
see also	`View2D`, `MPR`, `SoView2DPlane`, `SynchroView2D`
keywords	`2D`, `orthogonal`

Purpose¶

The module OrthoTriplePlaneViewer displays four synchronized 2D viewers showing three orthogonal cuts and one MPR of an input image.

Details¶

The three orthogonal 2D views and the MPR are all synchronized. The viewers all show plane indicators where the other shown planes cut through that view. Those plane indicators can interactively be manipulated: they can be moved if dragged in their center or rotated if dragged at the outer region.

Have a look at the example network for more information.

Windows¶

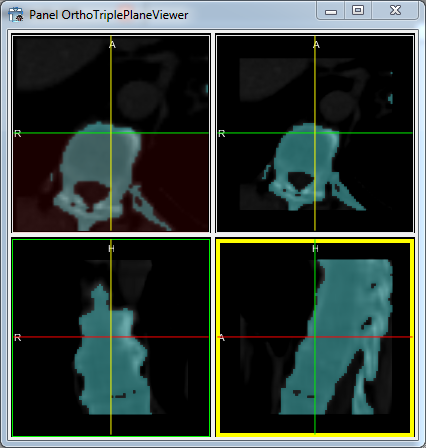

Orthogonalized Triple Plane¶

Input Fields¶

inImage¶

name: inImage, type: Image¶

inOverlay¶

name: inOverlay, type: Image¶

inInvPreLUT (hidden)¶

name: inInvPreLUT, type: SoNode¶: Before LUT and viewer Open Inventor input, e.g., for overlays independent of LUT settings

inInvPostLUT (hidden)¶

name: inInvPostLUT, type: SoNode¶: Between LUT and viewer Open Inventor input

inInvPostViewer (hidden)¶

name: inInvPostViewer, type: SoNode¶: Behind viewer Open Inventor input, e.g., for diagram overlays

Parameter Fields¶

Field Index¶

`alphaFactor`: `Float`	`overlayColor`: `Color`
`baseColor`: `Color`	`plane1`: `Plane`
`color1`: `Color`	`plane2`: `Plane`
`color2`: `Color`	`plane3`: `Plane`
`color3`: `Color`	`reinitPlanes`: `Trigger`
`fieldOfView`: `Double`	`supressPlaneInit`: `Bool`
`inventorInputOn`: `Bool`	`unzoom`: `Trigger`
`lutSetDefault`: `Trigger`

Hidden Fields¶

inventorInputOn¶

name: inventorInputOn, type: Bool, default: FALSE¶

plane1¶

name: plane1, type: Plane, default: -0.623855948448181 0.60152667760849 -0.498968362808228 54.6895484924316¶

plane2¶

name: plane2, type: Plane, default: 0.781537115573883 0.481697171926498 -0.396443694829941 120.425971984863¶

plane3¶

name: plane3, type: Plane, default: -0.00188018742483109 0.637286067008972 0.770625054836273 -446.091796875¶

color1¶

name: color1, type: Color, default: 1 0 0¶

color2¶

name: color2, type: Color, default: 0 0.945097982883453 0¶

color3¶

name: color3, type: Color, default: 1 1 0¶

overlayColor¶

name: overlayColor, type: Color, default: 0.188234999775887 0.658824026584625 0.666666984558105¶

alphaFactor¶

name: alphaFactor, type: Float, default: 0.52100003, minimum: 0, maximum: 1¶

baseColor¶

name: baseColor, type: Color, default: 0.188234999775887 0.658824026584625 0.666666984558105¶

reinitPlanes¶

name: reinitPlanes, type: Trigger¶

fieldOfView¶

name: fieldOfView, type: Double, default: 186.8¶

lutSetDefault¶

name: lutSetDefault, type: Trigger¶

unzoom¶

name: unzoom, type: Trigger¶

supressPlaneInit¶

name: supressPlaneInit, type: Bool, default: FALSE¶
