MPRLight¶

MLModule¶

genre	`Resample`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLResample1`
definition	MLResample1.def
see also	`MPR`, `MPRPath`, `Reformat`
keywords	`multi`, `planar`, `reformat`, `oblique`

Purpose¶

The module MPRLight calculates a multi-planar reformatted image from its input image.

In contrast to the module MPR, this module does not offer an Open Inventor output and is not meant to be used in an interactive context.

The fields of this module are intentionally not documented to avoid duplication of documentation. Have a look at the module MPR for details on the the fields and further information.

Usage¶

Have a look at the module MPR for further information.

Windows¶

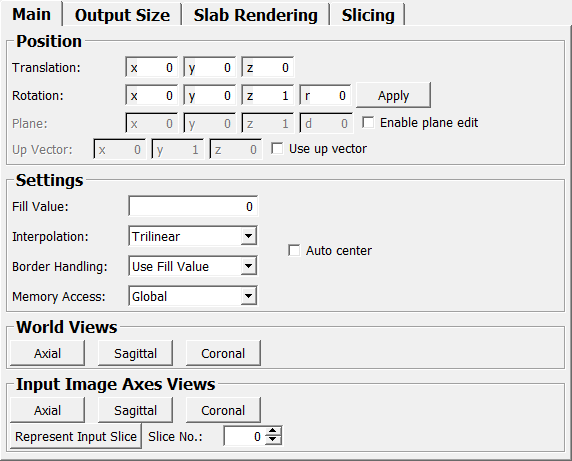

Default Panel¶

../../../Modules/ML/MLResample1/mhelp/Images/Screenshots/MPRLight._default.png

Input Fields¶

input0¶

name: input0, type: Image¶: Input image from which an MPR is computed.

Output Fields¶

output0¶

name: output0, type: Image¶: Provides the MPR image slice (or slice stack).

Parameter Fields¶

Field Index¶

centeredTranslation: Vector3

currentSliceMax: Integer

currentSliceMin: Integer

currentSliceRounded: Integer

disableDirectVoxelCopy: Bool

pageSizeX: Integer

pageSizeY: Integer

Hidden Fields¶

centeredTranslation¶

name: centeredTranslation, type: Vector3, persistent: no¶

pageSizeX¶

name: pageSizeX, type: Integer, default: 128¶

pageSizeY¶

name: pageSizeY, type: Integer, default: 128¶

disableDirectVoxelCopy¶

name: disableDirectVoxelCopy, type: Bool, default: FALSE¶

currentSliceRounded¶

name: currentSliceRounded, type: Integer, default: 0¶

currentSliceMin¶

name: currentSliceMin, type: Integer, default: 0¶

currentSliceMax¶

name: currentSliceMax, type: Integer, default: 0¶
