GenericSoView2DPointingAction

MLModule

genre	Interaction
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoInteractionControllers
definition	SoInteractionControllers.def
see also	SoInteractionInfo, SoInteractionMapping, GenericPointingAction
keywords	mouse, event, handler, managed, interaction, scheme

Purpose

The module GenericSoView2DPointingAction serves the same purpose as GenericPointingAction, but acts as a SoView2DExtension and for this reason has some additional status fields.

Only additional parameters will be described here.

Usage

Usage of this module is the same as for GenericPointingAction, but instead of GenericPointingAction.relativePosition or GenericPointingAction.absolutePosition one might also use Image Voxel Position or Image World Position.

Windows

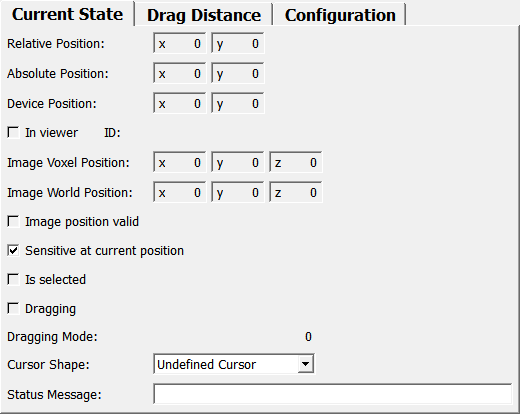

Default Panel

Output Fields

output

name: output, type: SoNode

Simply connect the output of this module into an Open Inventor scene.

Parameter Fields

Field Index

Device Position: Vector2

draggingEnded: Trigger

draggingStarted: Trigger

ID: String

Image Position Valid: Bool

Image Voxel Position: Vector3

Image World Position: Vector3

This section does not contain the fields that are already described for GenericPointingAction.

Visible Fields

Device Position

name: devicePosition, type: Vector2, persistent: no

Shows the device position as the absolute position of the mouse cursor, but corrected for the current viewport and flipped in y-position.

In 3D, this may be a virtual position.

Image Voxel Position

name: imageVoxelPosition, type: Vector3, persistent: no

Shows the current pointer position in image voxel coordinates. This value is only valid while GenericPointingAction.inViewer is true.

Image World Position

name: imageWorldPosition, type: Vector3, persistent: no

Shows the current pointer position in image world coordinates. This value is only valid while GenericPointingAction.inViewer is true.

Image Position Valid

name: imagePositionValid, type: Bool, persistent: no

Shows whether the pointer position is over the displayed image of the SoView2D. If this is false, Image Voxel Position and Image World Position might still contain valid positions that just lie outside the image area. This value is only valid while GenericPointingAction.inViewer is true.

ID

name: currentViewerId, type: String, persistent: no

Shows the SoView2D.viewerId of the SoView2D the mouse is over (or was over last)

Hidden Fields

draggingStarted

name: draggingStarted, type: Trigger, persistent: no

draggingEnded

name: draggingEnded, type: Trigger, persistent: no
