FieldTracer

MLModule

genre	Inspectors
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLDiagnosis
definition	mlDiagnosis.def
see also	Tester, RuntimeView, CacheView, Console, MLLogFile, CoreControl, Info, Checksum
keywords	diagnosis, test, fields, notifications, recorder, event, recording

Purpose

The module FieldTracer is a diagnosis module for collecting all field notifications occurring in the ML.

For each field notification or change, the module the field comes from, the field name, value, type, and validity is collected.

Windows

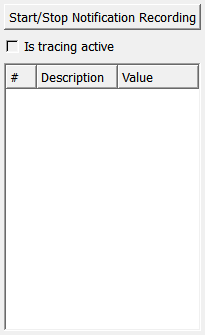

Default Panel

Parameter Fields

Visible Fields

Start/Stop Notification Recording

name: startStopTracing, type: Trigger

When pressed, the recording of field notifications is started/stopped.

The traced information can be found in Notification List.

Is tracing active

name: isTracingActive, type: Bool, persistent: no

Shows whether notifications recording is active.

Notification List

name: notificationList, type: String, persistent: no

Shows the list of recorded notifications.
