Console

MLModule

genre	Inspectors
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLDiagnosis
definition	mlDiagnosis.def
see also	MLLogFile, ErrorTest, Info, CoreControl, RuntimeView, CacheView
keywords	diagnosis, debugging, messages, log, file, outputting, outstream, information

Purpose

The module Console is a simple module containing an output area for all types of messages in the ML.

Some options are available to filter the printing of message fractions and/or messages types.

There is a similar module MLLogFile that writes the same information into a log file.

Windows

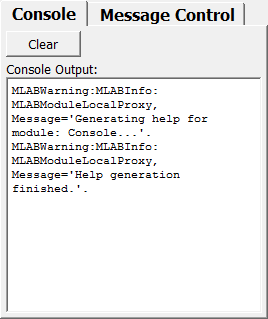

Default Panel

Parameter Fields

Field Index

Cerrs: Bool	Function Name: Bool	Other: Bool
Clear: Trigger	Handling: Bool	Time: Bool
Console Output: String	Information: Bool	Warnings: Bool
Couts: Bool	Library Prefix: Bool
Debug Infos: Bool	Line Number: Bool
Errors: Bool	Message Type: Bool
Fatal Errors: Bool	Messages: Bool
File Name: Bool	Number of KB Text to Show: Integer

Visible Fields

Information

name: logInformation, type: Bool, default: TRUE

Sets whether information messages should be written into the console.

Warnings

name: logWarnings, type: Bool, default: TRUE

Sets whether warning messages should be written into the console.

Errors

name: logErrors, type: Bool, default: TRUE

Sets whether error messages should be written into the console.

Fatal Errors

name: logFatals, type: Bool, default: TRUE

Sets whether fatal error messages should be written into the console.

Debug Infos

name: logDebugs, type: Bool, default: TRUE

Sets whether debug information should be written into the console.

Couts

name: logCouts, type: Bool, default: TRUE

Sets whether std::cout output should be written into the console.

Cerrs

name: logCerrs, type: Bool, default: TRUE

Sets whether std::cerr output should be written into the console.

Other

name: logOthers, type: Bool, default: TRUE

Sets whether other output should be written into the console.

Line Number

name: logLine, type: Bool, default: TRUE

If checked, the writing of the line number where the message was generated into the console is enabled.

File Name

name: logFileName, type: Bool, default: TRUE

If checked, the writing of the name of the file where the message was generated in into the console is enabled.

Time

name: logTime, type: Bool, default: TRUE

If checked, the writing of the time stamp when the message was generated into the console is enabled.

Function Name

name: logFunc, type: Bool, default: TRUE

If checked, the writing of the function name where the message was generated into the console is enabled.

Messages

name: logReason, type: Bool, default: TRUE

If checked, the writing of the message’s content into the console is enabled.

Handling

name: logHandling, type: Bool, default: TRUE

If checked, the writing of what the code does that handles the message event into the console is enabled.

Library Prefix

name: logLibraryPrefix, type: Bool, default: TRUE

If checked, the writing of the library prefix of the library where the message was generated into the console is enabled.

Message Type

name: logMessageType, type: Bool, default: TRUE

If checked, the writing of message type into the console is enabled.

Clear

name: clear, type: Trigger

When pressed, the contents of the console are being cleared.

Number of KB Text to Show

name: maxConsoleSize, type: Integer, default: 3, minimum: 1, maximum: 100

Sets the maximum number of characters shown in console.

Console Output

name: consoleString, type: String, persistent: no

Output area for all ML messages and errors.
