ErrorTest

MLModule

genre	Test
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLDiagnosis
definition	mlDiagnosis.def
see also	CoreControl, Console, MLLogFile, RuntimeView
keywords	testing, force, abort, assert, fatal, mlDebug, print, message, exit, debugging

Purpose

The module ErrorTest simulates many message and error types for testing purposes.

Windows

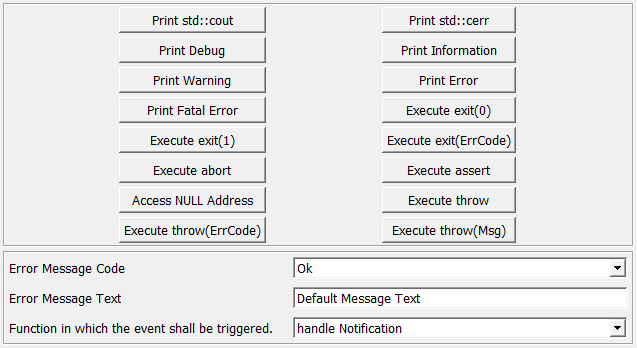

Default Panel

Output Fields

output0

name: output0, type: Image

Parameter Fields

Field Index

Defines a function in which the event shall be triggered.: Enum	Execute throw: Trigger	Print Information: Trigger
Error Message Code: Enum	Execute throw(ErrCode): Trigger	Print std::cerr: Trigger
Error Message Text: String	Execute throw(Msg): Trigger	Print std::cout: Trigger
Execute abort: Trigger	fieldToTrigger: String	Print Warning: Trigger
Execute assert: Trigger	otherPrint: Trigger
Execute exit(0): Trigger	Print Debug: Trigger
Execute exit(1): Trigger	Print Error: Trigger
Execute exit(ErrCode): Trigger	Print Fatal Error: Trigger

Visible Fields

Print std::cout

name: stdCoutPrint, type: Trigger

When pressed, a std::cout message is printed.

Print std::cerr

name: stdCerrPrint, type: Trigger

When pressed, a std::cerr message is printed.

Print Debug

name: debugPrint, type: Trigger

When pressed, a debug message is printed.

Print Information

name: informationPrint, type: Trigger

When pressed, an information message is printed.

Print Warning

name: warningPrint, type: Trigger

When pressed, an ML warning is printed or executed.

Print Error

name: errorPrint, type: Trigger

When pressed, an ML error is printed or executed.

Print Fatal Error

name: fatalPrint, type: Trigger

When pressed, a fatal ML error is printed or executed.

Execute exit(0)

name: exit0, type: Trigger

When pressed, the application is terminated with exit(0).

Execute exit(1)

name: exit1, type: Trigger

When pressed, the application is terminated with exit(1).

Execute exit(ErrCode)

name: exitWithCode, type: Trigger

When pressed, the application is terminated with exit(ErrCode).

Execute abort

name: abort, type: Trigger

When pressed, the application is terminated with abort().

Execute assert

name: assert, type: Trigger

When pressed, the application is terminated with assert(false).

Execute throw

name: executeThrow, type: Trigger

When pressed, a throw is executed.

Execute throw(ErrCode)

name: executeErrThrow, type: Trigger

When pressed, a throw(ErrCode) is executed.

Execute throw(Msg)

name: executeMsgThrow, type: Trigger

When pressed, a throw with a message string is executed.

Error Message Code

name: errorMessageType, type: Enum, default: Ok

Defines the type of error message for generated errors.

Values:

Title	Name
​Ok	​Ok
​Unknown Exception Occurred	​UnknownExceptionOccurred
​Memory Allocation Failed	​MemoryAllocationFailed
​Module Input Images Disconnected	​ModuleInputImagesDisconnected
​Cyclic Image Connection	​CyclicImageConnection
​Bad Module Pointer	​BadModulePointer
​Bad Index Of Output Image	​BadIndexOfOutputImage
​Bad Field Pointer Or Name	​BadFieldPointerOrName
​Calculation Of Image Data Failed	​CalculationOfImageDataFailed
​Calculation Of Required Image Input Extension Failed	​CalculationOfRequiredImageInputExtensionFailed
​Calculation Of Image Properties Failed	​CalculationOfImagePropertiesFailed
​Input Image Index Is Invalid	​InputImageIndexIsInvalid
​Pointer To Input Image Is Invalid	​PointerToInputImageIsInvalid
​Bad Data Type	​BadDataType
​Programming Error	​ProgrammingError
​No Error Message	​NoErrorMessage
​Page Calculation Error In Module	​PageCalculationErrorInModule
​Property Calculation Error In Module	​PropertyCalculationErrorInModule
​Inbox Calculation Error In Module	​InboxCalculationErrorInModule
​Bad Parameter	​BadParameter
​Calculation Error	​CalculationError
​Bad Image Dimension	​BadImageDimension
​Invalid Recursion	​InvalidRecursion
​Library Load/init Failed	​LibraryLoad/initFailed
​File IOError	​FileIOError
​Error Due To Previous Error	​ErrorDueToPreviousError
​Bad Index	​BadIndex
​Out Of Range	​OutOfRange
​Missing Voxel Type Operations	​MissingVoxelTypeOperations
​Bad Field Type	​BadFieldType
​Bad Field Pointer Or Memory Allocation Failed	​BadFieldPointerOrMemoryAllocationFailed
​Field Creation Error Or Memory Allocation Failed	​FieldCreationErrorOrMemoryAllocationFailed
​Type Initialization Error	​TypeInitializationError
​Exception In New	​ExceptionInNew
​Exception In Delete	​ExceptionInDelete
​Table Full	​TableFull
​Error From External Library Or Application	​ErrorFromExternalLibraryOrApplication
​Bad Base Field Type	​BadBaseFieldType
​Bad Content In Base Field	​BadContentInBaseField
​Required Type Not Registered	​RequiredTypeNotRegistered
​Library Init Failed	​LibraryInitFailed
​Bad Pointer Or NULL	​BadPointerOrNULL
​Bad State	​BadState
​Too Many Pushes Or Adds	​TooManyPushesOrAdds
​Too Many Pops Or Removes	​TooManyPopsOrRemoves
​Stack Table Or Buffer Empty	​StackTableOrBufferEmpty
​Stack Table Or Buffer Not Empty	​StackTableOrBufferNotEmpty
​Element Not Found	​ElementNotFound
​Invalid File Name	​InvalidFileName
​Invalid File Descriptor	​InvalidFileDescriptor
​File Not Open	​FileNotOpen
​No Or Invalid Permissions	​NoOrInvalidPermissions
​Disk Or Resource Full	​DiskOrResourceFull
​File Or Data Structure Corrupted	​FileOrDataStructureCorrupted
​Invalid Version	​InvalidVersion
​Unknown Or Invalid Compression Scheme	​UnknownOrInvalidCompressionScheme
​Type Already Registered	​TypeAlreadyRegistered
​Type Is Abstract	​TypeIsAbstract
​Type Not Derived From Expected Parent Class	​TypeNotDerivedFromExpectedParentClass
​Operation Interrupted	​OperationInterrupted
​Bad Page Id	​BadPageId
​Out Of Ressources	​OutOfRessources
​Object Or File Exists	​ObjectOrFileExists
​Object Or File Does Not Exist	​ObjectOrFileDoesNotExist
​Deadlock Would Occur	​DeadlockWouldOccur
​Could Not Create Open Or Modify File	​CouldNotCreateOpenOrModifyFile
​Library Unload Error	​LibraryUnloadError
​Library Unload Exception	​LibraryUnloadException
​Not Supported On This System	​NotSupportedOnThisSystem
​Object Still Referenced	​ObjectStillReferenced
​Request Outside Of Image	​RequestOutsideOfImage

Defines a function in which the event shall be triggered.

name: inFunctionToTrigger, type: Enum, default: handleNotification

Values:

Title	Name
​handle Notification	​handleNotification
​calculate Output Sub Image	​calculateOutputSubImage

Error Message Text

name: errorMessageText, type: String, default: Default Message Text

Sets a message text for generated error messages.

Hidden Fields

otherPrint

name: otherPrint, type: Trigger

fieldToTrigger

name: fieldToTrigger, type: String, default: stdCoutPrint
