RuntimeView

MLModule

genre	Inspectors
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLDiagnosis
definition	mlDiagnosis.def
see also	Console, CacheView, Checksum, CoreControl, Info, MLLogFile
keywords	type, system, parent, derived, can, create, instance, class, id

Purpose

The module RuntimeView shows all currently available runtime types that are registered in the ML.

It also shows the number of runtime types, the number of Base objects, and the number of modules. For each type, the parent type is shown (if available), whether it is a ml.Base object, whether it is a ml.Module type, whether it can be instantiated by the runtime type system of the ML, and which DLL has used this type first.

Note that runtime types are added at runtime as the name indicates. Many types are not shown until their corresponding dynamic linked libraries are instantiated.

Two other views show the currently linked DLLs and the currently instantiated modules.

Windows

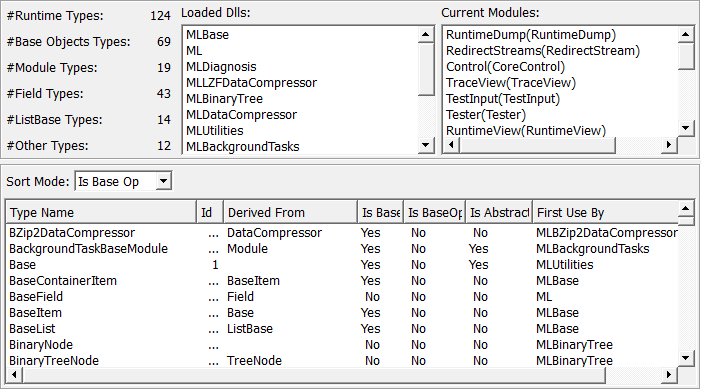

Default Panel

Parameter Fields

Field Index

#Base Objects Types: Integer	Sort Mode: Enum
#Field Types: Integer	Table: String
#ListBase Types: Integer	updateModuleList: Trigger
#Module Types: Integer
#Other Types: Integer
#Runtime Types: Integer
Dlls: String
Module List: String

Visible Fields

Table

name: table, type: String, persistent: no

Shows all currently registered ML runtime types.

Dlls

name: dlls, type: String, persistent: no

Shows all currently registered ML runtime types.

Module List

name: moduleList, type: String, persistent: no

Shows all currently instantiated ML modules.

#Runtime Types

name: numTypes, type: Integer, persistent: no

Shows the number of available runtime types.

#Field Types

name: numFields, type: Integer, persistent: no

Shows the number of types derived from ml.Field.

#ListBase Types

name: numListTypes, type: Integer, persistent: no

Shows the number of types derived from ml.ListBase.

#Base Objects Types

name: numBaseObj, type: Integer, persistent: no

Shows the number of types derived from ml.Base.

#Module Types

name: numBaseOps, type: Integer, persistent: no

Shows the number of types derived from ml.Module.

#Other Types

name: numOtherTypes, type: Integer, persistent: no

Shows the number of types derived from none above.

Sort Mode

name: sortMode, type: Enum, default: SortByName

Defines how to sort the list of runtime types.

Values:

Title	Name
​Name	​SortByName
​Super Class	​SortBySuperClass
​Is Base	​SortByIsBase
​Is Base Op	​SortByIsBaseOp
​Is Abstract	​SortByIsAbstract
​DLLName	​SortByDLLName
​Id	​SortById

Hidden Fields

updateModuleList

name: updateModuleList, type: Trigger
