DisplayLUT¶

MacroModule¶

genre	`LUT`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
definition	viewers.def
see also	`LUTInfo`, `LUTCurve`, `ApplyLUT`, `SoMLLUT`, `LUTToMLImage`
keywords	`lookup`, `table`, `diagram`, `color`, `outputinspector`

Purpose¶

The module DisplayLUT displays a one-, two- or three-dimensional lookup table (LUT) object provided at the input of the module.

Details¶

The curve display used for 1D-LUTs uses different line styles for the different LUT channels. Red, green, and blue lines represent the red, green, and blue channels of an RGB(A) LUT, a white solid line represents the luminance channel of an L(A) LUT, and a dotted line represents the alpha channel.

For the display of 2/3D-LUTs and the color bar below the curve diagram for 1D-LUTs, the alpha channel defines the image transparency, which is visualized by means of an underlying checker board pattern. The lower the alpha value, the more of the checkers pattern is visible.

See the page on LUT functions referenced by the LUTInfo help page for general information about ML lookup tables.

Windows¶

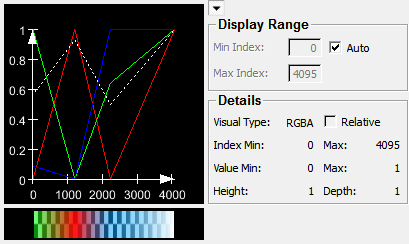

Default Panel¶

../../../Modules/Macros/Viewers/mhelp/Images/Screenshots/DisplayLUT._default.png

colorBar¶

Input Fields¶

inLUT¶

name: inLUT, type: LUTFunction(MLBase)¶

Parameter Fields¶

Field Index¶

`Auto`: `Bool`	`nativeMaxIndex`: `Double`
`depth`: `Integer`	`nativeMinIndex`: `Double`
`Detail`: `Bool`	`Relative`: `Bool`
`height`: `Integer`	`visualType`: `String`
`Max Index`: `Double`
`maxValue`: `Double`
`Min Index`: `Double`
`minValue`: `Double`

Visible Fields¶

Detail¶

name: detail, type: Bool, default: FALSE¶: Show/hide details.

Auto¶

name: autoIndexRange, type: Bool, default: TRUE¶: If checked, the index range used for display is selected automatically.

Min Index¶

name: minIndex, type: Double, default: 0¶: Sets the minimum index for displaying the LUT.

Max Index¶

name: maxIndex, type: Double, default: 1¶: Sets the maximum index for displaying the LUT.

Relative¶

name: relative, type: Bool, persistent: no¶: If checked, the displayed LUT is relative.

Hidden Fields¶

visualType¶

name: visualType, type: String, persistent: no¶

nativeMinIndex¶

name: nativeMinIndex, type: Double, persistent: no¶

nativeMaxIndex¶

name: nativeMaxIndex, type: Double, persistent: no¶

height¶

name: height, type: Integer, persistent: no¶

depth¶

name: depth, type: Integer, persistent: no¶

minValue¶

name: minValue, type: Double, persistent: no¶

maxValue¶

name: maxValue, type: Double, persistent: no¶
