Configurable logger and progress handler class which can be used as base class for logging, interruption checks and collection of messages in a user defined stream. More...

#include <mlProgressLogger.h>

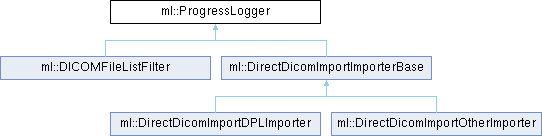

Inheritance diagram for ml::ProgressLogger:

Public Types
enum	FormatFlags { NoFlags = 0 , Bold = 1 , Green = 2 , Yellow = 4 , Red = 8 , Blue = 16 }
	Enumerator describing some formatting flags. More...

typedef bool(*	InterruptCheckFunc) (void *userData)
	Function type to check to for an interruption. More...

Public Member Functions
	ProgressLogger (std::stringstream outputStream=nullptr, NotifyField intCheckField=nullptr, StringField *statusField=nullptr, bool useRichTextCoding=true)
	Default and convenience constructor. More...

virtual	~ProgressLogger ()
	Destructor. More...

void	setAutoNewLineTermination (bool on)
	Enable/disable automatic newline termination of logged messages. More...

bool	isAutoNewLineTerminationOn () const
	Returns enabled/disabled automatic newline termination of logged messages. More...

virtual bool	messageHook (const ProgressLogger &, MLMessageType, const std::string , const std::string , MLErrorCode , const std::string , unsigned int *)
	All logging methods pass their function arguments through this hook which allows to collect all messages sent to the ProgressLogger. More...

void	logAnyMessage (std::string msg, unsigned int formatFlags=NoFlags)
	Log any string into the console. More...

void	logFatalError (const std::string &func, MLErrorCode err, const std::string &reason)
	Logs a fatal error, an error, warning or information to the defined output stream/console. More...

void	logError (const std::string &func, MLErrorCode err, const std::string &reason)
	See logFatalError() for details. More...

void	logWarning (const std::string &func, MLErrorCode err, const std::string &reason)
	See logFatalError() for details. More...

void	logInfo (const std::string &func, const std::string &reason="")
	Same as logFatalError, logError, and logWarning, but logging only information without error. More...

void	logFullFatalError (const std::string &func, MLErrorCode err, const std::string &reason)
	Logs a fatal error, an error, warning or information to the defined output stream/console and sends the information also to the MeVisLab error handler. More...

void	logFullError (const std::string &func, MLErrorCode err, const std::string &reason)
	See logFullFatalError() for details. More...

void	logFullWarning (const std::string &func, MLErrorCode err, const std::string &reason)
	See logFullFatalError() for details. More...

void	logFullInfo (const std::string &func, const std::string &reason)
	Same as logFullFatalError, logFullError, and logFullWarning, but logging only information without error. More...

bool	getRichTextCodingFlag () const
	If enabled (the default) then outputs newlines are always converted to hyper/rich text line separators ( ) and different message types get different colors; if false then contents they are always converted to normal newline characters and rich/hypertext color statements are not inserted. More...

void	setRichTextCodingFlag (bool useRichTextCoding)
	See getRichTextCodingFlag() for details. More...

bool	getUpdateProgressDuringInterruptChecksFlag () const
	If enabled then progress updates are performed on each interrupt check; this is useful to enable the busy cursor together with interrupt checks. More...

void	setUpdateProgressDuringInterruptChecksFlag (bool callUpdateProgressDuringInterruptChecks)
	See getUpdateProgressDuringInterruptChecksFlag() for details. More...

void	setStatusUpdateTimeIntervalInSeconds (double checkIntervalInSeconds)
	Sets a time interval which is used to avoid that too many Module::updateProgress() calls are performed to update the user interfaces (which usually are very expensive); default is 1 second. More...

double	getStatusUpdateTimeIntervalInSeconds () const
	Returns the currently set Module::updateProgress() call time interval when status fields are updated. More...

void	setCheckTimeIntervalInSeconds (double checkIntervalInSeconds)
	Sets a time interval which is used to avoid that too many interruption checks are performed which usually are very expensive, default is 1 second. More...

double	getCheckTimeIntervalInSeconds () const
	Returns the currently set interrupt check time interval. More...

void	setInterruptCheckFunction (InterruptCheckFunc checkFunc, void *userData)
	Set a function which actually does a check for interrupts and its user data. More...

InterruptCheckFunc	getInterruptCheckFunction () const
	Returns the currently set function for interrupt checks. More...

void *	getInterruptCheckFunctionUserData () const
	Returns the currently set user data pointer for interrupt checks. More...

void	setInterruptCheckField (NotifyField *interruptField=nullptr)
	Set a NotifyField which shall be checked for button presses which mean interruptions; ignored if nullptr. More...

NotifyField *	getInterruptCheckField () const
	Return the currently set NotifyField pointer which shall be checked for button presses; default is nullptr. More...

void	setStatusField (StringField *statusField)
	Set a StringField which always shall be updated with all logged messages; ignored if nullptr. More...

StringField *	getStatusField () const
	Return the currently set StringField pointer which is updated on logged messages; default is nullptr. More...

virtual bool	wasInterrupted ()
	If the interruption flag is already set then immediately true is returned. More...

virtual bool	getInterruptedFlag () const
	Returns current state of interruption flag (but does not check for interruption). More...

virtual void	setInterruptedFlag (bool wasInterrupted)
	Sets current state of interruption flag (but does not check for interruption). More...

virtual bool	orToInterruptedFlag (bool wasInterrupted)
	Update interruption flag by ORing the passed flag to the internal flag and then returning the flag (but does not check for interruption). More...

virtual void	updateProgressIndicator (const std::string &, float)
	Update a progress indicator which shows the message info and the percentage percState. More...

void	setHadFlags (bool hadFlag)
	Sets all had*Flags to hadFlag. More...


void	setFatalErrorMessagePrefix (const std::string &msg)
	Set/get prefixes for messages. More...

void	setErrorMessagePrefix (const std::string &msg)

void	setWarningMessagePrefix (const std::string &msg)

void	setInfoMessagePrefix (const std::string &msg)

std::string	getFatalErrorMessagePrefix () const

std::string	getErrorMessagePrefix () const

std::string	getWarningMessagePrefix () const

std::string	getInfoMessagePrefix () const


bool	hadFatalError () const
	Returns true if any fatal error, error, warning or info was logged; can be reset with corresponding setHad*Flag(). More...

bool	hadError () const

bool	hadWarning () const

bool	hadInfo () const


void	setHadFatalErrorFlag (bool hadFatalErrorFlag)
	Sets the state of the corresponding _had* member; used to clear recent logging states. More...

void	setHadErrorFlag (bool hadErrorFlag)

void	setHadWarningFlag (bool hadWarningFlag)

void	setHadInfoFlag (bool hadInfoFlag)

Static Public Member Functions
static bool	isPressedField (NotifyField *fieldToCheck)
	Convenience implementation of an interrupt check function if user of this class does not want to implement his own check callback but only wants to check a NotifyField for presses. More...

Protected Member Functions
std::string	_doAutoNewLineTerminate (const std::string &msg) const
	Helper to terminate msg with newline at end according. More...

virtual bool	_isStopPressed () const
	Checks for interruption with currently set _checkFunc or _interruptCheckField or returns false if not available. More...

virtual void	_updateConsole (bool=true)
	Updates the output console if there is any. More...

Static Protected Member Functions
static void	_updateProgressIndicatorCB (void *userData, const std::string &info, float state)
	Static callback version to update a progress indicator about the current import state. More...

Detailed Description

Configurable logger and progress handler class which can be used as base class for logging, interruption checks and collection of messages in a user defined stream.

Definition at line 32 of file mlProgressLogger.h.

Member Typedef Documentation

◆ InterruptCheckFunc

typedef bool(* ml::ProgressLogger::InterruptCheckFunc) (void *userData)

Function type to check to for an interruption.

Definition at line 37 of file mlProgressLogger.h.

Member Enumeration Documentation

◆ FormatFlags

enum ml::ProgressLogger::FormatFlags

Enumerator describing some formatting flags.

Enumerator
NoFlags
Bold
Green
Yellow
Red
Blue

Definition at line 40 of file mlProgressLogger.h.

Constructor & Destructor Documentation

◆ ProgressLogger()

ml::ProgressLogger::ProgressLogger	(	std::stringstream *	outputStream = `nullptr`,
		NotifyField *	intCheckField = `nullptr`,
		StringField *	statusField = `nullptr`,
		bool	useRichTextCoding = `true`
	)

Default and convenience constructor.

Parameters

outputStream	If non-nullptr (default is nullptr) this is the stream into which all messages are posted which are sent to the logger instance.
intCheckField	If non-nullptr (default is nullptr) then this NotifyField is checked for presses for interrupt handling when the logger is asked for this and the getCheckTimeIntervalInSeconds() is exceeded.
statusField	If non-nullptr (default is nullptr) then this is the StringField which is set to the current output message received by the logger. If getStatusUpdateTimeIntervalInSeconds() are exceeded Module::updateProgress() is called to refresh the GUI.
useRichTextCoding	Enables coding out outputs as rich text if enabled (the default) otherwise it is disabled; see setRichTextCodingFlag() for more information.

◆ ~ProgressLogger()

virtual ml::ProgressLogger::~ProgressLogger ( )

virtual

Destructor.

Member Function Documentation

◆ _doAutoNewLineTerminate()

std::string ml::ProgressLogger::_doAutoNewLineTerminate ( const std::string & msg ) const

protected

Helper to terminate msg with newline at end according.

◆ _isStopPressed()

virtual bool ml::ProgressLogger::_isStopPressed ( ) const

protectedvirtual

Checks for interruption with currently set _checkFunc or _interruptCheckField or returns false if not available.

◆ _updateConsole()

virtual void ml::ProgressLogger::_updateConsole ( bool = true )

inlineprotectedvirtual

Updates the output console if there is any.

If fullUpdate is true the the console is surely updated, if false then a time saving sloppy update is made. Does nothing, recommended to be reimplemented by subclasses.

Reimplemented in ml::DirectDicomImportImporterBase.

Definition at line 251 of file mlProgressLogger.h.

◆ _updateProgressIndicatorCB()

static void ml::ProgressLogger::_updateProgressIndicatorCB	(	void *	userData,
		const std::string &	info,
		float	state
	)

staticprotected

Static callback version to update a progress indicator about the current import state.

This is usually used by derived classes to call the overridden updateProgressIndicator method conveniently.

◆ getCheckTimeIntervalInSeconds()

double ml::ProgressLogger::getCheckTimeIntervalInSeconds ( ) const

Returns the currently set interrupt check time interval.

◆ getErrorMessagePrefix()

std::string ml::ProgressLogger::getErrorMessagePrefix ( ) const

inline

Definition at line 212 of file mlProgressLogger.h.

◆ getFatalErrorMessagePrefix()

std::string ml::ProgressLogger::getFatalErrorMessagePrefix ( ) const

inline

Definition at line 211 of file mlProgressLogger.h.

◆ getInfoMessagePrefix()

std::string ml::ProgressLogger::getInfoMessagePrefix ( ) const

inline

Definition at line 214 of file mlProgressLogger.h.

◆ getInterruptCheckField()

NotifyField* ml::ProgressLogger::getInterruptCheckField ( ) const

Return the currently set NotifyField pointer which shall be checked for button presses; default is nullptr.

◆ getInterruptCheckFunction()

InterruptCheckFunc ml::ProgressLogger::getInterruptCheckFunction ( ) const

Returns the currently set function for interrupt checks.

◆ getInterruptCheckFunctionUserData()

void* ml::ProgressLogger::getInterruptCheckFunctionUserData ( ) const

Returns the currently set user data pointer for interrupt checks.

◆ getInterruptedFlag()

virtual bool ml::ProgressLogger::getInterruptedFlag ( ) const

virtual

Returns current state of interruption flag (but does not check for interruption).

◆ getRichTextCodingFlag()

bool ml::ProgressLogger::getRichTextCodingFlag ( ) const

If enabled (the default) then outputs newlines are always converted to hyper/rich text line separators (
) and different message types get different colors; if false then
contents they are always converted to normal newline characters and rich/hypertext color statements are not inserted.

◆ getStatusField()

StringField* ml::ProgressLogger::getStatusField ( ) const

Return the currently set StringField pointer which is updated on logged messages; default is nullptr.

◆ getStatusUpdateTimeIntervalInSeconds()

double ml::ProgressLogger::getStatusUpdateTimeIntervalInSeconds ( ) const

Returns the currently set Module::updateProgress() call time interval when status fields are updated.

◆ getUpdateProgressDuringInterruptChecksFlag()

bool ml::ProgressLogger::getUpdateProgressDuringInterruptChecksFlag ( ) const

If enabled then progress updates are performed on each interrupt check; this is useful to enable the busy cursor together with interrupt checks.

If disabled then the busy cursor must be controlled by the application itself.

◆ getWarningMessagePrefix()

std::string ml::ProgressLogger::getWarningMessagePrefix ( ) const

inline

Definition at line 213 of file mlProgressLogger.h.

◆ hadError()

bool ml::ProgressLogger::hadError ( ) const

◆ hadFatalError()

bool ml::ProgressLogger::hadFatalError ( ) const

Returns true if any fatal error, error, warning or info was logged; can be reset with corresponding setHad*Flag().

◆ hadInfo()

bool ml::ProgressLogger::hadInfo ( ) const

◆ hadWarning()

bool ml::ProgressLogger::hadWarning ( ) const

◆ isAutoNewLineTerminationOn()

bool ml::ProgressLogger::isAutoNewLineTerminationOn ( ) const

Returns enabled/disabled automatic newline termination of logged messages.

◆ isPressedField()

static bool ml::ProgressLogger::isPressedField ( NotifyField * fieldToCheck )

static

Convenience implementation of an interrupt check function if user of this class does not want to implement his own check callback but only wants to check a NotifyField for presses.

◆ logAnyMessage()

void ml::ProgressLogger::logAnyMessage	(	std::string	msg,
		unsigned int	formatFlags = `NoFlags`
	)

Log any string into the console.

◆ logError()

void ml::ProgressLogger::logError	(	const std::string &	func,
		MLErrorCode	err,
		const std::string &	reason
	)

See logFatalError() for details.

◆ logFatalError()

void ml::ProgressLogger::logFatalError	(	const std::string &	func,
		MLErrorCode	err,
		const std::string &	reason
	)

Logs a fatal error, an error, warning or information to the defined output stream/console.

Parameters

func	String name of class and function.
err	ML Error code describing the nature of the problem or message.
reason	String description of the handling and the cause of the message/problem.

◆ logFullError()

void ml::ProgressLogger::logFullError	(	const std::string &	func,
		MLErrorCode	err,
		const std::string &	reason
	)

See logFullFatalError() for details.

◆ logFullFatalError()

void ml::ProgressLogger::logFullFatalError	(	const std::string &	func,
		MLErrorCode	err,
		const std::string &	reason
	)

Logs a fatal error, an error, warning or information to the defined output stream/console and sends the information also to the MeVisLab error handler.

Parameters

func	String name of class and function.
err	ML Error code describing the nature of the problem or message.
reason	String description of the handling and the cause of the message/problem.

◆ logFullInfo()

void ml::ProgressLogger::logFullInfo	(	const std::string &	func,
		const std::string &	reason
	)

Same as logFullFatalError, logFullError, and logFullWarning, but logging only information without error.

Parameters

func	String name of class and function.
reason	String description of the handling and the cause of the message/problem.

◆ logFullWarning()

void ml::ProgressLogger::logFullWarning	(	const std::string &	func,
		MLErrorCode	err,
		const std::string &	reason
	)

See logFullFatalError() for details.

◆ logInfo()

void ml::ProgressLogger::logInfo	(	const std::string &	func,
		const std::string &	reason = `""`
	)

Same as logFatalError, logError, and logWarning, but logging only information without error.

Parameters

func	String name of class and function.
reason	String description of the handling and the cause of the message/problem.

◆ logWarning()

void ml::ProgressLogger::logWarning	(	const std::string &	func,
		MLErrorCode	err,
		const std::string &	reason
	)

See logFatalError() for details.

◆ messageHook()

virtual bool ml::ProgressLogger::messageHook	(	const ProgressLogger &	,
		MLMessageType	,
		const std::string *	,
		const std::string *	,
		MLErrorCode *	,
		const std::string *	,
		unsigned int *
	)

inlinevirtual

All logging methods pass their function arguments through this hook which allows to collect all messages sent to the ProgressLogger.

All pointer arguments will be only valid if they are available in the actually called method, otherwise they will be nullptr. If this message returns true the message will be formatted and logged according to the current instance state, if false then it will completely be skipped and not further handled nor logged. The default implementation is empty and just returning true.

Definition at line 84 of file mlProgressLogger.h.

◆ orToInterruptedFlag()

virtual bool ml::ProgressLogger::orToInterruptedFlag ( bool wasInterrupted )

virtual

Update interruption flag by ORing the passed flag to the internal flag and then returning the flag (but does not check for interruption).

◆ setAutoNewLineTermination()

void ml::ProgressLogger::setAutoNewLineTermination ( bool on )

Enable/disable automatic newline termination of logged messages.

◆ setCheckTimeIntervalInSeconds()

void ml::ProgressLogger::setCheckTimeIntervalInSeconds ( double checkIntervalInSeconds )

Sets a time interval which is used to avoid that too many interruption checks are performed which usually are very expensive, default is 1 second.

◆ setErrorMessagePrefix()

void ml::ProgressLogger::setErrorMessagePrefix ( const std::string & msg )

inline

Definition at line 207 of file mlProgressLogger.h.

◆ setFatalErrorMessagePrefix()

void ml::ProgressLogger::setFatalErrorMessagePrefix ( const std::string & msg )

inline

Set/get prefixes for messages.

Definition at line 206 of file mlProgressLogger.h.

◆ setHadErrorFlag()

void ml::ProgressLogger::setHadErrorFlag ( bool hadErrorFlag )

◆ setHadFatalErrorFlag()

void ml::ProgressLogger::setHadFatalErrorFlag ( bool hadFatalErrorFlag )

Sets the state of the corresponding _had* member; used to clear recent logging states.

◆ setHadFlags()

void ml::ProgressLogger::setHadFlags ( bool hadFlag )

Sets all had*Flags to hadFlag.

◆ setHadInfoFlag()

void ml::ProgressLogger::setHadInfoFlag ( bool hadInfoFlag )

◆ setHadWarningFlag()

void ml::ProgressLogger::setHadWarningFlag ( bool hadWarningFlag )

◆ setInfoMessagePrefix()

void ml::ProgressLogger::setInfoMessagePrefix ( const std::string & msg )

inline

Definition at line 209 of file mlProgressLogger.h.

◆ setInterruptCheckField()

void ml::ProgressLogger::setInterruptCheckField ( NotifyField * interruptField = nullptr )

Set a NotifyField which shall be checked for button presses which mean interruptions; ignored if nullptr.

◆ setInterruptCheckFunction()

void ml::ProgressLogger::setInterruptCheckFunction	(	InterruptCheckFunc	checkFunc,
		void *	userData
	)

Set a function which actually does a check for interrupts and its user data.

Can be reset with nullptr in both arguments to have no function.

◆ setInterruptedFlag()

virtual void ml::ProgressLogger::setInterruptedFlag ( bool wasInterrupted )

virtual

Sets current state of interruption flag (but does not check for interruption).

◆ setRichTextCodingFlag()

void ml::ProgressLogger::setRichTextCodingFlag ( bool useRichTextCoding )

See getRichTextCodingFlag() for details.

◆ setStatusField()

void ml::ProgressLogger::setStatusField ( StringField * statusField )

Set a StringField which always shall be updated with all logged messages; ignored if nullptr.

◆ setStatusUpdateTimeIntervalInSeconds()

void ml::ProgressLogger::setStatusUpdateTimeIntervalInSeconds ( double checkIntervalInSeconds )

Sets a time interval which is used to avoid that too many Module::updateProgress() calls are performed to update the user interfaces (which usually are very expensive); default is 1 second.

◆ setUpdateProgressDuringInterruptChecksFlag()

void ml::ProgressLogger::setUpdateProgressDuringInterruptChecksFlag ( bool callUpdateProgressDuringInterruptChecks )

See getUpdateProgressDuringInterruptChecksFlag() for details.

◆ setWarningMessagePrefix()

void ml::ProgressLogger::setWarningMessagePrefix ( const std::string & msg )

inline

Definition at line 208 of file mlProgressLogger.h.

◆ updateProgressIndicator()

virtual void ml::ProgressLogger::updateProgressIndicator	(	const std::string &	,
		float
	)

inlinevirtual

Update a progress indicator which shows the message info and the percentage percState.

Does nothing, recommended to be reimplemented by subclasses.

Reimplemented in ml::DICOMFileListFilter, and ml::DirectDicomImportImporterBase.

Definition at line 203 of file mlProgressLogger.h.

◆ wasInterrupted()

virtual bool ml::ProgressLogger::wasInterrupted ( )

virtual

If the interruption flag is already set then immediately true is returned.

If not then check for interruption if passed time interval is exceeded (see setCheckTimeIntervalInSeconds to avoid that too many expensive checks are performed), ORs the state to the internal interruption state and returns the state. For interruption checks the method _isStopPressed() is called which always returns false and which therefore should be reimplemented by subclasses.

The documentation for this class was generated from the following file:

FMEstable/ReleaseMeVis/Projects/MLReleaseTools/Sources/mlProgressLogger.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ InterruptCheckFunc

Member Enumeration Documentation

◆ FormatFlags

Constructor & Destructor Documentation

◆ ProgressLogger()

◆ ~ProgressLogger()

Member Function Documentation

◆ _doAutoNewLineTerminate()

◆ _isStopPressed()

◆ _updateConsole()

◆ _updateProgressIndicatorCB()

◆ getCheckTimeIntervalInSeconds()

◆ getErrorMessagePrefix()

◆ getFatalErrorMessagePrefix()

◆ getInfoMessagePrefix()

◆ getInterruptCheckField()

◆ getInterruptCheckFunction()

◆ getInterruptCheckFunctionUserData()

◆ getInterruptedFlag()

◆ getRichTextCodingFlag()

◆ getStatusField()

◆ getStatusUpdateTimeIntervalInSeconds()

◆ getUpdateProgressDuringInterruptChecksFlag()

◆ getWarningMessagePrefix()

◆ hadError()

◆ hadFatalError()

◆ hadInfo()

◆ hadWarning()

◆ isAutoNewLineTerminationOn()

◆ isPressedField()

◆ logAnyMessage()

◆ logError()

◆ logFatalError()

◆ logFullError()

◆ logFullFatalError()

◆ logFullInfo()

◆ logFullWarning()

◆ logInfo()

◆ logWarning()

◆ messageHook()

◆ orToInterruptedFlag()

◆ setAutoNewLineTermination()

◆ setCheckTimeIntervalInSeconds()

◆ setErrorMessagePrefix()

◆ setFatalErrorMessagePrefix()

◆ setHadErrorFlag()

◆ setHadFatalErrorFlag()

◆ setHadFlags()

◆ setHadInfoFlag()

◆ setHadWarningFlag()

◆ setInfoMessagePrefix()

◆ setInterruptCheckField()

◆ setInterruptCheckFunction()

◆ setInterruptedFlag()

◆ setRichTextCodingFlag()

◆ setStatusField()

◆ setStatusUpdateTimeIntervalInSeconds()

◆ setUpdateProgressDuringInterruptChecksFlag()

◆ setWarningMessagePrefix()

◆ updateProgressIndicator()

◆ wasInterrupted()
