Abstract base class for sampler nodes that handle ML images. More...

#include <SoMLSampler.h>

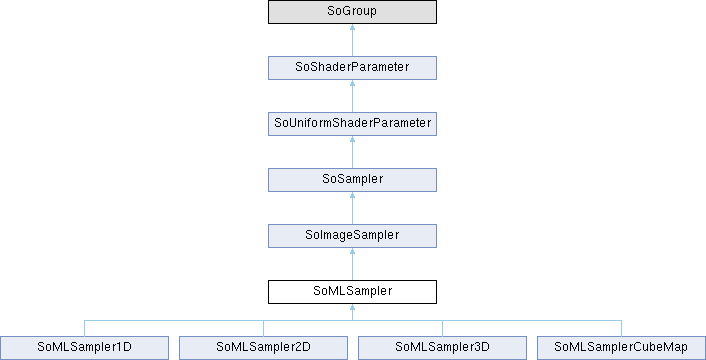

Inheritance diagram for SoMLSampler:

Public Member Functions
void	GLRender (SoGLRenderAction *action) override
	Set ML image properties in state.

void	updateParameter (SoUniformParameterBase uniformBase, SoState state) override
	Assigns or updates the parameter's value.

Public Member Functions inherited from SoSampler
void	updateParameter (SoUniformParameterBase uniformBase, SoState state) override
	Assigns or updates the parameter's value.

Public Member Functions inherited from SoUniformShaderParameter
void	GLRender (SoGLRenderAction *action) override
	Add this node to element in state.

virtual void	updatePreparation (SoState *)
	Hook for internal preparation steps.

Public Member Functions inherited from SoShaderParameter
void	callback (SoCallbackAction *) override
	Shut down handling of these actions for children.

void	GLRender (SoGLRenderAction *) override

void	getBoundingBox (SoGetBoundingBoxAction *) override

void	getMatrix (SoGetMatrixAction *) override

void	handleEvent (SoHandleEventAction *) override

void	pick (SoPickAction *) override

Static Public Member Functions
static void	initClass ()
	Initialize class with runtime type system.

Static Public Member Functions inherited from SoImageSampler
static void	initClass ()
	Initialize class with runtime type system.

Static Public Member Functions inherited from SoSampler
static void	initClass ()
	Initialize class with runtime type system.

Static Public Member Functions inherited from SoUniformShaderParameter
static void	initClass ()
	Initialize class with runtime type system.

Static Public Member Functions inherited from SoShaderParameter
static void	initClass ()
	Initialize class with runtime type system.

Public Attributes
SoSFMLImage	image
	ML image connector.

SoSFUInt32	startT
	Origin of the image in T dimension. Default is 0.

SoSFUInt32	startU
	Origin of the image in U dimension. Default is 0.

Public Attributes inherited from SoSampler
SoSFEnum	wrapS
	Wrapping mode. Default is REPEAT.

SoSFBool	enableBorder
	Enable border to be part of the texture. Default is FALSE.

SoSFVec4f	borderColor
	Border color used to for border texture filtering. Only used if 'enableBorder' is FALSE. Default is (0, 0, 0, 0).

SoSFEnum	minFilter
	Minification filter mode. Default is LINEAR.

SoSFEnum	magFilter
	Magnification filter mode. Default is LINEAR.

SoSFBool	use16BitFloat
	Use 16 Bit floating point for the texture format.

SoSFBool	needsTextureCoordinates
	Enable this if the sampler needs the standard inventor texture coordinates.

Public Attributes inherited from SoUniformShaderParameter
std::set< SbString >	auxUniformParameters
	Auxiliary uniform shader parameters which are maintained by this node.

Public Attributes inherited from SoShaderParameter
SoSFString	name
	Name given to parameter in high level languages.

Protected Member Functions
	SoMLSampler ()
	Constructor.

	~SoMLSampler () override
	Destructor.

GLenum	MLToGLDataType (const MLDataType &dType)
	Return OpenGL data type for given ML data type. Returns GL_NONE for unknown ML data types.

MLuint8 *	loadAndReformatSubImg (const XVImageSize &pos, const XVImageSize &size)
	Load ML image and reformat memory to be suitable for OpenGL texturing.

void	texConfigChanged (SoField *field) override
	Called when texture configuration (e.g. filter mode) has changed.

void	imageChanged () override
	Called when the ML images has changed.

void	imageChangedCB (SoField *field)

virtual void	calcSubImgProps (XVImageSize &subImgPosition, XVImageSize &subImgSize)=0
	Calculate position and size of used sub image by evaluation of fields.

virtual void	getTextureDataFromImage (const XVImageSize &pos, const XVImageSize &size)
	Extract the texture data from the input ML image and store it in the textureData buffer.

Protected Member Functions inherited from SoImageSampler
	SoImageSampler ()
	Constructor.

	~SoImageSampler () override
	Destructor.

virtual void	freeTextureBuffer ()
	Delete the texture buffer(s).

virtual void	updateTextureHandle ()
	Creates texture handle and binds it.

virtual void	updateTextureFilteringParameters ()
	Sets parameters for texture filtering.

virtual void	updateTextureWrappingParameters ()
	Sets parameters for texture wrapping in OpenGL.

virtual void	uploadTextureBuffer ()
	Uploads data stored in _textureBuffer using setGLTexImage.

virtual void	uploadDummyTexture (GLenum target)
	Upload a dummy texture consisting of one black voxel using setGLTexImage.

virtual void	generateMipmap ()
	Generates mipmap.

virtual void	setGLTexImage (GLenum target, const XVImageSize &textureSize, GLint internalFormat, GLint format, GLenum textureDataType, const GLvoid *textureData)=0
	Set the OpenGL texture.

virtual void	updateTextureBuffer ()
	Calls imageChanged() if _textureBuffer is empty.

virtual void	updateSamplerInfo (SoUniformParameterBase uniformBase, SoState state)
	Set info about the purpose of the uniform parameter and add info about sampler to state.

Protected Member Functions inherited from SoSampler
	~SoSampler () override

	SoSampler ()
	Constructor.

GLint	getInternalFormat (GLenum glDataType)
	Return specialized texture format for GL data type.

const char *	getTextureFormatName (GLenum internalFormat)
	Return texture format name.

SbSamplerInfo::TextureType	getTextureTypeFromGLFormat (GLenum internalFormat)

void	postTextureFormatInfo (GLenum target, GLint format)
	Prints channel depths for given target and format.

void	postTextureSizeInfo (GLenum target)
	Prints the size of the bound texture.

virtual void	nameChanged (SoField *field)
	Called when sampler name has changed.

Protected Member Functions inherited from SoUniformShaderParameter
	SoUniformShaderParameter ()
	Constructor.

Protected Member Functions inherited from SoShaderParameter
	SoShaderParameter ()
	Constructor.

Protected Attributes
SbSamplerInfo::TextureType	_internTexFormat
	Value points to internal texture format.

SbMLImageProperties	_imgProps
	ML image properties.

Protected Attributes inherited from SoImageSampler
ml::GLTexture	_textureRes

MLuint8 *	_textureBuffer
	Buffered texture that is uploaded.

SbBool	_isTextureModified
	Indicates changes in the internal texture.

SbSamplerInfo::TextureType	_internTexFormat
	Value points to internal texture format.

XVImageSize	_textureSize
	size of the internal texture

GLenum	_target
	Specifies the target to which the texture is bound.

SoUniformParameterBase::SamplerType	_samplerType
	Specifies the sampler type. Must be either SAMPLER_1D, SAMPLER_2D, SAMPLER_3D or SAMPLER_CUBEMAP.

Protected Attributes inherited from SoSampler
SbBool	_hasTextureFloat
	TRUE if GL_xxx_texture_float extension is present.

SbString	_sizeUniformName
	name of the uniform ?_size parameter

unsigned int	_textureComponents

GLenum	_textureDataType

Additional Inherited Members
Public Types inherited from SoSampler
enum	TexGenMode { NORMAL_MAP = GL_NORMAL_MAP_EXT , REFLECTION_MAP = GL_REFLECTION_MAP_EXT }
	Texture gen mode. More...

enum	Wrap { REPEAT = GL_REPEAT , CLAMP = GL_CLAMP , CLAMP_TO_EDGE = GL_CLAMP_TO_EDGE , CLAMP_TO_BORDER = GL_CLAMP_TO_BORDER , MIRRORED_REPEAT = GL_MIRRORED_REPEAT }
	Texture wrap type. More...

enum	Filter { NEAREST = GL_NEAREST , LINEAR = GL_LINEAR , NEAREST_MIPMAP_NEAREST = GL_NEAREST_MIPMAP_NEAREST , NEAREST_MIPMAP_LINEAR = GL_NEAREST_MIPMAP_LINEAR , LINEAR_MIPMAP_NEAREST = GL_LINEAR_MIPMAP_NEAREST , LINEAR_MIPMAP_LINEAR = GL_LINEAR_MIPMAP_LINEAR }
	Filter methods for minification and magnification. More...

Detailed Description

Abstract base class for sampler nodes that handle ML images.

Definition at line 26 of file SoMLSampler.h.

Constructor & Destructor Documentation

◆ SoMLSampler()

SoMLSampler::SoMLSampler ( )

protected

Constructor.

◆ ~SoMLSampler()

SoMLSampler::~SoMLSampler ( )

overrideprotected

Destructor.

Member Function Documentation

◆ calcSubImgProps()

virtual void SoMLSampler::calcSubImgProps	(	XVImageSize &	subImgPosition,
		XVImageSize &	subImgSize )

protectedpure virtual

Calculate position and size of used sub image by evaluation of fields.

Implemented in SoMLSampler1D, SoMLSampler2D, SoMLSampler3D, and SoMLSamplerCubeMap.

◆ getTextureDataFromImage()

virtual void SoMLSampler::getTextureDataFromImage	(	const XVImageSize &	pos,
		const XVImageSize &	size )

protectedvirtual

Extract the texture data from the input ML image and store it in the textureData buffer.

Reimplemented in SoMLSamplerCubeMap.

◆ GLRender()

void SoMLSampler::GLRender ( SoGLRenderAction * action )

override

Set ML image properties in state.

◆ imageChanged()

void SoMLSampler::imageChanged ( )

overrideprotectedvirtual

Called when the ML images has changed.

Implements SoImageSampler.

◆ imageChangedCB()

void SoMLSampler::imageChangedCB ( SoField * field )

protected

◆ initClass()

static void SoMLSampler::initClass ( )

static

Initialize class with runtime type system.

◆ loadAndReformatSubImg()

MLuint8 * SoMLSampler::loadAndReformatSubImg	(	const XVImageSize &	pos,
		const XVImageSize &	size )

protected

Load ML image and reformat memory to be suitable for OpenGL texturing.

Returns NULL on error, otherwise a pointer to the allocated memory is given.

◆ MLToGLDataType()

GLenum SoMLSampler::MLToGLDataType ( const MLDataType & dType )

protected

Return OpenGL data type for given ML data type. Returns GL_NONE for unknown ML data types.

◆ texConfigChanged()

void SoMLSampler::texConfigChanged ( SoField * field )

overrideprotectedvirtual

Called when texture configuration (e.g. filter mode) has changed.

Reimplemented from SoSampler.

◆ updateParameter()

void SoMLSampler::updateParameter	(	SoUniformParameterBase *	uniformBase,
		SoState *	state )

overridevirtual

Assigns or updates the parameter's value.

Reimplemented from SoImageSampler.

Member Data Documentation

◆ _imgProps

SbMLImageProperties SoMLSampler::_imgProps

protected

ML image properties.

Definition at line 63 of file SoMLSampler.h.

◆ _internTexFormat

SbSamplerInfo::TextureType SoMLSampler::_internTexFormat

protected

Value points to internal texture format.

Definition at line 59 of file SoMLSampler.h.

◆ image

SoSFMLImage SoMLSampler::image

ML image connector.

Definition at line 35 of file SoMLSampler.h.

◆ startT

SoSFUInt32 SoMLSampler::startT

Origin of the image in T dimension. Default is 0.

Definition at line 38 of file SoMLSampler.h.

◆ startU

SoSFUInt32 SoMLSampler::startU

Origin of the image in U dimension. Default is 0.

Definition at line 41 of file SoMLSampler.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoShader/Inventor/nodes/SoMLSampler.h
