DicomModifyRTStructPlugin¶

MLModule¶

author	`Grzegorz Chlebus`
package	`FMEwork/ReleaseMeVis`
dll	`MLDicomModifyRTPlugins`
definition	MLDicomModifyRTPlugins.def
see also	`RTStructInfo`, `ModifyDicomTree`, `CreateEmptyRTObject`
keywords	`DICOM`, `RT`

Purpose¶

Plugin managing all DICOM modules belonging to the RT Structure Set IOD. It enables editing of all non-sequence tags, inheriting their values from inputDicomTree and copying all sequence tags from inputDicomTree.

Usage¶

See example network to see how to use the module.

Details¶

Not all DICOM tags are supported.

Windows¶

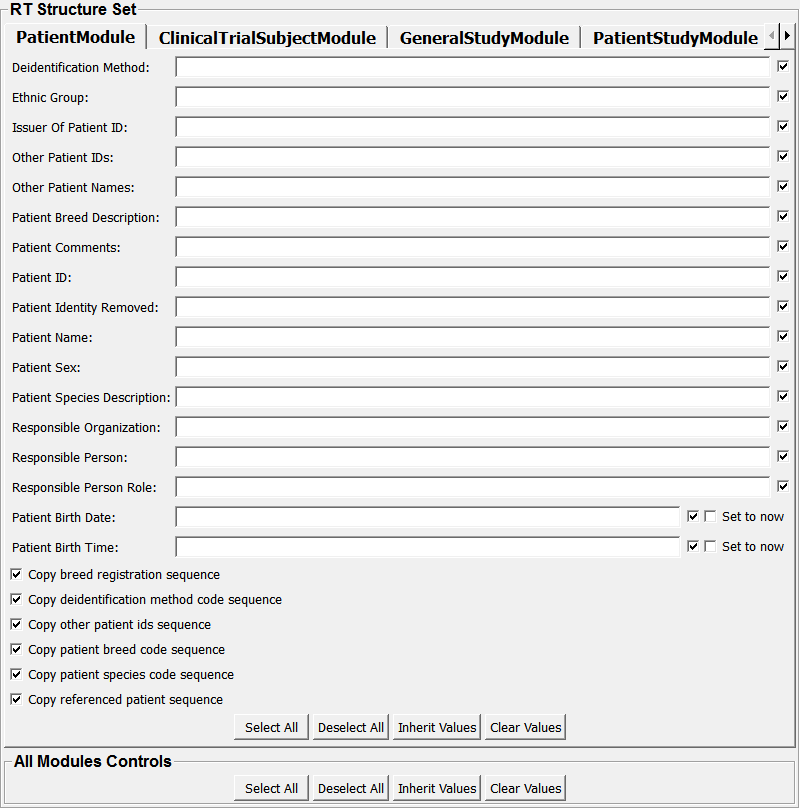

Default Panel¶

../../../Modules/ML/MLDicomModifyRTPlugins/mhelp/Images/Screenshots/DicomModifyRTStructPlugin._default.png

Input Fields¶

inputDicomTree¶

name: inputDicomTree, type: MLBase¶: Connect here DICOM tree which should serve as a source of information.

inputModifierList¶

name: inputModifierList, type: MLBase¶: Here other DicomModifyPlugin module can be connected in order to apply further modification to a DICOM tree.

Output Fields¶

outputModifierList¶

name: outputModifierList, type: MLBase¶: The outputModifierList fields provides a reference-counted Base object to be connected to other DicomModifyPlugin modules or to ModifyDicomTree to apply modifications to a DICOM tree.

Parameter Fields¶

Field Index¶

`Accession Number`: `String`	`Inherit Values (inheritValues)`: `Trigger`	`Modify Structure Set Time`: `Bool`
`Additional Patient History`: `String`	`Instance Creation Date`: `String`	`Modify Study Date`: `Bool`
`Admission ID`: `String`	`Instance Creation Time`: `String`	`Modify Study Description`: `Bool`
`Admitting Diagnoses Description`: `String`	`Instance Creator UID`: `String`	`Modify Study ID`: `Bool`
`Approval Status`: `String`	`Institution Address`: `String`	`Modify Study Instance UID`: `Bool`
`Authorization Equipment Certification Number`: `String`	`Institution Name`: `String`	`Modify Study Time`: `Bool`
`Clear Values (PatientModule_ClearValues)`: `Trigger`	`Institutional Department Name`: `String`	`Modify Time Of Last Calibration`: `Bool`
`Clear Values (ClinicalTrialSubjectModule_ClearValues)`: `Trigger`	`Issuer Of Admission ID`: `String`	`Modify Timezone Offset From UTC`: `Bool`
`Clear Values (GeneralStudyModule_ClearValues)`: `Trigger`	`Issuer Of Patient ID`: `String`	`Name Of Physicians Reading Study`: `String`
`Clear Values (PatientStudyModule_ClearValues)`: `Trigger`	`Manufacturer`: `String`	`Occupation`: `String`
`Clear Values (ClinicalTrialStudyModule_ClearValues)`: `Trigger`	`Manufacturer Model Name`: `String`	`Original Specialized SOPClass UID`: `String`
`Clear Values (RTSeriesModule_ClearValues)`: `Trigger`	`Modality`: `String`	`Other Patient IDs`: `String`
`Clear Values (ClinicalTrialSeriesModule_ClearValues)`: `Trigger`	`Modify Accession Number`: `Bool`	`Other Patient Names`: `String`
`Clear Values (GeneralEquipmentModule_ClearValues)`: `Trigger`	`Modify Additional Patient History`: `Bool`	`Patient Age`: `String`
`Clear Values (StructureSetModule_ClearValues)`: `Trigger`	`Modify Admission ID`: `Bool`	`Patient Birth Date`: `String`
`Clear Values (ROIContourModule_ClearValues)`: `Trigger`	`Modify Admitting Diagnoses Description`: `Bool`	`Patient Birth Time`: `String`
`Clear Values (RTROIObservationsModule_ClearValues)`: `Trigger`	`Modify Approval Status`: `Bool`	`Patient Breed Description`: `String`
`Clear Values (ApprovalModule_ClearValues)`: `Trigger`	`Modify Authorization Equipment Certification Number`: `Bool`	`Patient Comments`: `String`
`Clear Values (SOPCommonModule_ClearValues)`: `Trigger`	`Modify Clinical Trial Coordinating Center Name`: `Bool`	`Patient ID`: `String`
`Clear Values (clearValues)`: `Trigger`	`Modify Clinical Trial Protocol ID`: `Bool`	`Patient Identity Removed`: `String`
`Clinical Trial Coordinating Center Name`: `String`	`Modify Clinical Trial Protocol Name`: `Bool`	`Patient Name`: `String`
`Clinical Trial Protocol ID`: `String`	`Modify Clinical Trial Site ID`: `Bool`	`Patient Sex`: `String`
`Clinical Trial Protocol Name`: `String`	`Modify Clinical Trial Site Name`: `Bool`	`Patient Sex Neutered`: `String`
`Clinical Trial Site ID`: `String`	`Modify Clinical Trial Sponsor Name`: `Bool`	`Patient Size`: `String`
`Clinical Trial Site Name`: `String`	`Modify Clinical Trial Subject ID`: `Bool`	`Patient Species Description`: `String`
`Clinical Trial Sponsor Name`: `String`	`Modify Clinical Trial Subject Reading ID`: `Bool`	`Patient Weight`: `String`
`Clinical Trial Subject ID`: `String`	`Modify Clinical Trial Time Point Description`: `Bool`	`Performed Procedure Step Description`: `String`
`Clinical Trial Subject Reading ID`: `String`	`Modify Clinical Trial Time Point ID`: `Bool`	`Performed Procedure Step ID`: `String`
`Clinical Trial Time Point Description`: `String`	`Modify Date Of Last Calibration`: `Bool`	`Performed Procedure Step Start Date`: `String`
`Clinical Trial Time Point ID`: `String`	`Modify Deidentification Method`: `Bool`	`Performed Procedure Step Start Time`: `String`
`Copy Admitting Diagnoses Code Sequence`: `Bool`	`Modify Device Serial Number`: `Bool`	`Physicians Of Record`: `String`
`Copy Breed Registration Sequence`: `Bool`	`Modify Ethnic Group`: `Bool`	`Pixel Padding Value`: `String`
`Copy Coding Scheme Identification Sequence`: `Bool`	`Modify Gantry ID`: `Bool`	`Referring Physician Name`: `String`
`Copy Contributing Equipment Sequence`: `Bool`	`Modify Instance Creation Date`: `Bool`	`Related General SOPClass UID`: `String`
`Copy Deidentification Method Code Sequence`: `Bool`	`Modify Instance Creation Time`: `Bool`	`Responsible Organization`: `String`
`Copy Digital Signatures Sequence`: `Bool`	`Modify Instance Creator UID`: `Bool`	`Responsible Person`: `String`
`Copy Encrypted Attributes Sequence`: `Bool`	`Modify Institution Address`: `Bool`	`Responsible Person Role`: `String`
`Copy HL7Structured Document Reference Sequence`: `Bool`	`Modify Institution Name`: `Bool`	`Review Date`: `String`
`Copy MACParameters Sequence`: `Bool`	`Modify Institutional Department Name`: `Bool`	`Review Time`: `String`
`Copy Original Attributes Sequence`: `Bool`	`Modify Issuer Of Admission ID`: `Bool`	`Reviewer Name`: `String`
`Copy Other Patient IDs Sequence`: `Bool`	`Modify Issuer Of Patient ID`: `Bool`	`Select All (PatientModule_SelectAll)`: `Trigger`
`Copy Patient Breed Code Sequence`: `Bool`	`Modify Manufacturer`: `Bool`	`Select All (ClinicalTrialSubjectModule_SelectAll)`: `Trigger`
`Copy Patient Species Code Sequence`: `Bool`	`Modify Manufacturer Model Name`: `Bool`	`Select All (GeneralStudyModule_SelectAll)`: `Trigger`
`Copy Performed Protocol Code Sequence`: `Bool`	`Modify Modality`: `Bool`	`Select All (PatientStudyModule_SelectAll)`: `Trigger`
`Copy Physicians Of Record Identification Sequence`: `Bool`	`Modify Name Of Physicians Reading Study`: `Bool`	`Select All (ClinicalTrialStudyModule_SelectAll)`: `Trigger`
`Copy Physicians Reading Study Identification Sequence`: `Bool`	`Modify Occupation`: `Bool`	`Select All (RTSeriesModule_SelectAll)`: `Trigger`
`Copy Procedure Code Sequence`: `Bool`	`Modify Original Specialized SOPClass UID`: `Bool`	`Select All (ClinicalTrialSeriesModule_SelectAll)`: `Trigger`
`Copy Referenced Frame Of Reference Sequence`: `Bool`	`Modify Other Patient IDs`: `Bool`	`Select All (GeneralEquipmentModule_SelectAll)`: `Trigger`
`Copy Referenced Patient Sequence`: `Bool`	`Modify Other Patient Names`: `Bool`	`Select All (StructureSetModule_SelectAll)`: `Trigger`
`Copy Referenced Performed Procedure Step Sequence`: `Bool`	`Modify Patient Age`: `Bool`	`Select All (ROIContourModule_SelectAll)`: `Trigger`
`Copy Referenced Study Sequence`: `Bool`	`Modify Patient Birth Date`: `Bool`	`Select All (RTROIObservationsModule_SelectAll)`: `Trigger`
`Copy Referring Physician Identification Sequence`: `Bool`	`Modify Patient Birth Time`: `Bool`	`Select All (ApprovalModule_SelectAll)`: `Trigger`
`Copy Request Attributes Sequence`: `Bool`	`Modify Patient Breed Description`: `Bool`	`Select All (SOPCommonModule_SelectAll)`: `Trigger`
`Copy ROIContour Sequence`: `Bool`	`Modify Patient Comments`: `Bool`	`Select All (selectAll)`: `Trigger`
`Copy RTROIObservations Sequence`: `Bool`	`Modify Patient ID`: `Bool`	`Series Description`: `String`
`Copy Structure Set ROISequence`: `Bool`	`Modify Patient Identity Removed`: `Bool`	`Series Instance UID`: `String`
`Create new UID (autoCreateStudyInstanceUID)`: `Bool`	`Modify Patient Name`: `Bool`	`Series Number`: `String`
`Create new UID (autoCreateSeriesInstanceUID)`: `Bool`	`Modify Patient Sex`: `Bool`	`Set to now (setPatientBirthDateToNow)`: `Bool`
`Create new UID (autoCreateInstanceCreatorUID)`: `Bool`	`Modify Patient Sex Neutered`: `Bool`	`Set to now (setPatientBirthTimeToNow)`: `Bool`
`Create new UID (autoCreateSOPInstanceUID)`: `Bool`	`Modify Patient Size`: `Bool`	`Set to now (setStudyDateToNow)`: `Bool`
`Date Of Last Calibration`: `String`	`Modify Patient Species Description`: `Bool`	`Set to now (setStudyTimeToNow)`: `Bool`
`Deidentification Method`: `String`	`Modify Patient Weight`: `Bool`	`Set to now (setPerformedProcedureStepStartDateToNow)`: `Bool`
`Deselect All (PatientModule_DeselectAll)`: `Trigger`	`Modify Performed Procedure Step Description`: `Bool`	`Set to now (setPerformedProcedureStepStartTimeToNow)`: `Bool`
`Deselect All (ClinicalTrialSubjectModule_DeselectAll)`: `Trigger`	`Modify Performed Procedure Step ID`: `Bool`	`Set to now (setDateOfLastCalibrationToNow)`: `Bool`
`Deselect All (GeneralStudyModule_DeselectAll)`: `Trigger`	`Modify Performed Procedure Step Start Date`: `Bool`	`Set to now (setTimeOfLastCalibrationToNow)`: `Bool`
`Deselect All (PatientStudyModule_DeselectAll)`: `Trigger`	`Modify Performed Procedure Step Start Time`: `Bool`	`Set to now (setStructureSetDateToNow)`: `Bool`
`Deselect All (ClinicalTrialStudyModule_DeselectAll)`: `Trigger`	`Modify Physicians Of Record`: `Bool`	`Set to now (setStructureSetTimeToNow)`: `Bool`
`Deselect All (RTSeriesModule_DeselectAll)`: `Trigger`	`Modify Pixel Padding Value`: `Bool`	`Set to now (setReviewDateToNow)`: `Bool`
`Deselect All (ClinicalTrialSeriesModule_DeselectAll)`: `Trigger`	`Modify Referring Physician Name`: `Bool`	`Set to now (setReviewTimeToNow)`: `Bool`
`Deselect All (GeneralEquipmentModule_DeselectAll)`: `Trigger`	`Modify Related General SOPClass UID`: `Bool`	`Set to now (setInstanceCreationDateToNow)`: `Bool`
`Deselect All (StructureSetModule_DeselectAll)`: `Trigger`	`Modify Responsible Organization`: `Bool`	`Set to now (setInstanceCreationTimeToNow)`: `Bool`
`Deselect All (ROIContourModule_DeselectAll)`: `Trigger`	`Modify Responsible Person`: `Bool`	`Software Versions`: `String`
`Deselect All (RTROIObservationsModule_DeselectAll)`: `Trigger`	`Modify Responsible Person Role`: `Bool`	`SOPAuthorization Comment`: `String`
`Deselect All (ApprovalModule_DeselectAll)`: `Trigger`	`Modify Review Date`: `Bool`	`SOPAuthorization Date Time`: `String`
`Deselect All (SOPCommonModule_DeselectAll)`: `Trigger`	`Modify Review Time`: `Bool`	`SOPClass UID`: `String`
`Deselect All (deselectAll)`: `Trigger`	`Modify Reviewer Name`: `Bool`	`SOPInstance Status`: `String`
`Device Serial Number`: `String`	`Modify Series Description`: `Bool`	`SOPInstance UID`: `String`
`Ethnic Group`: `String`	`Modify Series Instance UID`: `Bool`	`Spatial Resolution`: `String`
`Gantry ID`: `String`	`Modify Series Number`: `Bool`	`Specific Character Set`: `String`
`Inherit Values (PatientModule_InheritValues)`: `Trigger`	`Modify Software Versions`: `Bool`	`Station Name`: `String`
`Inherit Values (ClinicalTrialSubjectModule_InheritValues)`: `Trigger`	`Modify SOPAuthorization Comment`: `Bool`	`Structure Set Date`: `String`
`Inherit Values (GeneralStudyModule_InheritValues)`: `Trigger`	`Modify SOPAuthorization Date Time`: `Bool`	`Structure Set Description`: `String`
`Inherit Values (PatientStudyModule_InheritValues)`: `Trigger`	`Modify SOPClass UID`: `Bool`	`Structure Set Label`: `String`
`Inherit Values (ClinicalTrialStudyModule_InheritValues)`: `Trigger`	`Modify SOPInstance Status`: `Bool`	`Structure Set Name`: `String`
`Inherit Values (RTSeriesModule_InheritValues)`: `Trigger`	`Modify SOPInstance UID`: `Bool`	`Structure Set Time`: `String`
`Inherit Values (ClinicalTrialSeriesModule_InheritValues)`: `Trigger`	`Modify Spatial Resolution`: `Bool`	`Study Date`: `String`
`Inherit Values (GeneralEquipmentModule_InheritValues)`: `Trigger`	`Modify Specific Character Set`: `Bool`	`Study Description`: `String`
`Inherit Values (StructureSetModule_InheritValues)`: `Trigger`	`Modify Station Name`: `Bool`	`Study ID`: `String`
`Inherit Values (ROIContourModule_InheritValues)`: `Trigger`	`Modify Structure Set Date`: `Bool`	`Study Instance UID`: `String`
`Inherit Values (RTROIObservationsModule_InheritValues)`: `Trigger`	`Modify Structure Set Description`: `Bool`	`Study Time`: `String`
`Inherit Values (ApprovalModule_InheritValues)`: `Trigger`	`Modify Structure Set Label`: `Bool`	`Time Of Last Calibration`: `String`
`Inherit Values (SOPCommonModule_InheritValues)`: `Trigger`	`Modify Structure Set Name`: `Bool`	`Timezone Offset From UTC`: `String`

Visible Fields¶

Modify Deidentification Method¶

name: modifyDeidentificationMethod, type: Bool, default: TRUE¶

Deidentification Method¶

name: DeidentificationMethod, type: String¶

Modify Ethnic Group¶

name: modifyEthnicGroup, type: Bool, default: TRUE¶

Ethnic Group¶

name: EthnicGroup, type: String¶

Modify Issuer Of Patient ID¶

name: modifyIssuerOfPatientID, type: Bool, default: TRUE¶

Issuer Of Patient ID¶

name: IssuerOfPatientID, type: String¶

Modify Other Patient IDs¶

name: modifyOtherPatientIDs, type: Bool, default: TRUE¶

Other Patient IDs¶

name: OtherPatientIDs, type: String¶

Modify Other Patient Names¶

name: modifyOtherPatientNames, type: Bool, default: TRUE¶

Other Patient Names¶

name: OtherPatientNames, type: String¶

Modify Patient Breed Description¶

name: modifyPatientBreedDescription, type: Bool, default: TRUE¶

Patient Breed Description¶

name: PatientBreedDescription, type: String¶

Modify Patient Comments¶

name: modifyPatientComments, type: Bool, default: TRUE¶

Patient Comments¶

name: PatientComments, type: String¶

Modify Patient ID¶

name: modifyPatientID, type: Bool, default: TRUE¶

Patient ID¶

name: PatientID, type: String¶

Modify Patient Identity Removed¶

name: modifyPatientIdentityRemoved, type: Bool, default: TRUE¶

Patient Identity Removed¶

name: PatientIdentityRemoved, type: String¶

Modify Patient Name¶

name: modifyPatientName, type: Bool, default: TRUE¶

Patient Name¶

name: PatientName, type: String¶

Modify Patient Sex¶

name: modifyPatientSex, type: Bool, default: TRUE¶

Patient Sex¶

name: PatientSex, type: String¶

Modify Patient Species Description¶

name: modifyPatientSpeciesDescription, type: Bool, default: TRUE¶

Patient Species Description¶

name: PatientSpeciesDescription, type: String¶

Modify Responsible Organization¶

name: modifyResponsibleOrganization, type: Bool, default: TRUE¶

Responsible Organization¶

name: ResponsibleOrganization, type: String¶

Modify Responsible Person¶

name: modifyResponsiblePerson, type: Bool, default: TRUE¶

Responsible Person¶

name: ResponsiblePerson, type: String¶

Modify Responsible Person Role¶

name: modifyResponsiblePersonRole, type: Bool, default: TRUE¶

Responsible Person Role¶

name: ResponsiblePersonRole, type: String¶

Set to now (setPatientBirthDateToNow)¶

name: setPatientBirthDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Patient Birth Date¶

name: modifyPatientBirthDate, type: Bool, default: TRUE¶

Patient Birth Date¶

name: PatientBirthDate, type: String¶

Set to now (setPatientBirthTimeToNow)¶

name: setPatientBirthTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Patient Birth Time¶

name: modifyPatientBirthTime, type: Bool, default: TRUE¶

Patient Birth Time¶

name: PatientBirthTime, type: String¶

Copy Breed Registration Sequence¶

name: copyBreedRegistrationSequence, type: Bool, default: TRUE¶

Copy Deidentification Method Code Sequence¶

name: copyDeidentificationMethodCodeSequence, type: Bool, default: TRUE¶

Copy Other Patient IDs Sequence¶

name: copyOtherPatientIDsSequence, type: Bool, default: TRUE¶

Copy Patient Breed Code Sequence¶

name: copyPatientBreedCodeSequence, type: Bool, default: TRUE¶

Copy Patient Species Code Sequence¶

name: copyPatientSpeciesCodeSequence, type: Bool, default: TRUE¶

Copy Referenced Patient Sequence¶

name: copyReferencedPatientSequence, type: Bool, default: TRUE¶

Select All (PatientModule_SelectAll)¶

name: PatientModule_SelectAll, type: Trigger¶

Deselect All (PatientModule_DeselectAll)¶

name: PatientModule_DeselectAll, type: Trigger¶

Inherit Values (PatientModule_InheritValues)¶

name: PatientModule_InheritValues, type: Trigger¶

Clear Values (PatientModule_ClearValues)¶

name: PatientModule_ClearValues, type: Trigger¶

Modify Clinical Trial Protocol ID¶

name: modifyClinicalTrialProtocolID, type: Bool, default: TRUE¶

Clinical Trial Protocol ID¶

name: ClinicalTrialProtocolID, type: String¶

Modify Clinical Trial Protocol Name¶

name: modifyClinicalTrialProtocolName, type: Bool, default: TRUE¶

Clinical Trial Protocol Name¶

name: ClinicalTrialProtocolName, type: String¶

Modify Clinical Trial Site ID¶

name: modifyClinicalTrialSiteID, type: Bool, default: TRUE¶

Clinical Trial Site ID¶

name: ClinicalTrialSiteID, type: String¶

Modify Clinical Trial Site Name¶

name: modifyClinicalTrialSiteName, type: Bool, default: TRUE¶

Clinical Trial Site Name¶

name: ClinicalTrialSiteName, type: String¶

Modify Clinical Trial Subject ID¶

name: modifyClinicalTrialSubjectID, type: Bool, default: TRUE¶

Clinical Trial Subject ID¶

name: ClinicalTrialSubjectID, type: String¶

Modify Clinical Trial Subject Reading ID¶

name: modifyClinicalTrialSubjectReadingID, type: Bool, default: TRUE¶

Clinical Trial Subject Reading ID¶

name: ClinicalTrialSubjectReadingID, type: String¶

Select All (ClinicalTrialSubjectModule_SelectAll)¶

name: ClinicalTrialSubjectModule_SelectAll, type: Trigger¶

Deselect All (ClinicalTrialSubjectModule_DeselectAll)¶

name: ClinicalTrialSubjectModule_DeselectAll, type: Trigger¶

Inherit Values (ClinicalTrialSubjectModule_InheritValues)¶

name: ClinicalTrialSubjectModule_InheritValues, type: Trigger¶

Clear Values (ClinicalTrialSubjectModule_ClearValues)¶

name: ClinicalTrialSubjectModule_ClearValues, type: Trigger¶

Modify Accession Number¶

name: modifyAccessionNumber, type: Bool, default: TRUE¶

Accession Number¶

name: AccessionNumber, type: String¶

Modify Name Of Physicians Reading Study¶

name: modifyNameOfPhysiciansReadingStudy, type: Bool, default: TRUE¶

Name Of Physicians Reading Study¶

name: NameOfPhysiciansReadingStudy, type: String¶

Modify Physicians Of Record¶

name: modifyPhysiciansOfRecord, type: Bool, default: TRUE¶

Physicians Of Record¶

name: PhysiciansOfRecord, type: String¶

Modify Referring Physician Name¶

name: modifyReferringPhysicianName, type: Bool, default: TRUE¶

Referring Physician Name¶

name: ReferringPhysicianName, type: String¶

Modify Study Description¶

name: modifyStudyDescription, type: Bool, default: TRUE¶

Study Description¶

name: StudyDescription, type: String¶

Modify Study ID¶

name: modifyStudyID, type: Bool, default: TRUE¶

Study ID¶

name: StudyID, type: String¶

Create new UID (autoCreateStudyInstanceUID)¶

name: autoCreateStudyInstanceUID, type: Bool, default: FALSE¶: Auto create new UID.

Modify Study Instance UID¶

name: modifyStudyInstanceUID, type: Bool, default: TRUE¶

Study Instance UID¶

name: StudyInstanceUID, type: String¶

Set to now (setStudyDateToNow)¶

name: setStudyDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Study Date¶

name: modifyStudyDate, type: Bool, default: TRUE¶

Study Date¶

name: StudyDate, type: String¶

Set to now (setStudyTimeToNow)¶

name: setStudyTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Study Time¶

name: modifyStudyTime, type: Bool, default: TRUE¶

Study Time¶

name: StudyTime, type: String¶

Copy Physicians Of Record Identification Sequence¶

name: copyPhysiciansOfRecordIdentificationSequence, type: Bool, default: TRUE¶

Copy Physicians Reading Study Identification Sequence¶

name: copyPhysiciansReadingStudyIdentificationSequence, type: Bool, default: TRUE¶

Copy Procedure Code Sequence¶

name: copyProcedureCodeSequence, type: Bool, default: TRUE¶

Copy Referenced Study Sequence¶

name: copyReferencedStudySequence, type: Bool, default: TRUE¶

Copy Referring Physician Identification Sequence¶

name: copyReferringPhysicianIdentificationSequence, type: Bool, default: TRUE¶

Select All (GeneralStudyModule_SelectAll)¶

name: GeneralStudyModule_SelectAll, type: Trigger¶

Deselect All (GeneralStudyModule_DeselectAll)¶

name: GeneralStudyModule_DeselectAll, type: Trigger¶

Inherit Values (GeneralStudyModule_InheritValues)¶

name: GeneralStudyModule_InheritValues, type: Trigger¶

Clear Values (GeneralStudyModule_ClearValues)¶

name: GeneralStudyModule_ClearValues, type: Trigger¶

Modify Additional Patient History¶

name: modifyAdditionalPatientHistory, type: Bool, default: TRUE¶

Additional Patient History¶

name: AdditionalPatientHistory, type: String¶

Modify Admission ID¶

name: modifyAdmissionID, type: Bool, default: TRUE¶

Admission ID¶

name: AdmissionID, type: String¶

Modify Admitting Diagnoses Description¶

name: modifyAdmittingDiagnosesDescription, type: Bool, default: TRUE¶

Admitting Diagnoses Description¶

name: AdmittingDiagnosesDescription, type: String¶

Modify Issuer Of Admission ID¶

name: modifyIssuerOfAdmissionID, type: Bool, default: TRUE¶

Issuer Of Admission ID¶

name: IssuerOfAdmissionID, type: String¶

Modify Occupation¶

name: modifyOccupation, type: Bool, default: TRUE¶

Occupation¶

name: Occupation, type: String¶

Modify Patient Age¶

name: modifyPatientAge, type: Bool, default: TRUE¶

Patient Age¶

name: PatientAge, type: String¶

Modify Patient Sex Neutered¶

name: modifyPatientSexNeutered, type: Bool, default: TRUE¶

Patient Sex Neutered¶

name: PatientSexNeutered, type: String¶

Modify Patient Size¶

name: modifyPatientSize, type: Bool, default: TRUE¶

Patient Size¶

name: PatientSize, type: String¶

Modify Patient Weight¶

name: modifyPatientWeight, type: Bool, default: TRUE¶

Patient Weight¶

name: PatientWeight, type: String¶

Copy Admitting Diagnoses Code Sequence¶

name: copyAdmittingDiagnosesCodeSequence, type: Bool, default: TRUE¶

Select All (PatientStudyModule_SelectAll)¶

name: PatientStudyModule_SelectAll, type: Trigger¶

Deselect All (PatientStudyModule_DeselectAll)¶

name: PatientStudyModule_DeselectAll, type: Trigger¶

Inherit Values (PatientStudyModule_InheritValues)¶

name: PatientStudyModule_InheritValues, type: Trigger¶

Clear Values (PatientStudyModule_ClearValues)¶

name: PatientStudyModule_ClearValues, type: Trigger¶

Modify Clinical Trial Time Point Description¶

name: modifyClinicalTrialTimePointDescription, type: Bool, default: TRUE¶

Clinical Trial Time Point Description¶

name: ClinicalTrialTimePointDescription, type: String¶

Modify Clinical Trial Time Point ID¶

name: modifyClinicalTrialTimePointID, type: Bool, default: TRUE¶

Clinical Trial Time Point ID¶

name: ClinicalTrialTimePointID, type: String¶

Select All (ClinicalTrialStudyModule_SelectAll)¶

name: ClinicalTrialStudyModule_SelectAll, type: Trigger¶

Deselect All (ClinicalTrialStudyModule_DeselectAll)¶

name: ClinicalTrialStudyModule_DeselectAll, type: Trigger¶

Inherit Values (ClinicalTrialStudyModule_InheritValues)¶

name: ClinicalTrialStudyModule_InheritValues, type: Trigger¶

Clear Values (ClinicalTrialStudyModule_ClearValues)¶

name: ClinicalTrialStudyModule_ClearValues, type: Trigger¶

Modify Modality¶

name: modifyModality, type: Bool, default: TRUE¶

Modality¶

name: Modality, type: String¶

Modify Performed Procedure Step Description¶

name: modifyPerformedProcedureStepDescription, type: Bool, default: TRUE¶

Performed Procedure Step Description¶

name: PerformedProcedureStepDescription, type: String¶

Modify Performed Procedure Step ID¶

name: modifyPerformedProcedureStepID, type: Bool, default: TRUE¶

Performed Procedure Step ID¶

name: PerformedProcedureStepID, type: String¶

Modify Series Description¶

name: modifySeriesDescription, type: Bool, default: TRUE¶

Series Description¶

name: SeriesDescription, type: String¶

Modify Series Number¶

name: modifySeriesNumber, type: Bool, default: TRUE¶

Series Number¶

name: SeriesNumber, type: String¶

Create new UID (autoCreateSeriesInstanceUID)¶

name: autoCreateSeriesInstanceUID, type: Bool, default: FALSE¶: Auto create new UID.

Modify Series Instance UID¶

name: modifySeriesInstanceUID, type: Bool, default: TRUE¶

Series Instance UID¶

name: SeriesInstanceUID, type: String¶

Set to now (setPerformedProcedureStepStartDateToNow)¶

name: setPerformedProcedureStepStartDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Performed Procedure Step Start Date¶

name: modifyPerformedProcedureStepStartDate, type: Bool, default: TRUE¶

Performed Procedure Step Start Date¶

name: PerformedProcedureStepStartDate, type: String¶

Set to now (setPerformedProcedureStepStartTimeToNow)¶

name: setPerformedProcedureStepStartTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Performed Procedure Step Start Time¶

name: modifyPerformedProcedureStepStartTime, type: Bool, default: TRUE¶

Performed Procedure Step Start Time¶

name: PerformedProcedureStepStartTime, type: String¶

Copy Performed Protocol Code Sequence¶

name: copyPerformedProtocolCodeSequence, type: Bool, default: TRUE¶

Copy Referenced Performed Procedure Step Sequence¶

name: copyReferencedPerformedProcedureStepSequence, type: Bool, default: TRUE¶

Copy Request Attributes Sequence¶

name: copyRequestAttributesSequence, type: Bool, default: TRUE¶

Select All (RTSeriesModule_SelectAll)¶

name: RTSeriesModule_SelectAll, type: Trigger¶

Deselect All (RTSeriesModule_DeselectAll)¶

name: RTSeriesModule_DeselectAll, type: Trigger¶

Inherit Values (RTSeriesModule_InheritValues)¶

name: RTSeriesModule_InheritValues, type: Trigger¶

Clear Values (RTSeriesModule_ClearValues)¶

name: RTSeriesModule_ClearValues, type: Trigger¶

Modify Clinical Trial Coordinating Center Name¶

name: modifyClinicalTrialCoordinatingCenterName, type: Bool, default: TRUE¶

Clinical Trial Coordinating Center Name¶

name: ClinicalTrialCoordinatingCenterName, type: String¶

Select All (ClinicalTrialSeriesModule_SelectAll)¶

name: ClinicalTrialSeriesModule_SelectAll, type: Trigger¶

Deselect All (ClinicalTrialSeriesModule_DeselectAll)¶

name: ClinicalTrialSeriesModule_DeselectAll, type: Trigger¶

Inherit Values (ClinicalTrialSeriesModule_InheritValues)¶

name: ClinicalTrialSeriesModule_InheritValues, type: Trigger¶

Clear Values (ClinicalTrialSeriesModule_ClearValues)¶

name: ClinicalTrialSeriesModule_ClearValues, type: Trigger¶

Modify Device Serial Number¶

name: modifyDeviceSerialNumber, type: Bool, default: TRUE¶

Device Serial Number¶

name: DeviceSerialNumber, type: String¶

Modify Gantry ID¶

name: modifyGantryID, type: Bool, default: TRUE¶

Gantry ID¶

name: GantryID, type: String¶

Modify Institution Address¶

name: modifyInstitutionAddress, type: Bool, default: TRUE¶

Institution Address¶

name: InstitutionAddress, type: String¶

Modify Institution Name¶

name: modifyInstitutionName, type: Bool, default: TRUE¶

Institution Name¶

name: InstitutionName, type: String¶

Modify Institutional Department Name¶

name: modifyInstitutionalDepartmentName, type: Bool, default: TRUE¶

Institutional Department Name¶

name: InstitutionalDepartmentName, type: String¶

Modify Manufacturer¶

name: modifyManufacturer, type: Bool, default: TRUE¶

Manufacturer¶

name: Manufacturer, type: String¶

Modify Manufacturer Model Name¶

name: modifyManufacturerModelName, type: Bool, default: TRUE¶

Manufacturer Model Name¶

name: ManufacturerModelName, type: String¶

Modify Pixel Padding Value¶

name: modifyPixelPaddingValue, type: Bool, default: TRUE¶

Pixel Padding Value¶

name: PixelPaddingValue, type: String¶

Modify Software Versions¶

name: modifySoftwareVersions, type: Bool, default: TRUE¶

Software Versions¶

name: SoftwareVersions, type: String¶

Modify Spatial Resolution¶

name: modifySpatialResolution, type: Bool, default: TRUE¶

Spatial Resolution¶

name: SpatialResolution, type: String¶

Modify Station Name¶

name: modifyStationName, type: Bool, default: TRUE¶

Station Name¶

name: StationName, type: String¶

Set to now (setDateOfLastCalibrationToNow)¶

name: setDateOfLastCalibrationToNow, type: Bool, default: FALSE¶: Set to now.

Modify Date Of Last Calibration¶

name: modifyDateOfLastCalibration, type: Bool, default: TRUE¶

Date Of Last Calibration¶

name: DateOfLastCalibration, type: String¶

Set to now (setTimeOfLastCalibrationToNow)¶

name: setTimeOfLastCalibrationToNow, type: Bool, default: FALSE¶: Set to now.

Modify Time Of Last Calibration¶

name: modifyTimeOfLastCalibration, type: Bool, default: TRUE¶

Time Of Last Calibration¶

name: TimeOfLastCalibration, type: String¶

Select All (GeneralEquipmentModule_SelectAll)¶

name: GeneralEquipmentModule_SelectAll, type: Trigger¶

Deselect All (GeneralEquipmentModule_DeselectAll)¶

name: GeneralEquipmentModule_DeselectAll, type: Trigger¶

Inherit Values (GeneralEquipmentModule_InheritValues)¶

name: GeneralEquipmentModule_InheritValues, type: Trigger¶

Clear Values (GeneralEquipmentModule_ClearValues)¶

name: GeneralEquipmentModule_ClearValues, type: Trigger¶

Modify Structure Set Description¶

name: modifyStructureSetDescription, type: Bool, default: TRUE¶

Structure Set Description¶

name: StructureSetDescription, type: String¶

Modify Structure Set Label¶

name: modifyStructureSetLabel, type: Bool, default: TRUE¶

Structure Set Label¶

name: StructureSetLabel, type: String¶

Modify Structure Set Name¶

name: modifyStructureSetName, type: Bool, default: TRUE¶

Structure Set Name¶

name: StructureSetName, type: String¶

Set to now (setStructureSetDateToNow)¶

name: setStructureSetDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Structure Set Date¶

name: modifyStructureSetDate, type: Bool, default: TRUE¶

Structure Set Date¶

name: StructureSetDate, type: String¶

Set to now (setStructureSetTimeToNow)¶

name: setStructureSetTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Structure Set Time¶

name: modifyStructureSetTime, type: Bool, default: TRUE¶

Structure Set Time¶

name: StructureSetTime, type: String¶

Copy Referenced Frame Of Reference Sequence¶

name: copyReferencedFrameOfReferenceSequence, type: Bool, default: TRUE¶

Copy Structure Set ROISequence¶

name: copyStructureSetROISequence, type: Bool, default: TRUE¶

Select All (StructureSetModule_SelectAll)¶

name: StructureSetModule_SelectAll, type: Trigger¶

Deselect All (StructureSetModule_DeselectAll)¶

name: StructureSetModule_DeselectAll, type: Trigger¶

Inherit Values (StructureSetModule_InheritValues)¶

name: StructureSetModule_InheritValues, type: Trigger¶

Clear Values (StructureSetModule_ClearValues)¶

name: StructureSetModule_ClearValues, type: Trigger¶

Copy ROIContour Sequence¶

name: copyROIContourSequence, type: Bool, default: TRUE¶

Select All (ROIContourModule_SelectAll)¶

name: ROIContourModule_SelectAll, type: Trigger¶

Deselect All (ROIContourModule_DeselectAll)¶

name: ROIContourModule_DeselectAll, type: Trigger¶

Inherit Values (ROIContourModule_InheritValues)¶

name: ROIContourModule_InheritValues, type: Trigger¶

Clear Values (ROIContourModule_ClearValues)¶

name: ROIContourModule_ClearValues, type: Trigger¶

Copy RTROIObservations Sequence¶

name: copyRTROIObservationsSequence, type: Bool, default: TRUE¶

Select All (RTROIObservationsModule_SelectAll)¶

name: RTROIObservationsModule_SelectAll, type: Trigger¶

Deselect All (RTROIObservationsModule_DeselectAll)¶

name: RTROIObservationsModule_DeselectAll, type: Trigger¶

Inherit Values (RTROIObservationsModule_InheritValues)¶

name: RTROIObservationsModule_InheritValues, type: Trigger¶

Clear Values (RTROIObservationsModule_ClearValues)¶

name: RTROIObservationsModule_ClearValues, type: Trigger¶

Modify Approval Status¶

name: modifyApprovalStatus, type: Bool, default: TRUE¶

Approval Status¶

name: ApprovalStatus, type: String¶

Modify Reviewer Name¶

name: modifyReviewerName, type: Bool, default: TRUE¶

Reviewer Name¶

name: ReviewerName, type: String¶

Set to now (setReviewDateToNow)¶

name: setReviewDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Review Date¶

name: modifyReviewDate, type: Bool, default: TRUE¶

Review Date¶

name: ReviewDate, type: String¶

Set to now (setReviewTimeToNow)¶

name: setReviewTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Review Time¶

name: modifyReviewTime, type: Bool, default: TRUE¶

Review Time¶

name: ReviewTime, type: String¶

Select All (ApprovalModule_SelectAll)¶

name: ApprovalModule_SelectAll, type: Trigger¶

Deselect All (ApprovalModule_DeselectAll)¶

name: ApprovalModule_DeselectAll, type: Trigger¶

Inherit Values (ApprovalModule_InheritValues)¶

name: ApprovalModule_InheritValues, type: Trigger¶

Clear Values (ApprovalModule_ClearValues)¶

name: ApprovalModule_ClearValues, type: Trigger¶

Modify Authorization Equipment Certification Number¶

name: modifyAuthorizationEquipmentCertificationNumber, type: Bool, default: TRUE¶

Authorization Equipment Certification Number¶

name: AuthorizationEquipmentCertificationNumber, type: String¶

Modify Original Specialized SOPClass UID¶

name: modifyOriginalSpecializedSOPClassUID, type: Bool, default: TRUE¶

Original Specialized SOPClass UID¶

name: OriginalSpecializedSOPClassUID, type: String¶

Modify SOPAuthorization Comment¶

name: modifySOPAuthorizationComment, type: Bool, default: TRUE¶

SOPAuthorization Comment¶

name: SOPAuthorizationComment, type: String¶

Modify SOPAuthorization Date Time¶

name: modifySOPAuthorizationDateTime, type: Bool, default: TRUE¶

SOPAuthorization Date Time¶

name: SOPAuthorizationDateTime, type: String¶

Modify SOPClass UID¶

name: modifySOPClassUID, type: Bool, default: TRUE¶

SOPClass UID¶

name: SOPClassUID, type: String¶

Modify SOPInstance Status¶

name: modifySOPInstanceStatus, type: Bool, default: TRUE¶

SOPInstance Status¶

name: SOPInstanceStatus, type: String¶

Modify Specific Character Set¶

name: modifySpecificCharacterSet, type: Bool, default: TRUE¶

Specific Character Set¶

name: SpecificCharacterSet, type: String¶

Modify Timezone Offset From UTC¶

name: modifyTimezoneOffsetFromUTC, type: Bool, default: TRUE¶

Timezone Offset From UTC¶

name: TimezoneOffsetFromUTC, type: String¶

Create new UID (autoCreateInstanceCreatorUID)¶

name: autoCreateInstanceCreatorUID, type: Bool, default: FALSE¶: Auto create new UID.

Modify Instance Creator UID¶

name: modifyInstanceCreatorUID, type: Bool, default: TRUE¶

Instance Creator UID¶

name: InstanceCreatorUID, type: String¶

Create new UID (autoCreateSOPInstanceUID)¶

name: autoCreateSOPInstanceUID, type: Bool, default: FALSE¶: Auto create new UID.

Modify SOPInstance UID¶

name: modifySOPInstanceUID, type: Bool, default: TRUE¶

SOPInstance UID¶

name: SOPInstanceUID, type: String¶

Set to now (setInstanceCreationDateToNow)¶

name: setInstanceCreationDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Instance Creation Date¶

name: modifyInstanceCreationDate, type: Bool, default: TRUE¶

Instance Creation Date¶

name: InstanceCreationDate, type: String¶

Set to now (setInstanceCreationTimeToNow)¶

name: setInstanceCreationTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Instance Creation Time¶

name: modifyInstanceCreationTime, type: Bool, default: TRUE¶

Instance Creation Time¶

name: InstanceCreationTime, type: String¶

Copy Coding Scheme Identification Sequence¶

name: copyCodingSchemeIdentificationSequence, type: Bool, default: TRUE¶

Copy Contributing Equipment Sequence¶

name: copyContributingEquipmentSequence, type: Bool, default: TRUE¶

Copy Digital Signatures Sequence¶

name: copyDigitalSignaturesSequence, type: Bool, default: TRUE¶

Copy Encrypted Attributes Sequence¶

name: copyEncryptedAttributesSequence, type: Bool, default: TRUE¶

Copy HL7Structured Document Reference Sequence¶

name: copyHL7StructuredDocumentReferenceSequence, type: Bool, default: TRUE¶

Copy MACParameters Sequence¶

name: copyMACParametersSequence, type: Bool, default: TRUE¶

Copy Original Attributes Sequence¶

name: copyOriginalAttributesSequence, type: Bool, default: TRUE¶

Select All (SOPCommonModule_SelectAll)¶

name: SOPCommonModule_SelectAll, type: Trigger¶

Deselect All (SOPCommonModule_DeselectAll)¶

name: SOPCommonModule_DeselectAll, type: Trigger¶

Inherit Values (SOPCommonModule_InheritValues)¶

name: SOPCommonModule_InheritValues, type: Trigger¶

Clear Values (SOPCommonModule_ClearValues)¶

name: SOPCommonModule_ClearValues, type: Trigger¶

Select All (selectAll)¶

name: selectAll, type: Trigger¶

Deselect All (deselectAll)¶

name: deselectAll, type: Trigger¶

Inherit Values (inheritValues)¶

name: inheritValues, type: Trigger¶

Clear Values (clearValues)¶

name: clearValues, type: Trigger¶
