CreateEmptyRTObject

MLModule

genre	DICOM
author	Andra Maria Pascale
package	FMEwork/ReleaseMeVis
dll	MLCreateEmptyRTObject
definition	MLCreateEmptyRTObject.def
see also	DirectDicomImportRTOutput
keywords	DICOM, RT, RTDose, RTImage, RTStruct, create, Object

Purpose

The purpose of this module is to create a new empty RT Base object, with only the minimum required tags set, to identify its modality.

Usage

The supported modalities are: RTImage, RTDose, RTStructureSet, RTPlan, RTIonPlan, RTSummaryTreatmentRecord( RTRecord) and RTIonBeamsTreatmentRecord( RTIonRecord).

Windows

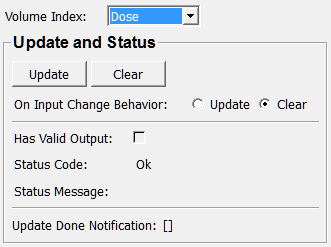

Default Panel

Output Fields

outCreateEmptyRTObject

name: outCreateEmptyRTObject, type: MLBase

Parameter Fields

Field Index

[]: Trigger

Clear: Trigger

Has Valid Output: Bool

Status Code: Enum

Status Message: String

Update: Trigger

Update automatically: Bool

Volume Index: Enum

Visible Fields

Update

name: update, type: Trigger

Clear

name: clear, type: Trigger

Update automatically

name: shouldUpdateAutomatically, type: Bool, default: TRUE

Status Code

name: statusCode, type: Enum, persistent: no

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

[]

name: updateDone, type: Trigger, persistent: no

Volume Index

name: outObjectIdx, type: Enum, default: RT_DOSE

This read-only field shows the index of the volume currently selected in the volume list.

Values:

Title	Name
​Image	​RT_IMAGE
​Plan	​RT_PLAN
​Struct	​RT_STRUCT
​Dose	​RT_DOSE
​Record	​RT_RECORD
​Ion Plan	​RT_ION_PLAN
​Ion Record	​RT_ION_RECORD
