MultiFileVolumeListRTOutput

MLModule

genre	FileMain
authors	Andra Maria Pascale, Alexander Koehn, Wolf Spindler
package	FMEwork/ReleaseMeVis
dll	MLMultiFileVolumeListRTOutputs
definition	MLMultiFileVolumeListRTOutputs.def
see also	DirectDicomImport, MultiFileVolumeListBaseOutput, MultiFileVolumeListImageOutput, DirectDicomImportPROutput, DirectDicomImportSROutput, MultiFileVolumeListWaveformOutput, MultiFileVolumeListIteratorOutput, ImageLoad, MLImageFormatLoad, ImageSave
inherits from	MultiFileVolumeListBaseOutput
keywords	DICOM, DCM, import, load, read, slices, reorder, eatdicom, radio, therapy, rtinfo, rtstruct, rtimage, rtdose

Purpose

The DirectDicomImportRTOutput is a derived version of the MultiFileVolumeListBaseOutput module which provides additional information about radio therapy DICOM files for the DirectDicomImport module. It operates similar to the MultiFileVolumeListBaseOutput which also creates most of the fields and provides most of the functionality. Therefore see MultiFileVolumeListBaseOutput for all parameters and functionality which is not described here. See also MultiFileVolumeListImageOutput, DirectDicomImportSROutput, and DirectDicomImport for further information.

Usage

The usage is comparable to the usage of MultiFileVolumeListBaseOutput. Please also see its documentation.

You may also want to configure the DirectDicomImport module for example not to compose radio therapy plan DICOM files to multiframe files. For the purpose select for example UserConfig1 and replace the line:

{Element = (0008,0060); Name = Modality; Sort = 1; Part = 1; },

by the line:

{Element = (0008,0060); Name = Modality; Sort = 1; Part = 1; PartCondition = "Modality = RTPLAN";},

In this way each RTPlan files are handled as single volumes.

Windows

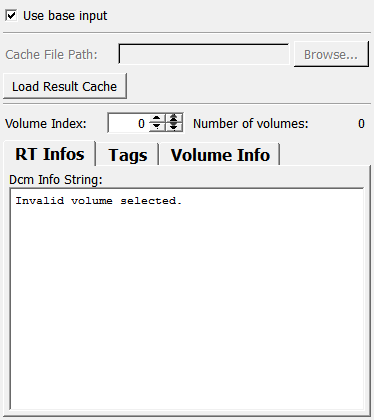

Default Panel

Input Fields

inputAccessConnector

name: inputAccessConnector, type: MLBase

A connector to a MultiFileVolumeList (a typically one providing such a connector is DirectDicomImport) from which an RT volume shall be selected.

see also MultiFileVolumeListBaseOutput.inputAccessConnector

Output Fields

outRTObject

name: outRTObject, type: MLBase

This output provides a Base object containing the RT information of the selected volume. It is typically used by connected modules such as RTImageToML, RTDoseToML, RTDoseInfo, etc. See the C++ libraries MLDcmtkAccessories and MLDcmtkBaseObjects for further information about those objects.

Parameter Fields

Field Index

annotate: Bool	Number of volumes: Integer
autoLoadResultCache: Bool	numShownBinaryEntries: Integer
Cache File Path: String	regExLineFilter: String
Dcm Info String: String	Tag Dump: String
dumpPrivateTagValues: Bool	Tag Dump Size: Integer
getInfoString: Trigger	Use Base Input: Bool
issues: String	Volume Index: Integer
Load Result Cache: Trigger	Volume Info Dump: String

Visible Fields

Use Base Input

name: useBaseInput, type: Bool, default: TRUE

If enabled the the volume is read from the DirectDicomImport module connected to the base input; otherwise the specified cache file is read.

see also MultiFileVolumeListBaseOutput.useBaseInput

Load Result Cache

name: loadResultCache, type: Trigger

Loads a volume list from cached result volume.

see also MultiFileVolumeListBaseOutput.loadResultCache

Cache File Path

name: cacheFilePath, type: String

File containing a list of cached image volumes.

see also MultiFileVolumeListBaseOutput.cacheFilePath

Volume Index

name: outVolIdx, type: Integer, default: 0, minimum: -1

This read-only field shows the index of the volume currently selected in the volume list.

see also MultiFileVolumeListBaseOutput.outVolIdx

Number of volumes

name: numVolumes, type: Integer, default: 0

This read-only field shows number of available volumes.

see also MultiFileVolumeListBaseOutput.numVolumes

Tag Dump Size

name: tagDumpSize, type: Integer, default: 10000

Maximum number of characters shown in the Tag Dump field. Too large values can degrade performance when viewing the DICOM tag list.

see also MultiFileVolumeListBaseOutput.tagDumpSize

Tag Dump

name: tagDump, type: String, persistent: no

Shows the DICOM tag list of currently selected volume (the dump will be clamped if the tag list is too large).

see also MultiFileVolumeListBaseOutput.tagDump

Volume Info Dump

name: volumeInfoDump, type: String, persistent: no

Shows a collection of available information about the currently selected volume.

see also MultiFileVolumeListBaseOutput.volumeInfoDump

Dcm Info String

name: dcmInfoString, type: String, persistent: no

Shows the radio therapy information of currently selected volume.

Hidden Fields

autoLoadResultCache

name: autoLoadResultCache, type: Bool, default: FALSE

issues

name: issues, type: String

see MultiFileVolumeListBaseOutput.issues

dumpPrivateTagValues

name: dumpPrivateTagValues, type: Bool, default: FALSE

see MultiFileVolumeListBaseOutput.dumpPrivateTagValues

numShownBinaryEntries

name: numShownBinaryEntries, type: Integer, default: 8

see MultiFileVolumeListBaseOutput.numShownBinaryEntries

annotate

name: annotate, type: Bool, default: FALSE

see MultiFileVolumeListBaseOutput.annotate

regExLineFilter

name: regExLineFilter, type: String

see MultiFileVolumeListBaseOutput.regExLineFilter

getInfoString

name: getInfoString, type: Trigger
