DicomModifyRTDosePlugin¶

MLModule¶

author	`Grzegorz Chlebus`
package	`FMEwork/ReleaseMeVis`
dll	`MLDicomModifyRTPlugins`
definition	MLDicomModifyRTPlugins.def
see also	`RTDoseInfo`, `ModifyDicomTree`, `CreateEmptyRTObject`
keywords	`DICOM`, `RT`

Purpose¶

Plugin managing all DICOM modules belonging to the RT Dose IOD. It enables editing of all non-sequence tags, inheriting their values from inputDicomTree and copying all sequence tags from inputDicomTree.

Usage¶

See example network to see how to use the module.

Details¶

Not all DICOM tags are supported.

Windows¶

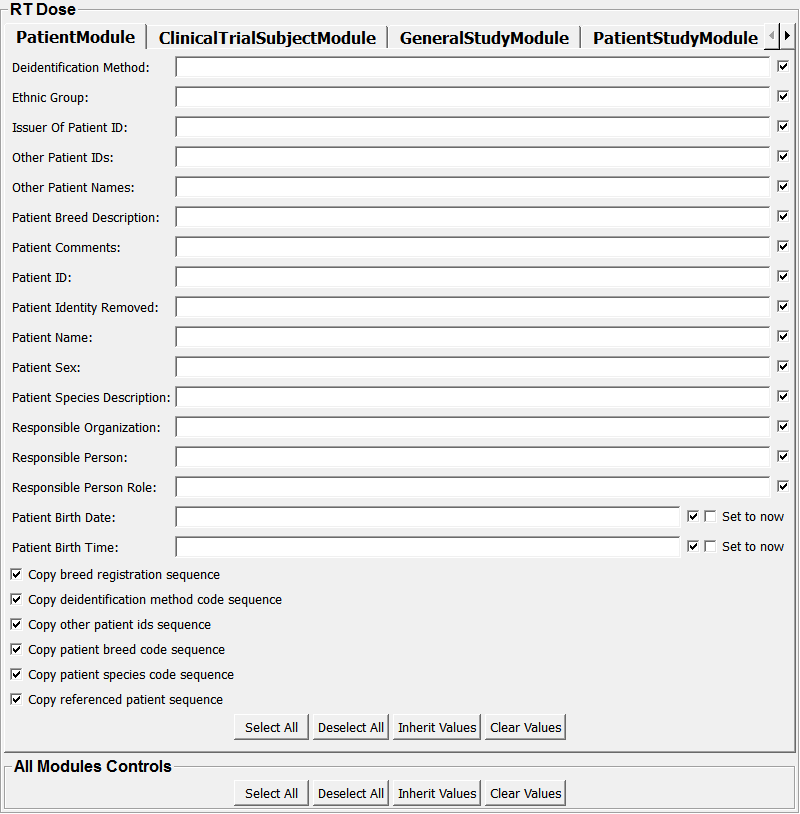

Default Panel¶

../../../Modules/ML/MLDicomModifyRTPlugins/mhelp/Images/Screenshots/DicomModifyRTDosePlugin._default.png

Input Fields¶

inputDicomTree¶

name: inputDicomTree, type: MLBase¶: Connect here DICOM tree which should serve as a source of information.

inputModifierList¶

name: inputModifierList, type: MLBase¶: Here other DicomModifyPlugin module can be connected in order to apply further modification to a DICOM tree.

Output Fields¶

outputModifierList¶

name: outputModifierList, type: MLBase¶: The outputModifierList fields provides a reference-counted Base object to be connected to other DicomModifyPlugin modules or to ModifyDicomTree to apply modifications to a DICOM tree.

Parameter Fields¶

Field Index¶

`Accession Number`: `String`	`Inherit Values (StructureSetModule_InheritValues)`: `Trigger`	`Modify Slice Thickness`: `Bool`
`Acquisition Date`: `String`	`Inherit Values (ROIContourModule_InheritValues)`: `Trigger`	`Modify Smallest Image Pixel Value`: `Bool`
`Acquisition Date Time`: `String`	`Inherit Values (RTDoseROIModule_InheritValues)`: `Trigger`	`Modify Software Versions`: `Bool`
`Acquisition Number`: `String`	`Inherit Values (SOPCommonModule_InheritValues)`: `Trigger`	`Modify SOPAuthorization Comment`: `Bool`
`Acquisition Time`: `String`	`Inherit Values (inheritValues)`: `Trigger`	`Modify SOPAuthorization Date Time`: `Bool`
`Additional Patient History`: `String`	`Instance Creation Date`: `String`	`Modify SOPClass UID`: `Bool`
`Admission ID`: `String`	`Instance Creation Time`: `String`	`Modify SOPInstance Status`: `Bool`
`Admitting Diagnoses Description`: `String`	`Instance Creator UID`: `String`	`Modify SOPInstance UID`: `Bool`
`Authorization Equipment Certification Number`: `String`	`Instance Number`: `String`	`Modify Spatial Resolution`: `Bool`
`Bits Allocated`: `String`	`Institution Address`: `String`	`Modify Specific Character Set`: `Bool`
`Bits Stored`: `String`	`Institution Name`: `String`	`Modify Station Name`: `Bool`
`Blue Palette Color Lookup Table Descriptor`: `String`	`Institutional Department Name`: `String`	`Modify Structure Set Date`: `Bool`
`Burned In Annotation`: `String`	`Irradiation Event UID`: `String`	`Modify Structure Set Description`: `Bool`
`Clear Values (PatientModule_ClearValues)`: `Trigger`	`Issuer Of Admission ID`: `String`	`Modify Structure Set Label`: `Bool`
`Clear Values (ClinicalTrialSubjectModule_ClearValues)`: `Trigger`	`Issuer Of Patient ID`: `String`	`Modify Structure Set Name`: `Bool`
`Clear Values (GeneralStudyModule_ClearValues)`: `Trigger`	`Largest Image Pixel Value`: `String`	`Modify Structure Set Time`: `Bool`
`Clear Values (PatientStudyModule_ClearValues)`: `Trigger`	`Lossy Image Compression`: `String`	`Modify Study Date`: `Bool`
`Clear Values (ClinicalTrialStudyModule_ClearValues)`: `Trigger`	`Lossy Image Compression Method`: `String`	`Modify Study Description`: `Bool`
`Clear Values (RTSeriesModule_ClearValues)`: `Trigger`	`Lossy Image Compression Ratio`: `String`	`Modify Study ID`: `Bool`
`Clear Values (ClinicalTrialSeriesModule_ClearValues)`: `Trigger`	`Manufacturer`: `String`	`Modify Study Instance UID`: `Bool`
`Clear Values (FrameOfReferenceModule_ClearValues)`: `Trigger`	`Manufacturer Model Name`: `String`	`Modify Study Time`: `Bool`
`Clear Values (GeneralEquipmentModule_ClearValues)`: `Trigger`	`Modality`: `String`	`Modify Time Of Last Calibration`: `Bool`
`Clear Values (GeneralImageModule_ClearValues)`: `Trigger`	`Modify Accession Number`: `Bool`	`Modify Timezone Offset From UTC`: `Bool`
`Clear Values (ImagePlaneModule_ClearValues)`: `Trigger`	`Modify Acquisition Date`: `Bool`	`Modify Tissue Heterogeneity Correction`: `Bool`
`Clear Values (ImagePixelModule_ClearValues)`: `Trigger`	`Modify Acquisition Date Time`: `Bool`	`Name Of Physicians Reading Study`: `String`
`Clear Values (MultiFrameModule_ClearValues)`: `Trigger`	`Modify Acquisition Number`: `Bool`	`Normalization Point`: `String`
`Clear Values (OverlayPlaneModule_ClearValues)`: `Trigger`	`Modify Acquisition Time`: `Bool`	`Number Of Frames`: `String`
`Clear Values (MultiFrameOverlayModule_ClearValues)`: `Trigger`	`Modify Additional Patient History`: `Bool`	`Number Of Frames In Overlay`: `String`
`Clear Values (ModalityLUTModule_ClearValues)`: `Trigger`	`Modify Admission ID`: `Bool`	`Occupation`: `String`
`Clear Values (RTDoseModule_ClearValues)`: `Trigger`	`Modify Admitting Diagnoses Description`: `Bool`	`Original Specialized SOPClass UID`: `String`
`Clear Values (RTDVHModule_ClearValues)`: `Trigger`	`Modify Authorization Equipment Certification Number`: `Bool`	`Other Patient IDs`: `String`
`Clear Values (StructureSetModule_ClearValues)`: `Trigger`	`Modify Bits Allocated`: `Bool`	`Other Patient Names`: `String`
`Clear Values (ROIContourModule_ClearValues)`: `Trigger`	`Modify Bits Stored`: `Bool`	`Overlay Bit Position`: `String`
`Clear Values (RTDoseROIModule_ClearValues)`: `Trigger`	`Modify Blue Palette Color Lookup Table Descriptor`: `Bool`	`Overlay Bits Allocated`: `String`
`Clear Values (SOPCommonModule_ClearValues)`: `Trigger`	`Modify Burned In Annotation`: `Bool`	`Overlay Columns`: `String`
`Clear Values (clearValues)`: `Trigger`	`Modify Clinical Trial Coordinating Center Name`: `Bool`	`Overlay Description`: `String`
`Clinical Trial Coordinating Center Name`: `String`	`Modify Clinical Trial Protocol ID`: `Bool`	`Overlay Label`: `String`
`Clinical Trial Protocol ID`: `String`	`Modify Clinical Trial Protocol Name`: `Bool`	`Overlay Origin`: `String`
`Clinical Trial Protocol Name`: `String`	`Modify Clinical Trial Site ID`: `Bool`	`Overlay Rows`: `String`
`Clinical Trial Site ID`: `String`	`Modify Clinical Trial Site Name`: `Bool`	`Overlay Subtype`: `String`
`Clinical Trial Site Name`: `String`	`Modify Clinical Trial Sponsor Name`: `Bool`	`Overlay Type`: `String`
`Clinical Trial Sponsor Name`: `String`	`Modify Clinical Trial Subject ID`: `Bool`	`Patient Age`: `String`
`Clinical Trial Subject ID`: `String`	`Modify Clinical Trial Subject Reading ID`: `Bool`	`Patient Birth Date`: `String`
`Clinical Trial Subject Reading ID`: `String`	`Modify Clinical Trial Time Point Description`: `Bool`	`Patient Birth Time`: `String`
`Clinical Trial Time Point Description`: `String`	`Modify Clinical Trial Time Point ID`: `Bool`	`Patient Breed Description`: `String`
`Clinical Trial Time Point ID`: `String`	`Modify Columns`: `Bool`	`Patient Comments`: `String`
`Columns`: `String`	`Modify Content Date`: `Bool`	`Patient ID`: `String`
`Content Date`: `String`	`Modify Content Time`: `Bool`	`Patient Identity Removed`: `String`
`Content Time`: `String`	`Modify Date Of Last Calibration`: `Bool`	`Patient Name`: `String`
`Copy Admitting Diagnoses Code Sequence`: `Bool`	`Modify Deidentification Method`: `Bool`	`Patient Orientation`: `String`
`Copy Breed Registration Sequence`: `Bool`	`Modify Derivation Description`: `Bool`	`Patient Sex`: `String`
`Copy Coding Scheme Identification Sequence`: `Bool`	`Modify Device Serial Number`: `Bool`	`Patient Sex Neutered`: `String`
`Copy Contributing Equipment Sequence`: `Bool`	`Modify Dose Comment`: `Bool`	`Patient Size`: `String`
`Copy Deidentification Method Code Sequence`: `Bool`	`Modify Dose Grid Scaling`: `Bool`	`Patient Species Description`: `String`
`Copy Derivation Code Sequence`: `Bool`	`Modify Dose Summation Type`: `Bool`	`Patient Weight`: `String`
`Copy Digital Signatures Sequence`: `Bool`	`Modify Dose Type`: `Bool`	`Performed Procedure Step Description`: `String`
`Copy DVHSequence`: `Bool`	`Modify Dose Units`: `Bool`	`Performed Procedure Step ID`: `String`
`Copy Encrypted Attributes Sequence`: `Bool`	`Modify DVHNormalization Dose Value`: `Bool`	`Performed Procedure Step Start Date`: `String`
`Copy HL7Structured Document Reference Sequence`: `Bool`	`Modify DVHNormalization Point`: `Bool`	`Performed Procedure Step Start Time`: `String`
`Copy Icon Image Sequence`: `Bool`	`Modify Ethnic Group`: `Bool`	`Photometric Interpretation`: `String`
`Copy MACParameters Sequence`: `Bool`	`Modify Frame Of Reference UID`: `Bool`	`Physicians Of Record`: `String`
`Copy Modality LUTSequence`: `Bool`	`Modify Gantry ID`: `Bool`	`Pixel Aspect Ratio`: `String`
`Copy Original Attributes Sequence`: `Bool`	`Modify Green Palette Color Lookup Table Descriptor`: `Bool`	`Pixel Data Provider URL`: `String`
`Copy Other Patient IDs Sequence`: `Bool`	`Modify Grid Frame Offset Vector`: `Bool`	`Pixel Padding Value`: `String`
`Copy Patient Breed Code Sequence`: `Bool`	`Modify High Bit`: `Bool`	`Pixel Representation`: `String`
`Copy Patient Species Code Sequence`: `Bool`	`Modify Image Comments`: `Bool`	`Pixel Spacing`: `String`
`Copy Performed Protocol Code Sequence`: `Bool`	`Modify Image Frame Origin`: `Bool`	`Planar Configuration`: `String`
`Copy Physicians Of Record Identification Sequence`: `Bool`	`Modify Image Orientation Patient`: `Bool`	`Position Reference Indicator`: `String`
`Copy Physicians Reading Study Identification Sequence`: `Bool`	`Modify Image Position Patient`: `Bool`	`Presentation LUTShape`: `String`
`Copy Procedure Code Sequence`: `Bool`	`Modify Image Type`: `Bool`	`Quality Control Image`: `String`
`Copy Referenced Frame Of Reference Sequence`: `Bool`	`Modify Images In Acquisition`: `Bool`	`Red Palette Color Lookup Table Descriptor`: `String`
`Copy Referenced Image Sequence`: `Bool`	`Modify Instance Creation Date`: `Bool`	`Referring Physician Name`: `String`
`Copy Referenced Instance Sequence`: `Bool`	`Modify Instance Creation Time`: `Bool`	`Related General SOPClass UID`: `String`
`Copy Referenced Patient Sequence`: `Bool`	`Modify Instance Creator UID`: `Bool`	`Rescale Intercept`: `String`
`Copy Referenced Performed Procedure Step Sequence`: `Bool`	`Modify Instance Number`: `Bool`	`Rescale Slope`: `String`
`Copy Referenced RTPlan Sequence`: `Bool`	`Modify Institution Address`: `Bool`	`Rescale Type`: `String`
`Copy Referenced Structure Set Sequence`: `Bool`	`Modify Institution Name`: `Bool`	`Responsible Organization`: `String`
`Copy Referenced Study Sequence`: `Bool`	`Modify Institutional Department Name`: `Bool`	`Responsible Person`: `String`
`Copy Referring Physician Identification Sequence`: `Bool`	`Modify Irradiation Event UID`: `Bool`	`Responsible Person Role`: `String`
`Copy Request Attributes Sequence`: `Bool`	`Modify Issuer Of Admission ID`: `Bool`	`ROIArea`: `String`
`Copy ROIContour Sequence`: `Bool`	`Modify Issuer Of Patient ID`: `Bool`	`ROIMean`: `String`
`Copy RTDose ROISequence`: `Bool`	`Modify Largest Image Pixel Value`: `Bool`	`ROIStandard Deviation`: `String`
`Copy Source Image Sequence`: `Bool`	`Modify Lossy Image Compression`: `Bool`	`Rows`: `String`
`Copy Structure Set ROISequence`: `Bool`	`Modify Lossy Image Compression Method`: `Bool`	`Samples Per Pixel`: `String`
`Create new UID (autoCreateStudyInstanceUID)`: `Bool`	`Modify Lossy Image Compression Ratio`: `Bool`	`Select All (PatientModule_SelectAll)`: `Trigger`
`Create new UID (autoCreateSeriesInstanceUID)`: `Bool`	`Modify Manufacturer`: `Bool`	`Select All (ClinicalTrialSubjectModule_SelectAll)`: `Trigger`
`Create new UID (autoCreateInstanceCreatorUID)`: `Bool`	`Modify Manufacturer Model Name`: `Bool`	`Select All (GeneralStudyModule_SelectAll)`: `Trigger`
`Create new UID (autoCreateSOPInstanceUID)`: `Bool`	`Modify Modality`: `Bool`	`Select All (PatientStudyModule_SelectAll)`: `Trigger`
`Date Of Last Calibration`: `String`	`Modify Name Of Physicians Reading Study`: `Bool`	`Select All (ClinicalTrialStudyModule_SelectAll)`: `Trigger`
`Deidentification Method`: `String`	`Modify Normalization Point`: `Bool`	`Select All (RTSeriesModule_SelectAll)`: `Trigger`
`Derivation Description`: `String`	`Modify Number Of Frames`: `Bool`	`Select All (ClinicalTrialSeriesModule_SelectAll)`: `Trigger`
`Deselect All (PatientModule_DeselectAll)`: `Trigger`	`Modify Number Of Frames In Overlay`: `Bool`	`Select All (FrameOfReferenceModule_SelectAll)`: `Trigger`
`Deselect All (ClinicalTrialSubjectModule_DeselectAll)`: `Trigger`	`Modify Occupation`: `Bool`	`Select All (GeneralEquipmentModule_SelectAll)`: `Trigger`
`Deselect All (GeneralStudyModule_DeselectAll)`: `Trigger`	`Modify Original Specialized SOPClass UID`: `Bool`	`Select All (GeneralImageModule_SelectAll)`: `Trigger`
`Deselect All (PatientStudyModule_DeselectAll)`: `Trigger`	`Modify Other Patient IDs`: `Bool`	`Select All (ImagePlaneModule_SelectAll)`: `Trigger`
`Deselect All (ClinicalTrialStudyModule_DeselectAll)`: `Trigger`	`Modify Other Patient Names`: `Bool`	`Select All (ImagePixelModule_SelectAll)`: `Trigger`
`Deselect All (RTSeriesModule_DeselectAll)`: `Trigger`	`Modify Overlay Bit Position`: `Bool`	`Select All (MultiFrameModule_SelectAll)`: `Trigger`
`Deselect All (ClinicalTrialSeriesModule_DeselectAll)`: `Trigger`	`Modify Overlay Bits Allocated`: `Bool`	`Select All (OverlayPlaneModule_SelectAll)`: `Trigger`
`Deselect All (FrameOfReferenceModule_DeselectAll)`: `Trigger`	`Modify Overlay Columns`: `Bool`	`Select All (MultiFrameOverlayModule_SelectAll)`: `Trigger`
`Deselect All (GeneralEquipmentModule_DeselectAll)`: `Trigger`	`Modify Overlay Description`: `Bool`	`Select All (ModalityLUTModule_SelectAll)`: `Trigger`
`Deselect All (GeneralImageModule_DeselectAll)`: `Trigger`	`Modify Overlay Label`: `Bool`	`Select All (RTDoseModule_SelectAll)`: `Trigger`
`Deselect All (ImagePlaneModule_DeselectAll)`: `Trigger`	`Modify Overlay Origin`: `Bool`	`Select All (RTDVHModule_SelectAll)`: `Trigger`
`Deselect All (ImagePixelModule_DeselectAll)`: `Trigger`	`Modify Overlay Rows`: `Bool`	`Select All (StructureSetModule_SelectAll)`: `Trigger`
`Deselect All (MultiFrameModule_DeselectAll)`: `Trigger`	`Modify Overlay Subtype`: `Bool`	`Select All (ROIContourModule_SelectAll)`: `Trigger`
`Deselect All (OverlayPlaneModule_DeselectAll)`: `Trigger`	`Modify Overlay Type`: `Bool`	`Select All (RTDoseROIModule_SelectAll)`: `Trigger`
`Deselect All (MultiFrameOverlayModule_DeselectAll)`: `Trigger`	`Modify Patient Age`: `Bool`	`Select All (SOPCommonModule_SelectAll)`: `Trigger`
`Deselect All (ModalityLUTModule_DeselectAll)`: `Trigger`	`Modify Patient Birth Date`: `Bool`	`Select All (selectAll)`: `Trigger`
`Deselect All (RTDoseModule_DeselectAll)`: `Trigger`	`Modify Patient Birth Time`: `Bool`	`Series Description`: `String`
`Deselect All (RTDVHModule_DeselectAll)`: `Trigger`	`Modify Patient Breed Description`: `Bool`	`Series Instance UID`: `String`
`Deselect All (StructureSetModule_DeselectAll)`: `Trigger`	`Modify Patient Comments`: `Bool`	`Series Number`: `String`
`Deselect All (ROIContourModule_DeselectAll)`: `Trigger`	`Modify Patient ID`: `Bool`	`Set to now (setPatientBirthDateToNow)`: `Bool`
`Deselect All (RTDoseROIModule_DeselectAll)`: `Trigger`	`Modify Patient Identity Removed`: `Bool`	`Set to now (setPatientBirthTimeToNow)`: `Bool`
`Deselect All (SOPCommonModule_DeselectAll)`: `Trigger`	`Modify Patient Name`: `Bool`	`Set to now (setStudyDateToNow)`: `Bool`
`Deselect All (deselectAll)`: `Trigger`	`Modify Patient Orientation`: `Bool`	`Set to now (setStudyTimeToNow)`: `Bool`
`Device Serial Number`: `String`	`Modify Patient Sex`: `Bool`	`Set to now (setPerformedProcedureStepStartDateToNow)`: `Bool`
`Dose Comment`: `String`	`Modify Patient Sex Neutered`: `Bool`	`Set to now (setPerformedProcedureStepStartTimeToNow)`: `Bool`
`Dose Grid Scaling`: `String`	`Modify Patient Size`: `Bool`	`Set to now (setDateOfLastCalibrationToNow)`: `Bool`
`Dose Summation Type`: `String`	`Modify Patient Species Description`: `Bool`	`Set to now (setTimeOfLastCalibrationToNow)`: `Bool`
`Dose Type`: `String`	`Modify Patient Weight`: `Bool`	`Set to now (setAcquisitionDateToNow)`: `Bool`
`Dose Units`: `String`	`Modify Performed Procedure Step Description`: `Bool`	`Set to now (setAcquisitionTimeToNow)`: `Bool`
`DVHNormalization Dose Value`: `String`	`Modify Performed Procedure Step ID`: `Bool`	`Set to now (setContentDateToNow)`: `Bool`
`DVHNormalization Point`: `String`	`Modify Performed Procedure Step Start Date`: `Bool`	`Set to now (setContentTimeToNow)`: `Bool`
`Ethnic Group`: `String`	`Modify Performed Procedure Step Start Time`: `Bool`	`Set to now (setStructureSetDateToNow)`: `Bool`
`Frame Of Reference UID`: `String`	`Modify Photometric Interpretation`: `Bool`	`Set to now (setStructureSetTimeToNow)`: `Bool`
`Gantry ID`: `String`	`Modify Physicians Of Record`: `Bool`	`Set to now (setInstanceCreationDateToNow)`: `Bool`
`Green Palette Color Lookup Table Descriptor`: `String`	`Modify Pixel Aspect Ratio`: `Bool`	`Set to now (setInstanceCreationTimeToNow)`: `Bool`
`Grid Frame Offset Vector`: `String`	`Modify Pixel Data Provider URL`: `Bool`	`Slice Location`: `String`
`High Bit`: `String`	`Modify Pixel Padding Value`: `Bool`	`Slice Thickness`: `String`
`Image Comments`: `String`	`Modify Pixel Representation`: `Bool`	`Smallest Image Pixel Value`: `String`
`Image Frame Origin`: `String`	`Modify Pixel Spacing`: `Bool`	`Software Versions`: `String`
`Image Orientation Patient`: `String`	`Modify Planar Configuration`: `Bool`	`SOPAuthorization Comment`: `String`
`Image Position Patient`: `String`	`Modify Position Reference Indicator`: `Bool`	`SOPAuthorization Date Time`: `String`
`Image Type`: `String`	`Modify Presentation LUTShape`: `Bool`	`SOPClass UID`: `String`
`Images In Acquisition`: `String`	`Modify Quality Control Image`: `Bool`	`SOPInstance Status`: `String`
`Inherit Values (PatientModule_InheritValues)`: `Trigger`	`Modify Red Palette Color Lookup Table Descriptor`: `Bool`	`SOPInstance UID`: `String`
`Inherit Values (ClinicalTrialSubjectModule_InheritValues)`: `Trigger`	`Modify Referring Physician Name`: `Bool`	`Spatial Resolution`: `String`
`Inherit Values (GeneralStudyModule_InheritValues)`: `Trigger`	`Modify Related General SOPClass UID`: `Bool`	`Specific Character Set`: `String`
`Inherit Values (PatientStudyModule_InheritValues)`: `Trigger`	`Modify Rescale Intercept`: `Bool`	`Station Name`: `String`
`Inherit Values (ClinicalTrialStudyModule_InheritValues)`: `Trigger`	`Modify Rescale Slope`: `Bool`	`Structure Set Date`: `String`
`Inherit Values (RTSeriesModule_InheritValues)`: `Trigger`	`Modify Rescale Type`: `Bool`	`Structure Set Description`: `String`
`Inherit Values (ClinicalTrialSeriesModule_InheritValues)`: `Trigger`	`Modify Responsible Organization`: `Bool`	`Structure Set Label`: `String`
`Inherit Values (FrameOfReferenceModule_InheritValues)`: `Trigger`	`Modify Responsible Person`: `Bool`	`Structure Set Name`: `String`
`Inherit Values (GeneralEquipmentModule_InheritValues)`: `Trigger`	`Modify Responsible Person Role`: `Bool`	`Structure Set Time`: `String`
`Inherit Values (GeneralImageModule_InheritValues)`: `Trigger`	`Modify ROIArea`: `Bool`	`Study Date`: `String`
`Inherit Values (ImagePlaneModule_InheritValues)`: `Trigger`	`Modify ROIMean`: `Bool`	`Study Description`: `String`
`Inherit Values (ImagePixelModule_InheritValues)`: `Trigger`	`Modify ROIStandard Deviation`: `Bool`	`Study ID`: `String`
`Inherit Values (MultiFrameModule_InheritValues)`: `Trigger`	`Modify Rows`: `Bool`	`Study Instance UID`: `String`
`Inherit Values (OverlayPlaneModule_InheritValues)`: `Trigger`	`Modify Samples Per Pixel`: `Bool`	`Study Time`: `String`
`Inherit Values (MultiFrameOverlayModule_InheritValues)`: `Trigger`	`Modify Series Description`: `Bool`	`Time Of Last Calibration`: `String`
`Inherit Values (ModalityLUTModule_InheritValues)`: `Trigger`	`Modify Series Instance UID`: `Bool`	`Timezone Offset From UTC`: `String`
`Inherit Values (RTDoseModule_InheritValues)`: `Trigger`	`Modify Series Number`: `Bool`	`Tissue Heterogeneity Correction`: `String`
`Inherit Values (RTDVHModule_InheritValues)`: `Trigger`	`Modify Slice Location`: `Bool`

Visible Fields¶

Modify Deidentification Method¶

name: modifyDeidentificationMethod, type: Bool, default: TRUE¶: Should modify DeidentificationMethod?

Deidentification Method¶

name: DeidentificationMethod, type: String¶: DeidentificationMethod (0012,0063) vr=LO, vm=1-n, type=1C

Modify Ethnic Group¶

name: modifyEthnicGroup, type: Bool, default: TRUE¶: Should modify EthnicGroup?

Ethnic Group¶

name: EthnicGroup, type: String¶: EthnicGroup (0010,2160) vr=SH, vm=1, type=3

Modify Issuer Of Patient ID¶

name: modifyIssuerOfPatientID, type: Bool, default: TRUE¶: Should modify IssuerOfPatientID?

Issuer Of Patient ID¶

name: IssuerOfPatientID, type: String¶: IssuerOfPatientID (0010,0021) vr=LO, vm=1, type=3

Modify Other Patient IDs¶

name: modifyOtherPatientIDs, type: Bool, default: TRUE¶: Should modify OtherPatientIDs?

Other Patient IDs¶

name: OtherPatientIDs, type: String¶: OtherPatientIDs (0010,1000) vr=LO, vm=1-n, type=3

Modify Other Patient Names¶

name: modifyOtherPatientNames, type: Bool, default: TRUE¶: Should modify OtherPatientNames?

Other Patient Names¶

name: OtherPatientNames, type: String¶: OtherPatientNames (0010,1001) vr=PN, vm=1-n, type=3

Modify Patient Breed Description¶

name: modifyPatientBreedDescription, type: Bool, default: TRUE¶: Should modify PatientBreedDescription?

Patient Breed Description¶

name: PatientBreedDescription, type: String¶: PatientBreedDescription (0010,2292) vr=LO, vm=1, type=2C

Modify Patient Comments¶

name: modifyPatientComments, type: Bool, default: TRUE¶: Should modify PatientComments?

Patient Comments¶

name: PatientComments, type: String¶: PatientComments (0010,4000) vr=LT, vm=1, type=3

Modify Patient ID¶

name: modifyPatientID, type: Bool, default: TRUE¶: Should modify PatientID?

Patient ID¶

name: PatientID, type: String¶: PatientID (0010,0020) vr=LO, vm=1, type=2

Modify Patient Identity Removed¶

name: modifyPatientIdentityRemoved, type: Bool, default: TRUE¶: Should modify PatientIdentityRemoved?

Patient Identity Removed¶

name: PatientIdentityRemoved, type: String¶: PatientIdentityRemoved (0012,0062) vr=CS, vm=1, type=3

Modify Patient Name¶

name: modifyPatientName, type: Bool, default: TRUE¶: Should modify PatientName?

Patient Name¶

name: PatientName, type: String¶: PatientName (0010,0010) vr=PN, vm=1, type=2

Modify Patient Sex¶

name: modifyPatientSex, type: Bool, default: TRUE¶: Should modify PatientSex?

Patient Sex¶

name: PatientSex, type: String¶: PatientSex (0010,0040) vr=CS, vm=1, type=2

Modify Patient Species Description¶

name: modifyPatientSpeciesDescription, type: Bool, default: TRUE¶: Should modify PatientSpeciesDescription?

Patient Species Description¶

name: PatientSpeciesDescription, type: String¶: PatientSpeciesDescription (0010,2201) vr=LO, vm=1, type=1C

Modify Responsible Organization¶

name: modifyResponsibleOrganization, type: Bool, default: TRUE¶: Should modify ResponsibleOrganization?

Responsible Organization¶

name: ResponsibleOrganization, type: String¶: ResponsibleOrganization (0010,2299) vr=LO, vm=1, type=2C

Modify Responsible Person¶

name: modifyResponsiblePerson, type: Bool, default: TRUE¶: Should modify ResponsiblePerson?

Responsible Person¶

name: ResponsiblePerson, type: String¶: ResponsiblePerson (0010,2297) vr=PN, vm=1, type=2C

Modify Responsible Person Role¶

name: modifyResponsiblePersonRole, type: Bool, default: TRUE¶: Should modify ResponsiblePersonRole?

Responsible Person Role¶

name: ResponsiblePersonRole, type: String¶: ResponsiblePersonRole (0010,2298) vr=CS, vm=1, type=1C

Set to now (setPatientBirthDateToNow)¶

name: setPatientBirthDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Patient Birth Date¶

name: modifyPatientBirthDate, type: Bool, default: TRUE¶: Should modify PatientBirthDate?

Patient Birth Date¶

name: PatientBirthDate, type: String¶: PatientBirthDate (0010,0030) vr=DA, vm=1, type=2

Set to now (setPatientBirthTimeToNow)¶

name: setPatientBirthTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Patient Birth Time¶

name: modifyPatientBirthTime, type: Bool, default: TRUE¶: Should modify PatientBirthTime?

Patient Birth Time¶

name: PatientBirthTime, type: String¶: PatientBirthTime (0010,0032) vr=TM, vm=1, type=3

Copy Breed Registration Sequence¶

name: copyBreedRegistrationSequence, type: Bool, default: TRUE¶: Should copy BreedRegistrationSequence?

Copy Deidentification Method Code Sequence¶

name: copyDeidentificationMethodCodeSequence, type: Bool, default: TRUE¶: Should copy DeidentificationMethodCodeSequence?

Copy Other Patient IDs Sequence¶

name: copyOtherPatientIDsSequence, type: Bool, default: TRUE¶: Should copy OtherPatientIDsSequence?

Copy Patient Breed Code Sequence¶

name: copyPatientBreedCodeSequence, type: Bool, default: TRUE¶: Should copy PatientBreedCodeSequence?

Copy Patient Species Code Sequence¶

name: copyPatientSpeciesCodeSequence, type: Bool, default: TRUE¶: Should copy PatientSpeciesCodeSequence?

Copy Referenced Patient Sequence¶

name: copyReferencedPatientSequence, type: Bool, default: TRUE¶: Should copy ReferencedPatientSequence?

Select All (PatientModule_SelectAll)¶

name: PatientModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the PatientModule.

Deselect All (PatientModule_DeselectAll)¶

name: PatientModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the PatientModule.

Inherit Values (PatientModule_InheritValues)¶

name: PatientModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the PatientModule.

Clear Values (PatientModule_ClearValues)¶

name: PatientModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the PatientModule.

Modify Clinical Trial Protocol ID¶

name: modifyClinicalTrialProtocolID, type: Bool, default: TRUE¶: Should modify ClinicalTrialProtocolID?

Clinical Trial Protocol ID¶

name: ClinicalTrialProtocolID, type: String¶: ClinicalTrialProtocolID (0012,0020) vr=LO, vm=1, type=1

Modify Clinical Trial Protocol Name¶

name: modifyClinicalTrialProtocolName, type: Bool, default: TRUE¶: Should modify ClinicalTrialProtocolName?

Clinical Trial Protocol Name¶

name: ClinicalTrialProtocolName, type: String¶: ClinicalTrialProtocolName (0012,0021) vr=LO, vm=1, type=2

Modify Clinical Trial Site ID¶

name: modifyClinicalTrialSiteID, type: Bool, default: TRUE¶: Should modify ClinicalTrialSiteID?

Clinical Trial Site ID¶

name: ClinicalTrialSiteID, type: String¶: ClinicalTrialSiteID (0012,0030) vr=LO, vm=1, type=2

Modify Clinical Trial Site Name¶

name: modifyClinicalTrialSiteName, type: Bool, default: TRUE¶: Should modify ClinicalTrialSiteName?

Clinical Trial Site Name¶

name: ClinicalTrialSiteName, type: String¶: ClinicalTrialSiteName (0012,0031) vr=LO, vm=1, type=2

Modify Clinical Trial Subject ID¶

name: modifyClinicalTrialSubjectID, type: Bool, default: TRUE¶: Should modify ClinicalTrialSubjectID?

Clinical Trial Subject ID¶

name: ClinicalTrialSubjectID, type: String¶: ClinicalTrialSubjectID (0012,0040) vr=LO, vm=1, type=1C

Modify Clinical Trial Subject Reading ID¶

name: modifyClinicalTrialSubjectReadingID, type: Bool, default: TRUE¶: Should modify ClinicalTrialSubjectReadingID?

Clinical Trial Subject Reading ID¶

name: ClinicalTrialSubjectReadingID, type: String¶: ClinicalTrialSubjectReadingID (0012,0042) vr=LO, vm=1, type=1C

Select All (ClinicalTrialSubjectModule_SelectAll)¶

name: ClinicalTrialSubjectModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the ClinicalTrialSubjectModule.

Deselect All (ClinicalTrialSubjectModule_DeselectAll)¶

name: ClinicalTrialSubjectModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the ClinicalTrialSubjectModule.

Inherit Values (ClinicalTrialSubjectModule_InheritValues)¶

name: ClinicalTrialSubjectModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the ClinicalTrialSubjectModule.

Clear Values (ClinicalTrialSubjectModule_ClearValues)¶

name: ClinicalTrialSubjectModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the ClinicalTrialSubjectModule.

Modify Accession Number¶

name: modifyAccessionNumber, type: Bool, default: TRUE¶: Should modify AccessionNumber?

Accession Number¶

name: AccessionNumber, type: String¶: AccessionNumber (0008,0050) vr=SH, vm=1, type=2

Modify Name Of Physicians Reading Study¶

name: modifyNameOfPhysiciansReadingStudy, type: Bool, default: TRUE¶: Should modify NameOfPhysiciansReadingStudy?

Name Of Physicians Reading Study¶

name: NameOfPhysiciansReadingStudy, type: String¶: NameOfPhysiciansReadingStudy (0008,1060) vr=PN, vm=1-n, type=3

Modify Physicians Of Record¶

name: modifyPhysiciansOfRecord, type: Bool, default: TRUE¶: Should modify PhysiciansOfRecord?

Physicians Of Record¶

name: PhysiciansOfRecord, type: String¶: PhysiciansOfRecord (0008,1048) vr=PN, vm=1-n, type=3

Modify Referring Physician Name¶

name: modifyReferringPhysicianName, type: Bool, default: TRUE¶: Should modify ReferringPhysicianName?

Referring Physician Name¶

name: ReferringPhysicianName, type: String¶: ReferringPhysicianName (0008,0090) vr=PN, vm=1, type=2

Modify Study Description¶

name: modifyStudyDescription, type: Bool, default: TRUE¶: Should modify StudyDescription?

Study Description¶

name: StudyDescription, type: String¶: StudyDescription (0008,1030) vr=LO, vm=1, type=3

Modify Study ID¶

name: modifyStudyID, type: Bool, default: TRUE¶: Should modify StudyID?

Study ID¶

name: StudyID, type: String¶: StudyID (0020,0010) vr=SH, vm=1, type=2

Create new UID (autoCreateStudyInstanceUID)¶

name: autoCreateStudyInstanceUID, type: Bool, default: FALSE¶: Auto create new UID.

Modify Study Instance UID¶

name: modifyStudyInstanceUID, type: Bool, default: TRUE¶: Should modify StudyInstanceUID?

Study Instance UID¶

name: StudyInstanceUID, type: String¶: StudyInstanceUID (0020,000d) vr=UI, vm=1, type=1

Set to now (setStudyDateToNow)¶

name: setStudyDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Study Date¶

name: modifyStudyDate, type: Bool, default: TRUE¶: Should modify StudyDate?

Study Date¶

name: StudyDate, type: String¶: StudyDate (0008,0020) vr=DA, vm=1, type=2

Set to now (setStudyTimeToNow)¶

name: setStudyTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Study Time¶

name: modifyStudyTime, type: Bool, default: TRUE¶: Should modify StudyTime?

Study Time¶

name: StudyTime, type: String¶: StudyTime (0008,0030) vr=TM, vm=1, type=2

Copy Physicians Of Record Identification Sequence¶

name: copyPhysiciansOfRecordIdentificationSequence, type: Bool, default: TRUE¶: Should copy PhysiciansOfRecordIdentificationSequence?

Copy Physicians Reading Study Identification Sequence¶

name: copyPhysiciansReadingStudyIdentificationSequence, type: Bool, default: TRUE¶: Should copy PhysiciansReadingStudyIdentificationSequence?

Copy Procedure Code Sequence¶

name: copyProcedureCodeSequence, type: Bool, default: TRUE¶: Should copy ProcedureCodeSequence?

Copy Referenced Study Sequence¶

name: copyReferencedStudySequence, type: Bool, default: TRUE¶: Should copy ReferencedStudySequence?

Copy Referring Physician Identification Sequence¶

name: copyReferringPhysicianIdentificationSequence, type: Bool, default: TRUE¶: Should copy ReferringPhysicianIdentificationSequence?

Select All (GeneralStudyModule_SelectAll)¶

name: GeneralStudyModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the GeneralStudyModule.

Deselect All (GeneralStudyModule_DeselectAll)¶

name: GeneralStudyModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the GeneralStudyModule.

Inherit Values (GeneralStudyModule_InheritValues)¶

name: GeneralStudyModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the GeneralStudyModule.

Clear Values (GeneralStudyModule_ClearValues)¶

name: GeneralStudyModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the GeneralStudyModule.

Modify Additional Patient History¶

name: modifyAdditionalPatientHistory, type: Bool, default: TRUE¶: Should modify AdditionalPatientHistory?

Additional Patient History¶

name: AdditionalPatientHistory, type: String¶: AdditionalPatientHistory (0010,21b0) vr=LT, vm=1, type=3

Modify Admission ID¶

name: modifyAdmissionID, type: Bool, default: TRUE¶: Should modify AdmissionID?

Admission ID¶

name: AdmissionID, type: String¶: AdmissionID (0038,0010) vr=LO, vm=1, type=3

Modify Admitting Diagnoses Description¶

name: modifyAdmittingDiagnosesDescription, type: Bool, default: TRUE¶: Should modify AdmittingDiagnosesDescription?

Admitting Diagnoses Description¶

name: AdmittingDiagnosesDescription, type: String¶: AdmittingDiagnosesDescription (0008,1080) vr=LO, vm=1-n, type=3

Modify Issuer Of Admission ID¶

name: modifyIssuerOfAdmissionID, type: Bool, default: TRUE¶: Should modify IssuerOfAdmissionID?

Issuer Of Admission ID¶

name: IssuerOfAdmissionID, type: String¶: IssuerOfAdmissionID (0038,0011) vr=LO, vm=1, type=3

Modify Occupation¶

name: modifyOccupation, type: Bool, default: TRUE¶: Should modify Occupation?

Occupation¶

name: Occupation, type: String¶: Occupation (0010,2180) vr=SH, vm=1, type=3

Modify Patient Age¶

name: modifyPatientAge, type: Bool, default: TRUE¶: Should modify PatientAge?

Patient Age¶

name: PatientAge, type: String¶: PatientAge (0010,1010) vr=AS, vm=1, type=3

Modify Patient Sex Neutered¶

name: modifyPatientSexNeutered, type: Bool, default: TRUE¶: Should modify PatientSexNeutered?

Patient Sex Neutered¶

name: PatientSexNeutered, type: String¶: PatientSexNeutered (0010,2203) vr=CS, vm=1, type=2C

Modify Patient Size¶

name: modifyPatientSize, type: Bool, default: TRUE¶: Should modify PatientSize?

Patient Size¶

name: PatientSize, type: String¶: PatientSize (0010,1020) vr=DS, vm=1, type=3

Modify Patient Weight¶

name: modifyPatientWeight, type: Bool, default: TRUE¶: Should modify PatientWeight?

Patient Weight¶

name: PatientWeight, type: String¶: PatientWeight (0010,1030) vr=DS, vm=1, type=3

Copy Admitting Diagnoses Code Sequence¶

name: copyAdmittingDiagnosesCodeSequence, type: Bool, default: TRUE¶: Should copy AdmittingDiagnosesCodeSequence?

Select All (PatientStudyModule_SelectAll)¶

name: PatientStudyModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the PatientStudyModule.

Deselect All (PatientStudyModule_DeselectAll)¶

name: PatientStudyModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the PatientStudyModule.

Inherit Values (PatientStudyModule_InheritValues)¶

name: PatientStudyModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the PatientStudyModule.

Clear Values (PatientStudyModule_ClearValues)¶

name: PatientStudyModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the PatientStudyModule.

Modify Clinical Trial Time Point Description¶

name: modifyClinicalTrialTimePointDescription, type: Bool, default: TRUE¶: Should modify ClinicalTrialTimePointDescription?

Clinical Trial Time Point Description¶

name: ClinicalTrialTimePointDescription, type: String¶: ClinicalTrialTimePointDescription (0012,0051) vr=ST, vm=1, type=3

Modify Clinical Trial Time Point ID¶

name: modifyClinicalTrialTimePointID, type: Bool, default: TRUE¶: Should modify ClinicalTrialTimePointID?

Clinical Trial Time Point ID¶

name: ClinicalTrialTimePointID, type: String¶: ClinicalTrialTimePointID (0012,0050) vr=LO, vm=1, type=2

Select All (ClinicalTrialStudyModule_SelectAll)¶

name: ClinicalTrialStudyModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the ClinicalTrialStudyModule.

Deselect All (ClinicalTrialStudyModule_DeselectAll)¶

name: ClinicalTrialStudyModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the ClinicalTrialStudyModule.

Inherit Values (ClinicalTrialStudyModule_InheritValues)¶

name: ClinicalTrialStudyModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the ClinicalTrialStudyModule.

Clear Values (ClinicalTrialStudyModule_ClearValues)¶

name: ClinicalTrialStudyModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the ClinicalTrialStudyModule.

Modify Modality¶

name: modifyModality, type: Bool, default: TRUE¶: Should modify Modality?

Modality¶

name: Modality, type: String¶: Modality (0008,0060) vr=CS, vm=1, type=1

Modify Performed Procedure Step Description¶

name: modifyPerformedProcedureStepDescription, type: Bool, default: TRUE¶: Should modify PerformedProcedureStepDescription?

Performed Procedure Step Description¶

name: PerformedProcedureStepDescription, type: String¶: PerformedProcedureStepDescription (0040,0254) vr=LO, vm=1, type=3

Modify Performed Procedure Step ID¶

name: modifyPerformedProcedureStepID, type: Bool, default: TRUE¶: Should modify PerformedProcedureStepID?

Performed Procedure Step ID¶

name: PerformedProcedureStepID, type: String¶: PerformedProcedureStepID (0040,0253) vr=SH, vm=1, type=3

Modify Series Description¶

name: modifySeriesDescription, type: Bool, default: TRUE¶: Should modify SeriesDescription?

Series Description¶

name: SeriesDescription, type: String¶: SeriesDescription (0008,103e) vr=LO, vm=1, type=3

Modify Series Number¶

name: modifySeriesNumber, type: Bool, default: TRUE¶: Should modify SeriesNumber?

Series Number¶

name: SeriesNumber, type: String¶: SeriesNumber (0020,0011) vr=IS, vm=1, type=2

Create new UID (autoCreateSeriesInstanceUID)¶

name: autoCreateSeriesInstanceUID, type: Bool, default: FALSE¶: Auto create new UID.

Modify Series Instance UID¶

name: modifySeriesInstanceUID, type: Bool, default: TRUE¶: Should modify SeriesInstanceUID?

Series Instance UID¶

name: SeriesInstanceUID, type: String¶: SeriesInstanceUID (0020,000e) vr=UI, vm=1, type=1

Set to now (setPerformedProcedureStepStartDateToNow)¶

name: setPerformedProcedureStepStartDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Performed Procedure Step Start Date¶

name: modifyPerformedProcedureStepStartDate, type: Bool, default: TRUE¶: Should modify PerformedProcedureStepStartDate?

Performed Procedure Step Start Date¶

name: PerformedProcedureStepStartDate, type: String¶: PerformedProcedureStepStartDate (0040,0244) vr=DA, vm=1, type=3

Set to now (setPerformedProcedureStepStartTimeToNow)¶

name: setPerformedProcedureStepStartTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Performed Procedure Step Start Time¶

name: modifyPerformedProcedureStepStartTime, type: Bool, default: TRUE¶: Should modify PerformedProcedureStepStartTime?

Performed Procedure Step Start Time¶

name: PerformedProcedureStepStartTime, type: String¶: PerformedProcedureStepStartTime (0040,0245) vr=TM, vm=1, type=3

Copy Performed Protocol Code Sequence¶

name: copyPerformedProtocolCodeSequence, type: Bool, default: TRUE¶: Should copy PerformedProtocolCodeSequence?

Copy Referenced Performed Procedure Step Sequence¶

name: copyReferencedPerformedProcedureStepSequence, type: Bool, default: TRUE¶: Should copy ReferencedPerformedProcedureStepSequence?

Copy Request Attributes Sequence¶

name: copyRequestAttributesSequence, type: Bool, default: TRUE¶: Should copy RequestAttributesSequence?

Select All (RTSeriesModule_SelectAll)¶

name: RTSeriesModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the RTSeriesModule.

Deselect All (RTSeriesModule_DeselectAll)¶

name: RTSeriesModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the RTSeriesModule.

Inherit Values (RTSeriesModule_InheritValues)¶

name: RTSeriesModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the RTSeriesModule.

Clear Values (RTSeriesModule_ClearValues)¶

name: RTSeriesModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the RTSeriesModule.

Modify Clinical Trial Coordinating Center Name¶

name: modifyClinicalTrialCoordinatingCenterName, type: Bool, default: TRUE¶: Should modify ClinicalTrialCoordinatingCenterName?

Clinical Trial Coordinating Center Name¶

name: ClinicalTrialCoordinatingCenterName, type: String¶: ClinicalTrialCoordinatingCenterName (0012,0060) vr=LO, vm=1, type=2

Select All (ClinicalTrialSeriesModule_SelectAll)¶

name: ClinicalTrialSeriesModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the ClinicalTrialSeriesModule.

Deselect All (ClinicalTrialSeriesModule_DeselectAll)¶

name: ClinicalTrialSeriesModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the ClinicalTrialSeriesModule.

Inherit Values (ClinicalTrialSeriesModule_InheritValues)¶

name: ClinicalTrialSeriesModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the ClinicalTrialSeriesModule.

Clear Values (ClinicalTrialSeriesModule_ClearValues)¶

name: ClinicalTrialSeriesModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the ClinicalTrialSeriesModule.

Modify Frame Of Reference UID¶

name: modifyFrameOfReferenceUID, type: Bool, default: TRUE¶: Should modify FrameOfReferenceUID?

Frame Of Reference UID¶

name: FrameOfReferenceUID, type: String¶: FrameOfReferenceUID (0020,0052) vr=UI, vm=1, type=1

Modify Position Reference Indicator¶

name: modifyPositionReferenceIndicator, type: Bool, default: TRUE¶: Should modify PositionReferenceIndicator?

Position Reference Indicator¶

name: PositionReferenceIndicator, type: String¶: PositionReferenceIndicator (0020,1040) vr=LO, vm=1, type=2

Select All (FrameOfReferenceModule_SelectAll)¶

name: FrameOfReferenceModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the FrameOfReferenceModule.

Deselect All (FrameOfReferenceModule_DeselectAll)¶

name: FrameOfReferenceModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the FrameOfReferenceModule.

Inherit Values (FrameOfReferenceModule_InheritValues)¶

name: FrameOfReferenceModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the FrameOfReferenceModule.

Clear Values (FrameOfReferenceModule_ClearValues)¶

name: FrameOfReferenceModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the FrameOfReferenceModule.

Modify Device Serial Number¶

name: modifyDeviceSerialNumber, type: Bool, default: TRUE¶: Should modify DeviceSerialNumber?

Device Serial Number¶

name: DeviceSerialNumber, type: String¶: DeviceSerialNumber (0018,1000) vr=LO, vm=1, type=3

Modify Gantry ID¶

name: modifyGantryID, type: Bool, default: TRUE¶: Should modify GantryID?

Gantry ID¶

name: GantryID, type: String¶: GantryID (0018,1008) vr=LO, vm=1, type=3

Modify Institution Address¶

name: modifyInstitutionAddress, type: Bool, default: TRUE¶: Should modify InstitutionAddress?

Institution Address¶

name: InstitutionAddress, type: String¶: InstitutionAddress (0008,0081) vr=ST, vm=1, type=3

Modify Institution Name¶

name: modifyInstitutionName, type: Bool, default: TRUE¶: Should modify InstitutionName?

Institution Name¶

name: InstitutionName, type: String¶: InstitutionName (0008,0080) vr=LO, vm=1, type=3

Modify Institutional Department Name¶

name: modifyInstitutionalDepartmentName, type: Bool, default: TRUE¶: Should modify InstitutionalDepartmentName?

Institutional Department Name¶

name: InstitutionalDepartmentName, type: String¶: InstitutionalDepartmentName (0008,1040) vr=LO, vm=1, type=3

Modify Manufacturer¶

name: modifyManufacturer, type: Bool, default: TRUE¶: Should modify Manufacturer?

Manufacturer¶

name: Manufacturer, type: String¶: Manufacturer (0008,0070) vr=LO, vm=1, type=2

Modify Manufacturer Model Name¶

name: modifyManufacturerModelName, type: Bool, default: TRUE¶: Should modify ManufacturerModelName?

Manufacturer Model Name¶

name: ManufacturerModelName, type: String¶: ManufacturerModelName (0008,1090) vr=LO, vm=1, type=3

Modify Pixel Padding Value¶

name: modifyPixelPaddingValue, type: Bool, default: TRUE¶: Should modify PixelPaddingValue?

Pixel Padding Value¶

name: PixelPaddingValue, type: String¶: PixelPaddingValue (0028,0120) vr=US_SS, vm=1, type=3

Modify Software Versions¶

name: modifySoftwareVersions, type: Bool, default: TRUE¶: Should modify SoftwareVersions?

Software Versions¶

name: SoftwareVersions, type: String¶: SoftwareVersions (0018,1020) vr=LO, vm=1-n, type=3

Modify Spatial Resolution¶

name: modifySpatialResolution, type: Bool, default: TRUE¶: Should modify SpatialResolution?

Spatial Resolution¶

name: SpatialResolution, type: String¶: SpatialResolution (0018,1050) vr=DS, vm=1, type=3

Modify Station Name¶

name: modifyStationName, type: Bool, default: TRUE¶: Should modify StationName?

Station Name¶

name: StationName, type: String¶: StationName (0008,1010) vr=SH, vm=1, type=3

Set to now (setDateOfLastCalibrationToNow)¶

name: setDateOfLastCalibrationToNow, type: Bool, default: FALSE¶: Set to now.

Modify Date Of Last Calibration¶

name: modifyDateOfLastCalibration, type: Bool, default: TRUE¶: Should modify DateOfLastCalibration?

Date Of Last Calibration¶

name: DateOfLastCalibration, type: String¶: DateOfLastCalibration (0018,1200) vr=DA, vm=1-n, type=3

Set to now (setTimeOfLastCalibrationToNow)¶

name: setTimeOfLastCalibrationToNow, type: Bool, default: FALSE¶: Set to now.

Modify Time Of Last Calibration¶

name: modifyTimeOfLastCalibration, type: Bool, default: TRUE¶: Should modify TimeOfLastCalibration?

Time Of Last Calibration¶

name: TimeOfLastCalibration, type: String¶: TimeOfLastCalibration (0018,1201) vr=TM, vm=1-n, type=3

Select All (GeneralEquipmentModule_SelectAll)¶

name: GeneralEquipmentModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the GeneralEquipmentModule.

Deselect All (GeneralEquipmentModule_DeselectAll)¶

name: GeneralEquipmentModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the GeneralEquipmentModule.

Inherit Values (GeneralEquipmentModule_InheritValues)¶

name: GeneralEquipmentModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the GeneralEquipmentModule.

Clear Values (GeneralEquipmentModule_ClearValues)¶

name: GeneralEquipmentModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the GeneralEquipmentModule.

Modify Acquisition Date Time¶

name: modifyAcquisitionDateTime, type: Bool, default: TRUE¶: Should modify AcquisitionDateTime?

Acquisition Date Time¶

name: AcquisitionDateTime, type: String¶: AcquisitionDateTime (0008,002a) vr=DT, vm=1, type=3

Modify Acquisition Number¶

name: modifyAcquisitionNumber, type: Bool, default: TRUE¶: Should modify AcquisitionNumber?

Acquisition Number¶

name: AcquisitionNumber, type: String¶: AcquisitionNumber (0020,0012) vr=IS, vm=1, type=3

Modify Burned In Annotation¶

name: modifyBurnedInAnnotation, type: Bool, default: TRUE¶: Should modify BurnedInAnnotation?

Burned In Annotation¶

name: BurnedInAnnotation, type: String¶: BurnedInAnnotation (0028,0301) vr=CS, vm=1, type=3

Modify Derivation Description¶

name: modifyDerivationDescription, type: Bool, default: TRUE¶: Should modify DerivationDescription?

Derivation Description¶

name: DerivationDescription, type: String¶: DerivationDescription (0008,2111) vr=ST, vm=1, type=3

Modify Image Comments¶

name: modifyImageComments, type: Bool, default: TRUE¶: Should modify ImageComments?

Image Comments¶

name: ImageComments, type: String¶: ImageComments (0020,4000) vr=LT, vm=1, type=3

Modify Image Type¶

name: modifyImageType, type: Bool, default: TRUE¶: Should modify ImageType?

Image Type¶

name: ImageType, type: String¶: ImageType (0008,0008) vr=CS, vm=2-n, type=3

Modify Images In Acquisition¶

name: modifyImagesInAcquisition, type: Bool, default: TRUE¶: Should modify ImagesInAcquisition?

Images In Acquisition¶

name: ImagesInAcquisition, type: String¶: ImagesInAcquisition (0020,1002) vr=IS, vm=1, type=3

Modify Irradiation Event UID¶

name: modifyIrradiationEventUID, type: Bool, default: TRUE¶: Should modify IrradiationEventUID?

Irradiation Event UID¶

name: IrradiationEventUID, type: String¶: IrradiationEventUID (0008,3010) vr=UI, vm=1, type=3

Modify Lossy Image Compression¶

name: modifyLossyImageCompression, type: Bool, default: TRUE¶: Should modify LossyImageCompression?

Lossy Image Compression¶

name: LossyImageCompression, type: String¶: LossyImageCompression (0028,2110) vr=CS, vm=1, type=3

Modify Lossy Image Compression Method¶

name: modifyLossyImageCompressionMethod, type: Bool, default: TRUE¶: Should modify LossyImageCompressionMethod?

Lossy Image Compression Method¶

name: LossyImageCompressionMethod, type: String¶: LossyImageCompressionMethod (0028,2114) vr=CS, vm=1-n, type=3

Modify Lossy Image Compression Ratio¶

name: modifyLossyImageCompressionRatio, type: Bool, default: TRUE¶: Should modify LossyImageCompressionRatio?

Lossy Image Compression Ratio¶

name: LossyImageCompressionRatio, type: String¶: LossyImageCompressionRatio (0028,2112) vr=DS, vm=1-n, type=3

Modify Patient Orientation¶

name: modifyPatientOrientation, type: Bool, default: TRUE¶: Should modify PatientOrientation?

Patient Orientation¶

name: PatientOrientation, type: String¶: PatientOrientation (0020,0020) vr=CS, vm=2, type=2C

Modify Presentation LUTShape¶

name: modifyPresentationLUTShape, type: Bool, default: TRUE¶: Should modify PresentationLUTShape?

Presentation LUTShape¶

name: PresentationLUTShape, type: String¶: PresentationLUTShape (2050,0020) vr=CS, vm=1, type=3

Modify Quality Control Image¶

name: modifyQualityControlImage, type: Bool, default: TRUE¶: Should modify QualityControlImage?

Quality Control Image¶

name: QualityControlImage, type: String¶: QualityControlImage (0028,0300) vr=CS, vm=1, type=3

Set to now (setAcquisitionDateToNow)¶

name: setAcquisitionDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Acquisition Date¶

name: modifyAcquisitionDate, type: Bool, default: TRUE¶: Should modify AcquisitionDate?

Acquisition Date¶

name: AcquisitionDate, type: String¶: AcquisitionDate (0008,0022) vr=DA, vm=1, type=3

Set to now (setAcquisitionTimeToNow)¶

name: setAcquisitionTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Acquisition Time¶

name: modifyAcquisitionTime, type: Bool, default: TRUE¶: Should modify AcquisitionTime?

Acquisition Time¶

name: AcquisitionTime, type: String¶: AcquisitionTime (0008,0032) vr=TM, vm=1, type=3

Set to now (setContentDateToNow)¶

name: setContentDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Content Date¶

name: modifyContentDate, type: Bool, default: TRUE¶: Should modify ContentDate?

Content Date¶

name: ContentDate, type: String¶: ContentDate (0008,0023) vr=DA, vm=1, type=2C

Set to now (setContentTimeToNow)¶

name: setContentTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Content Time¶

name: modifyContentTime, type: Bool, default: TRUE¶: Should modify ContentTime?

Content Time¶

name: ContentTime, type: String¶: ContentTime (0008,0033) vr=TM, vm=1, type=2C

Copy Derivation Code Sequence¶

name: copyDerivationCodeSequence, type: Bool, default: TRUE¶: Should copy DerivationCodeSequence?

Copy Icon Image Sequence¶

name: copyIconImageSequence, type: Bool, default: TRUE¶: Should copy IconImageSequence?

Copy Referenced Image Sequence¶

name: copyReferencedImageSequence, type: Bool, default: TRUE¶: Should copy ReferencedImageSequence?

Copy Referenced Instance Sequence¶

name: copyReferencedInstanceSequence, type: Bool, default: TRUE¶: Should copy ReferencedInstanceSequence?

Copy Source Image Sequence¶

name: copySourceImageSequence, type: Bool, default: TRUE¶: Should copy SourceImageSequence?

Select All (GeneralImageModule_SelectAll)¶

name: GeneralImageModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the GeneralImageModule.

Deselect All (GeneralImageModule_DeselectAll)¶

name: GeneralImageModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the GeneralImageModule.

Inherit Values (GeneralImageModule_InheritValues)¶

name: GeneralImageModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the GeneralImageModule.

Clear Values (GeneralImageModule_ClearValues)¶

name: GeneralImageModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the GeneralImageModule.

Modify Image Orientation Patient¶

name: modifyImageOrientationPatient, type: Bool, default: TRUE¶: Should modify ImageOrientationPatient?

Image Orientation Patient¶

name: ImageOrientationPatient, type: String¶: ImageOrientationPatient (0020,0037) vr=DS, vm=6, type=1

Modify Image Position Patient¶

name: modifyImagePositionPatient, type: Bool, default: TRUE¶: Should modify ImagePositionPatient?

Image Position Patient¶

name: ImagePositionPatient, type: String¶: ImagePositionPatient (0020,0032) vr=DS, vm=3, type=1

Modify Pixel Spacing¶

name: modifyPixelSpacing, type: Bool, default: TRUE¶: Should modify PixelSpacing?

Pixel Spacing¶

name: PixelSpacing, type: String¶: PixelSpacing (0028,0030) vr=DS, vm=2, type=1

Modify Slice Location¶

name: modifySliceLocation, type: Bool, default: TRUE¶: Should modify SliceLocation?

Slice Location¶

name: SliceLocation, type: String¶: SliceLocation (0020,1041) vr=DS, vm=1, type=3

Modify Slice Thickness¶

name: modifySliceThickness, type: Bool, default: TRUE¶: Should modify SliceThickness?

Slice Thickness¶

name: SliceThickness, type: String¶: SliceThickness (0018,0050) vr=DS, vm=1, type=2

Select All (ImagePlaneModule_SelectAll)¶

name: ImagePlaneModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the ImagePlaneModule.

Deselect All (ImagePlaneModule_DeselectAll)¶

name: ImagePlaneModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the ImagePlaneModule.

Inherit Values (ImagePlaneModule_InheritValues)¶

name: ImagePlaneModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the ImagePlaneModule.

Clear Values (ImagePlaneModule_ClearValues)¶

name: ImagePlaneModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the ImagePlaneModule.

Modify Blue Palette Color Lookup Table Descriptor¶

name: modifyBluePaletteColorLookupTableDescriptor, type: Bool, default: TRUE¶: Should modify BluePaletteColorLookupTableDescriptor?

Blue Palette Color Lookup Table Descriptor¶

name: BluePaletteColorLookupTableDescriptor, type: String¶: BluePaletteColorLookupTableDescriptor (0028,1103) vr=US_SS, vm=3, type=1C

Modify Columns¶

name: modifyColumns, type: Bool, default: TRUE¶: Should modify Columns?

Columns¶

name: Columns, type: String¶: Columns (0028,0011) vr=US, vm=1, type=1

Modify Green Palette Color Lookup Table Descriptor¶

name: modifyGreenPaletteColorLookupTableDescriptor, type: Bool, default: TRUE¶: Should modify GreenPaletteColorLookupTableDescriptor?

Green Palette Color Lookup Table Descriptor¶

name: GreenPaletteColorLookupTableDescriptor, type: String¶: GreenPaletteColorLookupTableDescriptor (0028,1102) vr=US_SS, vm=3, type=1C

Modify Largest Image Pixel Value¶

name: modifyLargestImagePixelValue, type: Bool, default: TRUE¶: Should modify LargestImagePixelValue?

Largest Image Pixel Value¶

name: LargestImagePixelValue, type: String¶: LargestImagePixelValue (0028,0107) vr=US_SS, vm=1, type=3

Modify Pixel Aspect Ratio¶

name: modifyPixelAspectRatio, type: Bool, default: TRUE¶: Should modify PixelAspectRatio?

Pixel Aspect Ratio¶

name: PixelAspectRatio, type: String¶: PixelAspectRatio (0028,0034) vr=IS, vm=2, type=1C

Modify Pixel Data Provider URL¶

name: modifyPixelDataProviderURL, type: Bool, default: TRUE¶: Should modify PixelDataProviderURL?

Pixel Data Provider URL¶

name: PixelDataProviderURL, type: String¶: PixelDataProviderURL (0028,7fe0) vr=UT, vm=1, type=1C

Modify Planar Configuration¶

name: modifyPlanarConfiguration, type: Bool, default: TRUE¶: Should modify PlanarConfiguration?

Planar Configuration¶

name: PlanarConfiguration, type: String¶: PlanarConfiguration (0028,0006) vr=US, vm=1, type=1C

Modify Red Palette Color Lookup Table Descriptor¶

name: modifyRedPaletteColorLookupTableDescriptor, type: Bool, default: TRUE¶: Should modify RedPaletteColorLookupTableDescriptor?

Red Palette Color Lookup Table Descriptor¶

name: RedPaletteColorLookupTableDescriptor, type: String¶: RedPaletteColorLookupTableDescriptor (0028,1101) vr=US_SS, vm=3, type=1C

Modify Rows¶

name: modifyRows, type: Bool, default: TRUE¶: Should modify Rows?

Rows¶

name: Rows, type: String¶: Rows (0028,0010) vr=US, vm=1, type=1

Modify Smallest Image Pixel Value¶

name: modifySmallestImagePixelValue, type: Bool, default: TRUE¶: Should modify SmallestImagePixelValue?

Smallest Image Pixel Value¶

name: SmallestImagePixelValue, type: String¶: SmallestImagePixelValue (0028,0106) vr=US_SS, vm=1, type=3

Select All (ImagePixelModule_SelectAll)¶

name: ImagePixelModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the ImagePixelModule.

Deselect All (ImagePixelModule_DeselectAll)¶

name: ImagePixelModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the ImagePixelModule.

Inherit Values (ImagePixelModule_InheritValues)¶

name: ImagePixelModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the ImagePixelModule.

Clear Values (ImagePixelModule_ClearValues)¶

name: ImagePixelModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the ImagePixelModule.

Modify Number Of Frames¶

name: modifyNumberOfFrames, type: Bool, default: TRUE¶: Should modify NumberOfFrames?

Number Of Frames¶

name: NumberOfFrames, type: String¶: NumberOfFrames (0028,0008) vr=IS, vm=1, type=1

Select All (MultiFrameModule_SelectAll)¶

name: MultiFrameModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the MultiFrameModule.

Deselect All (MultiFrameModule_DeselectAll)¶

name: MultiFrameModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the MultiFrameModule.

Inherit Values (MultiFrameModule_InheritValues)¶

name: MultiFrameModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the MultiFrameModule.

Clear Values (MultiFrameModule_ClearValues)¶

name: MultiFrameModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the MultiFrameModule.

Modify Overlay Bit Position¶

name: modifyOverlayBitPosition, type: Bool, default: TRUE¶: Should modify OverlayBitPosition?

Overlay Bit Position¶

name: OverlayBitPosition, type: String¶: OverlayBitPosition (60xx,0102) vr=US, vm=1, type=1

Modify Overlay Bits Allocated¶

name: modifyOverlayBitsAllocated, type: Bool, default: TRUE¶: Should modify OverlayBitsAllocated?

Overlay Bits Allocated¶

name: OverlayBitsAllocated, type: String¶: OverlayBitsAllocated (60xx,0100) vr=US, vm=1, type=1

Modify Overlay Columns¶

name: modifyOverlayColumns, type: Bool, default: TRUE¶: Should modify OverlayColumns?

Overlay Columns¶

name: OverlayColumns, type: String¶: OverlayColumns (60xx,0011) vr=US, vm=1, type=1

Modify Overlay Description¶

name: modifyOverlayDescription, type: Bool, default: TRUE¶: Should modify OverlayDescription?

Overlay Description¶

name: OverlayDescription, type: String¶: OverlayDescription (60xx,0022) vr=LO, vm=1, type=3

Modify Overlay Label¶

name: modifyOverlayLabel, type: Bool, default: TRUE¶: Should modify OverlayLabel?

Overlay Label¶

name: OverlayLabel, type: String¶: OverlayLabel (60xx,1500) vr=LO, vm=1, type=3

Modify Overlay Origin¶

name: modifyOverlayOrigin, type: Bool, default: TRUE¶: Should modify OverlayOrigin?

Overlay Origin¶

name: OverlayOrigin, type: String¶: OverlayOrigin (60xx,0050) vr=SS, vm=2, type=1

Modify Overlay Rows¶

name: modifyOverlayRows, type: Bool, default: TRUE¶: Should modify OverlayRows?

Overlay Rows¶

name: OverlayRows, type: String¶: OverlayRows (60xx,0010) vr=US, vm=1, type=1

Modify Overlay Subtype¶

name: modifyOverlaySubtype, type: Bool, default: TRUE¶: Should modify OverlaySubtype?

Overlay Subtype¶

name: OverlaySubtype, type: String¶: OverlaySubtype (60xx,0045) vr=LO, vm=1, type=3

Modify Overlay Type¶

name: modifyOverlayType, type: Bool, default: TRUE¶: Should modify OverlayType?

Overlay Type¶

name: OverlayType, type: String¶: OverlayType (60xx,0040) vr=CS, vm=1, type=1

Modify ROIArea¶

name: modifyROIArea, type: Bool, default: TRUE¶: Should modify ROIArea?

ROIArea¶

name: ROIArea, type: String¶: ROIArea (60xx,1301) vr=IS, vm=1, type=3

Modify ROIMean¶

name: modifyROIMean, type: Bool, default: TRUE¶: Should modify ROIMean?

ROIMean¶

name: ROIMean, type: String¶: ROIMean (60xx,1302) vr=DS, vm=1, type=3

Modify ROIStandard Deviation¶

name: modifyROIStandardDeviation, type: Bool, default: TRUE¶: Should modify ROIStandardDeviation?

ROIStandard Deviation¶

name: ROIStandardDeviation, type: String¶: ROIStandardDeviation (60xx,1303) vr=DS, vm=1, type=3

Select All (OverlayPlaneModule_SelectAll)¶

name: OverlayPlaneModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the OverlayPlaneModule.

Deselect All (OverlayPlaneModule_DeselectAll)¶

name: OverlayPlaneModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the OverlayPlaneModule.

Inherit Values (OverlayPlaneModule_InheritValues)¶

name: OverlayPlaneModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the OverlayPlaneModule.

Clear Values (OverlayPlaneModule_ClearValues)¶

name: OverlayPlaneModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the OverlayPlaneModule.

Modify Image Frame Origin¶

name: modifyImageFrameOrigin, type: Bool, default: TRUE¶: Should modify ImageFrameOrigin?

Image Frame Origin¶

name: ImageFrameOrigin, type: String¶: ImageFrameOrigin (60xx,0051) vr=US, vm=1, type=3

Modify Number Of Frames In Overlay¶

name: modifyNumberOfFramesInOverlay, type: Bool, default: TRUE¶: Should modify NumberOfFramesInOverlay?

Number Of Frames In Overlay¶

name: NumberOfFramesInOverlay, type: String¶: NumberOfFramesInOverlay (60xx,0015) vr=IS, vm=1, type=1

Select All (MultiFrameOverlayModule_SelectAll)¶

name: MultiFrameOverlayModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the MultiFrameOverlayModule.

Deselect All (MultiFrameOverlayModule_DeselectAll)¶

name: MultiFrameOverlayModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the MultiFrameOverlayModule.

Inherit Values (MultiFrameOverlayModule_InheritValues)¶

name: MultiFrameOverlayModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the MultiFrameOverlayModule.

Clear Values (MultiFrameOverlayModule_ClearValues)¶

name: MultiFrameOverlayModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the MultiFrameOverlayModule.

Modify Rescale Intercept¶

name: modifyRescaleIntercept, type: Bool, default: TRUE¶: Should modify RescaleIntercept?

Rescale Intercept¶

name: RescaleIntercept, type: String¶: RescaleIntercept (0028,1052) vr=DS, vm=1, type=1C

Modify Rescale Slope¶

name: modifyRescaleSlope, type: Bool, default: TRUE¶: Should modify RescaleSlope?

Rescale Slope¶

name: RescaleSlope, type: String¶: RescaleSlope (0028,1053) vr=DS, vm=1, type=1C

Modify Rescale Type¶

name: modifyRescaleType, type: Bool, default: TRUE¶: Should modify RescaleType?

Rescale Type¶

name: RescaleType, type: String¶: RescaleType (0028,1054) vr=LO, vm=1, type=1C

Copy Modality LUTSequence¶

name: copyModalityLUTSequence, type: Bool, default: TRUE¶: Should copy ModalityLUTSequence?

Select All (ModalityLUTModule_SelectAll)¶

name: ModalityLUTModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the ModalityLUTModule.

Deselect All (ModalityLUTModule_DeselectAll)¶

name: ModalityLUTModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the ModalityLUTModule.

Inherit Values (ModalityLUTModule_InheritValues)¶

name: ModalityLUTModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the ModalityLUTModule.

Clear Values (ModalityLUTModule_ClearValues)¶

name: ModalityLUTModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the ModalityLUTModule.

Modify Bits Allocated¶

name: modifyBitsAllocated, type: Bool, default: TRUE¶: Should modify BitsAllocated?

Bits Allocated¶

name: BitsAllocated, type: String¶: BitsAllocated (0028,0100) vr=US, vm=1, type=1C

Modify Bits Stored¶

name: modifyBitsStored, type: Bool, default: TRUE¶: Should modify BitsStored?

Bits Stored¶

name: BitsStored, type: String¶: BitsStored (0028,0101) vr=US, vm=1, type=1C

Modify Dose Comment¶

name: modifyDoseComment, type: Bool, default: TRUE¶: Should modify DoseComment?

Dose Comment¶

name: DoseComment, type: String¶: DoseComment (3004,0006) vr=LO, vm=1, type=3

Modify Dose Grid Scaling¶

name: modifyDoseGridScaling, type: Bool, default: TRUE¶: Should modify DoseGridScaling?

Dose Grid Scaling¶

name: DoseGridScaling, type: String¶: DoseGridScaling (3004,000e) vr=DS, vm=1, type=1

Modify Dose Summation Type¶

name: modifyDoseSummationType, type: Bool, default: TRUE¶: Should modify DoseSummationType?

Dose Summation Type¶

name: DoseSummationType, type: String¶: DoseSummationType (3004,000a) vr=CS, vm=1, type=1

Modify Dose Type¶

name: modifyDoseType, type: Bool, default: TRUE¶: Should modify DoseType?

Dose Type¶

name: DoseType, type: String¶: DoseType (3004,0004) vr=CS, vm=1, type=1

Modify Dose Units¶

name: modifyDoseUnits, type: Bool, default: TRUE¶: Should modify DoseUnits?

Dose Units¶

name: DoseUnits, type: String¶: DoseUnits (3004,0002) vr=CS, vm=1, type=1

Modify Grid Frame Offset Vector¶

name: modifyGridFrameOffsetVector, type: Bool, default: TRUE¶: Should modify GridFrameOffsetVector?

Grid Frame Offset Vector¶

name: GridFrameOffsetVector, type: String¶: GridFrameOffsetVector (3004,000c) vr=DS, vm=2-n, type=1C

Modify High Bit¶

name: modifyHighBit, type: Bool, default: TRUE¶: Should modify HighBit?

High Bit¶

name: HighBit, type: String¶: HighBit (0028,0102) vr=US, vm=1, type=1C

Modify Instance Number¶

name: modifyInstanceNumber, type: Bool, default: TRUE¶: Should modify InstanceNumber?

Instance Number¶

name: InstanceNumber, type: String¶: InstanceNumber (0020,0013) vr=IS, vm=1, type=3

Modify Normalization Point¶

name: modifyNormalizationPoint, type: Bool, default: TRUE¶: Should modify NormalizationPoint?

Normalization Point¶

name: NormalizationPoint, type: String¶: NormalizationPoint (3004,0008) vr=DS, vm=3, type=3

Modify Photometric Interpretation¶

name: modifyPhotometricInterpretation, type: Bool, default: TRUE¶: Should modify PhotometricInterpretation?

Photometric Interpretation¶

name: PhotometricInterpretation, type: String¶: PhotometricInterpretation (0028,0004) vr=CS, vm=1, type=1C

Modify Pixel Representation¶

name: modifyPixelRepresentation, type: Bool, default: TRUE¶: Should modify PixelRepresentation?

Pixel Representation¶

name: PixelRepresentation, type: String¶: PixelRepresentation (0028,0103) vr=US, vm=1, type=1C

Modify Samples Per Pixel¶

name: modifySamplesPerPixel, type: Bool, default: TRUE¶: Should modify SamplesPerPixel?

Samples Per Pixel¶

name: SamplesPerPixel, type: String¶: SamplesPerPixel (0028,0002) vr=US, vm=1, type=1C

Modify Tissue Heterogeneity Correction¶

name: modifyTissueHeterogeneityCorrection, type: Bool, default: TRUE¶: Should modify TissueHeterogeneityCorrection?

Tissue Heterogeneity Correction¶

name: TissueHeterogeneityCorrection, type: String¶: TissueHeterogeneityCorrection (3004,0014) vr=CS, vm=1-3, type=3

Copy Referenced RTPlan Sequence¶

name: copyReferencedRTPlanSequence, type: Bool, default: TRUE¶: Should copy ReferencedRTPlanSequence?

Select All (RTDoseModule_SelectAll)¶

name: RTDoseModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the RTDoseModule.

Deselect All (RTDoseModule_DeselectAll)¶

name: RTDoseModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the RTDoseModule.

Inherit Values (RTDoseModule_InheritValues)¶

name: RTDoseModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the RTDoseModule.

Clear Values (RTDoseModule_ClearValues)¶

name: RTDoseModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the RTDoseModule.

Modify DVHNormalization Dose Value¶

name: modifyDVHNormalizationDoseValue, type: Bool, default: TRUE¶: Should modify DVHNormalizationDoseValue?

DVHNormalization Dose Value¶

name: DVHNormalizationDoseValue, type: String¶: DVHNormalizationDoseValue (3004,0042) vr=DS, vm=1, type=3

Modify DVHNormalization Point¶

name: modifyDVHNormalizationPoint, type: Bool, default: TRUE¶: Should modify DVHNormalizationPoint?

DVHNormalization Point¶

name: DVHNormalizationPoint, type: String¶: DVHNormalizationPoint (3004,0040) vr=DS, vm=3, type=3

Copy DVHSequence¶

name: copyDVHSequence, type: Bool, default: TRUE¶: Should copy DVHSequence?

Copy Referenced Structure Set Sequence¶

name: copyReferencedStructureSetSequence, type: Bool, default: TRUE¶: Should copy ReferencedStructureSetSequence?

Select All (RTDVHModule_SelectAll)¶

name: RTDVHModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the RTDVHModule.

Deselect All (RTDVHModule_DeselectAll)¶

name: RTDVHModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the RTDVHModule.

Inherit Values (RTDVHModule_InheritValues)¶

name: RTDVHModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the RTDVHModule.

Clear Values (RTDVHModule_ClearValues)¶

name: RTDVHModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the RTDVHModule.

Modify Structure Set Description¶

name: modifyStructureSetDescription, type: Bool, default: TRUE¶: Should modify StructureSetDescription?

Structure Set Description¶

name: StructureSetDescription, type: String¶: StructureSetDescription (3006,0006) vr=ST, vm=1, type=3

Modify Structure Set Label¶

name: modifyStructureSetLabel, type: Bool, default: TRUE¶: Should modify StructureSetLabel?

Structure Set Label¶

name: StructureSetLabel, type: String¶: StructureSetLabel (3006,0002) vr=SH, vm=1, type=1

Modify Structure Set Name¶

name: modifyStructureSetName, type: Bool, default: TRUE¶: Should modify StructureSetName?

Structure Set Name¶

name: StructureSetName, type: String¶: StructureSetName (3006,0004) vr=LO, vm=1, type=3

Set to now (setStructureSetDateToNow)¶

name: setStructureSetDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Structure Set Date¶

name: modifyStructureSetDate, type: Bool, default: TRUE¶: Should modify StructureSetDate?

Structure Set Date¶

name: StructureSetDate, type: String¶: StructureSetDate (3006,0008) vr=DA, vm=1, type=2

Set to now (setStructureSetTimeToNow)¶

name: setStructureSetTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Structure Set Time¶

name: modifyStructureSetTime, type: Bool, default: TRUE¶: Should modify StructureSetTime?

Structure Set Time¶

name: StructureSetTime, type: String¶: StructureSetTime (3006,0009) vr=TM, vm=1, type=2

Copy Referenced Frame Of Reference Sequence¶

name: copyReferencedFrameOfReferenceSequence, type: Bool, default: TRUE¶: Should copy ReferencedFrameOfReferenceSequence?

Copy Structure Set ROISequence¶

name: copyStructureSetROISequence, type: Bool, default: TRUE¶: Should copy StructureSetROISequence?

Select All (StructureSetModule_SelectAll)¶

name: StructureSetModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the StructureSetModule.

Deselect All (StructureSetModule_DeselectAll)¶

name: StructureSetModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the StructureSetModule.

Inherit Values (StructureSetModule_InheritValues)¶

name: StructureSetModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the StructureSetModule.

Clear Values (StructureSetModule_ClearValues)¶

name: StructureSetModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the StructureSetModule.

Copy ROIContour Sequence¶

name: copyROIContourSequence, type: Bool, default: TRUE¶: Should copy ROIContourSequence?

Select All (ROIContourModule_SelectAll)¶

name: ROIContourModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the ROIContourModule.

Deselect All (ROIContourModule_DeselectAll)¶

name: ROIContourModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the ROIContourModule.

Inherit Values (ROIContourModule_InheritValues)¶

name: ROIContourModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the ROIContourModule.

Clear Values (ROIContourModule_ClearValues)¶

name: ROIContourModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the ROIContourModule.

Copy RTDose ROISequence¶

name: copyRTDoseROISequence, type: Bool, default: TRUE¶: Should copy RTDoseROISequence?

Select All (RTDoseROIModule_SelectAll)¶

name: RTDoseROIModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the RTDoseROIModule.

Deselect All (RTDoseROIModule_DeselectAll)¶

name: RTDoseROIModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the RTDoseROIModule.

Inherit Values (RTDoseROIModule_InheritValues)¶

name: RTDoseROIModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the RTDoseROIModule.

Clear Values (RTDoseROIModule_ClearValues)¶

name: RTDoseROIModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the RTDoseROIModule.

Modify Authorization Equipment Certification Number¶

name: modifyAuthorizationEquipmentCertificationNumber, type: Bool, default: TRUE¶: Should modify AuthorizationEquipmentCertificationNumber?

Authorization Equipment Certification Number¶

name: AuthorizationEquipmentCertificationNumber, type: String¶: AuthorizationEquipmentCertificationNumber (0100,0426) vr=LO, vm=1, type=3

Modify Original Specialized SOPClass UID¶

name: modifyOriginalSpecializedSOPClassUID, type: Bool, default: TRUE¶: Should modify OriginalSpecializedSOPClassUID?

Original Specialized SOPClass UID¶

name: OriginalSpecializedSOPClassUID, type: String¶: OriginalSpecializedSOPClassUID (0008,001b) vr=UI, vm=1, type=3

Modify SOPAuthorization Comment¶

name: modifySOPAuthorizationComment, type: Bool, default: TRUE¶: Should modify SOPAuthorizationComment?

SOPAuthorization Comment¶

name: SOPAuthorizationComment, type: String¶: SOPAuthorizationComment (0100,0424) vr=LT, vm=1, type=3

Modify SOPAuthorization Date Time¶

name: modifySOPAuthorizationDateTime, type: Bool, default: TRUE¶: Should modify SOPAuthorizationDateTime?

SOPAuthorization Date Time¶

name: SOPAuthorizationDateTime, type: String¶: SOPAuthorizationDateTime (0100,0420) vr=DT, vm=1, type=3

Modify SOPClass UID¶

name: modifySOPClassUID, type: Bool, default: TRUE¶: Should modify SOPClassUID?

SOPClass UID¶

name: SOPClassUID, type: String¶: SOPClassUID (0008,0016) vr=UI, vm=1, type=1

Modify SOPInstance Status¶

name: modifySOPInstanceStatus, type: Bool, default: TRUE¶: Should modify SOPInstanceStatus?

SOPInstance Status¶

name: SOPInstanceStatus, type: String¶: SOPInstanceStatus (0100,0410) vr=CS, vm=1, type=3

Modify Specific Character Set¶

name: modifySpecificCharacterSet, type: Bool, default: TRUE¶: Should modify SpecificCharacterSet?

Specific Character Set¶

name: SpecificCharacterSet, type: String¶: SpecificCharacterSet (0008,0005) vr=CS, vm=1-n, type=1C

Modify Timezone Offset From UTC¶

name: modifyTimezoneOffsetFromUTC, type: Bool, default: TRUE¶: Should modify TimezoneOffsetFromUTC?

Timezone Offset From UTC¶

name: TimezoneOffsetFromUTC, type: String¶: TimezoneOffsetFromUTC (0008,0201) vr=SH, vm=1, type=3

Create new UID (autoCreateInstanceCreatorUID)¶

name: autoCreateInstanceCreatorUID, type: Bool, default: FALSE¶: Auto create new UID.

Modify Instance Creator UID¶

name: modifyInstanceCreatorUID, type: Bool, default: TRUE¶: Should modify InstanceCreatorUID?

Instance Creator UID¶

name: InstanceCreatorUID, type: String¶: InstanceCreatorUID (0008,0014) vr=UI, vm=1, type=3

Create new UID (autoCreateSOPInstanceUID)¶

name: autoCreateSOPInstanceUID, type: Bool, default: FALSE¶: Auto create new UID.

Modify SOPInstance UID¶

name: modifySOPInstanceUID, type: Bool, default: TRUE¶: Should modify SOPInstanceUID?

SOPInstance UID¶

name: SOPInstanceUID, type: String¶: SOPInstanceUID (0008,0018) vr=UI, vm=1, type=1

Set to now (setInstanceCreationDateToNow)¶

name: setInstanceCreationDateToNow, type: Bool, default: FALSE¶: Set to now.

Modify Instance Creation Date¶

name: modifyInstanceCreationDate, type: Bool, default: TRUE¶: Should modify InstanceCreationDate?

Instance Creation Date¶

name: InstanceCreationDate, type: String¶: InstanceCreationDate (0008,0012) vr=DA, vm=1, type=3

Set to now (setInstanceCreationTimeToNow)¶

name: setInstanceCreationTimeToNow, type: Bool, default: FALSE¶: Set to now.

Modify Instance Creation Time¶

name: modifyInstanceCreationTime, type: Bool, default: TRUE¶: Should modify InstanceCreationTime?

Instance Creation Time¶

name: InstanceCreationTime, type: String¶: InstanceCreationTime (0008,0013) vr=TM, vm=1, type=3

Copy Coding Scheme Identification Sequence¶

name: copyCodingSchemeIdentificationSequence, type: Bool, default: TRUE¶: Should copy CodingSchemeIdentificationSequence?

Copy Contributing Equipment Sequence¶

name: copyContributingEquipmentSequence, type: Bool, default: TRUE¶: Should copy ContributingEquipmentSequence?

Copy Digital Signatures Sequence¶

name: copyDigitalSignaturesSequence, type: Bool, default: TRUE¶: Should copy DigitalSignaturesSequence?

Copy Encrypted Attributes Sequence¶

name: copyEncryptedAttributesSequence, type: Bool, default: TRUE¶: Should copy EncryptedAttributesSequence?

Copy HL7Structured Document Reference Sequence¶

name: copyHL7StructuredDocumentReferenceSequence, type: Bool, default: TRUE¶: Should copy HL7StructuredDocumentReferenceSequence?

Copy MACParameters Sequence¶

name: copyMACParametersSequence, type: Bool, default: TRUE¶: Should copy MACParametersSequence?

Copy Original Attributes Sequence¶

name: copyOriginalAttributesSequence, type: Bool, default: TRUE¶: Should copy OriginalAttributesSequence?

Select All (SOPCommonModule_SelectAll)¶

name: SOPCommonModule_SelectAll, type: Trigger¶: Select all Check Boxes belonging to the SOPCommonModule.

Deselect All (SOPCommonModule_DeselectAll)¶

name: SOPCommonModule_DeselectAll, type: Trigger¶: Deselect all Check Boxes belonging to the SOPCommonModule.

Inherit Values (SOPCommonModule_InheritValues)¶

name: SOPCommonModule_InheritValues, type: Trigger¶: Inherit values of tags belonging to the SOPCommonModule.

Clear Values (SOPCommonModule_ClearValues)¶

name: SOPCommonModule_ClearValues, type: Trigger¶: Clear values of tags belonging to the SOPCommonModule.

Select All (selectAll)¶

name: selectAll, type: Trigger¶

Deselect All (deselectAll)¶

name: deselectAll, type: Trigger¶

Inherit Values (inheritValues)¶

name: inheritValues, type: Trigger¶

Clear Values (clearValues)¶

name: clearValues, type: Trigger¶
