DicomModifyMLToRTDosePlugin

MLModule

author	Grzegorz Chlebus
package	FMEwork/ReleaseMeVis
dll	MLDicomModifyRTPlugins
definition	MLDicomModifyRTPlugins.def
see also	RTDoseToML, RTDoseInfo, ModifyDicomTree, CreateEmptyRTObject
keywords	DICOM, CSO, RT

Purpose

DicomModifyMLToRTDosePlugin converts inCSOList, inRTPlan, input0 and input1 to Structure Set ROI Sequence (3006,0020), RT Dose ROI Sequence (3004,0010), ROI Contour Sequence (3006,0039), Referenced Frame of Reference Sequence (3006,0010) and Referenced RT Plan Sequence (300c,0002). The sequences can be added to a DICOM tree via ModifyDicomTree along with other tag modifications. For all modifications performed by this module see Details section.

Usage

See example network to see how to use DicomModifyMLToRTDosePlugin.

Details

The module performs the following:

• Frame Of Reference Module:

  • Frame Of Reference UID (0020,0052) is set to input0’s Frame Of Reference UID.

• Multi-Frame Module:

  • Frame Increment Pointer (0028,0009) is set to “(3004,000c)”.

• RT Dose Module:

  • Dose Units (3004,0002) is set to Dose Units.

  • Dose Type (3004,0004) is set to Dose Type.

  • Dose Summation Type (3004,000a) is set to Dose Summation Type.

  • Referenced RT Plan Sequence (300c,0002) is added. If Dose Summation Type equals PLAN, FRACTION, BEAM, FRACTION_SESSION, BEAM_SESSION, one item item0 is added:

    • item0’s Referenced SOP Class UID (0008,1150) is set to 1.2.840.10008.5.1.4.1.1.481.5.

    • item0’s Referenced SOP Instance UID (0008,1155) is set to inRTPlan’s SOP Instance UID (0008,0018).

    • Referenced Fraction Group Sequence (300c,0020) is added to the item0. Sequence contains one item item1:

      • item1’s Referenced Fraction Group Number is set to Referenced Fraction Group Number.

      • If Dose Summation Type equals BEAM or BEAM_SESSION, Referenced Beam Sequence (300c,0004) is added to the item1. For each entry in the Referenced Beam Numbers (1..i..n, n - number of entries) an item item2 is added to the sequence:

        • item2’s Referenced Beam Number (300c,0006) is set to Referenced Beam Numbers i th entry.

  • Grid Frame Offset Vector (3004,000c) is set to “0\z\2z\3z\…\nz” where:

    • z - voxel size of input0 along z axis.

    • n - number of slices of input1 - 1.

• Structure Set Module:

  • Referenced Frame of Reference Sequence (3006,0010) is added. Sequence contains one item item0:

    • item0’s Frame of Reference UID (0020,0052) is set to input0’s Frame Of Reference UID.

    • RT Referenced Study Sequence (3006,0012) is added to the item0. Sequence contains one item item1:

      • item1’s Referenced SOP Class UID (0008,1150) is set to 1.2.840.10008.3.1.2.3.2 (Study Component Management SOP Class (Retired)).

      • item1’s Referenced SOP Instance UID (0008,1155) is set to input0’s Study Instance UID (0020, 000d).

      • RT Referenced Series Sequence (3006,0014) is added to the item1. Sequence contains one item item2:

        • item2’s Series Instance UID (0020,000e) is set to input0’s Series Instance UID.

        • Contour Image Sequence (3006,0016) is added to the item2. For each input0’s slice with at least one CSO an item item3 is added:

          • item3’s Referenced Frame Number (0008,1160) is set to 1.

          • item3’s Referenced SOP Class UID (0008,1150) is set to input0’s SOP Class UID (0008,0016).

          • item3’s Referenced SOP Instance UID (0008,1155) is set to slice’s SOP Instance UID (0008,0018).

  • Structure Set ROI Sequence (3006,0020) is added. For each inCSOList’s CSOGroup (1..i..n, n - number of CSOGroups) an item item is added:

    • item’s ROI Number (3006,0022) is set to i.

    • item’s Referenced Frame Of Referenced UID (3006,0024) is set to input0’s Frame of Reference UID (0020,0052).

    • item’s ROI Name (3006,0026) is set to CSOGroup’s label.

    • item’s ROI Description (3006,0028) is set to CSOGroup’s description.

• ROI Contour Module:

  • ROI Contour Sequence (3006,0039) is added. For each inCSOList’s CSOGroup (1..i..n, n - number of CSOGroups) an item item0 is added:

    • item0’s Referenced ROI Number (3006,0084) is set to i.

    • item0’s ROI Display Color (3006,002a) is set to CSOGroup’s path point color.

    • Contour Sequence (3006,0040) is added to the item0. For each CSOGroup’s CSO (1..j..m, m - number of CSOs) an item item1 is added:

      • item1’s Contour Number (3006,0048) is set to j.

      • item1’s Contour Geometric Type (3006,0042) is set to:

        • “POINT” if CSO is of “SUB_TYPE_POINT” sub type.

        • “CLOSED_PLANAR” if CSO is of “SUB_TYPE_CLOSED_POLYLINE” sub type and is closed.

        • “OPEN_PLANAR” if CSO is of “SUB_TYPE_OPEN_POLYLINE” sub type, is not closed and is in plane.

        • “OPEN_NONPLANAR” if CSO is of “SUB_TYPE_OPEN_POLYLINE” sub type, is not closed and is not in plane.

      • item1’s Contour Slab Thickness (3006,0044) is set to input0’s Slice Thickness (0018,0050).

      • item1’s Number Of Contour Points (3006,0046) is set to CSO’s total number of unique path points.

      • item1’s Contour Data (3006,0050) is set to coordinates of CSO’s path points.

• RT ROI Observations Module:

  • RT ROI Observations Sequence (3006,0080) is added. For each inCSOList’s CSOGroup (1..i..n, n - number of CSOGroups) an item item is added:

    • item’s Observation Number (3006,0082) is set to i.

    • item’s Referenced ROI Number (3006,0084) is set to i.

    • item’s RT ROI Interpreted Type (3006,00a4) is set to CSOGroup’s user data found under key “RTROIInterpretedType”.

Windows

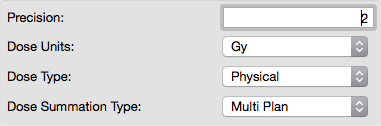

Default Panel

Input Fields

input0

name: input0, type: Image

Input CT image.

input1

name: input1, type: Image

Input dose image.

inCSOList

name: inCSOList, type: MLBase

Input CSO List.

inputModifierList

name: inputModifierList, type: MLBase

Here other DicomModifyPlugin module can be connected in order to apply further modification to a DICOM tree.

inRTPlan

name: inRTPlan, type: MLBase

Input RTPlan.

Output Fields

outputModifierList

name: outputModifierList, type: MLBase

The outputModifierList fields provides a reference-counted Base object to be connected to other DicomModifyPlugin modules or to ModifyDicomTree to apply modifications to a DICOM tree.

Parameter Fields

Field Index

Dose Summation Type: Enum

Dose Type: Enum

Dose Units: Enum

Precision: Integer

Referenced Beam Numbers: String

Referenced Fraction Group Number: Integer

Visible Fields

Precision

name: precision, type: Integer, default: 2, minimum: 0

Contour data numerical precision.

Dose Summation Type

name: doseSummationType, type: Enum, default: PLAN

Values:

Title	Name
​Multi Plan	​MULTI_PLAN
​Plan	​PLAN
​Fraction	​FRACTION
​Beam	​BEAM
​Brachy	​BRACHY
​Fraction Session	​FRACTION_SESSION
​Beam Session	​BEAM_SESSION
​Brachy Session	​BRACHY_SESSION
​Control Point	​CONTROL_POINT
​Record	​RECORD

Dose Units

name: doseUnits, type: Enum, default: GY

Values:

Title	Name
​Gy	​GY
​Relative	​RELATIVE

Dose Type

name: doseType, type: Enum, default: PHYSICAL

Values:

Title	Name
​Physical	​PHYSICAL
​Effective	​EFFECTIVE
​Error	​ERROR

Referenced Fraction Group Number

name: referencedFractionGroupNumber, type: Integer, default: 0

Referenced Beam Numbers

name: referencedBeamNumbers, type: String
