SoView2DTranslationRotation

InventorModule

genre	Interaction
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoView2D
definition	view2d.def
see also	SoView2D
inherits from	SoView2DExtension
keywords	translation, rotation, extension

Purpose

The module SoView2DTranslationRotation enables the same navigation with a 2D MPR as in a SoExaminerViewer.

Usage

Use this module in conjunction with a MPR module.

Interaction

Standard Mouse Interaction

Button	Function
Left	Rotate
Middle	Pan
Middle+Left	Dolly

Standard Key Interaction

Key	Function
Cursor Up/Down	Rotate around y-axis
Page Up/Down	Rotate around y-axis
Cursor Left/Right	Rotate around z-axis

Windows

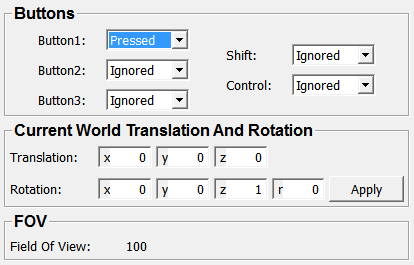

Default Panel

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

adaptCursorShape: Bool	editingOn: Bool	mouseFunctionWheel: Enum
alt: Enum	Field Of View: Float	needsValidVoxel: Bool
Button1: Enum	fixZOn: Bool	renderOnSlab: Bool
Button2: Enum	ignoreHandledEvents: Bool	Rotation: Rotation
Button3: Enum	interactionProviderID: String	selectionTolerance: Float
clipToSlice: Bool	keyFunctionHoriCursor: Enum	setEventHandled: Bool
color: Color	keyFunctionPageKeys: Enum	Shift: Enum
Control: Enum	keyFunctionVertCursor: Enum	Translation: Vector3
createNewMode: Bool	maskValid: Bool	wantsAllEvents: Bool
createNewModeRequest: Trigger	mouseFunctionButton1: Enum	wantsKeyEvents: Bool
cursorShape: Enum	mouseFunctionButton1and2: Enum	wantsMouseWheelEvents: Bool
drawingOn: Bool	mouseFunctionButton2: Enum

Visible Fields

Button1

name: button1, type: Enum, default: PRESSED

see SoView2DExtension.button1

Button2

name: button2, type: Enum, default: IGNORED

see SoView2DExtension.button2

Button3

name: button3, type: Enum, default: IGNORED

see SoView2DExtension.button3

Shift

name: shift, type: Enum, default: IGNORED

see SoView2DExtension.shift

Control

name: control, type: Enum, default: IGNORED

see SoView2DExtension.control

Translation

name: translation, type: Vector3, default: 0 0 0

Sets and shows the current translation.

Rotation

name: rotation, type: Rotation, default: 0 0 1 0

Sets and shows the current rotation.

Field Of View

name: fieldOfView, type: Float, default: 100

Shows the current field of view.

Hidden Fields

interactionProviderID

name: interactionProviderID, type: String

see SoView2DExtension.interactionProviderID

drawingOn

name: drawingOn, type: Bool, default: TRUE

see SoView2DExtension.drawingOn

editingOn

name: editingOn, type: Bool, default: TRUE

see SoView2DExtension.editingOn

maskValid

name: maskValid, type: Bool, persistent: no

fixZOn

name: fixZOn, type: Bool, default: TRUE

color

name: color, type: Color, default: 1 1 1

see SoView2DExtension.color

selectionTolerance

name: selectionTolerance, type: Float, default: 4, deprecated name: selectDistance

needsValidVoxel

name: needsValidVoxel, type: Bool, default: FALSE

see SoView2DExtension.needsValidVoxel

alt

name: alt, type: Enum, default: IGNORED

see SoView2DExtension.alt

wantsAllEvents

name: wantsAllEvents, type: Bool, default: TRUE

wantsKeyEvents

name: wantsKeyEvents, type: Bool, default: FALSE

wantsMouseWheelEvents

name: wantsMouseWheelEvents, type: Bool, default: TRUE

setEventHandled

name: setEventHandled, type: Bool, default: FALSE

see SoView2DExtension.setEventHandled

ignoreHandledEvents

name: ignoreHandledEvents, type: Bool, default: FALSE

see SoView2DExtension.ignoreHandledEvents

createNewMode

name: createNewMode, type: Bool, default: FALSE

see SoView2DExtension.createNewMode

createNewModeRequest

name: createNewModeRequest, type: Trigger

see SoView2DExtension.createNewModeRequest

renderOnSlab

name: renderOnSlab, type: Bool, default: FALSE

clipToSlice

name: clipToSlice, type: Bool, default: FALSE

cursorShape

name: cursorShape, type: Enum, default: UNDEFINED_CURSOR

see SoView2DExtension.cursorShape

mouseFunctionButton1

name: mouseFunctionButton1, type: Enum, default: ROTATE

Values:

Title	Name
​None	​NONE
​Rotate X	​ROTATE_X
​Rotate Y	​ROTATE_Y
​Rotate Z	​ROTATE_Z
​Rotate	​ROTATE
​Pan	​PAN
​Slice	​SLICE
​Zoom	​ZOOM

mouseFunctionButton2

name: mouseFunctionButton2, type: Enum, default: PAN

Values:

Title	Name
​None	​NONE
​Rotate X	​ROTATE_X
​Rotate Y	​ROTATE_Y
​Rotate Z	​ROTATE_Z
​Rotate	​ROTATE
​Pan	​PAN
​Slice	​SLICE
​Zoom	​ZOOM

mouseFunctionButton1and2

name: mouseFunctionButton1and2, type: Enum, default: SLICE

Values:

Title	Name
​None	​NONE
​Rotate X	​ROTATE_X
​Rotate Y	​ROTATE_Y
​Rotate Z	​ROTATE_Z
​Rotate	​ROTATE
​Pan	​PAN
​Slice	​SLICE
​Zoom	​ZOOM

mouseFunctionWheel

name: mouseFunctionWheel, type: Enum, default: ROTATE_Z

Values:

Title	Name
​None	​NONE
​Rotate X	​ROTATE_X
​Rotate Y	​ROTATE_Y
​Rotate Z	​ROTATE_Z
​Pan X	​PAN_X
​Pan Y	​PAN_Y
​Slice	​SLICE
​Zoom	​ZOOM
​Slice Or Zoom	​SLICE_OR_ZOOM

keyFunctionHoriCursor

name: keyFunctionHoriCursor, type: Enum, default: ROTATE_Z

Values:

Title	Name
​None	​NONE
​Rotate X	​ROTATE_X
​Rotate Y	​ROTATE_Y
​Rotate Z	​ROTATE_Z
​Pan X	​PAN_X
​Pan Y	​PAN_Y
​Slice	​SLICE
​Zoom	​ZOOM
​Slice Or Zoom	​SLICE_OR_ZOOM

keyFunctionVertCursor

name: keyFunctionVertCursor, type: Enum, default: SLICE_OR_ZOOM

Values:

Title	Name
​None	​NONE
​Rotate X	​ROTATE_X
​Rotate Y	​ROTATE_Y
​Rotate Z	​ROTATE_Z
​Pan X	​PAN_X
​Pan Y	​PAN_Y
​Slice	​SLICE
​Zoom	​ZOOM
​Slice Or Zoom	​SLICE_OR_ZOOM

keyFunctionPageKeys

name: keyFunctionPageKeys, type: Enum, default: SLICE_OR_ZOOM

Values:

Title	Name
​None	​NONE
​Rotate X	​ROTATE_X
​Rotate Y	​ROTATE_Y
​Rotate Z	​ROTATE_Z
​Pan X	​PAN_X
​Pan Y	​PAN_Y
​Slice	​SLICE
​Zoom	​ZOOM
​Slice Or Zoom	​SLICE_OR_ZOOM

adaptCursorShape

name: adaptCursorShape, type: Bool, default: FALSE
