SoView2DScene¶

InventorModule¶

genre	`View2DExtended`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoView2DScene`
definition	SoView2DScene.def
see also	`SoView2D`
inherits from	`SoView2DExtension`
keywords	`slice`, `3D`, `visualization`

Purpose¶

The module SoView2DScene renders an Open Inventor scene graph into 2D slices.

Only the part of the scene that fits into the current slice or slab is displayed.

Details¶

The scene graph rendered by this module is transformed from world space into voxel space and clipped against the top and bottom slice. Since the scene is rendered with OpenGL directly into the slice it is displayed with pixel accuracy, which is often more accurate than a rasterized voxel representation.

This module is very useful in combination with the SoGVRVolumeRenderer, since it allows to render a GVR slab rendering onto any SoView2D coordinate system. Have a look at the SoGVRSlabHint example network for an example usage.

Windows¶

Default Panel¶

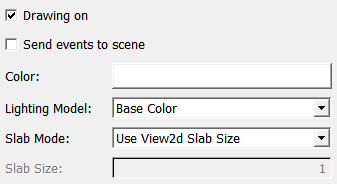

../../../Modules/Inventor/SoView2DScene/mhelp/Images/Screenshots/SoView2DScene._default.png

Input Fields¶

sceneGraph¶

name: sceneGraph, type: SoNode¶

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`alt`: `Enum`	`Drawing On`: `Bool`	`Send Events To Scene`: `Bool`
`button1`: `Enum`	`editingOn`: `Bool`	`setEventHandled`: `Bool`
`button2`: `Enum`	`fixZOn`: `Bool`	`shift`: `Enum`
`button3`: `Enum`	`ignoreHandledEvents`: `Bool`	`Slab Mode`: `Enum`
`clipToSlice`: `Bool`	`interactionProviderID`: `String`	`Slab Size`: `Float`
`Color`: `Color`	`Lighting Model`: `Enum`	`wantsAllEvents`: `Bool`
`control`: `Enum`	`maskValid`: `Bool`	`wantsKeyEvents`: `Bool`
`createNewMode`: `Bool`	`needsValidVoxel`: `Bool`	`wantsMouseWheelEvents`: `Bool`
`createNewModeRequest`: `Trigger`	`renderOnSlab`: `Bool`
`cursorShape`: `Enum`	`selectionTolerance`: `Float`

Visible Fields¶

Drawing On¶

name: drawingOn, type: Bool, default: TRUE¶: If checked, the module renders geometry onto the current slice.

Color¶

name: color, type: Color, default: 1 1 1¶: Sets a default diffuse color of the rendered scene. This color may be overwritten by any color node such as SoBaseColor or SoMaterial.

Send Events To Scene¶

name: sendEventsToScene, type: Bool, default: FALSE¶

If enabled, mouse events are forwarded to the 3D scene.

If you do not want to pass all mouse events to the scene, you can set the button1, button2, button3, shift, control, and alt mask to something different than IGNORED, and also can unset wantsAllEvents.

You can also set the wantsKeyEvents and wantsMouseWheelEvents to forward these event types to the scene.

Slab Size¶

name: slabSize, type: Float, default: 1, minimum: 0.0001¶: Sets the size of the slab, depending on the Slab Mode.

Slab Mode¶

name: slabMode, type: Enum, default: USE_VIEW2D_SLAB_SIZE¶

Defines the slab mode.

Pseudo code the shows the slab calculation (using Python syntax, note that the end position is +1 because of range() at the bottom):

mode     = ctx.field("SoView2DScene.slabMode").value
slabSize = ctx.field("SoView2DScene.slabSize").value
startSlice = ctx.field("SoView2D.startSlice").value

voxelSizeZ = ctx.field("SoView2D.image").voxelSizeZ()

if mode == "SLAB_SIZE_IN_SLICES":
  slabSize = int(slabSize)
  start = startSlice - (slabSize-1)//2
  end   = startSlice + 1 + slabSize//2
elif mode == "USE_VIEW2D_SLAB_SIZE":
  slabSize = int(ctx.field("SoView2D.slab").value)
  start = startSlice - (slabSize-1)//2
  end   = startSlice + 1 + slabSize//2
elif mode == "SLAB_SIZE_IN_SLICES_NEGATIVE_FIRST":
  slabSize = int(slabSize)
  start = startSlice - slabSize//2
  end   = startSlice + 1 + (slabSize-1)//2
elif mode == "SLAB_SIZE_IN_SLICES_FORWARD":
  slabSize = int(slabSize)
  start = startSlice
  end   = startSlice + slabSize
elif mode == "SLAB_SIZE_IN_MM_FORWARD":
  slabSize = math.floor(slabSize/voxelSizeZ + 0.5)
  if slabSize < 1:
    slabSize = 1
  start = int(startSlice)
  end   = int(math.ceil(startSlice + slabSize))
elif mode == "SLAB_SIZE_IN_MM":
  slabSize = slabSize/voxelSizeZ
  if slabSize < 1:
    slabSize = 1
  start = int(math.ceil(startSlice - slabSize/2.))
  end   = int(math.floor(startSlice + 1 + slabSize/2.))

# clip to dataset
if start<0:
  start = 0
maxSlice = int(ctx.field("SoView2D.maxSlice").value);
if end>maxSlice+1:
  end = maxSlice+1

# return the expected range
return range(start, end)

Values:

Title	Name	Description
Use View2d Slab Size	USE_VIEW2D_SLAB_SIZE	Uses the slab parameter of the attached `SoView2D` as number of slab slices and renders as in SLAB_SIZE_IN_SLICES.
Slab Size In Mm	SLAB_SIZE_IN_MM	Uses the `Slab Size` parameters as millimeters using the z voxel size of the SoView2D image. The slab is centered exactly to the SoView2D.startSlice center and is clamped to contain at least one slice.
Slab Size In Mm Forward	SLAB_SIZE_IN_MM_FORWARD	Uses the `Slab Size` parameters as millimeters using the z voxel size of the SoView2D image. The slab starts at SoView2D.startSlice, going in positive z direction and is clamped to contain at least one slice.
Slab Size In Slices	SLAB_SIZE_IN_SLICES	Uses the `Slab Size` parameter as number of slab slices and renders the slab slices around the current slice, preferring the positive z direction.
Slab Size In Slices Negative First	SLAB_SIZE_IN_SLICES_NEGATIVE_FIRST	Uses the `Slab Size` parameter as number of slab slices and renders the slab slices around the current slice, preferring the negative z direction.
Slab Size In Slices Forward	SLAB_SIZE_IN_SLICES_FORWARD	Uses the `Slab Size` parameter as number of slab slices and renders the slab slices starting at the current slice, going in positive z direction.
Slab Size Unlimited	SLAB_SIZE_UNLIMITED	Does not set any clipping planes and thus renders all geometry that is visible. Note: this is not supported by the `SoGVRVolumeRenderer`.

Lighting Model¶

name: lightingModel, type: Enum, default: BASE_COLOR¶

Values:

Title	Name
Base Color	BASE_COLOR
Phong	PHONG

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

see SoView2DExtension.interactionProviderID

editingOn¶

name: editingOn, type: Bool, default: TRUE¶

see SoView2DExtension.editingOn

maskValid¶

name: maskValid, type: Bool, persistent: no¶

fixZOn¶

name: fixZOn, type: Bool, default: TRUE¶

selectionTolerance¶

name: selectionTolerance, type: Float, default: 4¶

needsValidVoxel¶

name: needsValidVoxel, type: Bool, default: TRUE¶

see SoView2DExtension.needsValidVoxel

button1¶

name: button1, type: Enum, default: IGNORED¶

see SoView2DExtension.button1

button2¶

name: button2, type: Enum, default: IGNORED¶

see SoView2DExtension.button2

button3¶

name: button3, type: Enum, default: IGNORED¶

see SoView2DExtension.button3

shift¶

name: shift, type: Enum, default: IGNORED¶

see SoView2DExtension.shift

control¶

name: control, type: Enum, default: IGNORED¶

see SoView2DExtension.control

alt¶

name: alt, type: Enum, default: IGNORED¶

see SoView2DExtension.alt

wantsAllEvents¶

name: wantsAllEvents, type: Bool, default: TRUE¶

wantsKeyEvents¶

name: wantsKeyEvents, type: Bool, default: FALSE¶

wantsMouseWheelEvents¶

name: wantsMouseWheelEvents, type: Bool, default: FALSE¶

setEventHandled¶

name: setEventHandled, type: Bool, default: FALSE¶

see SoView2DExtension.setEventHandled

ignoreHandledEvents¶

name: ignoreHandledEvents, type: Bool, default: FALSE¶

see SoView2DExtension.ignoreHandledEvents

createNewMode¶

name: createNewMode, type: Bool, default: FALSE¶

see SoView2DExtension.createNewMode

createNewModeRequest¶

name: createNewModeRequest, type: Trigger¶

see SoView2DExtension.createNewModeRequest

renderOnSlab¶

name: renderOnSlab, type: Bool, default: FALSE¶

clipToSlice¶

name: clipToSlice, type: Bool, default: TRUE¶

cursorShape¶

name: cursorShape, type: Enum, default: UNDEFINED_CURSOR¶

see SoView2DExtension.cursorShape
