SoView2DPointMarkerEditor¶

InventorModule¶

author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoView2DMarkerListEditors`
definition	SoView2DMarkerListEditors.def
inherits from	`SoView2DExtension`

Purpose¶

The module SoView2DPointMarkerEditor allows for rendering and editing point markers in 2D.

Details¶

If a StylePalette is attached, the style of rendered markers is defined by the StylePalette. Otherwise, this module controls the style of all rendered markers.

However, anti-aliasing can be toggled globally.

This module also sets the rendering of a shadow, the shadow color, and a general alpha factor.

Interaction¶

The module SoView2DPointMarkerEditor behaves differently on canceling an interaction by pressing ESC, depending on whether an UndoManager is attached.

For example:

If no UndoManager is attached, pressing ESC while adding and immediately moving a marker cancels the movement, but the marker is still added at the position of the mouse pointer when the interaction was canceled.

If an UndoManager is attached, pressing ESC undoes both the addition and the immediate movement of the marker, so the marker is not added at all.

Tips¶

Just attach this module to an XMarkerListContainer.

If used with other modules that output an XMarkerList, attach an XMarkerListContainer to the module that outputs the XMarkerList and set the XMarkerListContainer to copy and take ownership of the XMarkerList (XMarkerListContainer.copyAndTakeOwnership). Then, attach SoView2DPointMarkerEditor to the XMarkerListContainer.

Windows¶

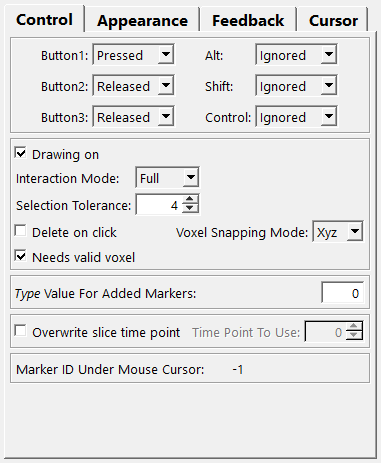

Default Panel¶

../../../Projects/SoView2DMarkerListEditors/Modules/mhelp/Images/Screenshots/SoView2DPointMarkerEditor._default.png

Input Fields¶

inStylePalette¶

name: inStylePalette, type: StylePalette(MLBase)¶

inMarkerList¶

name: inMarkerList, type: XMarkerList(MLBase)¶: For accessing this object via scripting, see the Scripting Reference: MLXMarkerListWrapper.

inUndoContext¶

name: inUndoContext, type: UndoContext(MLBase)¶: For accessing this object via scripting, see the Scripting Reference: MLUndoContextWrapper.

inMarkerTextRenderer¶

name: inMarkerTextRenderer, type: MarkerTextRenderer(MLBase)¶

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`Add`: `Enum`	`editingOn`: `Bool`	`Overwrite slice time point`: `Bool`
`Added Marker Type`: `Integer`	`Enlarge Value (mouseOverEnlargeValue)`: `Float`	`renderOnSlab`: `Bool`
`Brighten Value (mouseOverBrightenValue)`: `Float`	`Enlarge Value (selectionEnlargeValue)`: `Float`	`setEventHandled`: `Bool`
`Brighten Value (selectionBrightenValue)`: `Float`	`fixZOn`: `Bool`	`Size Mode (mouseOverSizeMode)`: `Enum`
`clipToSlice`: `Bool`	`Icon File`: `String`	`Size Mode (selectionSizeMode)`: `Enum`
`Color (shadowColor)`: `Color`	`Icon Scale`: `Float`	`Size Value (mouseOverSizeValue)`: `Float`
`color (color)`: `Color`	`ignoreHandledEvents`: `Bool`	`Size Value (selectionSizeValue)`: `Float`
`Color Mode (mouseOverColorMode)`: `Enum`	`Interaction Mode`: `Enum`	`Style Palette Lookup`: `Enum`
`Color Mode (selectionColorMode)`: `Enum`	`interactionProviderID`: `String`	`Time Point To Use`: `Integer`
`Color Value (mouseOverColorValue)`: `Color`	`Marker Alpha`: `Float`	`Use`: `Bool`
`Color Value (selectionColorValue)`: `Color`	`Marker Color`: `Color`	`Use anti-aliasing`: `Bool`
`createNewMode`: `Bool`	`Marker ID Under Mouse Cursor`: `Integer`	`Use Shadow`: `Bool`
`createNewModeRequest`: `Trigger`	`Marker Line Width`: `Float`	`Value`: `Integer`
`cursorShape`: `Enum`	`Marker Shape`: `Enum`	`Voxel Snapping Mode`: `Enum`
`customIconsValidAndUsed`: `Bool`	`Marker Size`: `Float`	`wantsAllEvents`: `Bool`
`Delete`: `Enum`	`maskValid`: `Bool`	`wantsKeyEvents`: `Bool`
`Delete On Click`: `Bool`	`Mode`: `Enum`	`wantsMouseWheelEvents`: `Bool`
`Drag`: `Enum`	`Mouse Over`: `Enum`
`Drawing On`: `Bool`	`Needs Valid Voxel`: `Bool`

Visible Fields¶

Drawing On¶

name: drawingOn, type: Bool, default: TRUE¶: If checked, the point XMarkers are rendered.

Marker Size¶

name: selectionTolerance, type: Float, default: 4, minimum: 2¶: Sets the selection radius in pixels.

Needs Valid Voxel¶

name: needsValidVoxel, type: Bool, default: TRUE¶

see SoView2DExtension.needsValidVoxel

Style Palette Lookup¶

name: stylePaletteLookup, type: Enum, default: LOOKUP_TYPE¶: Defines how to look up a style from the StylePalette.

Values:

Title

Name

Description

Index

LOOKUP_INDEX

The index of a marker is used as a lookup.

Type

LOOKUP_TYPE

The type value of a marker is used as a lookup.

The type value is an integer that is stored for each marker under the name ‘type’.

Id

LOOKUP_ID

The ID of a marker is used as a lookup.

Marker Color¶

name: markerColor, type: Color, default: 1 1 1¶: Sets the color of rendered markers when no StylePalette is attached.

Marker Alpha¶

name: markerAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets the overall alpha factor for all rendered markers.

Use anti-aliasing¶

name: useAntiAliasing, type: Bool, default: TRUE¶

If checked, all markers are rendered with anti-aliasing.

When a StylePalette is attached, anti-aliasing can be toggled individually for each style, but this setting overrides the individual marker settings in the StylePalette.

Overwrite slice time point¶

name: shouldOverwriteTimePoint, type: Bool, default: FALSE¶: If checked, existing markers render at the time point specified in Time Point To Use, and newly created markers use this time point instead of the one displayed in the viewer.

Time Point To Use¶

name: timePointToUse, type: Integer, default: 0¶: Sets a time point to render existing markers and newly created markers will have this time point.

Use Shadow¶

name: useShadow, type: Bool, default: TRUE¶: If checked, all markers are rendered with a shadow in the color specified by Color.

Color¶

name: shadowColor, type: Color, default: 0 0 0¶: Sets the shadow color when Use Shadow is checked.

Voxel Snapping Mode¶

name: snapMode, type: Enum, default: SNAP_XYZ¶: Defines the voxel snapping mode for newly created and moved markers.

Values:

Title	Name	Description
Off	SNAP_OFF	Voxel snapping is turned off.
Xy	SNAP_XY	A marker’s position snaps to the voxel center in the x/y direction.
Z	SNAP_Z	A marker’s position snaps to the voxel center in the z direction.
Xyz	SNAP_XYZ	A marker’s position snaps to the voxel center in the x/y/z direction.

Added Marker Type¶

name: addedMarkerType, type: Integer, default: 0¶

Sets the type value for an added marker.

The type value is an arbitrary integer stored with each XMarker.

Interaction Mode¶

name: interactionMode, type: Enum, default: FULL¶: Defines the interaction mode.

Values:

Title	Name	Description
None	NONE	The module does not react to any interaction at all.
Full	FULL	The module supports adding, selecting, moving, and removing of markers.
Select	SELECT	The module only allows for selecting markers.

Size Mode (mouseOverSizeMode)¶

name: mouseOverSizeMode, type: Enum, default: MOUSE_OVER_ENLARGE¶: Defines how to adjust the visible size of a marker on mouse-over.

Values:

Title	Name	Description
Enlarge	MOUSE_OVER_ENLARGE	The rendered marker is enlarged by `Enlarge Value`.
Size	MOUSE_OVER_SIZE	The rendered marker is set to the size defined in `Size Value`.

Color Mode (mouseOverColorMode)¶

name: mouseOverColorMode, type: Enum, default: MOUSE_OVER_BRIGHTEN¶: Defines how to adjust the visible color of a marker on mouse-over.

Values:

Title	Name	Description
Brighten	MOUSE_OVER_BRIGHTEN	The rendered marker is brightened by `Brighten Value`.
Color	MOUSE_OVER_COLOR	The rendered marker is set to the color defined in `Color Value`.

Enlarge Value (mouseOverEnlargeValue)¶

name: mouseOverEnlargeValue, type: Float, default: 1¶: Sets an enlargement value for the size of a rendered marker on mouse-over, adding it to the marker’s size.

Size Value (mouseOverSizeValue)¶

name: mouseOverSizeValue, type: Float, default: 5¶: Sets the size of a rendered marker on mouse-over.

Brighten Value (mouseOverBrightenValue)¶

name: mouseOverBrightenValue, type: Float, default: 0.2¶: Sets a brighten value for the color of a rendered marker on mouse-over, adding it to each RGB component of the displayed color, with RGB values clamped to [0..1].

Color Value (mouseOverColorValue)¶

name: mouseOverColorValue, type: Color, default: 1 0.899999976158142 0.5¶: Sets the color of a rendered marker on mouse-over.

Size Mode (selectionSizeMode)¶

name: selectionSizeMode, type: Enum, default: SELECTION_ENLARGE¶: Defines how to adjust the visible size of a marker upon selection.

Values:

Title	Name	Description
Enlarge	SELECTION_ENLARGE	The rendered marker is enlarged by `Enlarge Value`.
Size	SELECTION_SIZE	The rendered marker is set to the size defined in `Size Value`.

Color Mode (selectionColorMode)¶

name: selectionColorMode, type: Enum, default: SELECTION_BRIGHTEN¶: Defines how to adjust the visible color of a marker upon selection.

Values:

Title	Name	Description
Brighten	SELECTION_BRIGHTEN	The rendered marker is brightened by `Brighten Value`.
Color	SELECTION_COLOR	The rendered marker is set to the color defined in `Color Value`.

Enlarge Value (selectionEnlargeValue)¶

name: selectionEnlargeValue, type: Float, default: 1¶: Sets an enlargement value for the size of a rendered marker upon selection, adding it to the marker’s size.

Size Value (selectionSizeValue)¶

name: selectionSizeValue, type: Float, default: 6¶: Sets the size of a rendered marker upon selection.

Brighten Value (selectionBrightenValue)¶

name: selectionBrightenValue, type: Float, default: 0.30000001¶: Sets a brighten value for the color of a rendered marker upon selection, adding it to each RGB component of the displayed color, with RGB values clamped to [0..1].

Color Value (selectionColorValue)¶

name: selectionColorValue, type: Color, default: 1 0.400000005960464 0.100000001490116¶: Sets the color of a rendered marker upon selection.

Mode¶

name: depthVisibilityMode, type: Enum, default: DEPTH_SLICES¶: Defines the depth visualization mode (ghosting). Markers on adjacent slices appear visible, with their distance to the current slice indicated by the alpha value used for rendering.

Values:

Title	Name	Description
Slices	DEPTH_SLICES	The `Value` determines the number of adjacent slices in which the markers remain visible.
Mm	DEPTH_MM	The `Value` specifies the distance in millimeters from the current slice within which markers remain visible.

Value¶

name: depthVisibilityValue, type: Integer, default: 0¶

Sets the depth visibility value.

The field Mode controls how this value is interpreted.

Marker ID Under Mouse Cursor¶

name: markerIDUnderMouseCursor, type: Integer, persistent: no¶: Shows the ID of the marker currently under the mouse cursor, or -1 if no marker is present.

Add¶

name: cursorShapeAdd, type: Enum, default: CROSS_POINT_CURSOR¶

Defines the cursor shape for adding a marker.

This cursor shape is applied when the mouse is not over any marker, provided that adding is allowed (see Interaction Mode).

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Mouse Over¶

name: cursorShapeMouseOver, type: Enum, default: CROSS_MOVE_CURSOR¶

Defines the cursor shape for mouse-overing a marker.

This cursor shape is applied when the mouse is over any marker, provided that selection is allowed (see Interaction Mode).

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Drag¶

name: cursorShapeDrag, type: Enum, default: CLOSED_HAND_CURSOR¶

Defines the cursor shape for dragging a marker.

This cursor shape is applied when a marker is being dragged, provided that dragging is allowed (see Interaction Mode).

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Delete¶

name: cursorShapeDelete, type: Enum, default: CROSS_MINUS_CURSOR¶: Defines the cursor shape for deleting a marker on click. See Delete On Click

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Delete On Click¶

name: deleteOnClick, type: Bool, default: FALSE¶: If checked, a marker is deleted by clicking on it.

Icon Scale¶

name: iconScale, type: Float, default: 1¶: Sets the scale factor for displaying marker icons from an icons file.

Marker Line Width¶

name: markerLineWidth, type: Float, default: 1, minimum: 0.5¶: Sets the line width of rendered markers when no StylePalette is attached.

Marker Shape¶

name: markerShape, type: Enum, default: StylePalette::MarkerType::mktDot¶: Defines the overall shape of rendered markers when no StylePalette is attached.

Values:

Title	Name
None	StylePalette::MarkerType::mktNone
Dot	StylePalette::MarkerType::mktDot
Asterisk	StylePalette::MarkerType::mktAsterisk
Circle	StylePalette::MarkerType::mktCircle
Square	StylePalette::MarkerType::mktSquare
Triangle	StylePalette::MarkerType::mktTriangle
Plus	StylePalette::MarkerType::mktPlus
Cross	StylePalette::MarkerType::mktCross

Use¶

name: useCustomIcons, type: Bool, default: FALSE¶

If checked, marker icons from an icons file loaded with Icon File are displayed.

If the icons file cannot be loaded or its size (width × height) is unsuitable, marker icons are rendered using the default markers (either through the StylePalette or SoView2DPointMarkerEditor). In such cases, the hidden flag customIconsValidAndUsed is set to False.

Icon File¶

name: customIconFilename, type: String¶

Sets the file name of a custom icon image file.

By default, the supported image types are .tif (.tiff) and .png.

The image height is arbitrary, but the width must be a multiple of the height, ensuring each marker icon is square.

The marker type is used as a look-up (type % number of icons), where the number of icons in an image is determined by width / height.

The icons image should have a transparent background and use only grayscale tones.

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

see SoView2DExtension.interactionProviderID

editingOn¶

name: editingOn, type: Bool, default: TRUE¶

If checked, interaction with markers becomes possible.

Changing this field also updates the Interaction Mode field: the interaction mode is set to “NONE” when this field is FALSE and to “FULL” when it is TRUE.

Conversely, this field is automatically updated based on changes to the Interaction Mode field: if the interaction mode is set to “FULL” or “SELECT,” this field is set to TRUE; otherwise, it is set to FALSE.

maskValid¶

name: maskValid, type: Bool, persistent: no¶

fixZOn¶

name: fixZOn, type: Bool, default: TRUE¶

color¶

name: color, type: Color, default: 1 1 1¶

see SoView2DExtension.color

wantsAllEvents¶

name: wantsAllEvents, type: Bool, default: FALSE¶

wantsKeyEvents¶

name: wantsKeyEvents, type: Bool, default: FALSE¶

wantsMouseWheelEvents¶

name: wantsMouseWheelEvents, type: Bool, default: FALSE¶

setEventHandled¶

name: setEventHandled, type: Bool, default: FALSE¶

see SoView2DExtension.setEventHandled

ignoreHandledEvents¶

name: ignoreHandledEvents, type: Bool, default: FALSE¶

see SoView2DExtension.ignoreHandledEvents

createNewMode¶

name: createNewMode, type: Bool, default: FALSE¶

see SoView2DExtension.createNewMode

createNewModeRequest¶

name: createNewModeRequest, type: Trigger¶

see SoView2DExtension.createNewModeRequest

renderOnSlab¶

name: renderOnSlab, type: Bool, default: FALSE¶

clipToSlice¶

name: clipToSlice, type: Bool, default: FALSE¶

cursorShape¶

name: cursorShape, type: Enum, default: UNDEFINED_CURSOR¶

see SoView2DExtension.cursorShape

customIconsValidAndUsed¶

name: customIconsValidAndUsed, type: Bool, persistent: no¶

SoView2DPointMarkerEditor¶

Purpose¶

Details¶

Interaction¶

Tips¶

Windows¶

Default Panel¶

Input Fields¶

inStylePalette¶

inMarkerList¶

inUndoContext¶

inMarkerTextRenderer¶

Output Fields¶

self¶

Parameter Fields¶

Field Index¶

Visible Fields¶

Drawing On¶

Marker Size¶

Needs Valid Voxel¶

Style Palette Lookup¶

Marker Color¶

Marker Alpha¶

Use anti-aliasing¶

Overwrite slice time point¶

Time Point To Use¶

Use Shadow¶

Color¶

Voxel Snapping Mode¶

Added Marker Type¶

Interaction Mode¶

Size Mode (mouseOverSizeMode)¶

Color Mode (mouseOverColorMode)¶

Enlarge Value (mouseOverEnlargeValue)¶

Size Value (mouseOverSizeValue)¶

Brighten Value (mouseOverBrightenValue)¶

Color Value (mouseOverColorValue)¶

Size Mode (selectionSizeMode)¶

Color Mode (selectionColorMode)¶

Enlarge Value (selectionEnlargeValue)¶

Size Value (selectionSizeValue)¶

Brighten Value (selectionBrightenValue)¶

Color Value (selectionColorValue)¶

Mode¶

Value¶

Marker ID Under Mouse Cursor¶

Add¶

Mouse Over¶

Drag¶

Delete¶

Delete On Click¶

Icon Scale¶

Marker Line Width¶

Marker Shape¶

Use¶

Icon File¶

Hidden Fields¶

interactionProviderID¶

editingOn¶

maskValid¶

fixZOn¶

color¶

wantsAllEvents¶

wantsKeyEvents¶

wantsMouseWheelEvents¶

setEventHandled¶

ignoreHandledEvents¶

createNewMode¶

createNewModeRequest¶

renderOnSlab¶

clipToSlice¶

cursorShape¶

customIconsValidAndUsed¶

Table of Contents

Quick search
