SoTransformBoxManip¶

InventorModule¶

genre	`InventorManipulators`
author	`Silicon Graphics Inc`
package	`MeVisLab/Standard`
definition	inventor.def
keywords	`interaction`, `3D`

Purpose¶

SoTransformBoxManip is derived from SoTransform (via SoTransformerManip). When its fields change, nodes following it in the scene graph rotate, scale, and/or translate.

As a subclass of SoTransformerManip, this manipulator also features a 3D interface to edit some of its fields. In this case, the interface modifies the Scale Factor, Rotation, and Translation fields.

A manipulator differs from a dragger. When you move a dragger, no other nodes are affected. However, when you move an SoTransformerManip, other nodes move along with it.

Interaction¶

Press Shift to constrain the translation to a single direction.

Windows¶

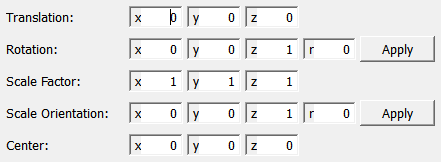

Default Panel¶

../../../Modules/Inventor/InventorBase/mhelp/Images/Screenshots/SoTransformBoxManip._default.png

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

Center: Vector3

Rotation: Rotation

Scale Factor: Vector3

Scale Orientation: Rotation

Translation: Vector3

Visible Fields¶

Translation¶

name: translation, type: Vector3, default: 0 0 0¶: Sets and shows the translation of the manipulator.

Rotation¶

name: rotation, type: Rotation, default: 0 0 1 0¶: Sets and shows the rotation of the manipulator.

Scale Factor¶

name: scaleFactor, type: Vector3, default: 1 1 1¶: Sets and shows the scaling of the manipulator.

Scale Orientation¶

name: scaleOrientation, type: Rotation, default: 0 0 1 0¶: Sets and shows the scale orientation of the manipulator.

Center¶

name: center, type: Vector3, default: 0 0 0¶: Sets and shows the center of rotation and scale of the manipulator.
