SoTransform¶

InventorModule¶

genre	`InventorTransform,InventorNodesAutomatic`
author	`Silicon Graphics Inc`
package	`MeVisLab/Standard`
definition	inventor.def
keywords	`3D`, `affine`, `rotate`, `scale`, `shear`

Purpose¶

The node SoTransform defines a geometric 3D transformation consisting of (in order) a (possibly) non-uniform scale about an arbitrary point, a rotation about an arbitrary point and axis, and a translation.

Windows¶

Default Panel¶

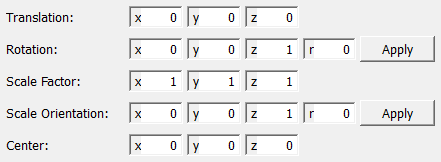

../../../Modules/Inventor/InventorBase/mhelp/Images/Screenshots/SoTransform._default.png

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

Center: Vector3

Rotation: Rotation

Scale Factor: Vector3

Scale Orientation: Rotation

Translation: Vector3

Visible Fields¶

Translation¶

name: translation, type: Vector3, default: 0 0 0¶: Sets the translation vector.

Rotation¶

name: rotation, type: Rotation, default: 0 0 1 0¶: Sets the rotation using an axis and an angle in radians.

Scale Factor¶

name: scaleFactor, type: Vector3, default: 1 1 1¶

Sets the 3D scale factors.

Non-positive values may lead to undesirable results.

Scale Orientation¶

name: scaleOrientation, type: Rotation, default: 0 0 1 0¶: Sets the rotational orientation for scale.

Center¶

name: center, type: Vector3, default: 0 0 0¶: Sets the origin for scale and rotation.
