SoTabBoxManip¶

InventorModule¶

genre	`InventorManipulators`
author	`Silicon Graphics Inc`
package	`MeVisLab/Standard`
definition	inventor.def

Purpose¶

SoTabBoxManip is derived from SoTransform (via SoTransformerManip). When its fields change, nodes following it in the scene graph are scaled and/or translated.

As a subclass of SoTransformerManip, this manipulator also features a 3D interface to edit some of its fields. In this case, the interface modifies the Scale Factor and Translation fields.

A manipulator differs from a dragger. When you move a dragger, no other nodes are affected. However, when you move an SoTransformerManip, other nodes move along with it.

On screen, this manipulator will surround the objects influenced by its motion.

Windows¶

Default Panel¶

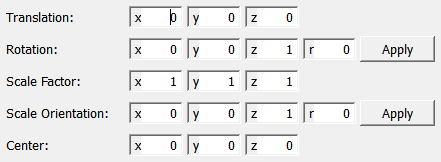

../../../Modules/Inventor/InventorBase/mhelp/Images/Screenshots/SoTabBoxManip._default.png

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

Center: Vector3

Rotation: Rotation

Scale Factor: Vector3

Scale Orientation: Rotation

Translation: Vector3

Visible Fields¶

Translation¶

name: translation, type: Vector3, default: 0 0 0¶: Sets and shows the translation.

Rotation¶

name: rotation, type: Rotation, default: 0 0 1 0¶: Sets and shows the rotation of the manipulator.

Scale Factor¶

name: scaleFactor, type: Vector3, default: 1 1 1¶: Sets and shows the scale factor.

Scale Orientation¶

name: scaleOrientation, type: Rotation, default: 0 0 1 0¶: Sets and shows the scale orientation of the manipulator.

Center¶

name: center, type: Vector3, default: 0 0 0¶: Sets and shows the center of rotation and scale of the manipulator.
