Purpose

The module SoGenericCommandAction provides a user-defined command action for Managed Interactions that abstracts away from key actions. It complements GenericPointingAction.

Usage

Usage of this module in most cases requires the use of a FieldListener attached to the Action Triggered (Connect from Here) field.

Windows

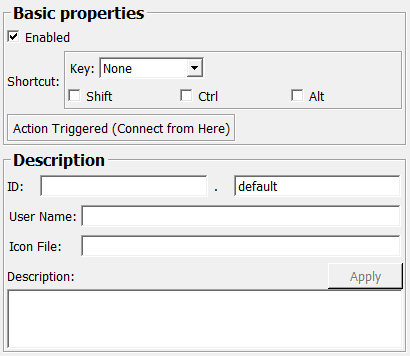

Default Panel

../../../Modules/Inventor/SoInteractionControllers/mhelp/Images/Screenshots/SoGenericCommandAction._default.png

Output Fields

self

name: self, type: SoNode

Simply connect the output of this module into an Open Inventor scene.

Parameter Fields

Field Index

Action ID: String Key: Enum
Action Triggered (Connect from Here): Trigger menuPriority: Integer
Alt: Bool Shift: Bool
Ctrl: Bool shortcutString: String
Description: String User Name: String
Enabled: Bool
Icon File: String
Interaction Provider ID: String

Visible Fields

Interaction Provider ID

name: interactionProviderID, type: String, deprecated name: providerID

Sets the provider ID of the action.

If left empty, the name of the module is used, but it might be useful to assign the same name to several actions in the same macro module.

Enabled

name: enabled, type: Bool, default: TRUE

If checked, the action in the scene is enabled.

Action ID

name: actionID, type: String, default: default

Sets the ID for the action.

This ID can be used to override, e.g., the key binding of this action from the outside. It should be a unique name that clearly identifies this action.

User Name

name: userName, type: String

Sets a name that is presented to the user in appropriate places (e.g., menus).

How this value is really used depends on the software environment and may be overridden.

Icon File

name: iconFile, type: String

Sets a the path to an image file usable as an icon representing this action.

How this value is really used depends on the software environment and may be overridden.

Description

name: description, type: String

Sets a description of the action.

How this value is really used depends on the software environment and may be overridden.

Key

name: shortcutKey, type: Enum, default: None

Sets the shortcut key for this action.

The key is evaluated together with Shift, Ctrl, Alt. This is only a default and may be overridden by the software environment. It does not need to be set in all cases, because the action might also be accessible through, e.g., a context menu.

Values:

Title Name
None None
A A
B B
C C
D D
E E
F F
G G
H H
I I
J J
K K
L L
M M
N N
O O
P P
Q Q
R R
S S
T T
U U
V V
W W
X X
Y Y
Z Z
Number 0 NUMBER_0
Number 1 NUMBER_1
Number 2 NUMBER_2
Number 3 NUMBER_3
Number 4 NUMBER_4
Number 5 NUMBER_5
Number 6 NUMBER_6
Number 7 NUMBER_7
Number 8 NUMBER_8
Number 9 NUMBER_9
Home HOME
Left Arrow LEFT_ARROW
Up Arrow UP_ARROW
Right Arrow RIGHT_ARROW
Down Arrow DOWN_ARROW
Page Up PAGE_UP
Page Down PAGE_DOWN
Prior PRIOR
Next NEXT
End END
Pad Enter PAD_ENTER
Pad F1 PAD_F1
Pad F2 PAD_F2
Pad F3 PAD_F3
Pad F4 PAD_F4
Pad 0 PAD_0
Pad 1 PAD_1
Pad 2 PAD_2
Pad 3 PAD_3
Pad 4 PAD_4
Pad 5 PAD_5
Pad 6 PAD_6
Pad 7 PAD_7
Pad 8 PAD_8
Pad 9 PAD_9
Pad Add PAD_ADD
Pad Subtract PAD_SUBTRACT
Pad Multiply PAD_MULTIPLY
Pad Divide PAD_DIVIDE
Pad Space PAD_SPACE
Pad Tab PAD_TAB
Pad Insert PAD_INSERT
Pad Delete PAD_DELETE
Pad Period PAD_PERIOD
F1 F1
F2 F2
F3 F3
F4 F4
F5 F5
F6 F6
F7 F7
F8 F8
F9 F9
F10 F10
F11 F11
F12 F12
Backspace BACKSPACE
Tab TAB
Return RETURN
Enter ENTER
Pause PAUSE
Scroll Lock SCROLL_LOCK
Escape ESCAPE
Key Delete KEY_DELETE
Print PRINT
Insert INSERT
Num Lock NUM_LOCK
Caps Lock CAPS_LOCK
Shift Lock SHIFT_LOCK
Space SPACE
Apostrophe APOSTROPHE
Comma COMMA
Minus MINUS
Period PERIOD
Slash SLASH
Semicolon SEMICOLON
Equal EQUAL
Bracketleft BRACKETLEFT
Backslash BACKSLASH
Bracketright BRACKETRIGHT
Grave GRAVE
Left Shift LEFT_SHIFT
Right Shift RIGHT_SHIFT
Left Control LEFT_CONTROL
Right Control RIGHT_CONTROL
Left Alt LEFT_ALT
Right Alt RIGHT_ALT
Exclam EXCLAM
Quotedbl QUOTEDBL
Numbersign NUMBERSIGN
Dollar DOLLAR
Percent PERCENT
Ampersand AMPERSAND
Parenleft PARENLEFT
Parenright PARENRIGHT
Asterisk ASTERISK
Plus PLUS
Colon COLON
Less LESS
Greater GREATER
Question QUESTION
At AT
Asciicircum ASCIICIRCUM
Underscore UNDERSCORE
Braceleft BRACELEFT
Bar BAR
Braceright BRACERIGHT
Asciitilde ASCIITILDE

Shift

name: shortcutNeedsShift, type: Bool, default: FALSE

Sets the Shift key as required for the keyboard shortcut.

Ctrl

name: shortcutNeedsCtrl, type: Bool, default: FALSE

Sets the Control key as required for the keyboard shortcut.

Alt

name: shortcutNeedsAlt, type: Bool, default: FALSE

Sets the Alt key as required for the keyboard shortcut.

Action Triggered (Connect from Here)

name: execute, type: Trigger, persistent: no

This field is touched when the action is triggered by the interaction controller.

Attach a FieldListener to this field to execute whatever this action should do - or connect to another field.

Hidden Fields

shortcutString

name: shortcutString, type: String, deprecated name: defaultShortcut

Sets the key binding for this action.

This is only a default and may be overridden by the software environment. It does not need to be set in all cases, because the action might also be accessible through, e.g., a context menu.
