SoDiagram2DIntervalMarker¶

InventorModule¶

genre	`Diagram`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoDiagram2D`
definition	SoDiagram2D.def
see also	`SoDiagram2D`
inherits from	`SoDiagram2DInteractionExtension`

Purpose¶

The module SoDiagram2DIntervalMarker interactively draws a filled rectangle on a diagram viewer to highlight that area.

Windows¶

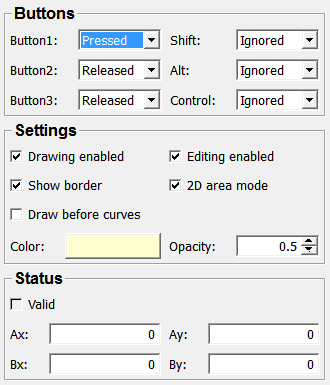

Default Panel¶

../../../Modules/Inventor/SoDiagram2D/mhelp/Images/Screenshots/SoDiagram2DIntervalMarker._default.png

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`2D area mode`: `Bool`	`Drawing enabled`: `Bool`
`Ax`: `Double`	`Editing enabled`: `Bool`
`Ay`: `Double`	`interactionProviderID`: `String`
`Bx`: `Double`	`markerChanged`: `Trigger`
`By`: `Double`	`Opacity`: `Float`
`Color`: `Color`	`Show border`: `Bool`
`cursorShape`: `Enum`	`Valid`: `Bool`
`Draw before curves`: `Bool`

Visible Fields¶

Drawing enabled¶

name: isEnabled, type: Bool, default: TRUE, deprecated name: \_isEnabled¶: If checked, the module renders the highlighting rectangle.

Editing enabled¶

name: isEditingEnabled, type: Bool, default: TRUE, deprecated name: \_isEditingEnabled¶: If checked, the module’s highlighting rectangle can be set interactively.

Ax¶

name: ax, type: Double, default: 0, deprecated name: \_ax¶: Shows the x-coordinate of the corner set first.

Ay¶

name: ay, type: Double, default: 0, deprecated name: \_ay¶: Shows the y-coordinate of the corner set first.

Bx¶

name: bx, type: Double, default: 0, deprecated name: \_bx¶: Shows the x-coordinate of the corner set second.

By¶

name: by, type: Double, default: 0, deprecated name: \_by¶: Shows the y-coordinate of the corner set second.

Color¶

name: color, type: Color, default: 1 1 0.819999992847443, deprecated name: \_color¶: Sets the color of the highlighting rectangle.

Opacity¶

name: opacity, type: Float, default: 0.5, minimum: 0, maximum: 1, deprecated name: \_opacity¶: Sets the opacity of the highlighting rectangle.

Show border¶

name: border, type: Bool, default: TRUE, deprecated name: \_border¶: If checked, a border is rendered around the highlighting rectangle.

2D area mode¶

name: twoDimensions, type: Bool, default: TRUE, deprecated name: \_twoDimensions¶: If checked, the highlighting rectangle fills the entire height of the diagram.

Valid¶

name: intervalIsValid, type: Bool, persistent: no, deprecated name: \_intervalIsValid¶: Shows whether the highlighted rectangle is valid (inside the diagram).

Draw before curves¶

name: shouldDrawBeforeCurves, type: Bool, default: FALSE, deprecated name: \_drawBeforeCurves¶

If checked, the highlighting rectangle is rendered before the curves are rendered, i.e., is rendered behind the curves.

Otherwise, the highlighting rectangle is rendered under the curves.

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

see SoDiagram2DExtension.interactionProviderID

cursorShape¶

name: cursorShape, type: Enum, default: CROSS_RECT_CURSOR¶

see SoDiagram2DInteractionExtension.cursorShape

markerChanged¶

name: markerChanged, type: Trigger¶
