SoCSOVisualizationSettings¶

InventorModule¶

author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoCSO`
definition	SoCSO.def
see also	`SoView2DCSOExtensibleEditor`
keywords	`color`, `alpha`, `linewidth`, `seed`, `path`, `selection`, `mouseover`

Purpose¶

The module SoCSOVisualizationSettings sets visual parameters of CSOs.

Usage¶

Attach this module to a SoView2DCSOExtensibleEditor to set visual parameters to all CSOs that are rendered by attached editors and/or attach this module to individual editors to specifically set their visual parameters.

Parts of the visual attributes can be set for individual CSOs or CSOs in certain CSOGroups by attaching a StylePalette to this module. Some path points and seed points settings are then taken from the style palette but can still be set globally by this module.

For path points, the following attributes from the StylePalette are used:

Color

Line Style

Line Width

For seed points, the following attributes from the StylePalette are used:

Marker Type

Marker Size

There are more marker types than seed point styles. The following table shows how the marker types are mapped to the seed point styles:

Marker Type	Seed Point Style
None	None
Dot	Fixed Size Circle
Asterisk	Fixed Size Circle
Circle	Circle
Square	Rectangle
Triangle	Rectangle
Plus	Rectangle
Cross	Rectangle

Windows¶

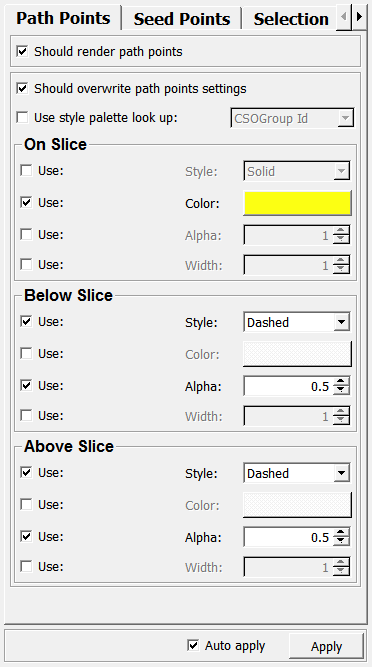

Default Panel¶

../../../Modules/Inventor/SoCSO/mhelp/Images/Screenshots/SoCSOVisualizationSettings._default.png

Input Fields¶

inStylePalette¶

name: inStylePalette, type: StylePalette(MLBase)¶: Optional, sets visual attributes of path and seed points for individual CSOs/CSOGroups.

Output Fields¶

outVisualizationSettings¶

name: outVisualizationSettings, type: CSOVisualizationSettingsWithStylePalette(MLBase)¶

self (hidden)¶

name: self, type: SoNode¶: Hidden, not in use.

Parameter Fields¶

Field Index¶

`Alpha (seedPointOnSliceAlpha)`: `Float`	`Global Alpha Factor`: `Float`	`Use (useSeedPointBelowSliceStyle)`: `Bool`
`Alpha (seedPointBelowSliceAlpha)`: `Float`	`Invert Visibility`: `Bool`	`Use (useSeedPointBelowSliceSize)`: `Bool`
`Alpha (seedPointAboveSliceAlpha)`: `Float`	`New Current Time Point`: `Integer`	`Use (useSeedPointBelowSliceColor)`: `Bool`
`Alpha (pathPointsOnSliceAlpha)`: `Float`	`Orientation Filter Mode`: `Enum`	`Use (useSeedPointBelowSliceAlpha)`: `Bool`
`Alpha (pathPointsBelowSliceAlpha)`: `Float`	`Overwrite Current Time Point`: `Bool`	`Use (useSeedPointBelowSliceLineWidth)`: `Bool`
`Alpha (pathPointsAboveSliceAlpha)`: `Float`	`Parallel Thickness Mode`: `Enum`	`Use (useSeedPointAboveSliceStyle)`: `Bool`
`Alpha (selectedPathPointsAlpha)`: `Float`	`Shadow Alpha`: `Float`	`Use (useSeedPointAboveSliceSize)`: `Bool`
`Alpha (selectedSeedPointAlpha)`: `Float`	`Shadow Color`: `Color`	`Use (useSeedPointAboveSliceColor)`: `Bool`
`Alpha (mouseOverPathPointsAlpha)`: `Float`	`Shadow Line Width`: `Float`	`Use (useSeedPointAboveSliceAlpha)`: `Bool`
`Alpha (mouseOverSeedPointAlpha)`: `Float`	`Should Overwrite Path Points Settings`: `Bool`	`Use (useSeedPointAboveSliceLineWidth)`: `Bool`
`Apply`: `Trigger`	`Should Overwrite Seed Points Settings`: `Bool`	`Use (usePathPointsOnSliceLineStyle)`: `Bool`
`Auto Apply`: `Bool`	`Should Overwrite Selection Settings`: `Bool`	`Use (usePathPointsOnSliceLineWidth)`: `Bool`
`Brighten (selectedPathPointsBrightenValue)`: `Float`	`Should Render Path Points`: `Bool`	`Use (usePathPointsOnSliceColor)`: `Bool`
`Brighten (selectedSeedPointBrightenValue)`: `Float`	`Should Render Seed Points`: `Bool`	`Use (usePathPointsOnSliceAlpha)`: `Bool`
`Brighten (mouseOverPathPointsBrightenValue)`: `Float`	`Should render seed points only for selected CSOs`: `Bool`	`Use (usePathPointsBelowSliceLineStyle)`: `Bool`
`Brighten (mouseOverSeedPointBrightenValue)`: `Float`	`Should Render Shadow`: `Bool`	`Use (usePathPointsBelowSliceLineWidth)`: `Bool`
`Color (seedPointOnSliceColor)`: `Color`	`Should Use Anti Aliasing`: `Bool`	`Use (usePathPointsBelowSliceColor)`: `Bool`
`Color (seedPointBelowSliceColor)`: `Color`	`shouldUsePathPointColorForSeedPoints`: `Bool`	`Use (usePathPointsBelowSliceAlpha)`: `Bool`
`Color (seedPointAboveSliceColor)`: `Color`	`Show CSOs on all time points`: `Bool`	`Use (usePathPointsAboveSliceLineStyle)`: `Bool`
`Color (pathPointsOnSliceColor)`: `Color`	`Show Parallel Thickness`: `Float`	`Use (usePathPointsAboveSliceLineWidth)`: `Bool`
`Color (pathPointsBelowSliceColor)`: `Color`	`Size (seedPointOnSliceSize)`: `Float`	`Use (usePathPointsAboveSliceColor)`: `Bool`
`Color (pathPointsAboveSliceColor)`: `Color`	`Size (seedPointBelowSliceSize)`: `Float`	`Use (usePathPointsAboveSliceAlpha)`: `Bool`
`Color Mode (selectedPathPointsColorMode)`: `Enum`	`Size (seedPointAboveSliceSize)`: `Float`	`Use style palette look up (shouldUseStylePaletteLookUpForSeedPoints)`: `Bool`
`Color Mode (selectedSeedPointColorMode)`: `Enum`	`Size Mode (selectedSeedPointSizeMode)`: `Enum`	`Use style palette look up (shouldUseStylePaletteLookUpForPathPoints)`: `Bool`
`Color Mode (mouseOverPathPointsColorMode)`: `Enum`	`Size Mode (mouseOverSeedPointSizeMode)`: `Enum`	`Visible By Mode`: `Enum`
`Color Mode (mouseOverSeedPointColorMode)`: `Enum`	`Style (seedPointOnSliceStyle)`: `Enum`	`Visible Id List`: `String`
`Enable Mouse Over Highlighting`: `Bool`	`Style (seedPointBelowSliceStyle)`: `Enum`	`Voxel Slab Augment`: `Integer`
`Enlarge (selectedSeedPointEnlargeValue)`: `Float`	`Style (seedPointAboveSliceStyle)`: `Enum`	`Widen (selectedPathPointsWidenValue)`: `Float`
`Enlarge (mouseOverSeedPointEnlargeValue)`: `Float`	`Style (pathPointsOnSliceLineStyle)`: `Enum`	`Widen (mouseOverPathPointsWidenValue)`: `Float`
`Fixed Color (selectedPathPointsFixedColor)`: `Color`	`Style (pathPointsBelowSliceLineStyle)`: `Enum`	`Width (seedPointOnSliceLineWidth)`: `Float`
`Fixed Color (selectedSeedPointFixedColor)`: `Color`	`Style (pathPointsAboveSliceLineStyle)`: `Enum`	`Width (seedPointBelowSliceLineWidth)`: `Float`
`Fixed Color (mouseOverPathPointsFixedColor)`: `Color`	`Style Palette Look Up Path Points`: `Enum`	`Width (seedPointAboveSliceLineWidth)`: `Float`
`Fixed Color (mouseOverSeedPointFixedColor)`: `Color`	`Style Palette Look Up Seed Points`: `Enum`	`Width (pathPointsOnSliceLineWidth)`: `Float`
`Fixed Size (selectedSeedPointFixedSize)`: `Float`	`Use (useSeedPointOnSliceStyle)`: `Bool`	`Width (pathPointsBelowSliceLineWidth)`: `Float`
`Fixed Size (mouseOverSeedPointFixedSize)`: `Float`	`Use (useSeedPointOnSliceSize)`: `Bool`	`Width (pathPointsAboveSliceLineWidth)`: `Float`
`Fixed Width (selectedPathPointsFixedLineWidth)`: `Float`	`Use (useSeedPointOnSliceColor)`: `Bool`	`Width Mode (selectedPathPointsLineWidthMode)`: `Enum`
`Fixed Width (mouseOverPathPointsFixedLineWidth)`: `Float`	`Use (useSeedPointOnSliceAlpha)`: `Bool`	`Width Mode (mouseOverPathPointsLineWidthMode)`: `Enum`
`Ghosting Depth In Voxel`: `Integer`	`Use (useSeedPointOnSliceLineWidth)`: `Bool`

Visible Fields¶

Auto Apply¶

name: autoApply, type: Bool, default: TRUE¶: If checked, all parameter changes take immediate effect.

Apply¶

name: apply, type: Trigger¶: If pressed, the parameter changes take effect.

Should Use Anti Aliasing¶

name: shouldUseAntiAliasing, type: Bool, default: TRUE¶: If checked, CSOs are rendered with anti-aliasing.

Global Alpha Factor¶

name: globalAlphaFactor, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets a global alpha factor.

Show CSOs on all time points¶

name: showCSOsOnAllTimePoints, type: Bool, default: FALSE¶: If checked, all CSOs are shown on all time points.

Overwrite Current Time Point¶

name: overwriteCurrentTimePoint, type: Bool, default: FALSE¶: If checked, the current time point stored in the CSO is overwritten by New Current Time Point.

New Current Time Point¶

name: newCurrentTimePoint, type: Integer, default: 0¶: Sets a new current time point for CSOs if Overwrite Current Time Point is checked.

Orientation Filter Mode¶

name: orientationFilterMode, type: Enum, default: ORIENTATION_MODE_ALL, deprecated name: showOnlyParallelCSOs¶: Defines the filter mode for visibility of CSOs depending on their orientation regarding the current viewer slice.

Values:

Title	Name	Deprecated Name	Description
All	ORIENTATION_MODE_ALL	FALSE	All CSOs are rendered, regardless of their orientation.
Parallel	ORIENTATION_MODE_PARALLEL	TRUE	Only CSOs parallel to the viewer slice are rendered.
Non Parallel	ORIENTATION_MODE_NON_PARALLEL		Only CSOs that are not parallel to the current viewer slice are rendered.

Parallel Thickness Mode¶

name: parallelThicknessMode, type: Enum, default: PARALLEL_THICKNESS_MODE_RELATIVE_TO_SLICE¶: Defines how the Show Parallel Thickness value is interpreted.

Values:

Title	Name	Description
Absolute Mm	PARALLEL_THICKNESS_MODE_ABSOLUTE_MM	The deviation of points in slice-normal direction needs to be below the `Show Parallel Thickness` value in mm.
Relative To Slice	PARALLEL_THICKNESS_MODE_RELATIVE_TO_SLICE	The deviation of points in slice-normal direction needs to be below (‘sliceThickness’ * `Show Parallel Thickness`).

Show Parallel Thickness¶

name: showParallelThickness, type: Float, default: 0.2, minimum: 0¶

Sets the parallel thickness that is used for Orientation Filter Mode. The interpretation of this value also depends on Parallel Thickness Mode.

In general, the parallel thickness describes how far the points of a CSO can deviate in direction of the current slice’s normal in order to be interpreted as being parallel (or non-parallel).

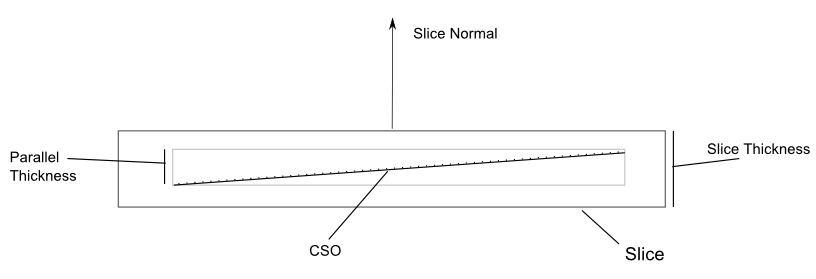

The following illustration shows a CSO within a slice viewed from the side:

../../../Modules/Inventor/SoCSO/mhelp/Images/ParallelThickness.png

Ghosting Depth In Voxel¶

name: ghostingDepthInVoxel, type: Integer, default: 0, minimum: 0¶: Sets the depth of ghost rendering in voxel.

Voxel Slab Augment¶

name: voxelSlabAugment, type: Integer, default: 0, minimum: 0¶

Sets an augment value to the z-extent of the voxel slab where the CSOs are rendered. This field has only an effect if this module is attached to the SoView2DCSOExtensibleEditor.

The z-extent of the voxel slab is 1 if only a slice is rendered in a 2D viewer but can also be slice stack or slab. By augmenting this value by this field, the visibility test for (parts) of CSOs is influenced as only (parts of) CSOs are rendered that are contained by the visible voxel slab.

Should Render Shadow¶

name: shouldRenderShadow, type: Bool, default: FALSE¶: If checked, CSOs are rendered with a shadow.

Shadow Color¶

name: shadowColor, type: Color, default: 0 0 0¶: Sets a shadow color.

Shadow Alpha¶

name: shadowAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets a shadow alpha.

Shadow Line Width¶

name: shadowLineWidth, type: Float, default: 1, minimum: 1, maximum: 8¶: Sets the line width for shadow.

Should Render Seed Points¶

name: shouldRenderSeedPoints, type: Bool, default: TRUE¶: If checked, seed points are being rendered.

Should Render Path Points¶

name: shouldRenderPathPoints, type: Bool, default: TRUE¶: If checked, path points are being rendered.

Should Overwrite Seed Points Settings¶

name: shouldOverwriteSeedPointsSettings, type: Bool, default: FALSE¶: If checked, the seed point parameters of the CSOs are being overwritten by this module.

Should render seed points only for selected CSOs¶

name: shouldRenderSeedPointsOnlyForSelectedCSOs, type: Bool, default: FALSE¶: If checked, the seed points are only rendered for selected CSOs.

Use style palette look up (shouldUseStylePaletteLookUpForSeedPoints)¶

name: shouldUseStylePaletteLookUpForSeedPoints, type: Bool, default: FALSE¶: If checked, the visual settings of the attached StylePalette are used for the seed points of individual CSOs or CSOGroups. Single settings can still be overwritten globally.

Style Palette Look Up Seed Points¶

name: stylePaletteLookUpSeedPoints, type: Enum, default: CSOId¶: Defines which information of a CSO/CSOGroup should be used as a look up into the attached StylePalette for setting visual attributes of the seed points.

Values:

Title	Name	Description
CSOId	CSOId	The id of the CSOs should be used.
CSOIndex	CSOIndex	The index of the CSOs should be used.
CSOGroup Id	CSOGroupId	The id of the CSOGroups should be used.
CSOGroup Index	CSOGroupIndex	The index of the CSOGroups should be used.

Use (useSeedPointOnSliceStyle)¶

name: useSeedPointOnSliceStyle, type: Bool, default: TRUE¶

If checked, the style set by Style is used for seed points on the current slice.

Otherwise, the style set in the CSO itself is used.

Use (useSeedPointOnSliceSize)¶

name: useSeedPointOnSliceSize, type: Bool, default: FALSE¶

If checked, the size set by Size is used for seed points on the current slice.

Otherwise, the size set in the CSO itself is used.

Use (useSeedPointOnSliceColor)¶

name: useSeedPointOnSliceColor, type: Bool, default: FALSE¶

If checked, the color set by Color is used for seed points on the current slice.

Otherwise, the color set in the CSO itself is used.

Use (useSeedPointOnSliceAlpha)¶

name: useSeedPointOnSliceAlpha, type: Bool, default: FALSE¶

If checked, the alpha value set by Alpha is used for seed points on the current slice.

Otherwise, the alpha value set in the CSO itself is used.

Use (useSeedPointOnSliceLineWidth)¶

name: useSeedPointOnSliceLineWidth, type: Bool, default: FALSE¶

If checked, the line width value set by Width is used for seed points on the current slice.

Otherwise, the line width value set in the CSO itself is used.

Style (seedPointOnSliceStyle)¶

name: seedPointOnSliceStyle, type: Enum, default: SEED_POINT_STYLE_RECTANGLE¶: Defines the seed point style on the current slice.

Values:

Title	Name	Description
None	SEED_POINT_STYLE_NONE	Invisible seed points.
Rectangle	SEED_POINT_STYLE_RECTANGLE	Seed points are rendered as rectangles.
Circle	SEED_POINT_STYLE_CIRCLE	Seed points are rendered as circles.
Fixed Size Circle	SEED_POINT_STYLE_FIXED_SIZE_CIRCLE	Seed points are rendered as filled circles of a fixed size.
Triangle	SEED_POINT_STYLE_TRIANGLE	Seed points are rendered as triangles.
Filled Rectangle	SEED_POINT_STYLE_FILLED_RECTANGLE	Seed points are rendered as filled rectangles.
Filled Circle	SEED_POINT_STYLE_FILLED_CIRCLE	Seed points are rendered as discs.
Filled Triangle	SEED_POINT_STYLE_FILLED_TRIANGLE	Seed points are rendered as filled triangles.
Dashed Rectangle	SEED_POINT_STYLE_DASHED_RECTANGLE	Seed points are rendered as dashed rectangles.

Size (seedPointOnSliceSize)¶

name: seedPointOnSliceSize, type: Float, default: 3, minimum: 1, maximum: 16¶

Sets the size of seed points in pixel on the current slice.

Does not apply to fixed size seed points.

Color (seedPointOnSliceColor)¶

name: seedPointOnSliceColor, type: Color, default: 1 1 1¶: Sets the color of seed points on the current slice.

Alpha (seedPointOnSliceAlpha)¶

name: seedPointOnSliceAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets the alpha value of seed points on the current slice.

Width (seedPointOnSliceLineWidth)¶

name: seedPointOnSliceLineWidth, type: Float, default: 1, minimum: 1, maximum: 8¶: Sets the line width value of seed points on the current slice (mostly for non-filled shapes).

Use (useSeedPointBelowSliceStyle)¶

name: useSeedPointBelowSliceStyle, type: Bool, default: TRUE¶

If checked, the style set by Style is used for seed points below the current slice.

Otherwise, the style set by Style is used.

Use (useSeedPointBelowSliceSize)¶

name: useSeedPointBelowSliceSize, type: Bool, default: FALSE¶

If checked, the size set by Size is used for seed points below the current slice.

Otherwise, the size set by Size is used.

Use (useSeedPointBelowSliceColor)¶

name: useSeedPointBelowSliceColor, type: Bool, default: FALSE¶

If checked, the color set by Color is used for seed points below the current slice.

Otherwise, the color set by Color is used.

Use (useSeedPointBelowSliceAlpha)¶

name: useSeedPointBelowSliceAlpha, type: Bool, default: FALSE¶

If checked, the alpha value set by Alpha is used for seed points below the current slice.

Otherwise, the alpha value set by Alpha is used.

Use (useSeedPointBelowSliceLineWidth)¶

name: useSeedPointBelowSliceLineWidth, type: Bool, default: FALSE¶

If checked, the line width value set by Width is used for seed points below the current slice.

Otherwise, the line width value set in the CSO itself is used.

Style (seedPointBelowSliceStyle)¶

name: seedPointBelowSliceStyle, type: Enum, default: SEED_POINT_STYLE_NONE¶: Defines the seed point style for seed points below the current slice.

Values:

Title	Name	Description
None	SEED_POINT_STYLE_NONE	Invisible seed points.
Rectangle	SEED_POINT_STYLE_RECTANGLE	Seed point are rendered as rectangles.
Circle	SEED_POINT_STYLE_CIRCLE	Seed points are rendered as circles.
Fixed Size Circle	SEED_POINT_STYLE_FIXED_SIZE_CIRCLE	Seed points are rendered as filled circles of fixed size.
Triangle	SEED_POINT_STYLE_TRIANGLE	Seed points are rendered as triangles.
Filled Rectangle	SEED_POINT_STYLE_FILLED_RECTANGLE	Seed points are rendered as filled rectangles.
Filled Circle	SEED_POINT_STYLE_FILLED_CIRCLE	Seed points are rendered as discs.
Filled Triangle	SEED_POINT_STYLE_FILLED_TRIANGLE	Seed points are rendered as filled triangles.
Dashed Rectangle	SEED_POINT_STYLE_DASHED_RECTANGLE	Seed points are rendered as dashed rectangles.

Size (seedPointBelowSliceSize)¶

name: seedPointBelowSliceSize, type: Float, default: 3, minimum: 1, maximum: 16¶: Sets the size of seed points below the current slice.

Color (seedPointBelowSliceColor)¶

name: seedPointBelowSliceColor, type: Color, default: 1 1 1¶: Sets the color of seed points below the current slice.

Alpha (seedPointBelowSliceAlpha)¶

name: seedPointBelowSliceAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets the alpha value of seed points below the current slice.

Width (seedPointBelowSliceLineWidth)¶

name: seedPointBelowSliceLineWidth, type: Float, default: 1, minimum: 1, maximum: 8¶: Sets the line width value of seed points below the current slice (mostly for non-filled shapes).

Use (useSeedPointAboveSliceStyle)¶

name: useSeedPointAboveSliceStyle, type: Bool, default: TRUE¶

If checked, the style set by Style is used for seed points above the current slice.

Otherwise, the style set by Style is used.

Use (useSeedPointAboveSliceSize)¶

name: useSeedPointAboveSliceSize, type: Bool, default: FALSE¶

If checked, the size set by Size is used for seed points above the current slice.

Otherwise, the size set by Size is used.

Use (useSeedPointAboveSliceColor)¶

name: useSeedPointAboveSliceColor, type: Bool, default: FALSE¶

If checked, the color set by Color is used for seed points above the current slice.

Otherwise, the color set by Color is used.

Use (useSeedPointAboveSliceAlpha)¶

name: useSeedPointAboveSliceAlpha, type: Bool, default: FALSE¶

If checked, the alpha value set by Alpha is used for seed points above the current slice.

Otherwise, the alpha value set by Alpha is used.

Use (useSeedPointAboveSliceLineWidth)¶

name: useSeedPointAboveSliceLineWidth, type: Bool, default: FALSE¶

If checked, the line width value set by Width is used for seed points above the current slice.

Otherwise, the line width value set in the CSO itself is used.

Style (seedPointAboveSliceStyle)¶

name: seedPointAboveSliceStyle, type: Enum, default: SEED_POINT_STYLE_NONE¶: Defines the seed point style for seed points above the current slice.

Values:

Title	Name	Description
None	SEED_POINT_STYLE_NONE	Invisible seed points.
Rectangle	SEED_POINT_STYLE_RECTANGLE	Seed point are rendered as rectangles.
Circle	SEED_POINT_STYLE_CIRCLE	Seed points are rendered as circles.
Fixed Size Circle	SEED_POINT_STYLE_FIXED_SIZE_CIRCLE	Seed points are rendered as filled circles of a fixed size.
Triangle	SEED_POINT_STYLE_TRIANGLE	Seed points are rendered as triangles.
Filled Rectangle	SEED_POINT_STYLE_FILLED_RECTANGLE	Seed points are rendered as filled rectangles.
Filled Circle	SEED_POINT_STYLE_FILLED_CIRCLE	Seed points are rendered as discs.
Filled Triangle	SEED_POINT_STYLE_FILLED_TRIANGLE	Seed points are rendered as filled triangles.
Dashed Rectangle	SEED_POINT_STYLE_DASHED_RECTANGLE	Seed points are rendered as dashed rectangles.

Size (seedPointAboveSliceSize)¶

name: seedPointAboveSliceSize, type: Float, default: 3, minimum: 1, maximum: 16¶

Sets the size of seed points above the current slice.

Does not apply to fixed size seed points.

Color (seedPointAboveSliceColor)¶

name: seedPointAboveSliceColor, type: Color, default: 1 1 1¶: Sets the color of seed points above the current slice.

Alpha (seedPointAboveSliceAlpha)¶

name: seedPointAboveSliceAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets the alpha value for seed points above the current slice.

Width (seedPointAboveSliceLineWidth)¶

name: seedPointAboveSliceLineWidth, type: Float, default: 1, minimum: 1, maximum: 8¶: Sets the line width value of seed points above the current slice (mostly for non-filled shapes).

Should Overwrite Path Points Settings¶

name: shouldOverwritePathPointsSettings, type: Bool, default: FALSE¶: If checked, the path points parameters of the CSOs are being overwritten by this module.

Use style palette look up (shouldUseStylePaletteLookUpForPathPoints)¶

name: shouldUseStylePaletteLookUpForPathPoints, type: Bool, default: FALSE¶: If checked, the visual settings of the attached StylePalette are used for the path points of individual CSOs or CSOGroups. Single settings can still be overwritten globally.

Style Palette Look Up Path Points¶

name: stylePaletteLookUpPathPoints, type: Enum, default: CSOId¶: Defines which information of a CSO/CSOGroup should be used as a look up into the attached StylePalette for setting visual attributes of the path points.

Values:

Title	Name	Description
CSOId	CSOId	The id of the CSOs should be used.
CSOIndex	CSOIndex	The index of the CSOs should be used.
CSOGroup Id	CSOGroupId	The id of the CSOGroups should be used.
CSOGroup Index	CSOGroupIndex	The index of the CSOGroups should be used.

Use (usePathPointsOnSliceLineStyle)¶

name: usePathPointsOnSliceLineStyle, type: Bool, default: TRUE¶

If checked, the line style of the path points parts that lie on the current slice are set by Style.

Otherwise, the line style is set in the CSO itself.

Use (usePathPointsOnSliceLineWidth)¶

name: usePathPointsOnSliceLineWidth, type: Bool, default: FALSE¶

If checked, the line width of the path points parts that lie on the current slice are set by Width.

Otherwise, the line width is set by the CSO itself.

Use (usePathPointsOnSliceColor)¶

name: usePathPointsOnSliceColor, type: Bool, default: FALSE¶

If checked, the color of the path points parts that lie on the current slice are set by Color.

Otherwise, the color is set by the CSO itself.

Use (usePathPointsOnSliceAlpha)¶

name: usePathPointsOnSliceAlpha, type: Bool, default: TRUE¶

If checked, the alpha value of the path points parts that lie on the current slice are set by Alpha.

Otherwise, the alpha value is set by the CSO itself.

Style (pathPointsOnSliceLineStyle)¶

name: pathPointsOnSliceLineStyle, type: Enum, default: PATH_POINTS_STYLE_SOLID¶: Defines the path points style for the path point parts on the current slice.

Values:

Title	Name	Description
None	PATH_POINTS_STYLE_NONE	Invisible path points.
Solid	PATH_POINTS_STYLE_SOLID	Path points are rendered as a solid line.
Dashed	PATH_POINTS_STYLE_DASHED	Path points are rendered as a dashed line.
Dotted	PATH_POINTS_STYLE_DOTTED	Path points are rendered as a dotted line.
Short Dashed	PATH_POINTS_STYLE_SHORT_DASHED	Path points are rendered as a short dashed line.

Width (pathPointsOnSliceLineWidth)¶

name: pathPointsOnSliceLineWidth, type: Float, default: 1, minimum: 1, maximum: 8¶: Sets the line width of the parts of the path points that lie on the current slice.

Color (pathPointsOnSliceColor)¶

name: pathPointsOnSliceColor, type: Color, default: 1 1 1¶: Sets the color of the parts of the path points that lie on the current slice.

Alpha (pathPointsOnSliceAlpha)¶

name: pathPointsOnSliceAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets the alpha value of the parts of the path points that lie on the current slice.

Use (usePathPointsBelowSliceLineStyle)¶

name: usePathPointsBelowSliceLineStyle, type: Bool, default: TRUE¶

If checked, the line style of the path points parts that lie below the current slice are set by Style.

Otherwise, the line style is set by Style.

Use (usePathPointsBelowSliceLineWidth)¶

name: usePathPointsBelowSliceLineWidth, type: Bool, default: FALSE¶

If checked, the line width of the path points parts that lie below the current slice are set by Width.

Otherwise, the line width is set by Width.

Use (usePathPointsBelowSliceColor)¶

name: usePathPointsBelowSliceColor, type: Bool, default: FALSE¶

If checked, the color of the path points parts that lie below the current slice are set by Color.

Otherwise, the color is set by Color.

Use (usePathPointsBelowSliceAlpha)¶

name: usePathPointsBelowSliceAlpha, type: Bool, default: TRUE¶

If checked, the alpha value of the path points parts that lie below the current slice are set by Alpha.

Otherwise, the alpha value is set by Alpha.

Style (pathPointsBelowSliceLineStyle)¶

name: pathPointsBelowSliceLineStyle, type: Enum, default: PATH_POINTS_STYLE_DASHED¶: Defines the line style of the path points parts that lie below the current slice.

Values:

Title	Name	Description
None	PATH_POINTS_STYLE_NONE	Invisible path points.
Solid	PATH_POINTS_STYLE_SOLID	Path points are rendered as a solid line.
Dashed	PATH_POINTS_STYLE_DASHED	Path points are rendered as a dashed line.
Dotted	PATH_POINTS_STYLE_DOTTED	Path points are rendered as a dotted line.
Short Dashed	PATH_POINTS_STYLE_SHORT_DASHED	Path points are rendered as short dashed line.

Width (pathPointsBelowSliceLineWidth)¶

name: pathPointsBelowSliceLineWidth, type: Float, default: 1, minimum: 1, maximum: 8¶: Defines the line width of the path points parts that lie below the current slice.

Color (pathPointsBelowSliceColor)¶

name: pathPointsBelowSliceColor, type: Color, default: 1 1 1¶: Defines the color of the path points parts that lie below the current slice.

Alpha (pathPointsBelowSliceAlpha)¶

name: pathPointsBelowSliceAlpha, type: Float, default: 0.5, minimum: 0, maximum: 1¶: Defines the alpha value of the path points parts that lie below the current slice.

Use (usePathPointsAboveSliceLineStyle)¶

name: usePathPointsAboveSliceLineStyle, type: Bool, default: TRUE¶

If checked, the line style of the path points parts that lie above the current slice are set by Style.

Otherwise, the line style is set by Style.

Use (usePathPointsAboveSliceLineWidth)¶

name: usePathPointsAboveSliceLineWidth, type: Bool, default: FALSE¶

If checked, the line width of the path points parts that lie above the current slice are set by Width.

Otherwise, the line width is set by Width.

Use (usePathPointsAboveSliceColor)¶

name: usePathPointsAboveSliceColor, type: Bool, default: FALSE¶

If checked, the color of the path points parts that lie above the current slice are set by Color.

Otherwise, the color is set by Color.

Use (usePathPointsAboveSliceAlpha)¶

name: usePathPointsAboveSliceAlpha, type: Bool, default: TRUE¶

If checked, the alpha value of the path points parts that lie above the current slice are set by Alpha.

Otherwise, the alpha value is set by Alpha.

Style (pathPointsAboveSliceLineStyle)¶

name: pathPointsAboveSliceLineStyle, type: Enum, default: PATH_POINTS_STYLE_DASHED¶: Defines the line style of the path points parts that lie above the current slice.

Values:

Title	Name	Description
None	PATH_POINTS_STYLE_NONE	Invisible path points.
Solid	PATH_POINTS_STYLE_SOLID	Path points are rendered as a solid line.
Dashed	PATH_POINTS_STYLE_DASHED	Path points are rendered as a dashed line.
Dotted	PATH_POINTS_STYLE_DOTTED	Path points are rendered as a dotted line.
Short Dashed	PATH_POINTS_STYLE_SHORT_DASHED	Path points are rendered as a short dashed line.

Width (pathPointsAboveSliceLineWidth)¶

name: pathPointsAboveSliceLineWidth, type: Float, default: 1, minimum: 1, maximum: 8¶: Sets the line width of the path points parts that lie above the current slice.

Color (pathPointsAboveSliceColor)¶

name: pathPointsAboveSliceColor, type: Color, default: 1 1 1¶: Sets the color of the path points parts that lie above the current slice.

Alpha (pathPointsAboveSliceAlpha)¶

name: pathPointsAboveSliceAlpha, type: Float, default: 0.5, minimum: 0, maximum: 1¶: Sets the alpha value of the path points parts that lie above the current slice.

Should Overwrite Selection Settings¶

name: shouldOverwriteSelectionSettings, type: Bool, default: TRUE¶: If checked, the selection settings are being overwritten.

Color Mode (selectedPathPointsColorMode)¶

name: selectedPathPointsColorMode, type: Enum, default: HIGHLIGHT_MODE_RELATIVE¶: Defines the color mode for path points of selected CSOs.

Values:

Title	Name	Description
Relative	HIGHLIGHT_MODE_RELATIVE	The color of path points of selected CSOs are brightened/darkened by `Brighten`.
Absolute	HIGHLIGHT_MODE_ABSOLUTE	The color of path points of selected CSOs is set to `Fixed Color`.

Width Mode (selectedPathPointsLineWidthMode)¶

name: selectedPathPointsLineWidthMode, type: Enum, default: HIGHLIGHT_MODE_RELATIVE¶: Defines the path point width mode for selected CSOs.

Values:

Title	Name	Description
Relative	HIGHLIGHT_MODE_RELATIVE	The line width of path points of selected CSOs is multiplied by `Widen`.
Absolute	HIGHLIGHT_MODE_ABSOLUTE	The line width of path points of selected CSOs is set to `Fixed Width`.

Brighten (selectedPathPointsBrightenValue)¶

name: selectedPathPointsBrightenValue, type: Float, default: 1.2, minimum: 0, maximum: 8¶: Sets a color brighten value for path points of selected CSOs.

Fixed Color (selectedPathPointsFixedColor)¶

name: selectedPathPointsFixedColor, type: Color, default: 1 1 0¶: Sets a fixed color for path points of selected CSOs.

Alpha (selectedPathPointsAlpha)¶

name: selectedPathPointsAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets an alpha value for path points of selected CSOs.

Widen (selectedPathPointsWidenValue)¶

name: selectedPathPointsWidenValue, type: Float, default: 1, minimum: 0, maximum: 8¶: Sets a widen value for path points of selected CSOs.

Fixed Width (selectedPathPointsFixedLineWidth)¶

name: selectedPathPointsFixedLineWidth, type: Float, default: 2, minimum: 1, maximum: 8¶: Sets a fixed width for path points of selected CSOs.

Color Mode (selectedSeedPointColorMode)¶

name: selectedSeedPointColorMode, type: Enum, default: HIGHLIGHT_MODE_RELATIVE¶: Defines a color mode for seed points of a selected CSO.

Values:

Title	Name	Description
Relative	HIGHLIGHT_MODE_RELATIVE	Seed points of selected CSOs are brightened/darkened by `Brighten`.
Absolute	HIGHLIGHT_MODE_ABSOLUTE	The color of seed point of selected CSOs is set to `Fixed Color`.

Size Mode (selectedSeedPointSizeMode)¶

name: selectedSeedPointSizeMode, type: Enum, default: HIGHLIGHT_MODE_RELATIVE¶: Defines the size mode of seed points of selected CSOs.

Values:

Title	Name	Description
Relative	HIGHLIGHT_MODE_RELATIVE	The size of seed points of selected CSOs is multiplied by `Enlarge`.
Absolute	HIGHLIGHT_MODE_ABSOLUTE	The size of seed points of selected CSOs is set to `Fixed Size`.

Brighten (selectedSeedPointBrightenValue)¶

name: selectedSeedPointBrightenValue, type: Float, default: 1.2, minimum: 0, maximum: 8¶: Sets a brighten/darken factor for seed points of selected CSOs.

Fixed Color (selectedSeedPointFixedColor)¶

name: selectedSeedPointFixedColor, type: Color, default: 1 1 0¶: Sets a fixed color for seed point of selected CSOs.

Alpha (selectedSeedPointAlpha)¶

name: selectedSeedPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets an alpha value for seed points of selected CSOs.

Enlarge (selectedSeedPointEnlargeValue)¶

name: selectedSeedPointEnlargeValue, type: Float, default: 1, minimum: 0, maximum: 16¶: Sets an enlarge factor for seed points of selected CSOs.

Fixed Size (selectedSeedPointFixedSize)¶

name: selectedSeedPointFixedSize, type: Float, default: 2, minimum: 1, maximum: 16¶: Sets a fixed size for seed points of selected CSOs.

Enable Mouse Over Highlighting¶

name: enableMouseOverHighlighting, type: Bool, default: TRUE¶: If checked, visual parameters are changed for CSOs currently under the mouse cursor.

Color Mode (mouseOverPathPointsColorMode)¶

name: mouseOverPathPointsColorMode, type: Enum, default: HIGHLIGHT_MODE_RELATIVE¶: Defines the color mode for path points of CSOs currently under the mouse cursor.

Values:

Title	Name	Description
Relative	HIGHLIGHT_MODE_RELATIVE	The color of path points of CSOs currently under the mouse cursor is brightened/darkened by `Brighten`.
Absolute	HIGHLIGHT_MODE_ABSOLUTE	The color of path points of CSOs currently under the mouse cursor is set to `Fixed Color`.

Width Mode (mouseOverPathPointsLineWidthMode)¶

name: mouseOverPathPointsLineWidthMode, type: Enum, default: HIGHLIGHT_MODE_RELATIVE¶: Defines the line width mode for path points of CSOs currently under the mouse cursor.

Values:

Title	Name	Description
Relative	HIGHLIGHT_MODE_RELATIVE	The line width of path points of CSOs currently under the mouse cursor is multiplied by `Widen`.
Absolute	HIGHLIGHT_MODE_ABSOLUTE	The line width of path points of CSOs currently under the mouse cursor is set to `Fixed Width`.

Brighten (mouseOverPathPointsBrightenValue)¶

name: mouseOverPathPointsBrightenValue, type: Float, default: 1.2, minimum: 0, maximum: 8¶: Sets a brighten/darken value for path points of CSOs currently under the mouse cursor.

Fixed Color (mouseOverPathPointsFixedColor)¶

name: mouseOverPathPointsFixedColor, type: Color, default: 1 1 0¶: Sets a color for path points of CSOs currently under the mouse cursor.

Alpha (mouseOverPathPointsAlpha)¶

name: mouseOverPathPointsAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets an alpha value for path points of CSOs currently under the mouse cursor.

Widen (mouseOverPathPointsWidenValue)¶

name: mouseOverPathPointsWidenValue, type: Float, default: 1, minimum: 0, maximum: 8¶: Sets a line width widen value for path points of CSOs currently under the mouse cursor.

Fixed Width (mouseOverPathPointsFixedLineWidth)¶

name: mouseOverPathPointsFixedLineWidth, type: Float, default: 2, minimum: 1, maximum: 8¶: Sets a fixed line width for path points of CSOs currently under the mouse cursor.

Color Mode (mouseOverSeedPointColorMode)¶

name: mouseOverSeedPointColorMode, type: Enum, default: HIGHLIGHT_MODE_RELATIVE¶: Defines a color mode for seed points currently under the mouse cursor.

Values:

Title	Name	Description
Relative	HIGHLIGHT_MODE_RELATIVE	The color of seed point currently under the mouse cursor is brightened/darkened by `Brighten`.
Absolute	HIGHLIGHT_MODE_ABSOLUTE	The color of seed point currently under the mouse cursor is set to `Fixed Color`.

Size Mode (mouseOverSeedPointSizeMode)¶

name: mouseOverSeedPointSizeMode, type: Enum, default: HIGHLIGHT_MODE_RELATIVE¶: Defines a size mode for seed points currently under the mouse cursor.

Values:

Title	Name	Description
Relative	HIGHLIGHT_MODE_RELATIVE	The size of seed points currently under the mouse cursor is multiplied by `Enlarge`.
Absolute	HIGHLIGHT_MODE_ABSOLUTE	The size of seed points currently under the mouse cursor is set to `Fixed Size`.

Brighten (mouseOverSeedPointBrightenValue)¶

name: mouseOverSeedPointBrightenValue, type: Float, default: 1.2, minimum: 0, maximum: 8¶: Sets a brighten/darken value for the color of seed points currently under the mouse cursor.

Fixed Color (mouseOverSeedPointFixedColor)¶

name: mouseOverSeedPointFixedColor, type: Color, default: 1 1 0¶: Sets a fixed color for seed points currently under the mouse cursor.

Alpha (mouseOverSeedPointAlpha)¶

name: mouseOverSeedPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets an alpha value for seed points currently under the mouse cursor.

Enlarge (mouseOverSeedPointEnlargeValue)¶

name: mouseOverSeedPointEnlargeValue, type: Float, default: 1, minimum: 0, maximum: 16¶: Sets an enlarge value for the size of seed points currently under the mouse cursor.

Fixed Size (mouseOverSeedPointFixedSize)¶

name: mouseOverSeedPointFixedSize, type: Float, default: 2, minimum: 1, maximum: 16¶: Sets a fixed size for seed points currently under the mouse cursor.

Visible By Mode¶

name: visibleByMode, type: Enum, default: CSOs¶: Defines how the Visible Id List should be interpreted.

Values:

Title	Name	Description
CSOs	CSOs	The `Visible Id List` is a list of CSO ids.
Groups	Groups	The `Visible Id List` is a list of CSOGroup ids.

Visible Id List¶

name: visibleIdList, type: String¶: Sets the list of visible objects (CSOs or CSOGroups). This is a space-separated list of ids.

Invert Visibility¶

name: invertVisibility, type: Bool, default: FALSE¶: Inverts the visibility.

Hidden Fields¶

shouldUsePathPointColorForSeedPoints¶

name: shouldUsePathPointColorForSeedPoints, type: Bool, default: FALSE¶
