SoCSORectangleEditor

InventorModule
author MeVis Medical Solutions AG
package MeVisLab/Standard
dll SoCSO
definition SoCSO.def
see also SoView2DCSOExtensibleEditor, SoCSOVisualizationSettings

Purpose

The module SoCSORectangleEditor renders and interactively generates rectangle CSOs.

Usage

Read the documentation of the SoView2DCSOExtensibleEditor on how to attach and parametrize editor modules.

Interaction

Click and drag to create a new rectangle.

Drag the seed points to move them. Drag the path point list to move the whole CSO.

Windows

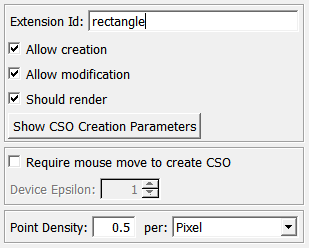

Main

../../../Modules/Inventor/SoCSO/mhelp/Images/Screenshots/SoCSORectangleEditor.Main.png

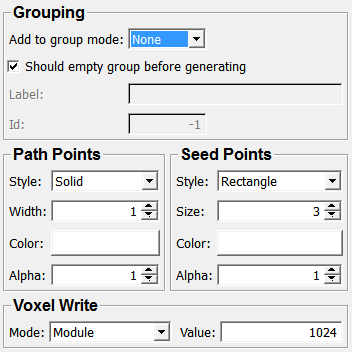

CSO Creation Parameters

../../../Modules/Inventor/SoCSO/mhelp/Images/Screenshots/SoCSORectangleEditor.CSO-Creation-Parameters.png

Input Fields

inVisualizationSettings

name: inVisualizationSettings, type: CSOVisualizationSettings(MLBase)

Attach a SoCSOVisualizationSettings module to overwrite the visual settings of CSOs.

Output Fields

self

name: self, type: SoNode

Parameter Fields

Visible Fields

Extension Id

name: extensionId, type: String, default: rectangle

Sets an id string that is used to synchronize editors and to decide the currently active editor for creation.

Read the documentation of the SoView2DCSOExtensibleEditor for more information.

Allow Creation

name: allowCreation, type: Bool, default: TRUE

If checked, this module is allowed to create a new CSO.

Allow Modification

name: allowModification, type: Bool, default: TRUE

If checked, existing CSOs of the type of this editor can be modified.

Should Render

name: shouldRender, type: Bool, default: TRUE

If checked, this editor renders CSOs that were created by this editor.

Require mouse move to create CSO

name: requirePointerPositionMovementToCreateCSO, type: Bool, default: FALSE

If checked, a new CSO is only created if the mouse is dragged more than Device Epsilon pixels.

Otherwise, no CSO is generated on releasing the mouse. Use this option to prevent points or otherwise too short CSOs.

Device Epsilon

name: pointerPositionEpsilonForCreatingCSO, type: Integer, default: 1

Sets a minimum movement epsilon in pixel before a new CSO is created on dragging the mouse.

Should Empty Group Before Generating

name: shouldEmptyGroupBeforeGenerating, type: Bool, default: TRUE

If checked, a target CSOGroup is emptied before adding a newly created CSO into it.

This option depends on the Add to group mode.

Add to group mode

name: addCSOToGroupMode, type: Enum, default: GROUP_NONE

Defines whether and how a newly created CSO is added to a CSOGroup.

Values:

Title Name Description
None GROUP_NONE A newly created CSO is not added to any group.
By Label GROUP_BY_LABEL

A newly created CSO is added to a group given by a string label defined in Label.

If no group with this label existed before, it is created on demand.

By Id GROUP_BY_ID

A newly created CSO is added to a group given by an integer id defined in Id.

If no group with this id existed before, the newly created CSO is not added to a group.

Label

name: addCSOToGroupLabel, type: String

Sets a label for a group that should be associated with a newly created CSO.

Id

name: addCSOToGroupId, type: Integer, default: -1, minimum: -1

Sets an id for a group that should be associated with a newly created CSO.

Style (defaultPathPointStyle)

name: defaultPathPointStyle, type: Enum, default: PATH_POINTS_STYLE_SOLID

Defines a default line style for a newly created CSO.

Values:

Title Name Description
None PATH_POINTS_STYLE_NONE Path points are invisible.
Solid PATH_POINTS_STYLE_SOLID Path points are rendered as a solid line.
Dashed PATH_POINTS_STYLE_DASHED Path points are rendered as a dashed line.
Dotted PATH_POINTS_STYLE_DOTTED Path points are rendered as a dotted line.
Short Dashed PATH_POINTS_STYLE_SHORT_DASHED Path points are rendered as a short dashed line.

Width

name: defaultPathPointWidth, type: Float, default: 1, minimum: 1, maximum: 8

Sets a default line width for newly created CSOs.

Color (defaultPathPointColor)

name: defaultPathPointColor, type: Color, default: 1 1 1

Sets a default line color for newly created CSOs.

Alpha (defaultPathPointAlpha)

name: defaultPathPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets a default line alpha value for newly created CSOs.

Style (defaultSeedPointStyle)

name: defaultSeedPointStyle, type: Enum, default: SEED_POINT_STYLE_RECTANGLE

Defines a default seed point style for newly created CSOs.

Values:

Title Name Description
None SEED_POINT_STYLE_NONE Seed point are invisible.
Rectangle SEED_POINT_STYLE_RECTANGLE Seed point are rendered as rectangles.
Circle SEED_POINT_STYLE_CIRCLE Seed points are rendered as circles.
Fixed Size Circle SEED_POINT_STYLE_FIXED_SIZE_CIRCLE Seed points are rendered as filled circles with a fixed size.
Triangle SEED_POINT_STYLE_TRIANGLE Seed points are rendered as triangles.
Filled Rectangle SEED_POINT_STYLE_FILLED_RECTANGLE
Filled Circle SEED_POINT_STYLE_FILLED_CIRCLE
Filled Triangle SEED_POINT_STYLE_FILLED_TRIANGLE
Dashed Rectangle SEED_POINT_STYLE_DASHED_RECTANGLE

Size

name: defaultSeedPointSize, type: Float, default: 3, minimum: 1, maximum: 16

Sets the default size for seed points for newly created CSOs.

Color (defaultSeedPointColor)

name: defaultSeedPointColor, type: Color, default: 1 1 1

Sets the default color for seed points for newly created CSOs.

Alpha (defaultSeedPointAlpha)

name: defaultSeedPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets the default alpha value for seed points for newly created CSOs.

Mode

name: defaultVoxelWriteMode, type: Enum, default: VOXEL_WRITE_MODULE

Defines the default voxel write mode for newly created CSOs.

Values:

Title Name Deprecated Name Description
Id VOXEL_WRITE_ID VOXEL_VALUE_ID The CSO id is used as a voxel write value.
Const VOXEL_WRITE_CONST VOXEL_VALUE_CONST

A constant value is used as a voxel write value.

This constant value is set by Value.

Const Plus Id VOXEL_WRITE_CONST_PLUS_ID VOXEL_VALUE_CONST_PLUS_ID The CSO id added to the constant value is used as a voxel write value.
Module VOXEL_WRITE_MODULE VOXEL_VALUE_MODULE The voxelizing module sets the voxel write value.

Value

name: defaultVoxelWriteValue, type: Float, default: 1024

Sets a constant value that is used as voxel write value or an offset of that.

per

name: pointDensityMode, type: Enum, default: DENSITY_SCREEN_PIXEL

Defines the unit for which a number of path points set in Point Density are generated.

A changed point density unit take effect for the next generated or edited CSO.

Values:

Title Name Description
Min Voxel Extent DENSITY_MIN_VOXEL_EXTENT Path points are generated per minimal voxel extent.
Millimeter DENSITY_MILLIMETER Path points are generated per world distance in millimeter.
Screen Pixel DENSITY_SCREEN_PIXEL Path points are generated per screen pixel.

Point Density

name: densityFactor, type: Float, default: 0.1, minimum: 0.001, maximum: 10

Sets the number of path points that are generated for the unit set in the field per.
