SoCSOPointEditor¶

InventorModule¶

author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoCSO`
definition	SoCSO.def
see also	`SoView2DCSOExtensibleEditor`, `SoCSOVisualizationSettings`

Purpose¶

The module SoCSOPointEditor renders and interactively generates CSOs that consist of a single point.

Usage¶

Read the documentation of the SoView2DCSOExtensibleEditor on how to attach and parametrize editor modules.

Interaction¶

Click to create a new point CSO.

Windows¶

Main¶

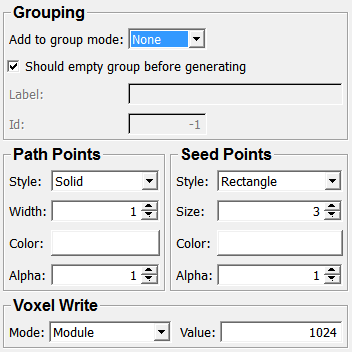

CSO Creation Parameters¶

Input Fields¶

inVisualizationSettings¶

name: inVisualizationSettings, type: CSOVisualizationSettings(MLBase)¶: Attach a SoCSOVisualizationSettings module to overwrite the visual settings of CSOs.

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`Add to group mode`: `Enum`	`Extension Id`: `String`	`requirePointerPositionMovementToCreateCSO`: `Bool`
`Allow Creation`: `Bool`	`Id`: `Integer`	`Restrict To Image Boundaries`: `Bool`
`Allow Modification`: `Bool`	`Interaction Forbidden Cursor`: `Enum`	`selectionCursor`: `Enum`
`allowSeedPointInteraction`: `Bool`	`Label`: `String`	`Should Empty Group Before Generating`: `Bool`
`Alpha (defaultPathPointAlpha)`: `Float`	`labelPrefixString`: `String`	`Should Render`: `Bool`
`Alpha (defaultSeedPointAlpha)`: `Float`	`Mode`: `Enum`	`Size`: `Float`
`Color (defaultPathPointColor)`: `Color`	`moduleCreatorId`: `Integer`	`Style (defaultPathPointStyle)`: `Enum`
`Color (defaultSeedPointColor)`: `Color`	`moduleCreatorString`: `String`	`Style (defaultSeedPointStyle)`: `Enum`
`Create Cursor`: `Enum`	`Move Seed Cursor`: `Enum`	`Value`: `Float`
`csoIdUnderMouseCursor`: `Integer`	`moveAllCursor`: `Enum`	`Voxel Snap Mode`: `Enum`
`Drawing Mode`: `Enum`	`pointerPositionEpsilonForCreatingCSO`: `Integer`	`Width`: `Float`

Visible Fields¶

Extension Id¶

name: extensionId, type: String, default: point¶

Sets an ID string that is used to synchronize editors and to decide the currently active editor for creation.

Read the documentation of the SoView2DCSOExtensibleEditor for more information.

Allow Creation¶

name: allowCreation, type: Bool, default: TRUE¶: If checked, this module is allowed to create a new CSO.

Allow Modification¶

name: allowModification, type: Bool, default: TRUE¶: If checked, existing CSOs of the type of this editor can be modified.

Should Render¶

name: shouldRender, type: Bool, default: TRUE¶: If checked, this editor renders CSOs that were created by this editor.

Interaction Forbidden Cursor¶

name: interactionForbiddenCursor, type: Enum, default: FORBIDDEN_CURSOR¶: Defines the mouse cursor shown when an interaction is forbidden.
