SoCSOLiveWireEditor

InventorModule

author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoCSO
definition	SoCSO.def
see also	SoView2DCSOExtensibleEditor, SoCSOVisualizationSettings

Purpose

The module SoCSOLiveWireEditor renders and semi-interactively generates CSOs based on the LiveWire algorithm.

Usage

Read the documentation of the SoView2DCSOExtensibleEditor on how to attach and parametrize editor modules.

Interaction

Click to set consecutive seed points. Either place the last seed point in the vicinity of the first seed point to close, or double click to finish.

This is the default behavior. The reaction to a double-click can be changed with the field Double Click Mode.

Windows

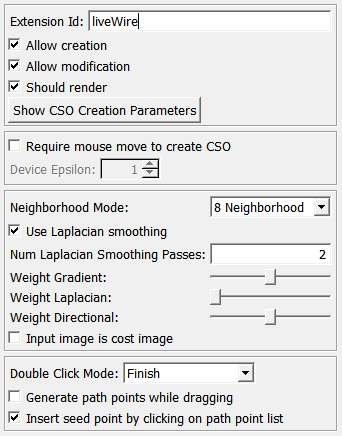

Main

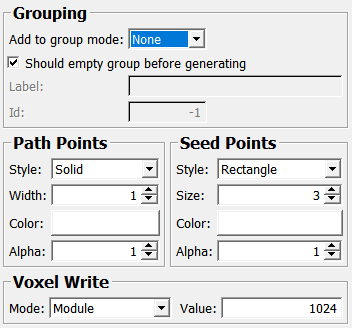

CSO Creation Parameters

Input Fields

inVisualizationSettings

name: inVisualizationSettings, type: CSOVisualizationSettings(MLBase)

Attach a SoCSOVisualizationSettings module to overwrite the visual settings of CSOs.

inputImage

name: inputImage, type: Image

This is an optional cost image; if nothing is attached here, the currently displayed image is used as a cost image (even if it is an anatomic image).

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

Add to group mode: Enum	Generate path points while dragging: Bool	Num Laplacian Smoothing Passes: Integer
Allow Creation: Bool	Id: Integer	Require mouse move to create CSO: Bool
Allow Modification: Bool	Input Image Is Cost Image: Bool	selectionCursor: Enum
allowSeedPointInteraction: Bool	Insert Seed Point By Clicking On Path Point List: Bool	Should Empty Group Before Generating: Bool
Alpha (defaultPathPointAlpha): Float	insertSeedPointCursor: Enum	Should Render: Bool
Alpha (defaultSeedPointAlpha): Float	interactionForbiddenCursor: Enum	Size: Float
canCloseCursor: Enum	Label: String	Style (defaultPathPointStyle): Enum
Color (defaultPathPointColor): Color	labelPrefixString: String	Style (defaultSeedPointStyle): Enum
Color (defaultSeedPointColor): Color	Mode: Enum	Use Laplacian smoothing: Bool
createCursor: Enum	moduleCreatorId: Integer	Value: Float
csoIdUnderMouseCursor: Integer	moduleCreatorString: String	Weight Directional: Float
Device Epsilon: Integer	moveAllCursor: Enum	Weight Gradient: Float
Double Click Mode: Enum	moveSeedCursor: Enum	Weight Laplacian: Float
Extension Id: String	Neighborhood Mode: Enum	Width: Float

Visible Fields

Extension Id

name: extensionId, type: String, default: liveWire

Sets an ID string that is used to synchronize editors and to decide the currently active editor for creation.

Read the documentation of the SoView2DCSOExtensibleEditor for more information.

Allow Creation

name: allowCreation, type: Bool, default: TRUE

If checked, this module is allowed to create a new CSO.

Allow Modification

name: allowModification, type: Bool, default: TRUE

If checked, existing CSOs of the type of this editor can be modified.

Should Render

name: shouldRender, type: Bool, default: TRUE

If checked, this editor renders CSOs that were created by this editor.

Require mouse move to create CSO

name: requirePointerPositionMovementToCreateCSO, type: Bool, default: FALSE

If checked, a new CSO is only created if the mouse is dragged more than Device Epsilon pixels.

Otherwise, no CSO is generated on releasing the mouse. Use this option to prevent to generate points or too short CSOs.

Device Epsilon

name: pointerPositionEpsilonForCreatingCSO, type: Integer, default: 1

Sets a minimum movement epsilon in pixels before a new CSO is created on dragging the mouse.

Should Empty Group Before Generating

name: shouldEmptyGroupBeforeGenerating, type: Bool, default: TRUE

If checked, a target CSOGroup is emptied before adding a newly created CSO into it.

This option depends on the Add to group mode.

Add to group mode

name: addCSOToGroupMode, type: Enum, default: GROUP_NONE

Defines whether and how a newly created CSO is added to a CSOGroup.

Values:

Title	Name	Description
​None	​GROUP_NONE	​A newly created CSO is not added to any group.
​By Label	​GROUP_BY_LABEL	​A newly created CSO is added to a CSOGroup that is given by a label in Label. If a CSOGroup with the given label does not already exist, it is created before being filled. The label “” is invalid; adding a CSO to the CSOGroup with label “” means adding the CSO to no CSOGroup.
​By Id	​GROUP_BY_ID	​A newly created CSO is added to a CSOGroup that is given by an ID in Id. If a CSOGroup with the given ID does not already exist, it is created before being filled. The ID -1 is invalid; adding a CSO to the CSOGroup with ID -1 means adding the CSO to no CSOGroup.

Label

name: addCSOToGroupLabel, type: String

Sets a label for a group that should be associated with a newly created CSO.

Id

name: addCSOToGroupId, type: Integer, default: -1, minimum: -1

Sets an ID for a group that should be associated with a newly created CSO.

Style (defaultPathPointStyle)

name: defaultPathPointStyle, type: Enum, default: PATH_POINTS_STYLE_SOLID

Defines a default line style for a newly created CSO.

Values:

Title	Name	Description
​None	​PATH_POINTS_STYLE_NONE	​Path points are invisible.
​Solid	​PATH_POINTS_STYLE_SOLID	​Path points are rendered as solid lines.
​Dashed	​PATH_POINTS_STYLE_DASHED	​Path points are rendered as dashed lines.
​Dotted	​PATH_POINTS_STYLE_DOTTED	​Path points are rendered as dotted lines.
​Short Dashed	​PATH_POINTS_STYLE_SHORT_DASHED	​Path points are rendered as short-dashed lines.

Width

name: defaultPathPointWidth, type: Float, default: 1, minimum: 1, maximum: 8

Sets a default line width for newly created CSOs.

Color (defaultPathPointColor)

name: defaultPathPointColor, type: Color, default: 1 1 1

Sets a default line color for newly created CSOs.

Alpha (defaultPathPointAlpha)

name: defaultPathPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets a default line alpha value for newly created CSOs.

Style (defaultSeedPointStyle)

name: defaultSeedPointStyle, type: Enum, default: SEED_POINT_STYLE_RECTANGLE

Defines a default seed point style for newly created CSOs.

Values:

Title	Name	Description
​None	​SEED_POINT_STYLE_NONE	​Seed points are invisible.
​Rectangle	​SEED_POINT_STYLE_RECTANGLE	​Seed points are rendered as rectangles.
​Circle	​SEED_POINT_STYLE_CIRCLE	​Seed points are rendered as circles.
​Fixed Size Circle	​SEED_POINT_STYLE_FIXED_SIZE_CIRCLE	​Seed points are rendered as filled circles with a fixed size.
​Triangle	​SEED_POINT_STYLE_TRIANGLE	​Seed points are rendered as triangles.
​Filled Rectangle	​SEED_POINT_STYLE_FILLED_RECTANGLE	​Seed points are rendered as filled rectangles.
​Filled Circle	​SEED_POINT_STYLE_FILLED_CIRCLE	​Seed points are rendered as filled circles.
​Filled Triangle	​SEED_POINT_STYLE_FILLED_TRIANGLE	​Seed points are rendered as filled triangles.
​Dashed Rectangle	​SEED_POINT_STYLE_DASHED_RECTANGLE	​Seed points are rendered as dashed rectangles.

Size

name: defaultSeedPointSize, type: Float, default: 3, minimum: 1, maximum: 16

Sets the default size for seed points for newly created CSOs.

Color (defaultSeedPointColor)

name: defaultSeedPointColor, type: Color, default: 1 1 1

Sets the default color for seed points for newly created CSOs.

Alpha (defaultSeedPointAlpha)

name: defaultSeedPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets the default alpha value for seed points for newly created CSOs.

Mode

name: defaultVoxelWriteMode, type: Enum, default: VOXEL_WRITE_MODULE

Defines the default voxel write mode for newly created CSOs.

Values:

Title	Name	Deprecated Name	Description
​Id	​VOXEL_WRITE_ID	​VOXEL_VALUE_ID	​The CSO ID is used as a voxel write value.
​Const	​VOXEL_WRITE_CONST	​VOXEL_VALUE_CONST	​A constant value is used as a voxel write value. This constant value is set by Value.
​Const Plus Id	​VOXEL_WRITE_CONST_PLUS_ID	​VOXEL_VALUE_CONST_PLUS_ID	​The CSO ID added to the constant value is used as a voxel write value.
​Module	​VOXEL_WRITE_MODULE	​VOXEL_VALUE_MODULE	​The voxelizing module sets the voxel write value.

Value

name: defaultVoxelWriteValue, type: Float, default: 1024

Sets a constant value that is used as voxel write value or an offset of that.

Generate path points while dragging

name: generateSeedPointsWhileDragging, type: Bool, default: FALSE

If checked, path points are added while dragging the mouse. This implements a freehand mode.

Single click seed point setting and freehand drawing can be mixed with this option checked.

Note that with this option checked, sometimes on placing single click seed points while moving the mouse a bit, two consecutive seed points are generated: one seed point at mouse button press, a second seed point on mouse button release.

Insert Seed Point By Clicking On Path Point List

name: insertSeedPointByClickingOnPathPointList, type: Bool, default: TRUE

If checked, a new seed point is inserted if clicked onto a path point list.

Otherwise, the CSO is selected and can be moved on the slice.

Double Click Mode

name: doubleClickMode, type: Enum, default: CSO_EDITOR_DOUBLE_CLICK_FINISH

Defines how the module reacts on a double-click.

Values:

Title	Name	Description
​Set Single Seed	​CSO_EDITOR_DOUBLE_CLICK_SET_SINGLE_SEED	​The module sets a single seed point, just like on a single-click.
​Set Double Seeds	​CSO_EDITOR_DOUBLE_CLICK_SET_DOUBLE_SEEDS	​The module sets two seed points on top of each other. This enables to create a CSO with steep angles.
​Finish	​CSO_EDITOR_DOUBLE_CLICK_FINISH	​The currently generated CSO is finished and left open.
​Close	​CSO_EDITOR_DOUBLE_CLICK_CLOSE	​The currently generated CSO is finished and closed.
​Finish No Close	​CSO_EDITOR_DOUBLE_CLICK_FINISH_NO_CLOSE	​The currently generated CSO is finished but not closed, even if the last seed point is in the vicinity of the first seed point.

Neighborhood Mode

name: neighborhoodMode, type: Enum, default: CSO_LIVE_WIRE_8_NEIGHBORHOOD

Defines the neighborhood mode for searching the shortest path in the live wire graph.

Values:

Title	Name	Deprecated Name	Description
​4 Neighborhood	​CSO_LIVE_WIRE_4_NEIGHBORHOOD	​CSOLiveWireGraph::CSO_LIVE_WIRE_4_NEIGHBORHOOD	​Path search includes diagonals.
​8 Neighborhood	​CSO_LIVE_WIRE_8_NEIGHBORHOOD	​CSOLiveWireGraph::CSO_LIVE_WIRE_8_NEIGHBORHOOD	​Path search is only horizontal/vertical.

Use Laplacian smoothing

name: useLaplacianSmoothing, type: Bool, default: TRUE

If checked, the CSO is smoothed by a Laplacian smoothing.

Num Laplacian Smoothing Passes

name: numLaplacianSmoothingPasses, type: Integer, default: 2

Sets the number of smoothing passes of the Laplacian smoothing.

Weight Gradient

name: weightGradient, type: Float, default: 0.5, minimum: 0, maximum: 1

Sets the gradient weight in the range [0..1].

Weight Laplacian

name: weightLaplacian, type: Float, default: 0, minimum: 0, maximum: 1

Sets the Laplacian zero crossing weight in the range [0..1].

Weight Directional

name: weightDirectional, type: Float, default: 0.5, minimum: 0, maximum: 1

Sets the directional weight in the range [0..1].

Input Image Is Cost Image

name: inputImageIsCostImage, type: Bool, default: FALSE

If checked, the input image is assumed to be a cost image.

Otherwise, the module itself computes costs as the weighted sum of gradient, Laplacian, and direction.

Hidden Fields

allowSeedPointInteraction

name: allowSeedPointInteraction, type: Bool, default: TRUE

If checked, a seed point can interactively be moved.

Otherwise, the entire CSO is moved.

selectionCursor

name: selectionCursor, type: Enum, default: POINTING_HAND_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

interactionForbiddenCursor

name: interactionForbiddenCursor, type: Enum, default: FORBIDDEN_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

csoIdUnderMouseCursor

name: csoIdUnderMouseCursor, type: Integer, persistent: no

Shows the ID of the CSO currently under the mouse cursor, i.e., the CSO that will receive mouse events.

This field is only touched if its value changes.

moduleCreatorId

name: moduleCreatorId, type: Integer, default: 0

Sets a creator ID. This ID is stored in the CSO as user data.

moduleCreatorString

name: moduleCreatorString, type: String, default: SoCSOLiveWireEditor

Sets a module creator string. This string is stored in the CSO as user data.

labelPrefixString

name: labelPrefixString, type: String, default: CSO

Sets a label prefix string. This string is stored in the CSO as user data.

createCursor

name: createCursor, type: Enum, default: CROSS_FREEFORM_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

moveAllCursor

name: moveAllCursor, type: Enum, default: MOVE_ALL_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

moveSeedCursor

name: moveSeedCursor, type: Enum, default: CROSS_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

insertSeedPointCursor

name: insertSeedPointCursor, type: Enum, default: CROSS_PLUS_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

canCloseCursor

name: canCloseCursor, type: Enum, default: CROSS_LINK_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR
