SoCSOIsoEditor¶

InventorModule¶

author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoCSO`
definition	SoCSO.def
see also	`SoView2DCSOExtensibleEditor`, `SoCSOVisualizationSettings`

Purpose¶

The module SoCSOIsoEditor generates iso-contours interactively.

While interacting, a single iso-contour is generated, using the image value currently under the mouse cursor as the iso-value. Existing iso-lines can be modified by selecting it and dragging the mouse over the image; this updates the image value under the mouse cursor and by that, also the iso-line.

If an optional input image is attached, the iso-value is obtained from that input image and the iso-line is also generated for the input image. Note that the input image must have the same image extent and voxel-to-world-matrix as the image shown by the 2D viewer.

Windows¶

Main¶

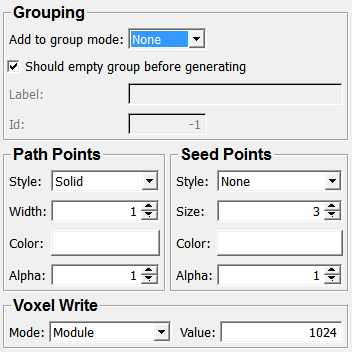

CSO Creation Parameters¶

Input Fields¶

inVisualizationSettings¶

name: inVisualizationSettings, type: CSOVisualizationSettings(MLBase)¶

inputImage¶

name: inputImage, type: Image¶

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`Add to group mode`: `Enum`	`Id`: `Integer`	`requirePointerPositionMovementToCreateCSO`: `Bool`
`Allow Creation`: `Bool`	`interactionForbiddenCursor`: `Enum`	`selectionCursor`: `Enum`
`Allow Modification`: `Bool`	`Interpolate Contour`: `Bool`	`Should Empty Group Before Generating`: `Bool`
`allowSeedPointInteraction`: `Bool`	`Label`: `String`	`Should Render`: `Bool`
`Alpha (defaultPathPointAlpha)`: `Float`	`labelPrefixString`: `String`	`Size`: `Float`
`Alpha (defaultSeedPointAlpha)`: `Float`	`Mode`: `Enum`	`Smoothing Mode`: `Enum`
`Color (defaultPathPointColor)`: `Color`	`moduleCreatorId`: `Integer`	`Style (defaultPathPointStyle)`: `Enum`
`Color (defaultSeedPointColor)`: `Color`	`moduleCreatorString`: `String`	`Style (defaultSeedPointStyle)`: `Enum`
`createCursor`: `Enum`	`moveAllCursor`: `Enum`	`Value`: `Float`
`csoIdUnderMouseCursor`: `Integer`	`moveSeedCursor`: `Enum`	`Width`: `Float`
`Extension Id`: `String`	`pointerPositionEpsilonForCreatingCSO`: `Integer`

Visible Fields¶

Extension Id¶

name: extensionId, type: String, default: iso¶

Sets an ID string that is used to synchronize editors and to decide the currently active editor for creation.

Read the documentation of the SoView2DCSOExtensibleEditor for more information.

Allow Creation¶

name: allowCreation, type: Bool, default: TRUE¶: If checked, this module is allowed to create a new CSO.

Allow Modification¶

name: allowModification, type: Bool, default: TRUE¶: If checked, existing CSOs of the type of this editor can be modified.

Should Render¶

name: shouldRender, type: Bool, default: TRUE¶: If checked, this editor renders CSOs that were created by this editor.

Should Empty Group Before Generating¶

name: shouldEmptyGroupBeforeGenerating, type: Bool, default: TRUE¶

If checked, a target CSOGroup is emptied before adding a newly created CSO into it.

This option depends on the Add to group mode.

Add to group mode¶

name: addCSOToGroupMode, type: Enum, default: GROUP_NONE¶: Defines whether and how a newly created CSO is added to a CSOGroup.

Values:

Title

Name

Description

None

GROUP_NONE

A newly created CSO is not added to any group.

By Label

GROUP_BY_LABEL

A newly created CSO is added to a CSOGroup that is given by a label in Label.

If a CSOGroup with the given label does not already exist, it is created before being filled.

The label “” is invalid; adding a CSO to the CSOGroup with label “” means adding the CSO to no CSOGroup.

By Id

GROUP_BY_ID

A newly created CSO is added to a CSOGroup that is given by an ID in Id.

If a CSOGroup with the given ID does not already exist, it is created before being filled.

The ID -1 is invalid; adding a CSO to the CSOGroup with ID -1 means adding the CSO to no CSOGroup.

Label¶

name: addCSOToGroupLabel, type: String¶: Sets a label for a group that should be associated with a newly created CSO.

Id¶

name: addCSOToGroupId, type: Integer, default: -1, minimum: -1¶: Sets an ID for a group that should be associated with a newly created CSO.

Style (defaultPathPointStyle)¶

name: defaultPathPointStyle, type: Enum, default: PATH_POINTS_STYLE_SOLID¶: Defines a default line style for a newly created CSO.

Values:

Title	Name	Description
None	PATH_POINTS_STYLE_NONE	Path points are invisible.
Solid	PATH_POINTS_STYLE_SOLID	Path points are rendered as solid lines.
Dashed	PATH_POINTS_STYLE_DASHED	Path points are rendered as dashed lines.
Dotted	PATH_POINTS_STYLE_DOTTED	Path points are rendered as dotted lines.
Short Dashed	PATH_POINTS_STYLE_SHORT_DASHED	Path points are rendered as short-dashed lines.

Width¶

name: defaultPathPointWidth, type: Float, default: 1, minimum: 1, maximum: 8¶: Sets a default line width for newly created CSOs.

Color (defaultPathPointColor)¶

name: defaultPathPointColor, type: Color, default: 1 1 1¶: Sets a default line color for newly created CSOs.

Alpha (defaultPathPointAlpha)¶

name: defaultPathPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets a default line alpha value for newly created CSOs.

Style (defaultSeedPointStyle)¶

name: defaultSeedPointStyle, type: Enum, default: SEED_POINT_STYLE_NONE¶: Defines a default seed point style for newly created CSOs.

Values:

Title	Name	Description
None	SEED_POINT_STYLE_NONE	Seed points are invisible.
Rectangle	SEED_POINT_STYLE_RECTANGLE	Seed points are rendered as rectangles.
Circle	SEED_POINT_STYLE_CIRCLE	Seed points are rendered as circles.
Fixed Size Circle	SEED_POINT_STYLE_FIXED_SIZE_CIRCLE	Seed points are rendered as filled circles with a fixed size.
Triangle	SEED_POINT_STYLE_TRIANGLE	Seed points are rendered as triangles.
Filled Rectangle	SEED_POINT_STYLE_FILLED_RECTANGLE	Seed points are rendered as filled rectangles.
Filled Circle	SEED_POINT_STYLE_FILLED_CIRCLE	Seed points are rendered as filled circles.
Filled Triangle	SEED_POINT_STYLE_FILLED_TRIANGLE	Seed points are rendered as filled triangles.
Dashed Rectangle	SEED_POINT_STYLE_DASHED_RECTANGLE	Seed points are rendered as dashed rectangles.

Size¶

name: defaultSeedPointSize, type: Float, default: 3, minimum: 1, maximum: 16¶: Sets the default size for seed points for newly created CSOs.

Color (defaultSeedPointColor)¶

name: defaultSeedPointColor, type: Color, default: 1 1 1¶: Sets the default color for seed points for newly created CSOs.

Alpha (defaultSeedPointAlpha)¶

name: defaultSeedPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets the default alpha value for seed points for newly created CSOs.

Mode¶

name: defaultVoxelWriteMode, type: Enum, default: VOXEL_WRITE_MODULE¶: Defines the default voxel write mode for newly created CSOs.

Values:

Title	Name	Deprecated Name	Description
Id	VOXEL_WRITE_ID	VOXEL_VALUE_ID	The CSO ID is used as a voxel write value.
Const	VOXEL_WRITE_CONST	VOXEL_VALUE_CONST	A constant value is used as a voxel write value. This constant value is set by `Value`.
Const Plus Id	VOXEL_WRITE_CONST_PLUS_ID	VOXEL_VALUE_CONST_PLUS_ID	The CSO ID added to the constant value is used as a voxel write value.
Module	VOXEL_WRITE_MODULE	VOXEL_VALUE_MODULE	The voxelizing module sets the voxel write value.

Value¶

name: defaultVoxelWriteValue, type: Float, default: 1024¶: Sets a constant value that is used as voxel write value or an offset of that.

Interpolate Contour¶

name: interpolateContour, type: Bool, default: TRUE¶: Sets whether the iso-line should be interpolated by the image values.

Smoothing Mode¶

name: smoothingMode, type: Enum, default: SMOOTHING_MODE_SPLINE_APPROXIMATION¶: Defines how the resulting iso-line should be smoothed.

Values:

Title	Name	Description
None	SMOOTHING_MODE_NONE	No smoothing is applied.
Spline Approximation	SMOOTHING_MODE_SPLINE_APPROXIMATION	The iso-line is smoothed by a spline approximation.
Spline Interpolation	SMOOTHING_MODE_SPLINE_INTERPOLATION	The iso-line is smoothed by a spline-interpolation.

Hidden Fields¶

allowSeedPointInteraction¶

name: allowSeedPointInteraction, type: Bool, default: TRUE¶

selectionCursor¶

name: selectionCursor, type: Enum, default: POINTING_HAND_CURSOR¶

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
