Purpose

The module MinMaxScan scans the input image and updates the minimum and maximum values of the output image.

It can select whether the data type should be adapted, left unchanged or be set to a specific data type.

Windows

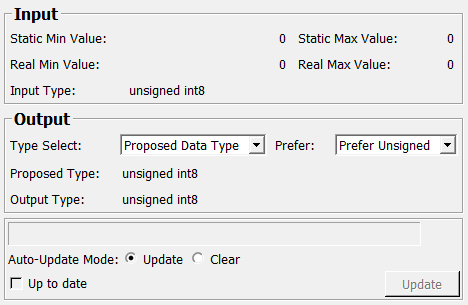

Default Panel

../../../Modules/ML/MLMiscModules/mhelp/Images/Screenshots/MinMaxScan._default.png

Input Fields

input0

name: input0, type: Image

Output Fields

output0

name: output0, type: Image

Parameter Fields

Field Index

Input Type: String Static Min Value: Double
Output Type: String Type Select: Enum
Prefer: Enum Up To Date: Bool
progress: Double Update: Trigger
Proposed Type: String Update Mode: Enum
Real Max Value: Double
Real Min Value: Double
Static Max Value: Double

Visible Fields

Static Min Value

name: minValue, type: Double, persistent: no, deprecated name: StdMinimum

Shows the minimum image value set to the image by the preceding module.

Is 0 if the input image is invalid.

Static Max Value

name: maxValue, type: Double, persistent: no, deprecated name: StdMaximum

Shows the maximum image value set to the image by the preceding module.

Is 0 if the input image is invalid.

Input Type

name: inputType, type: String, persistent: no, deprecated name: InputDataType

Shows the data type of the input image.

Real Min Value

name: trueMinValue, type: Double, persistent: no, deprecated name: Minimum

Shows the minimum image value as it is found in the input image by scanning each voxel.

Is 0 if the input image is invalid.

Real Max Value

name: trueMaxValue, type: Double, persistent: no, deprecated name: Maximum

Shows the maximum image value as it is found in the input image by scanning each voxel.

Is 0 if the input image is invalid.

Proposed Type

name: proposedType, type: String, persistent: no, deprecated name: RecOutDataType

Shows the proposed data type of the output image.

This is the smallest possible data type for the real image value range while preserving the precision.

Up To Date

name: upToDate, type: Bool, persistent: no, deprecated name: Info

Shows whether the shown information is up-to-date.

Update Mode

name: updateMode, type: Enum, default: AutoUpdate, deprecated name: AutoScan

Defines the update mode of this module.

Values:

Title Name Deprecated Name Description
Update AutoUpdate TRUE All fields and the min/max values of the output image are being updated on any field change.
Clear AutoClear Off,FALSE The output image is invalidated and all fields set to their default values on any field change.

Update

name: update, type: Trigger, deprecated name: Scan

If pressed, the module scans the input image anew.

Type Select

name: typeSelect, type: Enum, default: Proposed Data Type, deprecated name: OutputDataType

Defines the data type of the output image.

Values:

Title Name Description
Proposed Data Type Proposed Data Type The proposed data type is set to the output image.
Input Data Type Input Data Type The input image’s data type is set to the output image.
UInt8 UInt8
Int8 Int8
UInt16 UInt16
Int16 Int16
UInt32 UInt32
Int32 Int32
Float Float
Double Double
Int64 Int64
UInt64 UInt64

Output Type

name: outputType, type: String, persistent: no, deprecated name: UsedOutDataType

Shows the data type of the output image.

Prefer

name: preferredIntType, type: Enum, default: PreferUnsigned, deprecated name: preferUnsigned,PreferUnsignedTypes

Set type preference if Type Select is set to Proposed Data Type and the input type is an scalar integer type. (Other types stay as they are.)

Values:

Title Name Deprecated Name Description
Always Signed AlwaysSigned FALSE Always propose the smallest signed integer type that can accommodate the real value range.
Prefer Unsigned PreferUnsigned TRUE Propose the smallest unsigned integer type that can accommodate the real value range if the minimum value is not negative, otherwise the smallest signed integer type.

Hidden Fields

progress

name: progress, type: Double, persistent: no
