ImageStatistics¶

MLModule¶

genre	`Statistics`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLMiscModules`
definition	MLMiscModules.def
see also	`Info`, `ImagePropertyConvert`, `MinMaxScan`, `Scale`
keywords	`average`, `mean`, `absolute`, `variance`, `median`, `slice`, `standard`, `deviation`, `bounding`, `box`, `minimum`, `maximum`, `partial`, `effect`, `volume`, `weight`, `interval`, `count`, `voxels`

Purpose¶

The module ImageStatistics computes some statistics of the input image voxels.

A subset of voxels is selected depending on the voxels’ grey values and a grey value interval (inner interval) defined by the parameter fields Min and Max.

To support the analysis of partial volume effects, two additional, adjacent intervals can be defined by the parameter fields Lower and Upper. Hence, the statistical information is computed for the following subsets:

Total: all input voxels

Inner: voxels within the inner interval

Outer: voxels outside the inner interval

Lower: voxels within the lower adjacent interval

Upper: voxels within the upper adjacent interval

On each interval the number of voxels, the corresponding volume, the minimum and maximum values, the mean value and the mean of the absolute voxel values, the variance, the standard deviation and the bounding box (in X, Y, Z, C, T, and U) are calculated.

The computation is either applied to the complete input image, or - if Per Slice is checked - to the slice specified by the Current Slice field.

If a second input image is provided, activating the Use Mask Image setting restricts the computation to voxels for which the corresponding value in the second image is non-zero.

Details¶

In the lower and upper adjacent intervals the evaluation of partial volume effects is supported by weighting voxels with their distance to the inner interval.

The weighted voxel count is displayed as Weight in the results section. This value can be interpreted as the statistical contribution of the partial volume effect to the number of voxels in the inner interval.

Windows¶

Default Panel¶

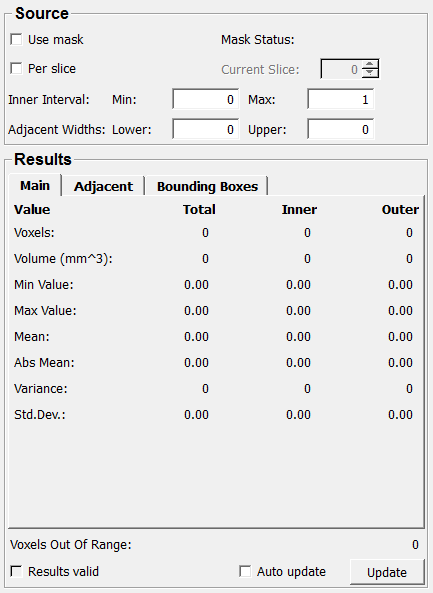

../../../Modules/ML/MLMiscModules/mhelp/Images/Screenshots/ImageStatistics._default.png

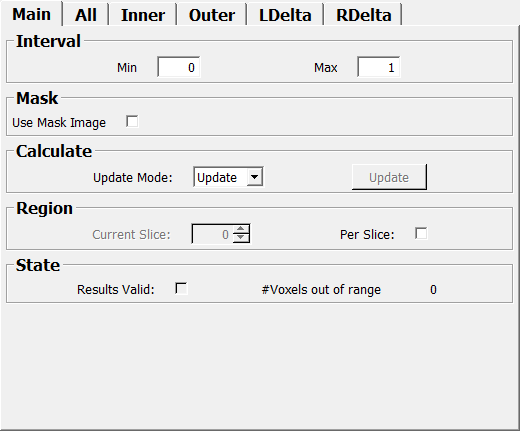

legacy¶

Input Fields¶

input0¶

name: input0, type: Image¶: Input Image

input1¶

name: input1, type: Image¶: Mask Image

Parameter Fields¶

Field Index¶

`#Voxels out of range`: `Integer`	`Minimum (totalMinVal)`: `Double`	`U1 (bBoxLowU1)`: `Integer`
`3DVolume (totalVolume)`: `Double`	`Minimum (innerMinVal)`: `Double`	`U1 (bBoxUpU1)`: `Integer`
`3DVolume (innerVolume)`: `Double`	`Minimum (outerMinVal)`: `Double`	`U2 (bBoxU2)`: `Integer`
`3DVolume (outerVolume)`: `Double`	`Minimum (lowerMinVal)`: `Double`	`U2 (bBoxInU2)`: `Integer`
`3DVolume (lowerVolume)`: `Double`	`Minimum (upperMinVal)`: `Double`	`U2 (bBoxOutU2)`: `Integer`
`3DVolume (upperVolume)`: `Double`	`Num Voxels (innerVoxels)`: `Integer`	`U2 (bBoxLowU2)`: `Integer`
`Abs Average (totalAbsMean)`: `Double`	`Num Voxels (outerVoxels)`: `Integer`	`U2 (bBoxUpU2)`: `Integer`
`Abs Average (innerAbsMean)`: `Double`	`Num Voxels (lowerVoxels)`: `Integer`	`Update`: `Trigger`
`Abs Average (outerAbsMean)`: `Double`	`Num Voxels (upperVoxels)`: `Integer`	`Update Mode`: `Enum`
`Abs Average (lowerAbsMean)`: `Double`	`outerMaxPosC`: `Integer`	`Upper`: `Double`
`Abs Average (upperAbsMean)`: `Double`	`outerMaxPosT`: `Integer`	`Use Mask Image`: `Bool`
`Average (totalMean)`: `Double`	`outerMaxPosU`: `Integer`	`Variance (totalVariance)`: `Double`
`Average (innerMean)`: `Double`	`outerMaxPosX`: `Integer`	`Variance (innerVariance)`: `Double`
`Average (outerMean)`: `Double`	`outerMaxPosY`: `Integer`	`Variance (outerVariance)`: `Double`
`Average (lowerMean)`: `Double`	`outerMaxPosZ`: `Integer`	`Variance (lowerVariance)`: `Double`
`Average (upperMean)`: `Double`	`outerMinPosC`: `Integer`	`Variance (upperVariance)`: `Double`
`C1 (bBoxC1)`: `Integer`	`outerMinPosT`: `Integer`	`Weight (lowerWeight)`: `Double`
`C1 (bBoxInC1)`: `Integer`	`outerMinPosU`: `Integer`	`Weight (upperWeight)`: `Double`
`C1 (bBoxOutC1)`: `Integer`	`outerMinPosX`: `Integer`	`X1 (bBoxX1)`: `Integer`
`C1 (bBoxLowC1)`: `Integer`	`outerMinPosY`: `Integer`	`X1 (bBoxInX1)`: `Integer`
`C1 (bBoxUpC1)`: `Integer`	`outerMinPosZ`: `Integer`	`X1 (bBoxOutX1)`: `Integer`
`C2 (bBoxC2)`: `Integer`	`outerSquaredAverage`: `Double`	`X1 (bBoxLowX1)`: `Integer`
`C2 (bBoxInC2)`: `Integer`	`Per Slice`: `Bool`	`X1 (bBoxUpX1)`: `Integer`
`C2 (bBoxOutC2)`: `Integer`	`Results Valid`: `Bool`	`X2 (bBoxX2)`: `Integer`
`C2 (bBoxLowC2)`: `Integer`	`Std Deviation (innerStdDev)`: `Double`	`X2 (bBoxInX2)`: `Integer`
`C2 (bBoxUpC2)`: `Integer`	`Std Deviation (outerStdDev)`: `Double`	`X2 (bBoxOutX2)`: `Integer`
`Current Slice`: `Integer`	`Std Deviation (lowerStdDev)`: `Double`	`X2 (bBoxLowX2)`: `Integer`
`innerMaxPosC`: `Integer`	`Std Deviation (upperStdDev)`: `Double`	`X2 (bBoxUpX2)`: `Integer`
`innerMaxPosT`: `Integer`	`Sum (totalSum)`: `Double`	`Y1 (bBoxY1)`: `Integer`
`innerMaxPosU`: `Integer`	`Sum (innerSum)`: `Double`	`Y1 (bBoxInY1)`: `Integer`
`innerMaxPosX`: `Integer`	`Sum (outerSum)`: `Double`	`Y1 (bBoxOutY1)`: `Integer`
`innerMaxPosY`: `Integer`	`Sum (lowerSum)`: `Double`	`Y1 (bBoxLowY1)`: `Integer`
`innerMaxPosZ`: `Integer`	`Sum (upperSum)`: `Double`	`Y1 (bBoxUpY1)`: `Integer`
`innerMinPosC`: `Integer`	`T1 (bBoxT1)`: `Integer`	`Y2 (bBoxY2)`: `Integer`
`innerMinPosT`: `Integer`	`T1 (bBoxInT1)`: `Integer`	`Y2 (bBoxInY2)`: `Integer`
`innerMinPosU`: `Integer`	`T1 (bBoxOutT1)`: `Integer`	`Y2 (bBoxOutY2)`: `Integer`
`innerMinPosX`: `Integer`	`T1 (bBoxLowT1)`: `Integer`	`Y2 (bBoxLowY2)`: `Integer`
`innerMinPosY`: `Integer`	`T1 (bBoxUpT1)`: `Integer`	`Y2 (bBoxUpY2)`: `Integer`
`innerMinPosZ`: `Integer`	`T2 (bBoxT2)`: `Integer`	`Z1 (bBoxZ1)`: `Integer`
`innerSquaredAverage`: `Double`	`T2 (bBoxInT2)`: `Integer`	`Z1 (bBoxInZ1)`: `Integer`
`Lower`: `Double`	`T2 (bBoxOutT2)`: `Integer`	`Z1 (bBoxOutZ1)`: `Integer`
`Mask Status`: `String`	`T2 (bBoxLowT2)`: `Integer`	`Z1 (bBoxLowZ1)`: `Integer`
`Max`: `Double`	`T2 (bBoxUpT2)`: `Integer`	`Z1 (bBoxUpZ1)`: `Integer`
`Maximum (totalMaxVal)`: `Double`	`Total Std Dev`: `Double`	`Z2 (bBoxZ2)`: `Integer`
`Maximum (innerMaxVal)`: `Double`	`Total Voxels`: `Integer`	`Z2 (bBoxInZ2)`: `Integer`
`Maximum (outerMaxVal)`: `Double`	`totalSquaredAverage`: `Double`	`Z2 (bBoxOutZ2)`: `Integer`
`Maximum (lowerMaxVal)`: `Double`	`U1 (bBoxU1)`: `Integer`	`Z2 (bBoxLowZ2)`: `Integer`
`Maximum (upperMaxVal)`: `Double`	`U1 (bBoxInU1)`: `Integer`	`Z2 (bBoxUpZ2)`: `Integer`
`Min`: `Double`	`U1 (bBoxOutU1)`: `Integer`

Visible Fields¶

Min¶

name: innerMin, type: Double, default: 0¶: Sets the lower voxel value if the module should work on an interval mask.

Max¶

name: innerMax, type: Double, default: 1¶: Sets the upper voxel value if the module should work on an interval mask.

Update¶

name: update, type: Trigger, deprecated name: calculateStatistics¶: If pressed, the information fields are being updated.

Update Mode¶

name: updateMode, type: Enum, default: AutoUpdate, deprecated name: autoCompute,autoUpdate¶: If checked, the module updates its information fields on each parameter or input image change.

Values:

Title	Name	Deprecated Name
Update	AutoUpdate	TRUE
Clear	AutoClear	FALSE

Per Slice¶

name: perSlice, type: Bool, default: FALSE¶: If checked, the module computes the statistical information only on slice specified in Current Slice.

Current Slice¶

name: currentSlice, type: Integer, default: 0, minimum: 0¶: Sets the number of the slice the module should compute information for.

Results Valid¶

name: resultsValid, type: Bool, persistent: no¶: Shows whether the results are currently valid.

#Voxels out of range¶

name: voxelsOutOfRange, type: Integer, persistent: no¶: Shows the number of voxels in the image but not in the value interval set by Min and Max.

Total Voxels¶

name: totalVoxels, type: Integer, persistent: no, deprecated name: numVoxels¶: Shows the number of voxels in the whole image.

3DVolume (totalVolume)¶

name: totalVolume, type: Double, persistent: no, deprecated name: voxelVolume¶: Shows the volume in mm³ of the whole image.

Minimum (totalMinVal)¶

name: totalMinVal, type: Double, persistent: no, deprecated name: minVoxel¶: Shows the minimum value of the whole image.

Maximum (totalMaxVal)¶

name: totalMaxVal, type: Double, persistent: no, deprecated name: maxVoxel¶: Shows the maximum value of the whole image.

Sum (totalSum)¶

name: totalSum, type: Double, persistent: no¶: Shows the sum of the voxel values of the whole image.

Average (totalMean)¶

name: totalMean, type: Double, persistent: no, deprecated name: avrgVoxels¶: Shows the average value of the whole image.

Abs Average (totalAbsMean)¶

name: totalAbsMean, type: Double, persistent: no, deprecated name: absAvrgVoxels¶: Shows the absolute value of the average of all values in the whole image.

Variance (totalVariance)¶

name: totalVariance, type: Double, persistent: no, deprecated name: variance¶: Shows the variance value of the whole image.

Total Std Dev¶

name: totalStdDev, type: Double, persistent: no, deprecated name: stdDeviation¶: Shows the standard deviation of the values of the whole image.

X1 (bBoxX1)¶

name: bBoxX1, type: Integer, persistent: no¶: Shows the x-coordinate of the first corner of the bounding box of the whole image.

Y1 (bBoxY1)¶

name: bBoxY1, type: Integer, persistent: no¶: Shows the y-coordinate of the first corner of the bounding box of the whole image.

Z1 (bBoxZ1)¶

name: bBoxZ1, type: Integer, persistent: no¶: Shows the z-coordinate of the first corner of the bounding box of the whole image.

C1 (bBoxC1)¶

name: bBoxC1, type: Integer, persistent: no¶: Shows the c-coordinate of the first corner of the bounding box of the whole image.

T1 (bBoxT1)¶

name: bBoxT1, type: Integer, persistent: no¶: Shows the t-coordinate of the first corner of the bounding box of the whole image.

U1 (bBoxU1)¶

name: bBoxU1, type: Integer, persistent: no¶: Shows the u-coordinate of the first corner of the bounding box of the whole image.

X2 (bBoxX2)¶

name: bBoxX2, type: Integer, persistent: no¶: Shows the x-coordinate of the second corner of the bounding box of the whole image.

Y2 (bBoxY2)¶

name: bBoxY2, type: Integer, persistent: no¶: Shows the y-coordinate of the second corner of the bounding box of the whole image.

Z2 (bBoxZ2)¶

name: bBoxZ2, type: Integer, persistent: no¶: Shows the z-coordinate of the second corner of the bounding box of the whole image.

C2 (bBoxC2)¶

name: bBoxC2, type: Integer, persistent: no¶: Shows the c-coordinate of the second corner of the bounding box of the whole image.

T2 (bBoxT2)¶

name: bBoxT2, type: Integer, persistent: no¶: Shows the t-coordinate of the second corner of the bounding box of the whole image.

U2 (bBoxU2)¶

name: bBoxU2, type: Integer, persistent: no¶: Shows the u-coordinate of the second corner of the bounding box of the whole image.

Num Voxels (innerVoxels)¶

name: innerVoxels, type: Integer, persistent: no, deprecated name: numInnerVoxels¶: Shows the number of voxels within the value interval.

3DVolume (innerVolume)¶

name: innerVolume, type: Double, persistent: no, deprecated name: innerVoxelVolume¶: Shows the volume in mm³ within the value interval.

Minimum (innerMinVal)¶

name: innerMinVal, type: Double, persistent: no, deprecated name: minInnerVoxel¶: Shows the minimum value within the value interval.

Maximum (innerMaxVal)¶

name: innerMaxVal, type: Double, persistent: no, deprecated name: maxInnerVoxel¶: Shows the maximum value within the value interval.

Sum (innerSum)¶

name: innerSum, type: Double, persistent: no¶: Shows the sum of the voxel values within the value interval.

Average (innerMean)¶

name: innerMean, type: Double, persistent: no, deprecated name: avrgInnerVoxels¶: Shows the average value within the value interval.

Abs Average (innerAbsMean)¶

name: innerAbsMean, type: Double, persistent: no, deprecated name: absAvrgInnerVoxels¶: Shows the absolute value of the average of all values within the value interval.

Variance (innerVariance)¶

name: innerVariance, type: Double, persistent: no¶: Shows the variance value within the value interval.

Std Deviation (innerStdDev)¶

name: innerStdDev, type: Double, persistent: no, deprecated name: innerStdDeviation¶: Shows the standard deviation within the value interval.

X1 (bBoxInX1)¶

name: bBoxInX1, type: Integer, persistent: no¶: Shows the x-coordinate of the first corner of the bounding box of the voxels within the volume interval.

Y1 (bBoxInY1)¶

name: bBoxInY1, type: Integer, persistent: no¶: Shows the y-coordinate of the first corner of the bounding box of the voxels within the volume interval.

Z1 (bBoxInZ1)¶

name: bBoxInZ1, type: Integer, persistent: no¶: Shows the z-coordinate of the first corner of the bounding box of the voxels within the volume interval.

C1 (bBoxInC1)¶

name: bBoxInC1, type: Integer, persistent: no¶: Shows the c-coordinate of the first corner of the bounding box of the voxels within the volume interval.

T1 (bBoxInT1)¶

name: bBoxInT1, type: Integer, persistent: no¶: Shows the t-coordinate of the first corner of the bounding box of the voxels within the volume interval.

U1 (bBoxInU1)¶

name: bBoxInU1, type: Integer, persistent: no¶: Shows the u-coordinate of the first corner of the bounding box of the voxels within the volume interval.

X2 (bBoxInX2)¶

name: bBoxInX2, type: Integer, persistent: no¶: Shows the x-coordinate of the second corner of the bounding box of the voxels within the volume interval.

Y2 (bBoxInY2)¶

name: bBoxInY2, type: Integer, persistent: no¶: Shows the y-coordinate of the second corner of the bounding box of the voxels within the volume interval.

Z2 (bBoxInZ2)¶

name: bBoxInZ2, type: Integer, persistent: no¶: Shows the z-coordinate of the second corner of the bounding box of the voxels within the volume interval.

C2 (bBoxInC2)¶

name: bBoxInC2, type: Integer, persistent: no¶: Shows the c-coordinate of the second corner of the bounding box of the voxels within the volume interval.

T2 (bBoxInT2)¶

name: bBoxInT2, type: Integer, persistent: no¶: Shows the t-coordinate of the second corner of the bounding box of the voxels within the volume interval.

U2 (bBoxInU2)¶

name: bBoxInU2, type: Integer, persistent: no¶: Shows the u-coordinate of the second corner of the bounding box of the voxels within the volume interval.

Num Voxels (outerVoxels)¶

name: outerVoxels, type: Integer, persistent: no, deprecated name: numOuterVoxels¶: Shows the number of voxels outside the value interval.

3DVolume (outerVolume)¶

name: outerVolume, type: Double, persistent: no, deprecated name: outerVoxelVolume¶: Shows the volume in mm³ outside the value interval.

Minimum (outerMinVal)¶

name: outerMinVal, type: Double, persistent: no, deprecated name: minOuterVoxel¶: Shows the minimum value outside the value interval.

Maximum (outerMaxVal)¶

name: outerMaxVal, type: Double, persistent: no, deprecated name: maxOuterVoxel¶: Shows the maximum value outside the value interval.

Sum (outerSum)¶

name: outerSum, type: Double, persistent: no¶: Shows the sum of the voxel values outside the value interval.

Average (outerMean)¶

name: outerMean, type: Double, persistent: no, deprecated name: avrgOuterVoxels¶: Shows the average value outside the value interval.

Abs Average (outerAbsMean)¶

name: outerAbsMean, type: Double, persistent: no, deprecated name: absAvrgOuterVoxels¶: Shows the absolute value of the average of values outside the value interval.

Variance (outerVariance)¶

name: outerVariance, type: Double, persistent: no¶: Shows the variance value outside the value interval.

Std Deviation (outerStdDev)¶

name: outerStdDev, type: Double, persistent: no, deprecated name: outerStdDeviation¶: Shows the standard deviation outside the value interval.

X1 (bBoxOutX1)¶

name: bBoxOutX1, type: Integer, persistent: no¶: Shows the x-coordinate of the first corner of the bounding box of the voxels outside the volume interval.

Y1 (bBoxOutY1)¶

name: bBoxOutY1, type: Integer, persistent: no¶: Shows the y-coordinate of the first corner of the bounding box of the voxels outside the volume interval.

Z1 (bBoxOutZ1)¶

name: bBoxOutZ1, type: Integer, persistent: no¶: Shows the z-coordinate of the first corner of the bounding box of the voxels outside the volume interval.

C1 (bBoxOutC1)¶

name: bBoxOutC1, type: Integer, persistent: no¶: Shows the c-coordinate of the first corner of the bounding box of the voxels outside the volume interval.

T1 (bBoxOutT1)¶

name: bBoxOutT1, type: Integer, persistent: no¶: Shows the t-coordinate of the first corner of the bounding box of the voxels outside the volume interval.

U1 (bBoxOutU1)¶

name: bBoxOutU1, type: Integer, persistent: no¶: Shows the u-coordinate of the first corner of the bounding box of the voxels outside the volume interval.

X2 (bBoxOutX2)¶

name: bBoxOutX2, type: Integer, persistent: no¶: Shows the x-coordinate of the second corner of the bounding box of the voxels outside the volume interval.

Y2 (bBoxOutY2)¶

name: bBoxOutY2, type: Integer, persistent: no¶: Shows the y-coordinate of the second corner of the bounding box of the voxels outside the volume interval.

Z2 (bBoxOutZ2)¶

name: bBoxOutZ2, type: Integer, persistent: no¶: Shows the z-coordinate of the second corner of the bounding box of the voxels outside the volume interval.

C2 (bBoxOutC2)¶

name: bBoxOutC2, type: Integer, persistent: no¶: Shows the c-coordinate of the second corner of the bounding box of the voxels outside the volume interval.

T2 (bBoxOutT2)¶

name: bBoxOutT2, type: Integer, persistent: no¶: Shows the t-coordinate of the second corner of the bounding box of the voxels outside the volume interval.

U2 (bBoxOutU2)¶

name: bBoxOutU2, type: Integer, persistent: no¶: Shows the u-coordinate of the second corner of the bounding box of the voxels outside the volume interval.

Lower¶

name: lowerWidth, type: Double, default: 0, deprecated name: leftDelta¶: Sets the lower width value for adjacent intervals.

Num Voxels (lowerVoxels)¶

name: lowerVoxels, type: Integer, persistent: no, deprecated name: numLDeltaVoxels¶: Shows the number of voxels within the lower adjacent interval.

3DVolume (lowerVolume)¶

name: lowerVolume, type: Double, persistent: no, deprecated name: lDeltaVoxelVolume¶: Shows the volume in mm³ within the lower adjacent interval.

Minimum (lowerMinVal)¶

name: lowerMinVal, type: Double, persistent: no, deprecated name: minLDeltaVoxels¶: Shows the minimum value within the lower adjacent interval.

Maximum (lowerMaxVal)¶

name: lowerMaxVal, type: Double, persistent: no, deprecated name: maxLDeltaVoxels¶: Shows the maximum value within the lower adjacent interval.

Sum (lowerSum)¶

name: lowerSum, type: Double, persistent: no¶: Shows the sum of the voxel values within the lower adjacent interval.

Average (lowerMean)¶

name: lowerMean, type: Double, persistent: no, deprecated name: avrgLDeltaVoxels¶: Shows the average value within the lower adjacent interval.

Abs Average (lowerAbsMean)¶

name: lowerAbsMean, type: Double, persistent: no, deprecated name: absAvrgLDeltaVoxels¶: Shows the absolute value of values within the lower adjacent interval.

Variance (lowerVariance)¶

name: lowerVariance, type: Double, persistent: no, deprecated name: lDeltaVariance¶: Shows the variance within the lower adjacent interval.

Std Deviation (lowerStdDev)¶

name: lowerStdDev, type: Double, persistent: no, deprecated name: lDeltaStdDeviation¶: Shows the standard deviation within the lower adjacent interval.

X1 (bBoxLowX1)¶

name: bBoxLowX1, type: Integer, persistent: no, deprecated name: bBoxLeftDeltaX1¶: Shows the x-coordinate of the first corner of the bounding box of the voxels within the lower adjacent interval.

Y1 (bBoxLowY1)¶

name: bBoxLowY1, type: Integer, persistent: no, deprecated name: bBoxLeftDeltaY1¶: Shows the y-coordinate of the first corner of the bounding box of the voxels within the lower adjacent interval.

Z1 (bBoxLowZ1)¶

name: bBoxLowZ1, type: Integer, persistent: no, deprecated name: bBoxLeftDeltaZ1¶: Shows the z-coordinate of the first corner of the bounding box of the voxels within the lower adjacent interval.

C1 (bBoxLowC1)¶

name: bBoxLowC1, type: Integer, persistent: no¶: Shows the c-coordinate of the first corner of the bounding box of the voxels within the lower adjacent interval.

T1 (bBoxLowT1)¶

name: bBoxLowT1, type: Integer, persistent: no¶: Shows the t-coordinate of the first corner of the bounding box of the voxels within the lower adjacent interval.

U1 (bBoxLowU1)¶

name: bBoxLowU1, type: Integer, persistent: no¶: Shows the u-coordinate of the first corner of the bounding box of the voxels within the lower adjacent interval.

X2 (bBoxLowX2)¶

name: bBoxLowX2, type: Integer, persistent: no, deprecated name: bBoxLeftDeltaX2¶: Shows the x-coordinate of the second corner of the bounding box of the voxels within the lower adjacent interval.

Y2 (bBoxLowY2)¶

name: bBoxLowY2, type: Integer, persistent: no, deprecated name: bBoxLeftDeltaY2¶: Shows the y-coordinate of the second corner of the bounding box of the voxels within the lower adjacent interval.

Z2 (bBoxLowZ2)¶

name: bBoxLowZ2, type: Integer, persistent: no, deprecated name: bBoxLeftDeltaZ2¶: Shows the z-coordinate of the second corner of the bounding box of the voxels within the lower adjacent interval.

C2 (bBoxLowC2)¶

name: bBoxLowC2, type: Integer, persistent: no¶: Shows the c-coordinate of the second corner of the bounding box of the voxels within the lower adjacent interval.

T2 (bBoxLowT2)¶

name: bBoxLowT2, type: Integer, persistent: no¶: Shows the t-coordinate of the second corner of the bounding box of the voxels within the lower adjacent interval.

U2 (bBoxLowU2)¶

name: bBoxLowU2, type: Integer, persistent: no¶: Shows the u-coordinate of the second corner of the bounding box of the voxels within the lower adjacent interval.

Weight (lowerWeight)¶

name: lowerWeight, type: Double, persistent: no, deprecated name: lDeltaWeight¶: Shows the weight within the lower adjacent interval.

Upper¶

name: upperWidth, type: Double, default: 0, deprecated name: rightDelta¶: Sets the upper width value for adjacent intervals.

Num Voxels (upperVoxels)¶

name: upperVoxels, type: Integer, persistent: no, deprecated name: numRDeltaVoxels¶: Shows the number of voxels within the upper adjacent interval.

3DVolume (upperVolume)¶

name: upperVolume, type: Double, persistent: no, deprecated name: rDeltaVoxelVolume¶: Shows the volume in mm³ within the upper adjacent interval.

Minimum (upperMinVal)¶

name: upperMinVal, type: Double, persistent: no, deprecated name: minRDeltaVoxels¶: Shows the minimum value within the upper adjacent interval.

Maximum (upperMaxVal)¶

name: upperMaxVal, type: Double, persistent: no, deprecated name: maxRDeltaVoxels¶: Shows the maximum value within the upper adjacent interval.

Sum (upperSum)¶

name: upperSum, type: Double, persistent: no¶: Shows the sum of the voxel values within the upper adjacent interval.

Average (upperMean)¶

name: upperMean, type: Double, persistent: no, deprecated name: avrgRDeltaVoxels¶: Shows the average value within the upper adjacent interval.

Abs Average (upperAbsMean)¶

name: upperAbsMean, type: Double, persistent: no, deprecated name: absAvrgRDeltaVoxels¶: Shows the absolute value of the average value within the upper adjacent interval.

Variance (upperVariance)¶

name: upperVariance, type: Double, persistent: no, deprecated name: rDeltaVariance¶: Shows the variance value within the upper adjacent interval.

Std Deviation (upperStdDev)¶

name: upperStdDev, type: Double, persistent: no, deprecated name: rDeltaStdDeviation¶: Shows the standard deviation within the upper adjacent interval.

X1 (bBoxUpX1)¶

name: bBoxUpX1, type: Integer, persistent: no, deprecated name: bBoxRightDeltaX1¶: Shows the x-coordinate of the first corner of the bounding box of the voxels within the upper adjacent interval.

Y1 (bBoxUpY1)¶

name: bBoxUpY1, type: Integer, persistent: no, deprecated name: bBoxRightDeltaY1¶: Shows the y-coordinate of the first corner of the bounding box of the voxels within the upper adjacent interval.

Z1 (bBoxUpZ1)¶

name: bBoxUpZ1, type: Integer, persistent: no, deprecated name: bBoxRightDeltaZ1¶: Shows the z-coordinate of the first corner of the bounding box of the voxels within the upper adjacent interval.

C1 (bBoxUpC1)¶

name: bBoxUpC1, type: Integer, persistent: no¶: Shows the c-coordinate of the first corner of the bounding box of the voxels within the upper adjacent interval.

T1 (bBoxUpT1)¶

name: bBoxUpT1, type: Integer, persistent: no¶: Shows the t-coordinate of the first corner of the bounding box of the voxels within the upper adjacent interval.

U1 (bBoxUpU1)¶

name: bBoxUpU1, type: Integer, persistent: no¶: Shows the u-coordinate of the first corner of the bounding box of the voxels within the upper adjacent interval.

X2 (bBoxUpX2)¶

name: bBoxUpX2, type: Integer, persistent: no, deprecated name: bBoxRightDeltaX2¶: Shows the x-coordinate of the second corner of the bounding box of the voxels within the upper adjacent interval.

Y2 (bBoxUpY2)¶

name: bBoxUpY2, type: Integer, persistent: no, deprecated name: bBoxRightDeltaY2¶: Shows the y-coordinate of the second corner of the bounding box of the voxels within the upper adjacent interval.

Z2 (bBoxUpZ2)¶

name: bBoxUpZ2, type: Integer, persistent: no, deprecated name: bBoxRightDeltaZ2¶: Shows the z-coordinate of the second corner of the bounding box of the voxels within the upper adjacent interval.

C2 (bBoxUpC2)¶

name: bBoxUpC2, type: Integer, persistent: no¶: Shows the c-coordinate of the second corner of the bounding box of the voxels within the upper adjacent interval.

T2 (bBoxUpT2)¶

name: bBoxUpT2, type: Integer, persistent: no¶: Shows the t-coordinate of the second corner of the bounding box of the voxels within the upper adjacent interval.

U2 (bBoxUpU2)¶

name: bBoxUpU2, type: Integer, persistent: no¶: Shows the u-coordinate of the second corner of the bounding box of the voxels within the upper adjacent interval.

Weight (upperWeight)¶

name: upperWeight, type: Double, persistent: no, deprecated name: rDeltaWeight¶: Shows the Shows the weight within the upper adjacent interval.

Use Mask Image¶

name: useMask, type: Bool, default: FALSE, deprecated name: useMaskField¶: If checked, the module computes the statistics only at voxels with a value other than 0 in the second attached image.

Mask Status¶

name: maskStatus, type: String, persistent: no, deprecated name: maskStatusField¶: Shows the status of the mask image.

Hidden Fields¶

totalSquaredAverage¶

name: totalSquaredAverage, type: Double, persistent: no¶

innerSquaredAverage¶

name: innerSquaredAverage, type: Double, persistent: no, deprecated name: totalInnerSquaredAverage¶

innerMaxPosX¶

name: innerMaxPosX, type: Integer, persistent: no¶

innerMaxPosY¶

name: innerMaxPosY, type: Integer, persistent: no¶

innerMaxPosZ¶

name: innerMaxPosZ, type: Integer, persistent: no¶

innerMaxPosC¶

name: innerMaxPosC, type: Integer, persistent: no¶

innerMaxPosT¶

name: innerMaxPosT, type: Integer, persistent: no¶

innerMaxPosU¶

name: innerMaxPosU, type: Integer, persistent: no¶

innerMinPosX¶

name: innerMinPosX, type: Integer, persistent: no¶

innerMinPosY¶

name: innerMinPosY, type: Integer, persistent: no¶

innerMinPosZ¶

name: innerMinPosZ, type: Integer, persistent: no¶

innerMinPosC¶

name: innerMinPosC, type: Integer, persistent: no¶

innerMinPosT¶

name: innerMinPosT, type: Integer, persistent: no¶

innerMinPosU¶

name: innerMinPosU, type: Integer, persistent: no¶

outerSquaredAverage¶

name: outerSquaredAverage, type: Double, persistent: no, deprecated name: totalOuterSquaredAverage¶

outerMaxPosX¶

name: outerMaxPosX, type: Integer, persistent: no¶

outerMaxPosY¶

name: outerMaxPosY, type: Integer, persistent: no¶

outerMaxPosZ¶

name: outerMaxPosZ, type: Integer, persistent: no¶

outerMaxPosC¶

name: outerMaxPosC, type: Integer, persistent: no¶

outerMaxPosT¶

name: outerMaxPosT, type: Integer, persistent: no¶

outerMaxPosU¶

name: outerMaxPosU, type: Integer, persistent: no¶

outerMinPosX¶

name: outerMinPosX, type: Integer, persistent: no¶

outerMinPosY¶

name: outerMinPosY, type: Integer, persistent: no¶

outerMinPosZ¶

name: outerMinPosZ, type: Integer, persistent: no¶

outerMinPosC¶

name: outerMinPosC, type: Integer, persistent: no¶

outerMinPosT¶

name: outerMinPosT, type: Integer, persistent: no¶

outerMinPosU¶

name: outerMinPosU, type: Integer, persistent: no¶
