Purpose

The module MLToBitImage converts an ML input image to a ml.BitImage object which is provided at the Base output connector. The conversion from the non binary input data is done by applying a threshold interval to determine which voxels shall become true and which ones false in the output BitImage.

Usage

Connect an ML input image and set an interval which specifies the value range to be converted to true output values and which ones to false. If necessary, press Update to get the conversion result at the output.

Windows

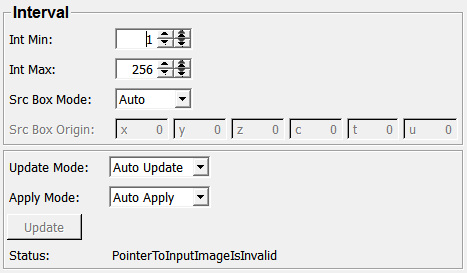

Default Panel

../../../Modules/ML/MLBitImageTools/mhelp/Images/Screenshots/MLToBitImage._default.png

Input Fields

input0

name: input0, type: Image

The input ML image to be converted.

Output Fields

outputBitImage

name: outputBitImage, type: BitImage(MLBase)

The converted BitImage.

Parameter Fields

Field Index

Apply Mode: Enum
Int Max: Double
Int Min: Double
Src Box Mode: Enum
Src Box Origin: IntVector6
Status: String
Update: Trigger
Update Mode: Enum

Visible Fields

Int Min

name: intMin, type: Double, default: 1

Sets the minimum (incl.) limit of the interval which defines true bit image values.

Int Max

name: intMax, type: Double, default: 256

Sets the maximum (excl.) limit of the interval which defines true bit image values.

Src Box Mode

name: srcBoxMode, type: Enum, default: Auto

Defines how the source box is to be set in the created BitImage.

Values:

Title Name Description
Auto Auto Uses the source box of the connected ML image as box.
Empty Empty Always sets an empty source box.
User User Set source box given by Src Box Origin and extent of the created BitImage.

Src Box Origin

name: srcBoxOrigin, type: IntVector6, default: 0 0 0 0 0 0

Shows the origin of the source box of the created BitImage if Src Box Mode is set to User.

Update Mode

name: updateMode, type: Enum, default: AutoUpdate

Defines what to do on input changes.

Values:

Title Name Description
Off Off Any change of the input image is ignored, the output image is left unchanged. This can be considered a caching mode.
Auto Update AutoUpdate On each change of the input image the output image is immediately updated.
Auto Clear AutoClear The output image is invalidated on any input change. The user needs to press Update to update the output when needed.

Apply Mode

name: applyMode, type: Enum, default: AutoApply

Defines what to do on parameter changes.

Values:

Title Name Description
Off Off Any parameter change is ignored, the output image is left unchanged. This can be considered a caching mode.
Auto Apply AutoApply On each change of any relevant parameter the output image is immediately updated.
Auto Clear AutoClear The output image is invalidated on any change of any relevant parameter. The user needs to press Update to update the output when needed.

Update

name: convert, type: Trigger

If pressed, the output image is updated to state of input image

Status

name: status, type: String, persistent: no

Shows some information about the current module state, e.g. error or to-do messages.
