MIPlaneDragger¶

MacroModule¶

genre	`Interaction`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
definition	MIPlaneDragger.def
see also	`SoPlaneDragger`, `SoMIDraggerContainer`
keywords	`translate`, `rotate`, `3d`, `scene`

Purpose¶

This is a replacement for SoPlaneDragger that uses Managed Interaction.

Usage¶

Same as SoPlaneDragger.

Details¶

Unlike SoPlaneDragger, interactive highlighting and changing of the mouse cursor is always on.

Tips¶

MIPlaneDragger is a macro module, which makes it easier to replace the geometry of the dragger.

Windows¶

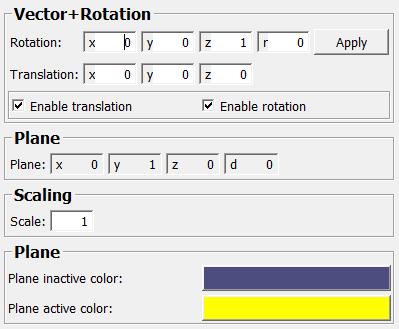

Default Panel¶

../../../Modules/Macros/ManagedInteractionDraggers/mhelp/Images/Screenshots/MIPlaneDragger._default.png

Output Fields¶

self¶

name: self, type: SoNode¶: The output scene.

Parameter Fields¶

Field Index¶

Active Color: Color

Enable Rotation: Bool

Enable Translation: Bool

Passive Color: Color

Plane: Plane

Rotation: Rotation

Scale: Double

Translation: Vector3

Visible Fields¶

Rotation¶

name: rotation, type: Rotation, default: 0 0 1 0¶: Sets the current rotation of the plane.

Translation¶

name: translation, type: Vector3, default: 0 0 0¶: Sets the current translation of the plane.

Enable Rotation¶

name: enableRotation, type: Bool, default: TRUE¶: If checked, the interactive rotation of the plane is enabled.

Enable Translation¶

name: enableTranslation, type: Bool, default: TRUE¶: If checked, the interactive translation of the plane is enabled.

Scale¶

name: scale, type: Double, default: 1¶: Sets the size of the plane for drawing in 3D.

Plane¶

name: plane, type: Plane, persistent: no¶: This is the plane resulting from Rotation and Translation.

Passive Color¶

name: passiveColor, type: Color, default: 0.3 0.3 0.5¶: Sets the color of the plane if the user does not interact with it.

Active Color¶

name: activeColor, type: Color, default: 1 1 0¶: Sets the color of the plane if user interacts with it.
