SoPlaneDragger

InventorModule

genre	Plane
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoUtils
definition	utils.def

Purpose

The module SoPlaneDragger displays a plane in 3D, which can be interactively translated and / or rotated.

Usage

Connect the output to a 3D viewer.

Details

Click into the inner portion of the plane to rotate it.

Click into the outer portion of the plane to translate it.

Windows

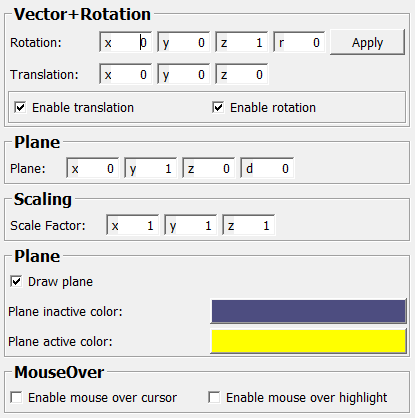

Default Panel

Output Fields

self

name: self, type: SoNode

The output scene.

Parameter Fields

Field Index

boundingBoxCaching: Enum	pickCulling: Enum	Translation: Vector3
Draw Plane: Bool	Plane: Plane
enable: Bool	Plane Active Color: Color
Enable Mouse Over Cursor: Bool	Plane Passiv Color: Color
Enable Mouse Over Highlight: Bool	renderCaching: Enum
Enable Rotation: Bool	renderCulling: Enum
Enable Translation: Bool	Rotation: Rotation
isActive: Bool	Scale Factor: Vector3

Visible Fields

Rotation

name: rotation, type: Rotation, default: 0 0 1 0

Sets and shows the current rotation of the plane.

Translation

name: translation, type: Vector3, default: 0 0 0

Sets and shows the current translation of the plane.

Scale Factor

name: scaleFactor, type: Vector3, default: 1 1 1

Sets the size of the plane for drawing in 3D.

Plane

name: plane, type: Plane, default: 0 1 0 0

Shows a representation of the plane.

Draw Plane

name: drawPlane, type: Bool, default: TRUE

If checked, the plane is drawn in passive mode.

Enable Translation

name: enableTranslation, type: Bool, default: TRUE

If checked, the interactive translation of the plane is enabled.

Enable Rotation

name: enableRotation, type: Bool, default: TRUE

If checked, the interactive rotation of the plane is enabled.

Enable Mouse Over Cursor

name: enableMouseOverCursor, type: Bool, default: FALSE

If checked, the cursor shape changes when over the plane.

Enable Mouse Over Highlight

name: enableMouseOverHighlight, type: Bool, default: FALSE

If checked, the plane is highlighted when the mouse cursor is over it.

Plane Passiv Color

name: planePassivColor, type: Color, default: 0.300000011920929 0.300000011920929 0.5

Sets the color of the plane when the user does not interact with it.

Plane Active Color

name: planeActiveColor, type: Color, default: 1 1 0

Sets the color of the plane when user interacts with it.

Hidden Fields

renderCaching

name: renderCaching, type: Enum, default: AUTO

Values:

Title	Name
​Off	​OFF
​On	​ON
​Auto	​AUTO

boundingBoxCaching

name: boundingBoxCaching, type: Enum, default: AUTO

Values:

Title	Name
​Off	​OFF
​On	​ON
​Auto	​AUTO

renderCulling

name: renderCulling, type: Enum, default: AUTO

Values:

Title	Name
​Off	​OFF
​On	​ON
​Auto	​AUTO

pickCulling

name: pickCulling, type: Enum, default: AUTO

Values:

Title	Name
​Off	​OFF
​On	​ON
​Auto	​AUTO

isActive

name: isActive, type: Bool, default: FALSE

enable

name: enable, type: Bool, default: TRUE
