SoMIDraggerContainer

InventorModule

genre	Interaction
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoManagedInteractionDraggers
definition	SoManagedInteractionDraggers.def
see also	SoMIRotateSphericalDragger, SoMIRotateDiscDragger, SoMIRotateCylindricalDragger, SoMITranslate1Dragger, SoMITranslate2Dragger
keywords	translate, rotate, 3d, scene

Purpose

The module SoMIDraggerContainer manages the transformation for the various Managed Interaction subdraggers.

Available draggers are SoMIRotateSphericalDragger, SoMIRotateDiscDragger, SoMIRotateCylindricalDragger, SoMITranslate1Dragger, SoMITranslate2Dragger.

Usage

Add the subdraggers to the Open Inventor scene below this node. Interaction with those draggers will automatically change the transformation values of this node (and the transformation for the scene below).

Windows

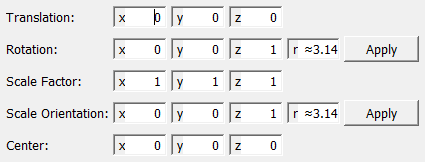

Default Panel

Input Fields

inScene

name: inScene, type: SoNode

Add the subdraggers here. If you have several of them, you need to use a SoGroup.

Output Fields

self

name: self, type: SoNode

The node itself. Note that this node is derived from SoSeparator and doesn’t provide the transformation for the rest of the scene. For this you must connect the transformation values to, e.g., a separate SoTransform.

Parameter Fields

Field Index

boundingBoxCaching: Enum	Translation: Vector3
Center: Vector3
pickCulling: Enum
renderCaching: Enum
renderCulling: Enum
Rotation: Rotation
Scale Factor: Vector3
Scale Orientation: Rotation

Visible Fields

Translation

name: translation, type: Vector3, default: 0 0 0

Sets and shows the translation. See SoTransform.translation.

Rotation

name: rotation, type: Rotation, default: 0 0 1 3.14159274101257

Sets and shows the rotation. See SoTransform.rotation.

Scale Factor

name: scaleFactor, type: Vector3, default: 1 1 1

Sets and shows the scale factor. See SoTransform.scaleFactor.

Scale Orientation

name: scaleOrientation, type: Rotation, default: 0 0 1 3.14159274101257

Sets and shows the scale orientation. See SoTransform.scaleOrientation.

Center

name: center, type: Vector3, default: 0 0 0

Sets and shows the center of rotation. See SoTransform.center.

Hidden Fields

renderCaching

name: renderCaching, type: Enum, default: AUTO

Values:

Title	Name
​On	​ON
​Off	​OFF
​Auto	​AUTO

boundingBoxCaching

name: boundingBoxCaching, type: Enum, default: AUTO

Values:

Title	Name
​On	​ON
​Off	​OFF
​Auto	​AUTO

renderCulling

name: renderCulling, type: Enum, default: AUTO

Values:

Title	Name
​On	​ON
​Off	​OFF
​Auto	​AUTO

pickCulling

name: pickCulling, type: Enum, default: AUTO

Values:

Title	Name
​On	​ON
​Off	​OFF
​Auto	​AUTO
