LocalMaxima¶

MLModule¶

genre	`Filters`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLKernel`
definition	MLKernel.def
see also	`Convolution`, `KernelEditor`, `KernelExample`, `Sigma`
keywords	`kernel`, `filter`, `thin`, `LocalMinima`, `LocalMinMax`, `extremum`, `minimum`, `maxima`, `minima`, `extrema`

Purpose¶

The module LocalMaxima calculates whether a voxel is a local maximum in a user-defined neighborhood (defined by the size of the kernel).

The output value of a voxel is 1 if there is no voxel with a greater value under the kernel; otherwise, the output value is 0.

Optionally, a threshold interval can be used to select a subset of voxels of the input image to which the filtering is applied. Another threshold interval can be used to limit the set of voxels used in each filtering. By using these intervals, filtering can be applied selectively to regions in the image and the influence of certain objects to the filtering itself can be avoided by excluding the corresponding voxels from the kernel.

Windows¶

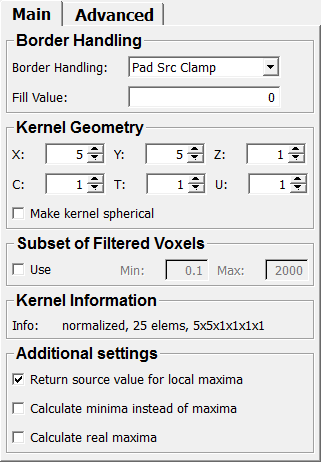

Default Panel¶

../../../Modules/ML/MLKernel/mhelp/Images/Screenshots/LocalMaxima._default.png

Input Fields¶

input0¶

name: input0, type: Image¶

Output Fields¶

output0¶

name: output0, type: Image¶

Parameter Fields¶

Field Index¶

`autoCalcMinMax`: `Bool`	`Max (intervalMaxOfFilteredVoxels)`: `Double`	`T`: `Integer`
`Border Handling`: `Enum`	`Max (intervalMaxOfVoxelsForFiltering)`: `Double`	`U`: `Integer`
`C`: `Integer`	`Min (intervalMinOfFilteredVoxels)`: `Double`	`Use (useExternalKernel)`: `Bool`
`Calculate minima instead of maxima`: `Bool`	`Min (intervalMinOfVoxelsForFiltering)`: `Double`	`Use (useIntervalOfFilteredVoxels)`: `Bool`
`Calculate real maxima`: `Bool`	`normalize`: `Bool`	`Use (useIntervalOfVoxelsForFiltering)`: `Bool`
`External Kernel`: `String`	`outputMax`: `Double`	`useMinMax`: `Bool`
`Fill Value`: `Double`	`outputMin`: `Double`	`X`: `Integer`
`Info`: `String`	`referenceExtentMode`: `Enum`	`Y`: `Integer`
`kernelOutput`: `String`	`Return source value for local maxima`: `Bool`	`Z`: `Integer`
`Make kernel spherical`: `Bool`	`setAutoMinMax`: `Trigger`

Visible Fields¶

Border Handling¶

name: borderHandling, type: Enum, default: PadSrcClamp, deprecated name: edgeMode¶

Defines the border handling mode.

See Border Handling in Kernel Operations for details.

Values:

Title	Name
No Pad	NoPad
Pad Src Fill	PadSrcFill
Pad Dst Fill	PadDstFill
Pad Dst Fill With Orig	PadDstFillWithOrig
Pad Src Undefined	PadSrcUndefined
Pad Dst Undefined	PadDstUndefined
Pad Src Clamp	PadSrcClamp

Fill Value¶

name: fillValue, type: Double, default: 0¶: Sets the fill value for certain Border Handling modes.

X¶

name: kernelX, type: Integer, default: 5, minimum: 1, maximum: 999¶: Sets the x-extent of the kernel.

Y¶

name: kernelY, type: Integer, default: 5, minimum: 1, maximum: 999¶: Sets the y-extent of the kernel.

Z¶

name: kernelZ, type: Integer, default: 1, minimum: 1, maximum: 999¶: Sets the z-extent of the kernel.

C¶

name: kernelC, type: Integer, default: 1, minimum: 1, maximum: 999¶: Sets the c-extent of the kernel.

T¶

name: kernelT, type: Integer, default: 1, minimum: 1, maximum: 999¶: Sets the t-extent of the kernel.

U¶

name: kernelU, type: Integer, default: 1, minimum: 1, maximum: 999¶: Sets the u-extent of the kernel.

Make kernel spherical¶

name: makeSpherical, type: Bool, default: FALSE¶: If checked, the used kernel is a spherical kernel, not a rectangular one.

External Kernel¶

name: externalKernel, type: String¶

Sets an external kernel as a string.

Use the module KernelEditor for editing the kernel or set the kernel by scripting.

Use (useExternalKernel)¶

name: useExternalKernel, type: Bool, default: FALSE¶: If checked, the optionally attached External Kernel is used.

Info¶

name: kernelInfo, type: String, persistent: no¶: Shows information about the used kernel.

Min (intervalMinOfFilteredVoxels)¶

name: intervalMinOfFilteredVoxels, type: Double, default: 0.1, deprecated name: ImageIntervalMin¶: Sets the minimum value threshold for outputting a subset of voxels.

Max (intervalMaxOfFilteredVoxels)¶

name: intervalMaxOfFilteredVoxels, type: Double, default: 2000, deprecated name: ImageIntervalMax¶: Sets the maximum value threshold for outputting a subset of voxels.

Use (useIntervalOfFilteredVoxels)¶

name: useIntervalOfFilteredVoxels, type: Bool, default: FALSE, deprecated name: UseImageInterval¶: If checked, the module outputs only on a subset of voxels defined by a value range.

Min (intervalMinOfVoxelsForFiltering)¶

name: intervalMinOfVoxelsForFiltering, type: Double, default: 30, deprecated name: KernelIntervalMin¶: Sets the minimum value threshold for operating on a subset of voxels.

Max (intervalMaxOfVoxelsForFiltering)¶

name: intervalMaxOfVoxelsForFiltering, type: Double, default: 50, deprecated name: KernelIntervalMax¶: Sets the maximum value threshold for operating on a subset of voxels.

Use (useIntervalOfVoxelsForFiltering)¶

name: useIntervalOfVoxelsForFiltering, type: Bool, default: FALSE, deprecated name: UseKernelInterval¶: If checked, the module operates only on a subset of voxels defined by a value range.

Return source value for local maxima¶

name: returnSourceValue, type: Bool, default: TRUE, deprecated name: returnSourceValueField¶: If checked, the module returns the original value of the voxel for local maxima; otherwise, it returns 1.

Calculate minima instead of maxima¶

name: calculateMinima, type: Bool, default: FALSE¶: If checked, the module searches for local minima instead of maxima.

Calculate real maxima¶

name: calculateRealMaxima, type: Bool, default: FALSE¶: If checked, a voxel is considered no local maximum if there is another voxel with the same value in the neighborhood defined by the kernel.

Hidden Fields¶

referenceExtentMode¶

name: referenceExtentMode, type: Enum, default: Overlap¶
