KeyFrameBox

MLModule

genre	Resample
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLResample1
definition	MLResample1.def
see also	PathToKeyFrame, MPRPath
keywords	bounding

Purpose

The module KeyFrameBox computes the bounding box of an attached ml.KeyFrameList.

Windows

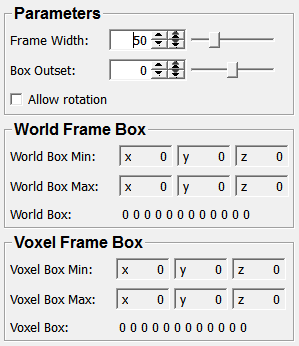

Default Panel

Input Fields

input0

name: input0, type: Image

Input reference image for obtaining a world matrix.

inputKeyFrames

name: inputKeyFrames, type: KeyFrameList(MLBase)

List of key frames to compute the bounding box.

For accessing this object via scripting, see the Scripting Reference: MLKeyFrameListWrapper.

Parameter Fields

Field Index

Allow Rotation: Bool	World Box Min: Vector3
Box Outset: Double
Frame Width: Double
Voxel Box: String
Voxel Box Max: Vector3
Voxel Box Min: Vector3
World Box: String
World Box Max: Vector3

Visible Fields

Frame Width

name: frameWidth, type: Double, default: 50, minimum: 0, maximum: 200

Sets the width of the key frames.

Box Outset

name: boxOutset, type: Double, default: 0, minimum: -10, maximum: 10

Sets an offset to change the keyframes’ size. The value can be positive or negative.

Allow Rotation

name: allowRotation, type: Bool, default: FALSE

If checked, the rotation of keyframes is taken into account.

World Box Min

name: worldBoxMin, type: Vector3, persistent: no

Shows the lower, front, left-hand corner of the bounding box in world coordinates.

World Box Max

name: worldBoxMax, type: Vector3, persistent: no

Shows the upper, rear, right-hand corner of the bounding box in world coordinates.

World Box

name: worldBox, type: String, persistent: no

Shows the bounding box in world coordinates as a space-separated list of scalars.

Voxel Box Min

name: voxelBoxMin, type: Vector3, persistent: no

Shows the lower, front, left-hand corner of the bounding box in voxel coordinates.

Voxel Box Max

name: voxelBoxMax, type: Vector3, persistent: no

Shows the upper, rear, right-hand corner of the bounding box in voxel coordinates.

Voxel Box

name: voxelBox, type: String, persistent: no

Shows the bounding box in voxel coordinates as a space-separated list of scalars.
