Implementation for AbstractPersistenceOutputStream using Xerces DOM Parser. More...

#include <mlXMLPersistenceStream.h>

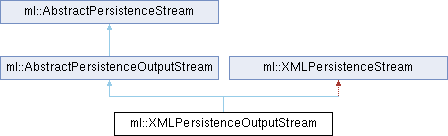

Inheritance diagram for ml::XMLPersistenceOutputStream:

Public Member Functions
	XMLPersistenceOutputStream ()
	this constructor creates a new XML document that can be written afterwards with writeToFile or writeToString More...

	XMLPersistenceOutputStream (DOMElement *container)
	this constructor takes an existing XML element - everything will be written relative to this element More...

virtual	~XMLPersistenceOutputStream ()
	this will free the XML document if the first constructor was used More...

virtual void	writeToFile (const std::string &fileName)
	Writes the complete tree to a file. More...

virtual void	writeToString (std::string &str)
	Writes the subtree rooted by this node to a string. More...

Public Member Functions inherited from ml::AbstractPersistenceOutputStream
	~AbstractPersistenceOutputStream () override=default

void	startStructWithVersion (int version, const char *name=nullptr)
	start a versioned struct More...

template<typename T >
void	write (const std::vector< T > &values, const char *name=nullptr)
	Write vectors of primitive values to the stream. More...

template<typename T , size_t n, class DataContainer >
void	write (const FloatingPointVector< T, n, DataContainer > &value, const char *name=nullptr)
	Write float vectors like vec3f to the stream. More...

template<typename T , size_t n>
void	write (const TVectorNDBase< T, n > &value, const char *name=nullptr)
	Write integer vectors like ImageVector to the stream. More...

template<typename T , size_t n>
void	write (const FloatingPointMatrix< T, n > &value, const char *name=nullptr)
	Write float matrices like mat4 to the stream. More...

virtual void	writeObject (const Base const obj, const char name=nullptr)
	Write a Base object to the stream. More...

virtual bool	isValidElementName (const char *name)
	check if name is valid for use with persistence entries (by default this checks if the name is valid for use as a XML tag, but implementations may relax - or tighten - this check) More...

virtual void	write (bool value, const char *name=nullptr)
	Write primitive values to the stream. More...

void	write (MLint32 value, const char *name=nullptr)

void	write (MLuint32 value, const char *name=nullptr)

void	write (MLint64 value, const char *name=nullptr)

void	write (MLuint64 value, const char *name=nullptr)

void	write (MLfloat value, const char *name=nullptr)

void	write (MLdouble value, const char *name=nullptr)

void	write (const std::string &value, const char *name=nullptr)

void	write (const char value, const char name=nullptr)

Public Member Functions inherited from ml::AbstractPersistenceStream
void	startList (const char name=nullptr, const char xmlItemName="Item", bool xmlSuppressScope=false)
	Start a new list of values in the data stream, must be ended with endList(). More...

void	endList ()
	End reading/writing of the list. More...

void	startStruct (const char *name=nullptr)
	Start a new struct of values in the data stream, must be ended with endStruct(). More...

void	endStruct ()
	End reading/writing of struct values. More...

bool	isBinary () const override
	overridden methods More...

void	writeString (const char *name, const std::string &value) override
	Abstract writing method that needs to be implemented by derived classes. More...

void	writeData (const void data, size_t len, const char name) override
	Write binary data to stream. More...

void	startListImpl (const char name, const char xmlItemName, bool xmlSuppressScope) override
	Abstract methods called by above methods, need to be implemented in derived classes. More...

void	endListImpl () override

void	startStructImpl (const char *name) override

void	endStructImpl () override

void	setObjectID (int id) override
	Implementation of Base object persistence, set attribute on currently open struct (implementation hint: these can be stored unnamed, if they are read or not is always deduced from the current state of the persistence stream)unique id for each pointer value - currently unused. More...

void	setObjectType (const char *type) override
	base type name More...

void	setObjectVersion (int version) override
	persistence version More...

void	writeValues (const char name, const MLint32 values, size_t n, bool fixedList) override
	Abstract writing methods that need to be implemented by derived classes. More...

void	writeValues (const char name, const MLuint32 values, size_t n, bool fixedList) override

void	writeValues (const char name, const MLint64 values, size_t n, bool fixedList) override

void	writeValues (const char name, const MLuint64 values, size_t n, bool fixedList) override

void	writeValues (const char name, const MLfloat values, size_t n, bool fixedList) override

void	writeValues (const char name, const MLdouble values, size_t n, bool fixedList) override

Additional Inherited Members
Protected Member Functions inherited from ml::AbstractPersistenceOutputStream
	AbstractPersistenceOutputStream ()

void	nameCheck (const char *name) override
	overriden to perform additional check in Debug mode if name is suitable for the persistence format (uses isValidElementName), prints an error if not More...

Protected Member Functions inherited from ml::AbstractPersistenceStream
	AbstractPersistenceStream ()

virtual	~AbstractPersistenceStream ()

bool	isInList () const
	Check if the stream is currently in "list" mode. Otherwise it is in "struct" mode. More...

size_t	nestingDepth () const
	return depth of nesting stack (created by startList/startStruct), used to check nesting rules More...

virtual void	internalError (const char msg, const char arg=nullptr)
	Log an internal error. Usually called to indicate wrong usage of interface. More...

Detailed Description

Implementation for AbstractPersistenceOutputStream using Xerces DOM Parser.

Definition at line 61 of file mlXMLPersistenceStream.h.

Constructor & Destructor Documentation

◆ XMLPersistenceOutputStream() [1/2]

ml::XMLPersistenceOutputStream::XMLPersistenceOutputStream ( )

this constructor creates a new XML document that can be written afterwards with writeToFile or writeToString

◆ XMLPersistenceOutputStream() [2/2]

ml::XMLPersistenceOutputStream::XMLPersistenceOutputStream ( DOMElement * container )

this constructor takes an existing XML element - everything will be written relative to this element

◆ ~XMLPersistenceOutputStream()

virtual ml::XMLPersistenceOutputStream::~XMLPersistenceOutputStream ( )

virtual

this will free the XML document if the first constructor was used

Member Function Documentation

◆ endListImpl()

void ml::XMLPersistenceOutputStream::endListImpl ( )

overrideprotectedvirtual

Implements ml::AbstractPersistenceStream.

◆ endStructImpl()

void ml::XMLPersistenceOutputStream::endStructImpl ( )

overrideprotectedvirtual

Implements ml::AbstractPersistenceStream.

◆ isBinary()

bool ml::XMLPersistenceOutputStream::isBinary ( ) const

inlineoverridevirtual

overridden methods

Implements ml::AbstractPersistenceStream.

Definition at line 83 of file mlXMLPersistenceStream.h.

◆ setObjectID()

void ml::XMLPersistenceOutputStream::setObjectID ( int id )

overrideprotectedvirtual

Implementation of Base object persistence, set attribute on currently open struct (implementation hint: these can be stored unnamed, if they are read or not is always deduced from the current state of the persistence stream)unique id for each pointer value - currently unused.

Implements ml::AbstractPersistenceOutputStream.

◆ setObjectType()

void ml::XMLPersistenceOutputStream::setObjectType ( const char * type )

overrideprotectedvirtual

base type name

Implements ml::AbstractPersistenceOutputStream.

◆ setObjectVersion()

void ml::XMLPersistenceOutputStream::setObjectVersion ( int version )

overrideprotectedvirtual

persistence version

Implements ml::AbstractPersistenceOutputStream.

◆ startListImpl()

void ml::XMLPersistenceOutputStream::startListImpl	(	const char *	name,
		const char *	xmlItemName,
		bool	xmlSuppressScope
	)

overrideprotectedvirtual

Abstract methods called by above methods, need to be implemented in derived classes.

Implementors don't need to do error checking.

xmlItemName and xmlSuppressScope only need to be regarded for XML format:

Implements ml::AbstractPersistenceStream.

◆ startStructImpl()

void ml::XMLPersistenceOutputStream::startStructImpl ( const char * name )

overrideprotectedvirtual

Implements ml::AbstractPersistenceStream.

◆ writeData()

void ml::XMLPersistenceOutputStream::writeData	(	const void *	data,
		size_t	len,
		const char *	name
	)

overridevirtual

Write binary data to stream.

Implements ml::AbstractPersistenceOutputStream.

◆ writeString()

void ml::XMLPersistenceOutputStream::writeString	(	const char *	name,
		const std::string &	value
	)

overridevirtual

Abstract writing method that needs to be implemented by derived classes.

Implements ml::AbstractPersistenceOutputStream.

◆ writeToFile()

virtual void ml::XMLPersistenceOutputStream::writeToFile ( const std::string & fileName )

virtual

Writes the complete tree to a file.

◆ writeToString()

virtual void ml::XMLPersistenceOutputStream::writeToString ( std::string & str )

virtual

Writes the subtree rooted by this node to a string.

◆ writeValues() [1/6]

void ml::XMLPersistenceOutputStream::writeValues	(	const char *	name,
		const MLdouble *	values,
		size_t	n,
		bool	fixedList
	)

overrideprotectedvirtual

Implements ml::AbstractPersistenceOutputStream.

◆ writeValues() [2/6]

void ml::XMLPersistenceOutputStream::writeValues	(	const char *	name,
		const MLfloat *	values,
		size_t	n,
		bool	fixedList
	)

overrideprotectedvirtual

Implements ml::AbstractPersistenceOutputStream.

◆ writeValues() [3/6]

void ml::XMLPersistenceOutputStream::writeValues	(	const char *	name,
		const MLint32 *	values,
		size_t	n,
		bool	fixedList
	)

overrideprotectedvirtual

Abstract writing methods that need to be implemented by derived classes.

fixedList tells the stream if the number of elements to write is fixed (and known when reading) or if it needs to be stored in the stream.

Implements ml::AbstractPersistenceOutputStream.

◆ writeValues() [4/6]

void ml::XMLPersistenceOutputStream::writeValues	(	const char *	name,
		const MLint64 *	values,
		size_t	n,
		bool	fixedList
	)

overrideprotectedvirtual

Implements ml::AbstractPersistenceOutputStream.

◆ writeValues() [5/6]

void ml::XMLPersistenceOutputStream::writeValues	(	const char *	name,
		const MLuint32 *	values,
		size_t	n,
		bool	fixedList
	)

overrideprotectedvirtual

Implements ml::AbstractPersistenceOutputStream.

◆ writeValues() [6/6]

void ml::XMLPersistenceOutputStream::writeValues	(	const char *	name,
		const MLuint64 *	values,
		size_t	n,
		bool	fixedList
	)

overrideprotectedvirtual

Implements ml::AbstractPersistenceOutputStream.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/ML/MLParser/mlXMLParser/mlXMLPersistenceStream.h
