This class represents an abstract hierarchical item model where the items have named attributes which can be queried and even modified. More...

#include <mlAbstractItemModel.h>

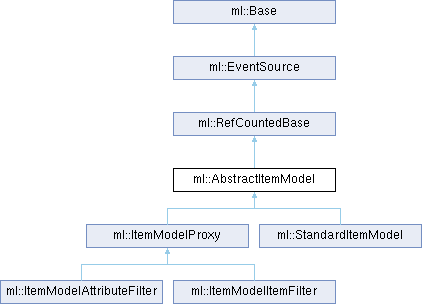

Inheritance diagram for ml::AbstractItemModel:

Public Member Functions

virtual bool	isFlat () const
	item traversal interface More...

virtual bool	hasChildren (const ModelIndex &parent)
	Or rather mightHaveChildren. More...

virtual unsigned int	getChildCount (const ModelIndex &parent)=0
	Returns the number of children of the given item, an invalid index means number of top-level items. More...

virtual ModelIndex	getChild (const ModelIndex &parent, unsigned int index)=0
	Returns the n-th child of an item (or n-th top-level item if parent index is invalid). More...

virtual ModelIndex	getParent (const ModelIndex &child)=0
	Returns the parent of an item. More...


virtual int	getAttributeCount () const =0
	Attribute discovery. More...

virtual std::string	getAttributeName (int index) const =0
	Returns the name of n-th attribute. Must be overridden. More...

virtual Variant	getAttributeDefault (int index) const
	Returns the default value of n-th attribute. More...

virtual int	getAttributeIndex (const std::string &name)
	Returns the index of attribute with the given name. More...


virtual Variant	getData (const ModelIndex &item, int attributeIndex)=0
	Data access. More...

virtual bool	setData (const ModelIndex &item, int attributeIndex, const Variant &data, void *skipListener=nullptr)
	Updates a single attribute on a single item. More...

virtual bool	bulkSetData (const std::vector< ModelIndex > &items, int attributeIndex, const Variant &data, void *skipListener=nullptr)
	This method will be used by views to set selection state to an attribute, so that we only get a single update notification. More...

virtual bool	bulkSetData (const std::vector< ModelIndex > &items, int attributeIndex, const std::vector< Variant > &data, void *skipListener=nullptr)
	This method can be used to update whole columns with varying data. More...

Public Member Functions inherited from ml::RefCountedBase
	RefCountedBase ()
	Constructor. More...

	RefCountedBase (const RefCountedBase &)
	Explicit copy constructor. More...

virtual void	incRefCount () const
	Increases the reference count. More...

virtual void	decRefCount () const
	Decreases the reference count (object will be deleted if the reference count is decremented to 0). More...

bool	isRefCountedBase () const override
	Returns whether the instance is derived from RefCountedBase. More...

Public Member Functions inherited from ml::EventSource
	EventSource ()

	EventSource (const EventSource &evSource)

	~EventSource () override

void	addEventListener (BaseEventCallback cb, void userData)
	Adds event listener callback to this Base object. More...

void	removeEventListener (BaseEventCallback cb, void userData)
	Removes event listener callback from this Base object. More...

bool	hasEventListeners () const
	Checks whether any event listeners have been added to this Base object; this can be used to skip the sendEvent call and the potentially expensive building of the event object altogether. More...

Public Member Functions inherited from ml::Base
	Base ()
	Constructor. More...

virtual	~Base ()
	Destructor. More...

virtual Base *	deepCopy () const
	Creates a deep copy of the given object. More...

bool	isOfAllowedType (const std::vector< const RuntimeType * > &types) const
	Checks whether this object's type is equal to or derived from one of the types given in the argument. More...

virtual std::string	detailString () const
	Returns a string describing this object. More...

virtual bool	implementsPersistence (PersistenceInterface) const
	Override this method to declare which persistence interfaces are implemented by your derived class. More...

virtual std::string	persistentState () const
	Returns a string describing the object's internal state. More...

virtual void	setPersistentState (const std::string &state)
	Restores the object's internal state from a string that had been previously generated using persistentState(). More...

virtual void	addStateToTree (TreeNode *) const
	Attaches the object state as children of the given parent node. More...

virtual void	readStateFromTree (TreeNode *)
	Reads the object state from the children of the given parent node. More...

virtual void	writeTo (AbstractPersistenceOutputStream *) const
	Writes the objects state to the data stream object. More...

virtual void	readFrom (AbstractPersistenceInputStream *, int)
	Reads the objects state from the data stream object. More...

Protected Member Functions
	AbstractItemModel ()

virtual bool	rawSetData (const ModelIndex &item, int attributeIndex, const Variant &data)=0
	This will be called by setData and bulkSetData, which will do the necessary notifications afterwards; `attributeIndex` does not need to be checked for valid range, this has already been done when this method is called. More...


ModelIndex	createIndex (void *data)

ModelIndex	createIndex (size_t data)


virtual void	incItemRefCount (void *)
	Implement this if the pointer in the model indices needs explicit reference counting. More...

virtual void	decItemRefCount (void *)


virtual void	notifyItemChanged (const ModelIndex &item, bool after, void *skipListener=nullptr)
	change notifications More...

virtual void	notifyItemsInserted (const ModelIndex &parent, unsigned int childIndex, unsigned int itemsInserted, bool after, void *skipListener=nullptr)
	Notifies listeners that an item gets/got additional children. More...

virtual void	notifyItemsRemoved (const ModelIndex &parent, unsigned int childIndex, unsigned int itemsRemoved, bool after, void *skipListener=nullptr)
	Notifies listeners that an item loses/lost additional children. More...

virtual void	notifyItemsDataChanged (const std::vector< ModelIndex > &items, const std::vector< int > &attributeIndices, void *skipListener=nullptr)
	Notifies listeners that attributes have changed on the given items. More...

Protected Member Functions inherited from ml::RefCountedBase
	~RefCountedBase () override
	Macro for the declaration of the runtime type system methods, defined in mlRuntimeSubClass.h. More...

Protected Member Functions inherited from ml::EventSource
void	sendEvent (BaseEvent event, void skipListener=nullptr)
	Macro for the declaration of the runtime type system methods, defined in mlRuntimeSubClass.h. More...

Friends
class	ItemModelProxy

class	ModelIndex

Additional Inherited Members
Public Types inherited from ml::Base
enum	PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
	This enum describes the different persistence interfaces available. More...

Static Public Member Functions inherited from ml::RefCountedBase
static void	updateReferenceCountingIfSupported (Base oldValue, Base newValue, bool &isRefCountedBase)
	Helper method that handles incrementing/decrementing of the reference count if base instances support it. More...

Protected Attributes inherited from ml::RefCountedBase
std::atomic_int_least32_t	_refCount
	Reference count. More...

Detailed Description

This class represents an abstract hierarchical item model where the items have named attributes which can be queried and even modified.

It has a notification system in place to inform about changes to the model. This is loosely modeled after the QAbstractItemModel class from Qt.

Definition at line 90 of file mlAbstractItemModel.h.

Constructor & Destructor Documentation

◆ AbstractItemModel()

ml::AbstractItemModel::AbstractItemModel ( )

inlineprotected

Definition at line 175 of file mlAbstractItemModel.h.

Member Function Documentation

◆ bulkSetData() [1/2]

virtual bool ml::AbstractItemModel::bulkSetData	(	const std::vector< ModelIndex > &	items,
		int	attributeIndex,
		const std::vector< Variant > &	data,
		void *	skipListener = `nullptr`
	)

virtual

This method can be used to update whole columns with varying data.

This will return false if not all changes were accepted. This will call rawSetData.

Reimplemented in ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ bulkSetData() [2/2]

virtual bool ml::AbstractItemModel::bulkSetData	(	const std::vector< ModelIndex > &	items,
		int	attributeIndex,
		const Variant &	data,
		void *	skipListener = `nullptr`
	)

virtual

This method will be used by views to set selection state to an attribute, so that we only get a single update notification.

This is important for remote handling. This will return false if not all changes were accepted. This will call rawSetData.

Reimplemented in ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ createIndex() [1/2]

ModelIndex ml::AbstractItemModel::createIndex ( size_t data )

protected

◆ createIndex() [2/2]

ModelIndex ml::AbstractItemModel::createIndex ( void * data )

protected

Creates a model index, either with a pointer value or with an integer value. Note: this does not call incItemRef.

◆ decItemRefCount()

virtual void ml::AbstractItemModel::decItemRefCount ( void * )

inlineprotectedvirtual

Reimplemented in ml::ItemModelProxy.

Definition at line 191 of file mlAbstractItemModel.h.

◆ getAttributeCount()

virtual int ml::AbstractItemModel::getAttributeCount ( ) const

pure virtual

Attribute discovery.

Returns the number of defined attributes for this model. Must be overridden.

Implemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ getAttributeDefault()

virtual Variant ml::AbstractItemModel::getAttributeDefault ( int index ) const

virtual

Returns the default value of n-th attribute.

This is used to conserve space during serialization of items. This method returns an invalid value by default.

Reimplemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ getAttributeIndex()

virtual int ml::AbstractItemModel::getAttributeIndex ( const std::string & name )

virtual

Returns the index of attribute with the given name.

Returns -1 if the attribute name does not exist in the model.

Reimplemented in ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ getAttributeName()

virtual std::string ml::AbstractItemModel::getAttributeName ( int index ) const

pure virtual

Returns the name of n-th attribute. Must be overridden.

Implemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ getChild()

virtual ModelIndex ml::AbstractItemModel::getChild	(	const ModelIndex &	parent,
		unsigned int	index
	)

pure virtual

Returns the n-th child of an item (or n-th top-level item if parent index is invalid).

Note: Do not call this before calling getChildCount on the parent, since this is the signal for the model that the children must really be provided! Must be overridden.

Implemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ getChildCount()

virtual unsigned int ml::AbstractItemModel::getChildCount ( const ModelIndex & parent )

pure virtual

Returns the number of children of the given item, an invalid index means number of top-level items.

This will be only called if the children are really accessed, so the children might be dynamically created the first time this method is called for an item. Must be overridden.

Implemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ getData()

virtual Variant ml::AbstractItemModel::getData	(	const ModelIndex &	item,
		int	attributeIndex
	)

pure virtual

Data access.

Returns the attribute value of a certain item. Must be overridden.

Implemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ getParent()

virtual ModelIndex ml::AbstractItemModel::getParent ( const ModelIndex & child )

pure virtual

Returns the parent of an item.

Will return invalid index for top-level items. Must be overridden.

Implemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ hasChildren()

virtual bool ml::AbstractItemModel::hasChildren ( const ModelIndex & parent )

virtual

Or rather mightHaveChildren.

This method tells us if an item has children - at least in principle. This is used to display the item as having children, even if it might turn out that is has none actually. The default for this method is to return true if getChildCount returns a number != 0 or if the model index is invalid.

Reimplemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ incItemRefCount()

virtual void ml::AbstractItemModel::incItemRefCount ( void * )

inlineprotectedvirtual

Implement this if the pointer in the model indices needs explicit reference counting.

Reimplemented in ml::ItemModelProxy.

Definition at line 190 of file mlAbstractItemModel.h.

◆ isFlat()

virtual bool ml::AbstractItemModel::isFlat ( ) const

inlinevirtual

item traversal interface

Returns a hint if this model is flat (in contrast to being hierarchical, i.e., if it will have subitems).

Reimplemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

Definition at line 99 of file mlAbstractItemModel.h.

◆ notifyItemChanged()

virtual void ml::AbstractItemModel::notifyItemChanged	(	const ModelIndex &	item,
		bool	after,
		void *	skipListener = `nullptr`
	)

protectedvirtual

change notifications

Notifies listeners that an items children have completely changed. This must be called once before the changed and once after the change (set second argument accordingly).

If a skipListener is specified, all event listeners with this value for userData are not notified of the change.

◆ notifyItemsDataChanged()

virtual void ml::AbstractItemModel::notifyItemsDataChanged	(	const std::vector< ModelIndex > &	items,
		const std::vector< int > &	attributeIndices,
		void *	skipListener = `nullptr`
	)

protectedvirtual

Notifies listeners that attributes have changed on the given items.

This must be called after the change.

If a skipListener is specified, all event listeners with this value for userData are not notified of the change.

◆ notifyItemsInserted()

virtual void ml::AbstractItemModel::notifyItemsInserted	(	const ModelIndex &	parent,
		unsigned int	childIndex,
		unsigned int	itemsInserted,
		bool	after,
		void *	skipListener = `nullptr`
	)

protectedvirtual

Notifies listeners that an item gets/got additional children.

This must be called once before the changed and once after the change (set second argument accordingly).

If a skipListener is specified, all event listeners with this value for userData are not notified of the change.

◆ notifyItemsRemoved()

virtual void ml::AbstractItemModel::notifyItemsRemoved	(	const ModelIndex &	parent,
		unsigned int	childIndex,
		unsigned int	itemsRemoved,
		bool	after,
		void *	skipListener = `nullptr`
	)

protectedvirtual

Notifies listeners that an item loses/lost additional children.

This must be called once before the changed and once after the change (set second argument accordingly).

If a skipListener is specified, all event listeners with this value for userData are not notified of the change.

◆ rawSetData()

virtual bool ml::AbstractItemModel::rawSetData	(	const ModelIndex &	item,
		int	attributeIndex,
		const Variant &	data
	)

protectedpure virtual

This will be called by setData and bulkSetData, which will do the necessary notifications afterwards; attributeIndex does not need to be checked for valid range, this has already been done when this method is called.

Implemented in ml::StandardItemModel, ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

◆ setData()

virtual bool ml::AbstractItemModel::setData	(	const ModelIndex &	item,
		int	attributeIndex,
		const Variant &	data,
		void *	skipListener = `nullptr`
	)

virtual

Updates a single attribute on a single item.

This will return false if the change was not accepted by the model. skipListener denotes an event listener which should not be notified of this change. This will call rawSetData, which must be overridden

Reimplemented in ml::ItemModelItemFilter, and ml::ItemModelAttributeFilter.

Friends And Related Function Documentation

◆ ItemModelProxy

friend class ItemModelProxy

friend

Definition at line 92 of file mlAbstractItemModel.h.

◆ ModelIndex

friend class ModelIndex

friend

Definition at line 173 of file mlAbstractItemModel.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Shared/MLItemModel/mlAbstractItemModel.h

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AbstractItemModel()

Member Function Documentation

◆ bulkSetData() [1/2]

◆ bulkSetData() [2/2]

◆ createIndex() [1/2]

◆ createIndex() [2/2]

◆ decItemRefCount()

◆ getAttributeCount()

◆ getAttributeDefault()

◆ getAttributeIndex()

◆ getAttributeName()

◆ getChild()

◆ getChildCount()

◆ getData()

◆ getParent()

◆ hasChildren()

◆ incItemRefCount()

◆ isFlat()

◆ notifyItemChanged()

◆ notifyItemsDataChanged()

◆ notifyItemsInserted()

◆ notifyItemsRemoved()

◆ rawSetData()

◆ setData()

Friends And Related Function Documentation

◆ ItemModelProxy

◆ ModelIndex
