	Chapter 11. Module Inspector

The Tree tab displays the module source file as an MDL tree structure.

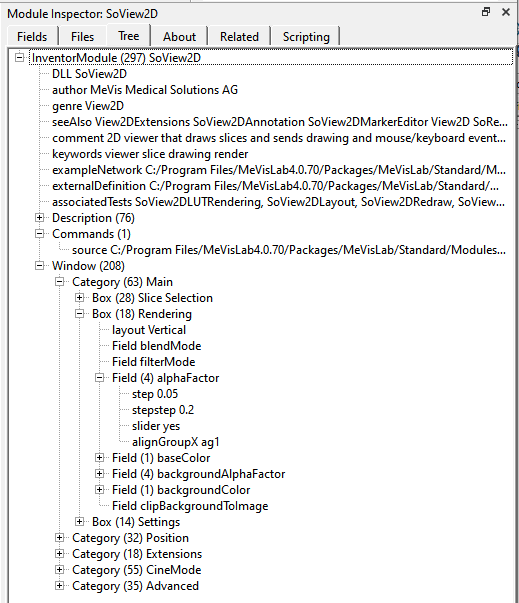

Figure 11.10. Module Inspector — Tree

11.3.1. Tree Context Menu

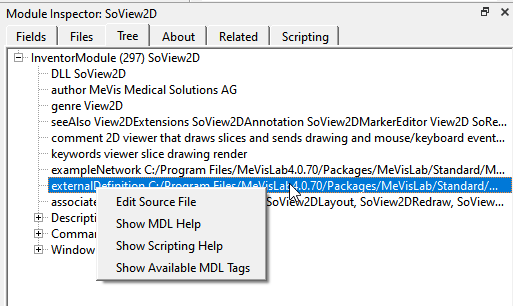

Figure 11.11. Module Inspector Tree Context Menu

Edit Source File

Opens the .def file in the default text editor.

Show MDL Help

Opens the MDL help (HTML) in the default web browser and jumps to the corresponding entry.

Show Scripting Help

Opens the Scripting help (HTML) in the default web browser and jumps to the corresponding entry.

Show Available MDL Tags

Opens a new window displaying a list of available tags and group tags, which depend on the module type.

The listed types of the MDL tags do not always correspond to the types listed in the MDL help. The MDL help lists simplified versions of the tag types.

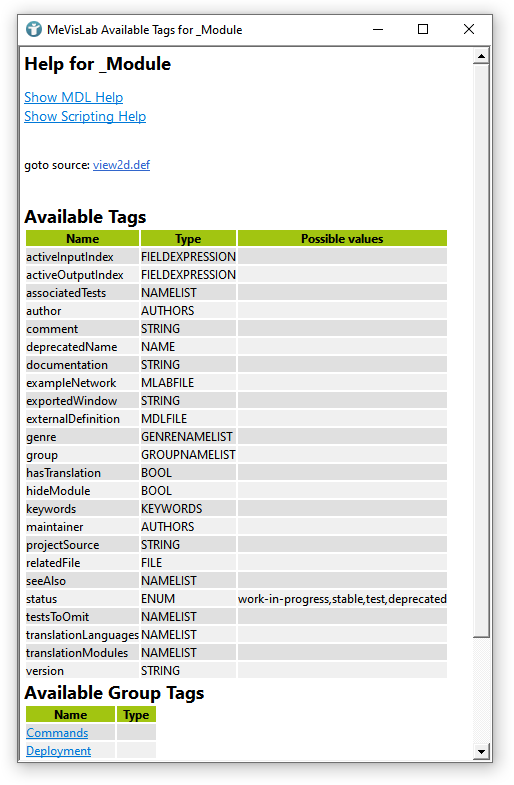

Figure 11.12. Show Available MDL Tags
