Kernel3In2OutExample¶

MLModule¶

genre	`Kernel`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Examples`
dll	`MLKernelExamples`
definition	MLKernelExamples.def
see also	`Convolution`, `ExtendedConvolution`, `Rank`, `Sigma`, `BitMorphology`, `Morphology`, `LoG`, `KernelEditor`, `StandardDeviation`
inherits from	`KernelExample`
keywords	`enhance`, `kernel`, `filter`

Purpose¶

This module is an example operator how to implement a convolution filter with multiple inputs and outputs.

It contains all options and parameters which are available from the KernelBaseOp and KernelOp classes.

Windows¶

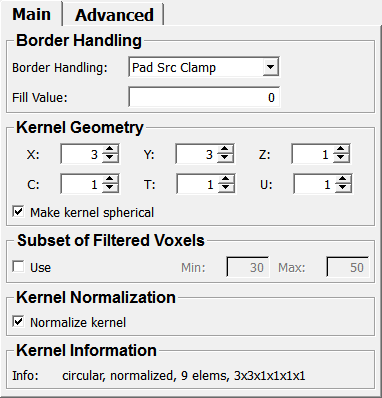

Default Panel¶

../../../Modules/ML/MLKernelExamples/mhelp/Images/Screenshots/Kernel3In2OutExample._default.png

Input Fields¶

input0¶

name: input0, type: Image¶

input1¶

name: input1, type: Image¶

input2¶

name: input2, type: Image¶

Output Fields¶

output0¶

name: output0, type: Image¶

output1¶

name: output1, type: Image¶

Parameter Fields¶

Field Index¶

`Border Handling`: `Enum`	`Max (intervalMaxOfVoxelsForFiltering)`: `Double`	`U`: `Integer`
`C`: `Integer`	`Maximum Value for Output Image`: `Double`	`Use (useExternalKernel)`: `Bool`
`Determine min/max from calculated pages`: `Bool`	`Min (intervalMinOfFilteredVoxels)`: `Double`	`Use (useIntervalOfFilteredVoxels)`: `Bool`
`Fill Value`: `Double`	`Min (intervalMinOfVoxelsForFiltering)`: `Double`	`Use (useIntervalOfVoxelsForFiltering)`: `Bool`
`Info`: `String`	`Minimum Value for Output Image`: `Double`	`Use min/max values for output image`: `Bool`
`Input`: `String`	`Normalize kernel`: `Bool`	`X`: `Integer`
`Kernel Output`: `String`	`numKernelElements`: `Integer`	`Y`: `Integer`
`kernelElementsSum`: `Double`	`referenceExtentMode`: `Enum`	`Z`: `Integer`
`Make kernel spherical`: `Bool`	`Set`: `Trigger`
`Max (intervalMaxOfFilteredVoxels)`: `Double`	`T`: `Integer`

Visible Fields¶

Border Handling¶

name: borderHandling, type: Enum, default: PadSrcClamp, deprecated name: edgeMode¶: Defines the border handling of the kernel operation.

Fill Value¶

name: fillValue, type: Double, default: 0¶: Sets a fill value that is used for filling the border in certain modes of Border Handling.

X¶

name: kernelX, type: Integer, default: 3¶: Sets the size of the kernel in x-direction.

Y¶

name: kernelY, type: Integer, default: 3¶: Sets the size of the kernel in y-direction.

Z¶

name: kernelZ, type: Integer, default: 1¶: Sets the size of the kernel in z-direction.

C¶

name: kernelC, type: Integer, default: 1¶: Sets the size of the kernel in c-direction.

T¶

name: kernelT, type: Integer, default: 1¶: Sets the size of the kernel in t-direction.

U¶

name: kernelU, type: Integer, default: 1¶: Sets the size of the kernel in u-direction.

Make kernel spherical¶

name: makeSpherical, type: Bool, default: TRUE¶

If checked, the used kernel has an approximately spherical shape.

Otherwise, the kernel has a rectangular shape.

Normalize kernel¶

name: normalize, type: Bool, default: TRUE, deprecated name: autoNormalize¶: If checked, the kernel values are normalized, so they all add up to 1.

Input¶

name: externalKernel, type: String, deprecated name: kernelInput¶: Sets a kernel from another module as a string.

Use (useExternalKernel)¶

name: useExternalKernel, type: Bool, default: FALSE¶: If checked, an attached external kernel is used.

Info¶

name: kernelInfo, type: String, persistent: no¶: Shows information about the module.

Kernel Output¶

name: kernelOutput, type: String, persistent: no¶: Shows the used kernel as a string.

Min (intervalMinOfFilteredVoxels)¶

name: intervalMinOfFilteredVoxels, type: Double, default: 30, deprecated name: ImageIntervalMin¶: Sets the minimum voxel value for the post-filtering interval.

Max (intervalMaxOfFilteredVoxels)¶

name: intervalMaxOfFilteredVoxels, type: Double, default: 50, deprecated name: ImageIntervalMax¶: Sets the maximum voxel value for the post-filtering interval.

Use (useIntervalOfFilteredVoxels)¶

name: useIntervalOfFilteredVoxels, type: Bool, default: FALSE, deprecated name: UseImageInterval¶: If checked, a post-filtering interval is defined by Min and Max.

Min (intervalMinOfVoxelsForFiltering)¶

name: intervalMinOfVoxelsForFiltering, type: Double, default: 30, deprecated name: KernelIntervalMin¶: Sets the minimum voxel value for the pre-filtering interval.

Max (intervalMaxOfVoxelsForFiltering)¶

name: intervalMaxOfVoxelsForFiltering, type: Double, default: 50, deprecated name: KernelIntervalMax¶: Sets the maximum voxel value for the pre-filtering interval.

Use (useIntervalOfVoxelsForFiltering)¶

name: useIntervalOfVoxelsForFiltering, type: Bool, default: FALSE, deprecated name: UseKernelInterval¶: If checked, a pre-filtering interval is defined by Min and Max.

Determine min/max from calculated pages¶

name: autoCalcMinMax, type: Bool, default: TRUE¶: If checked, the minimum and the maximum values of the output image is determined by all values of the actually filtered voxels.

Set¶

name: setAutoMinMax, type: Trigger¶: If pressed, the determined minimum and maximum values are set to the output image.

Minimum Value for Output Image¶

name: outputMin, type: Double, default: 1¶

Sets the minimum value for the output image manually.

NOTE: the actual image values MUST be within the minimum and maximum values in the image!

Maximum Value for Output Image¶

name: outputMax, type: Double, default: 0¶

Sets the maximum value for the output image manually.
