SoButtonEvent Class Reference
Errors

Base class for all button events. More...

#include <Inventor/events/SoButtonEvent.h>

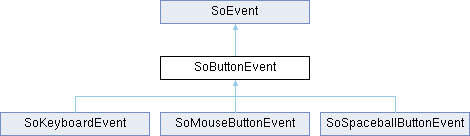

Inheritance diagram for SoButtonEvent:
SoEvent SoKeyboardEvent SoMouseButtonEvent SoSpaceballButtonEvent

Public Types

enum  State { UP , DOWN , UNKNOWN }

- Public Types inherited from SoEvent
enum  MouseButtonsMask {
  NO_MOUSEBUTTON_MASK = 0 , LEFT_MOUSEBUTTON_MASK = 1 , MIDDLE_MOUSEBUTTON_MASK = 2 , RIGHT_MOUSEBUTTON_MASK = 4 ,
  ALL_MOUSEBUTTONS_MASK = LEFT_MOUSEBUTTON_MASK + MIDDLE_MOUSEBUTTON_MASK + RIGHT_MOUSEBUTTON_MASK
}
 This describes the bit mask values of setButtonMask and getButtonMask. More...


Public Member Functions

 SoButtonEvent ()
 Constructor.

virtual ~SoButtonEvent ()

void setState (SoButtonEvent::State s)
 get state of the button

SoButtonEvent::State getState () const

- Public Member Functions inherited from SoEvent
 SoEvent ()
 Constructor and destructor.

virtual ~SoEvent ()
 Constructor and destructor.

virtual SoType getTypeId () const
 Return the type id for this event instance.

bool isOfType (SoType type) const
 This returns TRUE if the event is an instance of or derived from an event of the passed type.

void setTime (SbTime t)
 Set the time at which the event occurred.

SbTime getTime () const
 Get the time at which the event occurred.

void setPosition (const SbVec2s &p)
 Set the window pixel location of the cursor when the event occurred.

const SbVec2s & getPosition () const
 Get position in pixel coodinates.

const SbVec2s & getPosition (const SbViewportRegion &vpRgn) const
 Get position relative to the specified viewport bounds.

const SbVec2f & getNormalizedPosition (const SbViewportRegion &vpRgn) const
 Get the normalized location of the cursor when the event occurred, relative to the specified viewport region.

void setShiftDown (bool isDown)
 Set whether the modifier keys were down when the event occurred.

void setCtrlDown (bool isDown)
 Set whether the modifier keys were down when the event occurred.

void setAltDown (bool isDown)
 Set whether the modifier keys were down when the event occurred.

bool wasShiftDown () const
 Get whether the modifier keys were down when the event occurred.

bool wasCtrlDown () const
 Get whether the modifier keys were down when the event occurred.

bool wasAltDown () const
 Get whether the modifier keys were down when the event occurred.

void setMouseButtonMask (int mask)
 Get which mouse buttons are currently pressed (as bit mask)

int getMouseButtonMask () const
 Set which mouse buttons are currently pressed.


Static Public Member Functions

static void initClass ()

- Static Public Member Functions inherited from SoEvent
static SoType getClassTypeId ()
 Return the type id for the SoEvent class.

static void initClass ()
 Initializes base event class.

static void initClasses ()
 Initialize ALL Inventor event classes.


Detailed Description

SoButtonEvent represents generic button press and release events in the Inventor event model. It is the base class for device-specific button events, namely SoKeyboardEvent, SoMouseButtonEvent, and SoSpaceballButtonEvent. This class stores the down/up state of the button when the event occurred.

See Also
SoEvent, SoKeyboardEvent, SoLocation2Event, SoMotion3Event, SoMouseButtonEvent, SoSpaceballButtonEvent, SoHandleEventAction, SoEventCallback, SoSelection, SoInteraction

Definition at line 82 of file SoButtonEvent.h.

Member Enumeration Documentation

◆ State

enum SoButtonEvent::State
Enumerator
UP
DOWN
UNKNOWN

Definition at line 92 of file SoButtonEvent.h.

Constructor & Destructor Documentation

◆ SoButtonEvent()

SoButtonEvent::SoButtonEvent ( )

◆ ~SoButtonEvent()

virtual SoButtonEvent::~SoButtonEvent ( )
virtual

Member Function Documentation

◆ getState()

SoButtonEvent::State SoButtonEvent::getState ( ) const
inline

Definition at line 100 of file SoButtonEvent.h.

◆ initClass()

static void SoButtonEvent::initClass ( )
static

◆ setState()

void SoButtonEvent::setState ( SoButtonEvent::State  s)
inline

Definition at line 99 of file SoButtonEvent.h.

The documentation for this class was generated from the following file:
