RTStructToML

MLModule

authors	Alexander Köhn, Grzegorz Chlebus
package	FMEwork/ReleaseMeVis
dll	MLDcmtkMLConverterModules
definition	DcmtkMLConverterModules.def
see also	DirectDicomImport, RTStructInfo
keywords	RT, Dicom, converter, CSO, RTStruct

Purpose

This module converts DRTStructureSetIODBase object to ML structures. This module produces a CSOList as output by converting the DRTStructureSetROISequence and DRTROIContourSequence.

Tips

• Currently not all DcmStructures are converted.

• DcmElements of type DcmOtherByteOtherWord are not converted.

Windows

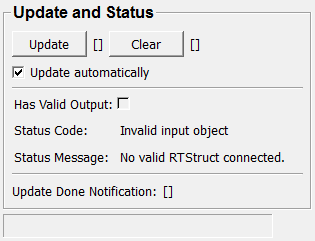

Default Panel

Input Fields

inRTStruct

name: inRTStruct, type: MLBase

Input Base object of DRTStructureSetIODBase type.

Output Fields

outCSOList

name: outCSOList, type: MLBase

Output CSOList.

Parameter Fields

Field Index

[]: Trigger

Clear: Trigger

Has Valid Output: Bool

progress: Float

Status Code: Enum

Status Message: String

Update: Trigger

Update automatically: Bool

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

Update automatically

name: shouldUpdateAutomatically, type: Bool, default: TRUE, deprecated name: shouldAutoUpdate

Declares how the module should react if any input field value changes. If set to True the output field values will be updated. Otherwise they will be cleared.

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Hidden Fields

progress

name: progress, type: Float, default: 0
