SoCSOManualCorrectionEditor

InventorModule

author	Frank Heckel
package	FMEstable/ReleaseMeVis
dll	SoCSOManualCorrectionEditor
definition	SoCSOManualCorrectionEditor.def
see also	SoView2DCSOExtensibleEditor, SoCSOVisualizationSettings, SoCSOSplineEditor, CSOManualCorrectionProcessor
keywords	CSO, contour, segmentation, editing, correction

Purpose

The module SoCSOManualCorrectionEditor renders all CSOs and provides to possibility to manually correct them.

Usage

Read the documentation of the SoView2DCSOExtensibleEditor on how to attach and parametrize editor modules.

Interaction

Click and move the mouse to draw a new CSOs. By releasing the mouse button, the first intersected CSO will be edited by the user-drawn one. If no CSO is intersected, the one closest to the first point of the user-drawn CSO is modified.

If Overwrite type is activated, the sub type of the result CSO is set to the editors Extension Id plus “_SUB_TYPE_PRIMARY”. This is also done for newly generated CSOs (i.e, if Generation Mode is set to Generate New). If Generate secondary is enabled, a second CSO in created that represents the changed region with respect to the initial CSO. For this CSO, “_SUB_TYPE_SECONDARY” is appended to the subtype. Newly generated closed contours will get Extension Id plus “_SUB_TYPE_CLOSED”.

Windows

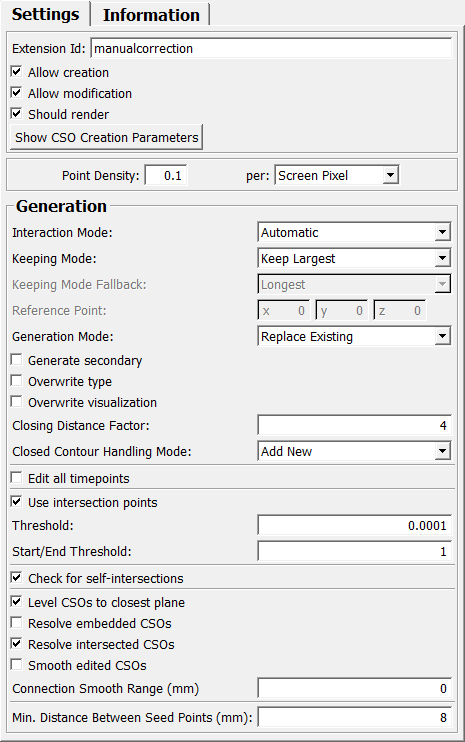

Main

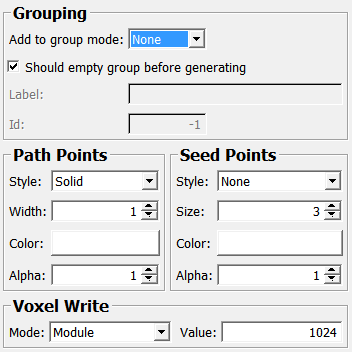

CSO Creation Parameters

Input Fields

inVisualizationSettings

name: inVisualizationSettings, type: CSOVisualizationSettings(MLBase)

Attach a SoCSOVisualizationSettings module to overwrite the visual settings of CSOs.

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

Add to group mode: Enum	insertSeedPointByClickingOnPathPointList: Bool	per: Enum
Allow Creation: Bool	insertSeedPointCursor: Enum	Plane normal: Vector3
Allow Modification: Bool	Interaction Mode: Enum	Point Density: Float
allowSeedPointInteraction: Bool	interactionForbiddenCursor: Enum	pointerPositionEpsilonForCreatingCSO: Integer
Alpha (defaultPathPointAlpha): Float	interpolationMode: Enum	Reference Point: Vector3
Alpha (defaultSeedPointAlpha): Float	Is closed: Bool	requirePointerPositionMovementToCreateCSO: Bool
Area: Double	Keeping Mode: Enum	Resolve embedded CSOs: Bool
canCloseCursor: Enum	Keeping Mode Fallback: Enum	Resolve intersected CSOs: Bool
Check for self-intersections: Bool	Label: String	selectionCursor: Enum
Closed Contour Handling Mode: Enum	labelPrefixString: String	Should Empty Group Before Generating: Bool
Closing Distance Factor: Float	Last Edited CSO Id: Integer	Should Render: Bool
Color (defaultPathPointColor): Color	Last Seed point: Vector3	shouldRenderAll: Bool
Color (defaultSeedPointColor): Color	Length: Double	Size: Float
Connection Smooth Range (mm): Float	Level CSOs to closest plane: Bool	Smooth edited CSOs: Bool
createCursor: Enum	Middle seed point: Vector3	Start/End Threshold: Float
csoIdUnderMouseCursor: Integer	Min. Distance Between Seed Points (mm): Float	Style (defaultPathPointStyle): Enum
Edit all timepoints: Bool	Mode: Enum	Style (defaultSeedPointStyle): Enum
Extension Id: String	moduleCreatorId: Integer	Threshold: Float
First seed point: Vector3	moduleCreatorString: String	Use intersection points: Bool
Generate secondary: Bool	moveAllCursor: Enum	Used Center Of Gravity: Vector3
generateSeedPointsWhileDragging: Bool	moveSeedCursor: Enum	Value: Float
Generation Mode: Enum	Overwrite type: Bool	Width: Float
Id: Integer	Overwrite visualization: Bool

Visible Fields

Extension Id

name: extensionId, type: String, default: manualcorrection

Sets an id string that is used to synchronize editors and to decide the currently active editor for creation.

Read the documentation of the SoView2DCSOExtensibleEditor for more information.

Allow Creation

name: allowCreation, type: Bool, default: TRUE

If checked, this module is allowed to create a new CSO.

Allow Modification

name: allowModification, type: Bool, default: TRUE

If checked, existing CSOs of the type of this editor can be modified.

Should Render

name: shouldRender, type: Bool, default: TRUE

If checked, this editor renders CSOs that were created by this editor.

Should Empty Group Before Generating

name: shouldEmptyGroupBeforeGenerating, type: Bool, default: TRUE

If checked, a target CSOGroup is emptied before adding a newly created CSO into it.

This option depends on the Add to group mode.

Add to group mode

name: addCSOToGroupMode, type: Enum, default: GROUP_NONE

Defines whether and how a newly created CSO is added to a CSOGroup.

Values:

Title	Name	Description
​None	​GROUP_NONE	​A newly created CSO is not added to any group.
​By Label	​GROUP_BY_LABEL	​A newly created CSO is added to a CSOGroup that is given by a label in Label. If a CSOGroup with the given label does not already exist, it is created before being filled. The label “” is invalid; adding a CSO to the CSOGroup with label “” means adding the CSO to no CSOGroup.
​By Id	​GROUP_BY_ID	​A newly created CSO is added to a CSOGroup that is given by an ID in Id. If a CSOGroup with the given ID does not already exist, it is created before being filled. The ID -1 is invalid; adding a CSO to the CSOGroup with ID -1 means adding the CSO to no CSOGroup.

Label

name: addCSOToGroupLabel, type: String

Sets a label for a group that should be associated with a newly created CSO.

Id

name: addCSOToGroupId, type: Integer, default: -1, minimum: -1

Sets an ID for a group that should be associated with a newly created CSO.

Style (defaultPathPointStyle)

name: defaultPathPointStyle, type: Enum, default: PATH_POINTS_STYLE_SOLID

Defines the path points style for the path point parts.

Values:

Title	Name
​None	​PATH_POINTS_STYLE_NONE
​Solid	​PATH_POINTS_STYLE_SOLID
​Dashed	​PATH_POINTS_STYLE_DASHED
​Dotted	​PATH_POINTS_STYLE_DOTTED
​Short Dashed	​PATH_POINTS_STYLE_SHORT_DASHED

Width

name: defaultPathPointWidth, type: Float, default: 1, minimum: 1, maximum: 8

Sets the line width of the parts of the path points.

Color (defaultPathPointColor)

name: defaultPathPointColor, type: Color, default: 1 1 1

Sets the color of the parts of the path points.

Alpha (defaultPathPointAlpha)

name: defaultPathPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets the alpha value of the parts of the path points.

Style (defaultSeedPointStyle)

name: defaultSeedPointStyle, type: Enum, default: SEED_POINT_STYLE_NONE

Defines the seed point style.

Values:

Title	Name
​None	​SEED_POINT_STYLE_NONE
​Rectangle	​SEED_POINT_STYLE_RECTANGLE
​Circle	​SEED_POINT_STYLE_CIRCLE
​Fixed Size Circle	​SEED_POINT_STYLE_FIXED_SIZE_CIRCLE

Size

name: defaultSeedPointSize, type: Float, default: 3, minimum: 1, maximum: 8

Sets the size of seed points in pixel on the current slice.

Color (defaultSeedPointColor)

name: defaultSeedPointColor, type: Color, default: 1 1 1

Sets the color of seed points.

Alpha (defaultSeedPointAlpha)

name: defaultSeedPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets the alpha value of seed points.

Mode

name: defaultVoxelWriteMode, type: Enum, default: VOXEL_WRITE_MODULE

Defines the default voxel write mode for newly created CSOs.

Values:

Title	Name	Deprecated Name	Description
​Id	​VOXEL_WRITE_ID	​VOXEL_VALUE_ID	​The CSO id is used as a voxel write value.
​Const	​VOXEL_WRITE_CONST	​VOXEL_VALUE_CONST	​A constant value is used as a voxel write value. This constant value is set by Value.
​Const Plus Id	​VOXEL_WRITE_CONST_PLUS_ID	​VOXEL_VALUE_CONST_PLUS_ID	​The CSO id added to the constant value is used as a voxel write value.
​Module	​VOXEL_WRITE_MODULE	​VOXEL_VALUE_MODULE	​The voxelizing module sets the voxel write value.

Value

name: defaultVoxelWriteValue, type: Float, default: 1024

Sets a constant value that is used as voxel write value or an offset of that.

per

name: pointDensityMode, type: Enum, default: DENSITY_SCREEN_PIXEL

Defines the unit for which a number of path points set in Point Density are generated.

A changed point density unit take effect for the next generated or edited CSO.

Values:

Title	Name	Description
​Screen Pixel	​DENSITY_SCREEN_PIXEL	​Path points are generated per screen pixel.
​Min Voxel Extent	​DENSITY_MIN_VOXEL_EXTENT	​Path points are generated per minimal voxel extent.
​Millimeter	​DENSITY_MILLIMETER	​Path points are generated per world distance in millimeter.

Point Density

name: densityFactor, type: Float, default: 0.1, minimum: 0.001, maximum: 10

Sets the number of path points that are generated for the unit set in the field per.

Edit all timepoints

name: editAllTimePoints, type: Bool, default: FALSE

If enabled, the editing affects all time points.

Interaction Mode

name: interactionMode, type: Enum, default: INTERACTION_AUTOMATIC

Defines which modifications should be applied.

Values:

Title	Name	Description
​Automatic	​INTERACTION_AUTOMATIC	​All modifications are considered (i.e., parts can be added, removed, or both with one interaction).
​Add	​INTERACTION_ADD	​Only added parts are considered for the final result (i.e., nothing is removed).
​Remove	​INTERACTION_REMOVE	​Only removed parts are considered for the final result (i.e., nothing is added).

Keeping Mode

name: keepingMode, type: Enum, default: KEEP_LARGEST

Defines which of the possible resulting CSOs should be kept.

Values:

Title	Name	Description
​Keep Longest	​KEEP_LONGEST	​Uses the length of the CSO.
​Keep Shortest	​KEEP_SHORTEST	​Uses the length of the CSO.
​Keep Largest	​KEEP_LARGEST	​Uses the area of the CSO.
​Keep Smallest	​KEEP_SMALLEST	​Uses the area of the CSO.
​Keep Center Of Gravity	​KEEP_CENTER_OF_GRAVITY	​Uses the center of gravity of the CSO, i.e., it is checked which CSO does contain the center of gravity of the original CSO.
​Dont Keep Center Of Gravity	​DONT_KEEP_CENTER_OF_GRAVITY	​Uses the center of gravity of the CSO, i.e., it is checked which CSO does not contain the center of gravity of the original CSO.
​Keep External Ref Point	​KEEP_EXTERNAL_REF_POINT	​Uses the externally given reference points Reference Point.
​Dont Keep External Ref Point	​DONT_KEEP_EXTERNAL_REF_POINT	​Uses the externally given reference points Reference Point.

Keeping Mode Fallback

name: keepingModeFallback, type: Enum, default: KEEP_LARGEST

Defines which of the possible resulting CSOs should be kept if a center-of-gravity-mode is selected as keepingMode and no resulting CSO contains the center of gravity.

Values:

Title	Name	Description
​Longest	​KEEP_LONGEST	​Uses the length of the CSO.
​Shortest	​KEEP_SHORTEST	​Uses the length of the CSO.
​Largest	​KEEP_LARGEST	​Uses the area of the CSO.
​Smallest	​KEEP_SMALLEST	​Uses the area of the CSO.

Reference Point

name: referencePoint, type: Vector3, default: 0 0 0

The optional reference point.

Generation Mode

name: generationMode, type: Enum, default: GENERATION_MODE_REPLACE_EXISTING

Defines if the existing CSOs should be modified (“Replace Existing”) or if new CSOs should be generated (“Generate New”).

Values:

Title	Name	Description
​Generate New	​GENERATION_MODE_GENERATE_NEW	​Adds a new CSO.
​Replace Existing	​GENERATION_MODE_REPLACE_EXISTING	​Replaces existing CSOs.

Generate secondary

name: generateSecondary, type: Bool, default: FALSE

If enabled, the secondary CSO is generated as well (i.e., the CSO that is not the result of the manual correction). See also Tips and Tricks.

Overwrite type

name: overwriteType, type: Bool, default: FALSE

If enabled, the type of the corrected CSO is set to “CSOManualCorrectionProcessor” and the subtype is set to “SUB_TYPE_PRIMARY”. See also Tips and Tricks.

Overwrite visualization

name: overwriteVisualization, type: Bool, default: FALSE

If enabled, the visualization of the corrected CSO is set to Style etc.

Closed Contour Handling Mode

name: closedContourHandlingMode, type: Enum, default: CLOSED_HANDLING_MODE_ADD_NEW

Defines how closed CSOs should be handled by the processor.

Values:

Title	Name	Description
​Ignore	​CLOSED_HANDLING_MODE_IGNORE	​Closed CSOs are ignored.
​Add New	​CLOSED_HANDLING_MODE_ADD_NEW	​Closed CSOs are added as new CSOs.
​Replace Closest	​CLOSED_HANDLING_MODE_REPLACE_CLOSEST	​Closed CSOs replace the closest CSO.

Closing Distance Factor

name: closingDistanceFactor, type: Float, default: 1, minimum: 0

Controls whether a sketch is handled as new cso or modifies existing contour.

The decision is based on the distance of the first sketch point to the cso and the distance between start and endpoint of the sketch. Large values mean that also distant csos can be modified using small strokes. A value of zero means that always a new contour is created.

Min. Distance Between Seed Points (mm)

name: minSeedPointDistance, type: Float, default: 8

Sets the distance of the current seed point to the first seed point. If the distance is less than this value, the contour can be closed.

Use intersection points

name: useIntersections, type: Bool, default: TRUE

Defines if the first and the last intersection point should be used when modifying a CSO. Otherwise the the start and the end point of the user drawn contour are used.

Threshold

name: intersectionThreshold, type: Float, default: 9.9999997e-05, minimum: 0

Threshold for intersection detection.

Start/End Threshold

name: intersectionThresholdStartAndEnd, type: Float, default: 1, minimum: 0

Threshold for considering the start- and end-point as intersecting.

Check for self-intersections

name: checkForSelfIntersections, type: Bool, default: TRUE

If enabled the editor tries to resolve self intersections. In this case, only the part with the largest area is kept (see also module CSOSplitSelfIntersection).

Level CSOs to closest plane

name: levelCSOs, type: Bool, default: TRUE

Enables leveling of the edited CSOs to the closest plane.

Resolve embedded CSOs

name: resolveEmbeddedCSOs, type: Bool, default: FALSE

If enabled, CSOs whose level of embedding has changed due to an interaction will be removed (i.e., contours that defined foreground and became holes as a result of the modification contours that were holes and which became foreground after interaction).

Resolve intersected CSOs

name: resolveIntersectedCSOs, type: Bool, default: FALSE

If enabled, contours that are intersected by the user-drawn contour are removed.

Smooth edited CSOs

name: smoothEditedCSOs, type: Bool, default: FALSE

If enabled, the edited CSO is smoothed.

Connection Smooth Range (mm)

name: connectionSmoothRange, type: Float, default: 0

Filters the pathpoints in the given range from the connecting points.

Is closed

name: inputCSOClosed, type: Bool, persistent: no

Was the user drawn CSO closed?

Length

name: inputCSOLength, type: Double, persistent: no

The length of the user drawn CSO.

Area

name: inputCSOArea, type: Double, persistent: no

The area of the user drawn CSO.

Plane normal

name: inputCSOPlaneNormal, type: Vector3, persistent: no

The normal of the user drawn CSO.

First seed point

name: inputCSOFirstSeedPoint, type: Vector3, persistent: no

The world position of the first seed point of the user drawn CSO.

Middle seed point

name: inputCSOMiddleSeedPoint, type: Vector3, persistent: no

The world position of the middle seed point of the user drawn CSO.

Last Seed point

name: inputCSOLastSeedPoint, type: Vector3, persistent: no

The world position of the last seed point of the user drawn CSO.

Last Edited CSO Id

name: lastEditedCSOId, type: Integer, persistent: no

The ID of the last edited CSO. In cases where a new CSO has been added or where the initial CSO has been deleted, this field contains the ID of the newly genereted CSO.

Used Center Of Gravity

name: usedCenterOfGravity, type: Vector3, persistent: no

The position of the center of gravity of the edited CSO, if the mode has been set to one of the center of gravity modes.

Hidden Fields

allowSeedPointInteraction

name: allowSeedPointInteraction, type: Bool, default: TRUE

selectionCursor

name: selectionCursor, type: Enum, default: POINTING_HAND_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

interactionForbiddenCursor

name: interactionForbiddenCursor, type: Enum, default: FORBIDDEN_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

csoIdUnderMouseCursor

name: csoIdUnderMouseCursor, type: Integer, persistent: no

moduleCreatorId

name: moduleCreatorId, type: Integer, default: 0

moduleCreatorString

name: moduleCreatorString, type: String, default: SoCSOManualCorrectionEditor

labelPrefixString

name: labelPrefixString, type: String, default: CSO

requirePointerPositionMovementToCreateCSO

name: requirePointerPositionMovementToCreateCSO, type: Bool, default: TRUE

pointerPositionEpsilonForCreatingCSO

name: pointerPositionEpsilonForCreatingCSO, type: Integer, default: 1

createCursor

name: createCursor, type: Enum, default: CROSS_FREEFORM_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

moveAllCursor

name: moveAllCursor, type: Enum, default: MOVE_ALL_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

moveSeedCursor

name: moveSeedCursor, type: Enum, default: CROSS_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

generateSeedPointsWhileDragging

name: generateSeedPointsWhileDragging, type: Bool, default: FALSE

insertSeedPointByClickingOnPathPointList

name: insertSeedPointByClickingOnPathPointList, type: Bool, default: TRUE

insertSeedPointCursor

name: insertSeedPointCursor, type: Enum, default: CROSS_PLUS_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

canCloseCursor

name: canCloseCursor, type: Enum, default: CROSS_LINK_CURSOR

Values:

Title	Name
​Undefined Cursor	​UNDEFINED_CURSOR
​Default Cursor	​DEFAULT_CURSOR
​Forbidden Cursor	​FORBIDDEN_CURSOR
​Pointing Hand Cursor	​POINTING_HAND_CURSOR
​Open Hand Cursor	​OPEN_HAND_CURSOR
​Closed Hand Cursor	​CLOSED_HAND_CURSOR
​Move All Cursor	​MOVE_ALL_CURSOR
​Move Hori Cursor	​MOVE_HORI_CURSOR
​Move Vert Cursor	​MOVE_VERT_CURSOR
​Move Fdiag Cursor	​MOVE_FDIAG_CURSOR
​Move Bdiag Cursor	​MOVE_BDIAG_CURSOR
​Move Inout Cursor	​MOVE_INOUT_CURSOR
​Rotate X Cursor	​ROTATE_X_CURSOR
​Rotate Y Cursor	​ROTATE_Y_CURSOR
​Rotate Z Cursor	​ROTATE_Z_CURSOR
​Rotate Xy Cursor	​ROTATE_XY_CURSOR
​Zoom Cursor	​ZOOM_CURSOR
​Zoom In Cursor	​ZOOM_IN_CURSOR
​Zoom Out Cursor	​ZOOM_OUT_CURSOR
​Cross Cursor	​CROSS_CURSOR
​Cross Plus Cursor	​CROSS_PLUS_CURSOR
​Cross Minus Cursor	​CROSS_MINUS_CURSOR
​Cross Move Cursor	​CROSS_MOVE_CURSOR
​Cross Rotate Cursor	​CROSS_ROTATE_CURSOR
​Cross Rect Cursor	​CROSS_RECT_CURSOR
​Cross Oval Cursor	​CROSS_OVAL_CURSOR
​Cross Vector Cursor	​CROSS_VECTOR_CURSOR
​Cross Freeform Cursor	​CROSS_FREEFORM_CURSOR
​Cross Point Cursor	​CROSS_POINT_CURSOR
​Cross Line Cursor	​CROSS_LINE_CURSOR
​Cross Curve Cursor	​CROSS_CURVE_CURSOR
​Cross Polyline Cursor	​CROSS_POLYLINE_CURSOR
​Cross Polygon Cursor	​CROSS_POLYGON_CURSOR
​Cross Fill Cursor	​CROSS_FILL_CURSOR
​Cross Link Cursor	​CROSS_LINK_CURSOR
​Cross 0 Cursor	​CROSS_0_CURSOR
​Cross 1 Cursor	​CROSS_1_CURSOR
​Cross 2 Cursor	​CROSS_2_CURSOR
​Cross 3 Cursor	​CROSS_3_CURSOR
​Cross 4 Cursor	​CROSS_4_CURSOR
​Cross 5 Cursor	​CROSS_5_CURSOR
​Cross 6 Cursor	​CROSS_6_CURSOR
​Cross 7 Cursor	​CROSS_7_CURSOR
​Cross 8 Cursor	​CROSS_8_CURSOR
​Cross 9 Cursor	​CROSS_9_CURSOR
​Lut Cursor	​LUT_CURSOR
​Lut 1 Cursor	​LUT_1_CURSOR
​Lut 2 Cursor	​LUT_2_CURSOR
​Lut 3 Cursor	​LUT_3_CURSOR
​Slicing Cursor	​SLICING_CURSOR
​Other Cursor 0	​OTHER_CURSOR_0
​Other Cursor 1	​OTHER_CURSOR_1
​Other Cursor 2	​OTHER_CURSOR_2
​Other Cursor 3	​OTHER_CURSOR_3
​Other Cursor 4	​OTHER_CURSOR_4
​Other Cursor 5	​OTHER_CURSOR_5
​Other Cursor 6	​OTHER_CURSOR_6
​Other Cursor 7	​OTHER_CURSOR_7
​Other Cursor 8	​OTHER_CURSOR_8
​Other Cursor 9	​OTHER_CURSOR_9
​Other Cursor 10	​OTHER_CURSOR_10
​Other Cursor 11	​OTHER_CURSOR_11
​Other Cursor 12	​OTHER_CURSOR_12
​Other Cursor 13	​OTHER_CURSOR_13
​Other Cursor 14	​OTHER_CURSOR_14
​Other Cursor 15	​OTHER_CURSOR_15
​Other Cursor 16	​OTHER_CURSOR_16
​Other Cursor 17	​OTHER_CURSOR_17
​Other Cursor 18	​OTHER_CURSOR_18
​Other Cursor 19	​OTHER_CURSOR_19
​Other Cursor 20	​OTHER_CURSOR_20
​Other Cursor 21	​OTHER_CURSOR_21
​Other Cursor 22	​OTHER_CURSOR_22
​Other Cursor 23	​OTHER_CURSOR_23
​Other Cursor 24	​OTHER_CURSOR_24
​Other Cursor 25	​OTHER_CURSOR_25
​Other Cursor 26	​OTHER_CURSOR_26
​Other Cursor 27	​OTHER_CURSOR_27
​Other Cursor 28	​OTHER_CURSOR_28
​Other Cursor 29	​OTHER_CURSOR_29
​Other Cursor 30	​OTHER_CURSOR_30
​Other Cursor 31	​OTHER_CURSOR_31
​Other Cursor 32	​OTHER_CURSOR_32
​Other Cursor 33	​OTHER_CURSOR_33
​Other Cursor 34	​OTHER_CURSOR_34
​Other Cursor 35	​OTHER_CURSOR_35
​Other Cursor 36	​OTHER_CURSOR_36
​Other Cursor 37	​OTHER_CURSOR_37
​Other Cursor 38	​OTHER_CURSOR_38
​Other Cursor 39	​OTHER_CURSOR_39
​Other Cursor 40	​OTHER_CURSOR_40
​Other Cursor 41	​OTHER_CURSOR_41
​Other Cursor 42	​OTHER_CURSOR_42
​Other Cursor 43	​OTHER_CURSOR_43
​Other Cursor 44	​OTHER_CURSOR_44
​Other Cursor 45	​OTHER_CURSOR_45
​Other Cursor 46	​OTHER_CURSOR_46
​Other Cursor 47	​OTHER_CURSOR_47
​Other Cursor 48	​OTHER_CURSOR_48
​Other Cursor 49	​OTHER_CURSOR_49
​Other Cursor 50	​OTHER_CURSOR_50
​Other Cursor 51	​OTHER_CURSOR_51
​Other Cursor 52	​OTHER_CURSOR_52
​Other Cursor 53	​OTHER_CURSOR_53
​Other Cursor 54	​OTHER_CURSOR_54
​Other Cursor 55	​OTHER_CURSOR_55
​Other Cursor 56	​OTHER_CURSOR_56
​Other Cursor 57	​OTHER_CURSOR_57
​Other Cursor 58	​OTHER_CURSOR_58
​Other Cursor 59	​OTHER_CURSOR_59
​Other Cursor 60	​OTHER_CURSOR_60
​Other Cursor 61	​OTHER_CURSOR_61
​Other Cursor 62	​OTHER_CURSOR_62
​Other Cursor 63	​OTHER_CURSOR_63
​Other Cursor 64	​OTHER_CURSOR_64
​Other Cursor 65	​OTHER_CURSOR_65
​Other Cursor 66	​OTHER_CURSOR_66
​Other Cursor 67	​OTHER_CURSOR_67
​Other Cursor 68	​OTHER_CURSOR_68
​Other Cursor 69	​OTHER_CURSOR_69
​Blank Cursor	​BLANK_CURSOR

shouldRenderAll

name: shouldRenderAll, type: Bool, default: TRUE

interpolationMode

name: interpolationMode, type: Enum, default: SPLINE_APPROXIMATION

Values:

Title	Name
​Linear Interpolation	​LINEAR_INTERPOLATION
​Spline Interpolation	​SPLINE_INTERPOLATION
​Spline Approximation	​SPLINE_APPROXIMATION
