MultiFileVolumeListFIDOutput¶
-
MLModule¶ genre DICOM, MultiFileVolumeListauthor Wolf Spindlerpackage FMEstable/ReleaseMeVisdll MLMultiFileVolumeListOutputsdefinition MLMultiFileVolumeListOutputs.def see also DicomFIDSave,DirectDicomImport,MultiFileVolumeListBaseOutput,MultiFileVolumeListImageOutput,MultiFileVolumeListRTOutput,MultiFileVolumeListSROutput,FileListFilterPlugininherits from MultiFileVolumeListBaseOutputkeywords DICOM,DCM,import,load,read,fiducials,landmarks,selections,xmarkerlists
Purpose¶
The MultiFileVolumeListFIDOutput provides an XMarkerList output for a MultiFileVolumeList either from a connected DirectDicomImport module or loaded from a cache file. Other modules providing base connectors containing MultiFileVolumeList outputs of course can also be used as input.
A volume from the connected or loaded list can be selected with Volume Index and if it contains DICOM fiducial objects they are converted to an XMarkerList output. Additional textual information is shown in many fields which allows the inspection of DICOM tags and further volume information.
Input Fields¶
inputAccessConnector¶
-
name:inputAccessConnector, type:MLBase¶ The connector to connect
MultiFileVolumeListFIDOutputwith aDirectDicomImportmodule. If not connected the volume list can be read from a cache file alternatively. This can be switched withUse Base Input.
Output Fields¶
outXMarkerList¶
-
name:outXMarkerList, type:MLBase¶ If the currently selected volume is a DICOM volume and is of modality FID then the fiducial information from that volumes is converted to an XMarkerList provided at this output connector. If it is no DICOM volume of if it does not contain valid or convertible fiducial information then this connector will be invalid.
Parameter Fields¶
Field Index¶
Annotate: Bool |
Num shown binary bytes: Integer |
Volume Info Dump: String |
Auto Load Result Cache: Bool |
Number of volumes: Integer |
|
Cache File Path: String |
Tag Dump: String |
|
Dump Private Tag Values: Bool |
Tag Dump Size: Integer |
|
Filter: String |
updateBaseOutputInformationDone: Trigger |
|
Info: String |
updateFIDOutputInformationDone: Trigger |
|
issues: String |
Use Base Input: Bool |
|
Load Result Cache: Trigger |
Volume Index: Integer |

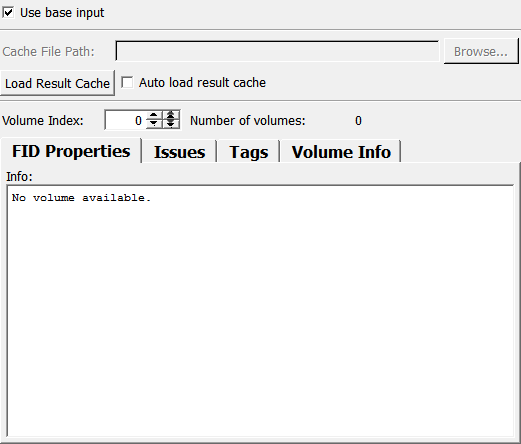

Visible Fields¶
Use Base Input¶
-
name:useBaseInput, type:Bool, default:TRUE¶ If enabled then the volume is read from the DirectDicomImport module connected to the base input; otherwise the specified cache file is read.
Load Result Cache¶
-
name:loadResultCache, type:Trigger¶ Loads a volume list from cached result volume.
Auto Load Result Cache¶
-
name:autoLoadResultCache, type:Bool, default:FALSE¶ If enabled then the cache file is loaded automatically from file.
Volume Index¶
-
name:outVolIdx, type:Integer, default:0, minimum:-1¶ Sets the index of the volume currently selected in the volume list, -1 -1 invalidates the selected volume and
outXMarkerList.
Number of volumes¶
-
name:numVolumes, type:Integer, default:0¶ This read-only field shows number of available volumes.
Volume Info Dump¶
-
name:volumeInfoDump, type:String, persistent:no¶ Shows a collection of available information about the currently selected volume.
Tag Dump Size¶
-
name:tagDumpSize, type:Integer, default:10000¶ Maximum number of characters shown in the ‘Tag Dump’ field. Too large values can degrade performance when viewing the DICOM tag list.
Dump Private Tag Values¶
-
name:dumpPrivateTagValues, type:Bool, default:FALSE¶ If enabled then values of private tags are decoded if decoders are available.
Num shown binary bytes¶
-
name:numShownBinaryEntries, type:Integer, default:8¶ Number of shown entries of binary tags.
see also MultiFileVolumeListBaseOutput.numShownBinaryEntries
Annotate¶
-
name:annotate, type:Bool, default:FALSE¶ If enabled then tags are annotated with further descriptive information such as possible types (1=Mandatory, 1C=Conditionally Mandatory, 2=Mandatory, may have zero or one item, 2C=Conditionally Mandatory, but may be empty, 3=Optional) and possible meanings of the tag. Note that no context analysis is performed for that information and therefore all possible and perhaps redundant meanings are shown.
Filter¶
-
name:regExLineFilter, type:String¶ If not empty then the regular expression is used to filter all lines of the tag dump. Examples:
Expression Description .* Matches all paths. .*logo.* Matches anything containing ‘logo’ (case sensitive) .*[lL][oO][gG][oO].* Matches anything containing ‘logo’ (case insensitive) .*.[jJ][pP][gG] Matches anything ending with .jpg where jpg is case insensitive. .*.JPG|.*.jpg Matches all paths ending with either ‘.jpg’ or with ‘.JPG’. .*d.* Matches all paths containing at least one digit. .*[[:digit:]].* Same as above. .*[[:xdigit:]].* Matches all paths containing at least one hexadecimal digit. .*l.* Matches all paths containing at least one lower case character. .*[[:lower:]].* Same as above. .*u.* Matches all paths containing at least one upper case character. .*[[:upper:]].* Same as above. .*s.* Matches all paths containing at least one white space character. .*[[:space:]].* Same as above. .*[[:blank:]].* Matches all paths containing at least one non-line-separating whitespace. .*[[:word:]].* Matches all paths containing at least one word character (alphanumeric characters plus the underscore). .*[[:w:]].* Same as above. .*[[:graph:]].* Matches all paths containing at least one graphical character. .*[5-7].* Matches all paths containing at least one of the digits 5, 6 or 7.
